uPAC-7186/I-7188

The I-7188EA CR is a compact programmable automation controller that combines an Ethernet port, a serial RS-232/RS-485 pair and built-in digital I/O in one DIN-rail unit. It runs the built-in MiniOS7 operating system and is programmed in C, which suits engineers who want local control logic without a separate PLC.Built-in digital I/O comprises 6 digital inputs, which accept dry or wet contacts, and 7 open-collector outputs rated at 100 mA and up to +30 VDC. The Ethernet port is 10BASE-T, and the 512 KB Flash, 2 KB EEPROM and 512 KB SRAM provide storage for application code and data.Vendor Modbus libraries and the XServer tool kit are supplied to bridge serial devices onto Ethernet. The source names Indusoft, DasyLab and iFix among SCADA packages the unit can communicate with over the standard Modbus protocol. This Blue Cover ordering variant is RoHS compliant.ApplicationsIntegrating serial devices into Ethernet/Internet networksModbus communication with SCADA softwareLocal digital I/O control and monitoring in industrial automation

I-7188EAD CR is a compact programmable automation controller for bridging serial devices onto Ethernet. It combines an 80188-40 CPU running the built-in MiniOS7 with 6 digital inputs, 7 open-collector outputs, a 10BASE-T Ethernet port and both RS-232 and RS-485 serial interfaces in a DIN-rail housing.Engineers can develop custom logic in C using the supplied software development tool kits. Serial devices can be integrated into Ethernet and internet networks, and the controller can communicate with SCADA packages over the standard Modbus protocol, using the XServer and Modbus libraries provided.The blue cover version (CR suffix) is the RoHS-compliant variant of the I-7188EAD, with a 5-digit 7-segment LED display for local status indication and a built-in watchdog timer to support unattended operation.ApplicationsIntegrating serial RS-232/RS-485 devices into Ethernet and internet networksModbus-based communication with SCADA softwareLocal digital input monitoring and open-collector output switchingCustom control logic programmed in C on a compact controller

I-7188EX CR is a compact programmable automation controller built around an 80188-40 CPU and the MiniOS7 operating system. It combines a 10BASE-T Ethernet port with RS-232 and RS-485 serial interfaces, so it can bridge serial field devices onto an Ethernet network and act as a Modbus-based link to SCADA software.Application development uses the C language toolkit supplied with MiniOS7, including Modbus libraries. The unit provides 512 KB of flash, 512 KB of SRAM and 2 KB of EEPROM, a real-time clock, a watchdog timer and a 64-bit hardware serial number for device identification.Hardware can be extended through a single I/O expansion bus, which accepts one X-board. The source documentation references more than 50 compatible boards offering analogue, digital and serial functions. The blue-cover CR ordering code is the standard variant offered here.ApplicationsIntegrating serial devices into Ethernet and Internet networksModbus communication with SCADA systemsStand-alone programmable control with local I/O expansion

I-7188XC-512 is a compact programmable automation controller for engineers who need a PC or PLC style controller in a small, DIN-rail mounted package for harsh industrial settings. It runs the MiniOS7 operating system and is programmed in C.Built-in digital I/O, comprising 2 dry contact inputs and 3 open-collector outputs, together with two serial ports and an I/O expansion bus, lets you tailor the controller to your application. A programmable system LED and a built-in watchdog timer support dependable operation. The blue cover identifies this ordering variant.Because the controller can be built into an OEM product as a processor core, it suits designs where time to market, development cost and technical risk need to be kept under control. Listed certifications are CE, UKCA, FCC, RoHS and WEEE.ApplicationsReplacing PC or PLC devices in harsh environmentsPalm-size embedded control systemsOEM processor core for integrated products

Ethernet PAC with 80188-20 CPU, MiniOS7, 512KB SRAM, RTC, 2 Serial Ports, 2 DI, 3 DO and 1 I/O Bus and 7-Segment LED Display (Gray Cover).

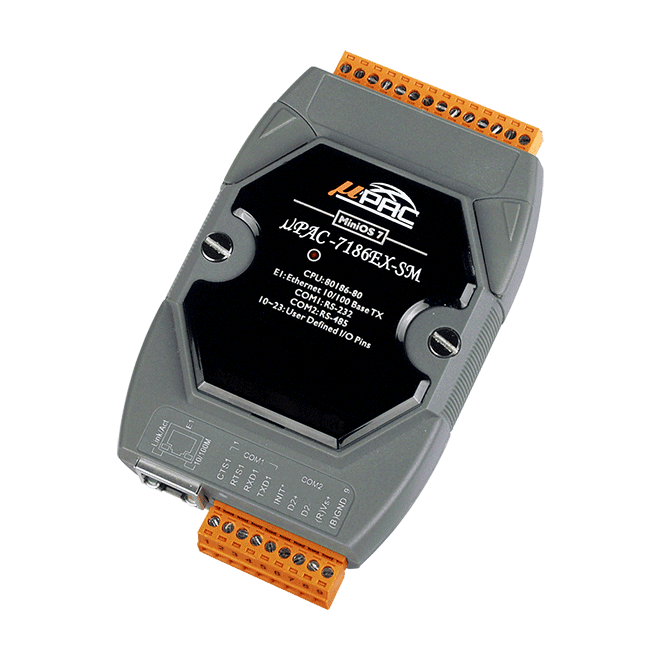

The uPAC-7186EX-SM-G is a palm-size programmable automation controller built around an 80186-80 CPU and the MiniOS7 real-time framework. It combines a 10/100 Base-TX Ethernet port with RS-232 and RS-485 serial ports, so it can act as a gateway between serial field devices and Ethernet or Internet-connected systems.Programming is done in C using the MiniOS7 software development tool kits, with Modbus libraries provided for communication. Data can be exposed to SCADA packages over standard Modbus, and an I/O expansion bus allows one X-board to add analogue, digital or serial I/O.This ordering code is the gray cover version of the uPAC-7186EX-SM. Choose it when you need the same controller hardware in a gray housing, with the RoHS-compliant build sold under this code.ApplicationsIntegrating serial devices into Ethernet and Internet communication networksModbus communication with SCADA softwareProgrammable local control with I/O expansion

uPAC-7186EXD-FD-G CR is a programmable automation controller built around an 80186-80 CPU and the MiniOS7 framework from ICP DAS. It bridges serial devices to Ethernet, letting engineers connect RS-232 and RS-485 equipment to a network with minimal development effort.The unit combines a 10/100 Base-TX Ethernet port with one RS-232 and one RS-485 port, and offers 512 KB of Flash, 16 KB of EEPROM and 64 MB of NAND Flash for program and data storage. Application code is written in C using the supplied development tool kits, and the standard Modbus protocol allows it to communicate with common SCADA packages.Hardware can be extended through the I/O expansion bus, which accepts a single X-board, selected from the more than 50 boards listed for this controller. A 5-digit 7-segment LED display, a watchdog timer and a 64-bit hardware serial number support local status indication and system reliability.ApplicationsConnecting serial devices to Ethernet and Internet networksModbus-based data exchange with SCADA systemsSerial-to-Ethernet control and data acquisition with hardware expansion via X-board

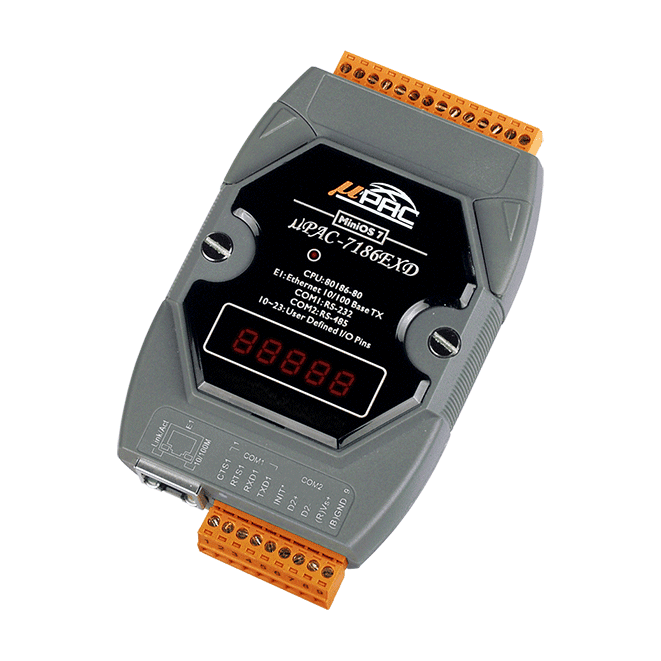

The uPAC-7186EXD-G CR is a palm-size programmable automation controller that brings serial devices onto Ethernet. Its built-in MiniOS7 framework and C language development tool kits let engineers add Ethernet and Internet communication to RS-232 or RS-485 equipment without building the networking layer themselves. This gray cover version carries the same controller hardware as the standard unit.Software support includes Modbus libraries, so connected devices can be exposed through the standard Modbus protocol to SCADA packages such as Indusoft, DasyLab, Citect and iFix. Storage comprises 512 KB of flash and 16 KB of EEPROM, and a 5-digit 7-segment LED display gives local status readout.An I/O expansion bus accepts one X-board for added analogue, digital or serial I/O. The unit is powered from +10 ~ 30 VDC, draws 2.5 W, and is designed for DIN-rail mounting over an operating range of -25 ~ +75 °C.ApplicationsConnecting serial RS-232/RS-485 devices to Ethernet networksModbus communication with SCADA and HMI softwareStandalone control and data handling in automation panelsHardware expansion through the I/O expansion bus

The uPAC-7186EXD-SM-G is a compact programmable automation controller for engineers who need to bring serial equipment onto Ethernet. It pairs an 80186-class CPU running at 80 MHz with the MiniOS7 framework, so application code can be written in C using ICP DAS development tools.Connectivity covers one 10/100 Base-TX Ethernet port and both RS-232 and RS-485 serial ports, with serial speeds up to 115200 bps. Standard Modbus libraries are provided, allowing the controller to be polled or read by SCADA packages such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix. An I/O expansion bus accepts one X-board, and more than 50 expansion boards are listed for this platform.This gray-cover variant is supplied with 512 KB flash, 16 KB EEPROM and 640 KB SRAM, plus a real-time clock, watchdog timer and 64-bit hardware serial number. It is rated for -25 to +75 °C operation and mounts on a DIN rail. Status is shown on a five-digit 7-segment LED display and system indicators.ApplicationsAdding Ethernet connectivity to existing serial devicesModbus-based data exchange with SCADA softwareDistributed local control and data acquisition on a DIN railExpanding I/O functions through a single expansion board

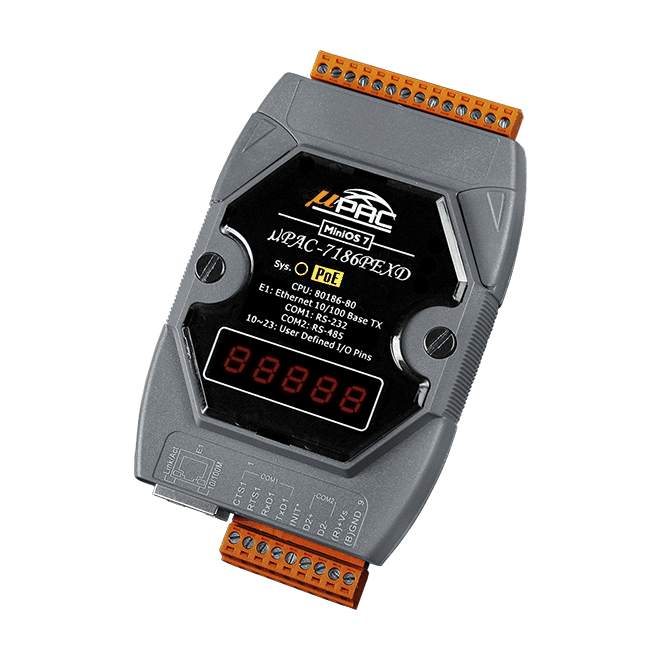

The uPAC-7186PEXD-G is a compact programmable automation controller for engineers who need to bring serial devices onto Ethernet without building a full PLC system. It pairs an 80186-compatible CPU running at 80 MHz with the built-in MiniOS7 framework, so application code written in C can run directly on the controller.Connectivity centres on one 10/100 Base-TX Ethernet port and two serial ports, RS-232 and RS-485. Two dry contact digital inputs and two open-collector digital outputs cover simple discrete signalling, and an I/O expansion bus interface allows one X-board to add further I/O functions. Power can be taken from a PoE source over a standard Category 5 cable, or from a +12 ~ 48 VDC supply.The unit includes a 5-digit 7-segment LED display, a system/PoE status LED, a real-time clock, a watchdog timer and a 64-bit hardware serial number. It is intended for DIN-rail mounting and operates from -25 ~ +75 °C.ApplicationsAdding Ethernet and Internet connectivity to serial devicesModbus communication with SCADA softwareDistributed local control with DIN-rail mounted I/O expansionRemote data collection in industrial environments with PoE power
