iP-8000/I-8000

The I-8411 CR is a 4-slot serial embedded controller built around an 80188-40 CPU and the DOS-like MiniOS7 operating system. Its four slots accept I-8K and I-87K series I/O modules, so engineers can assemble a control node sized to the job, covering digital, analog, counter/frequency and motion modules.Four serial COM ports, comprising two RS-232 ports, one RS-485 port and one RS-232/RS-485 port, support remote data acquisition and control. Battery-backed S-256 or S-512 SRAM modules add data logger storage.This blue-cover variant includes a 5-digit seven-segment display, four push buttons and an 8-bit DIP switch for addressing. It runs from a +10 ~ 30 VDC supply, draws 3.9 W and is rated for operation at -25 ~ +75 °C. It mounts on DIN-rail or wall.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

The I-8411-G CR is a DOS-like embedded controller for distributed data acquisition and control. It runs the MiniOS7 operating system on an 80188 or compatible CPU at 40 MHz, and MiniOS7 boots in a very short time, typically 0.4 to 0.8 seconds. Built-in hardware diagnostics and a watchdog timer help keep unattended installations running.Four slots accept I-8K and I-87K series modules, so the controller can be configured for digital, analogue, counter/frequency and motion I/O. Four serial ports provide two RS-232 ports, one RS-485 port and one port selectable between RS-232 and RS-485, suited to remote monitoring and control links. The CR suffix denotes the gray cover.With S-256 (256 KB) or S-512 (512 KB) battery-backed SRAM, the controller can provide data logger storage. The unit is rated for an operating temperature of -25 ~ +75 °C and can be mounted on a DIN rail or on a wall.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

I-8431 CR is a 4-slot Ethernet embedded controller that runs the MiniOS7 operating system, a DOS-like embedded OS, on an 80188-compatible CPU clocked at 40 MHz. It accepts I-8K and I-87K series I/O modules in its four slots, making it a compact choice for distributed data acquisition and control.The controller provides one RJ-45 Ethernet port and three serial COM ports, two RS-232 and one RS-232/RS-485. Its built-in watchdog timer, 64-bit hardware serial number and input protection circuitry support reliable operation in the field. The CR ordering code is the blue-cover version of the I-8431.Optional S-256 or S-512 battery-backed SRAM accessories add data logger storage. Typical deployments include environment monitoring, power management and factory automation.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

I-8431-80 CR is a 4-slot Ethernet embedded controller built around an 80186-compatible 16-bit, 80 MHz CPU. It runs the MiniOS7 embedded operating system, which has a DOS-like environment and boots in 0.4 to 0.8 seconds, and it supports the I-8K and I-87K series I/O modules in its four slots, including DI, DO, DIO, AI, AO, counter/frequency and motion modules.The unit combines an RJ-45 10Base NE2000 compatible Ethernet port with three serial COM ports (two RS-232 and one RS-232/RS-485). An XServer library simplifies TCP/IP application development, and the included demo programs help engineers complete the remaining Ethernet functionality. The blue cover version is listed under this ordering code.Diagnostics include a built-in watchdog, a 64-bit hardware serial number for software protection and input protection circuitry. Optional S-256 or S-512 battery-backed SRAM modules add data logger storage. The controller operates from +10 to 30 VDC and across -25 to +75 °C, and mounts on a DIN rail or a wall.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automationData logging with optional battery-backed SRAM

The I-8431-80-G CR is a DIN-rail or wall-mounted controller that combines an Ethernet connection, three serial COM ports and four expansion slots in one unit. Its 16-bit 80186-class processor runs at 80 MHz and executes the MiniOS7 operating system, so it suits engineers who need a compact, deterministic controller for distributed I/O.The MiniOS7 environment provides access to the full range of I-8K and I-87K series modules, covering digital, analogue, counter and motion functions. Built-in hardware diagnostics, a watchdog timer and a real-time clock support unattended operation. The gray cover distinguishes this ordering code from the other variants in the series.Remote data acquisition and controlEnvironment monitoringPower managementFactory automationApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

The I-8431-G CR is an Ethernet embedded controller that hosts up to four I-8K or I-87K I/O modules in a single unit. Its MiniOS7 operating system gives engineers a familiar DOS-like environment with fast boot times, and the controller supports the full range of 8K and 87K modules, including DI, DO, DIO, AI, AO, counter/frequency and motion modules.The gray-cover (G) variant is equipped with one RJ-45 Ethernet port and three COM ports, two RS-232 and one RS-232/RS-485, so it can communicate with remote hosts and field devices over both network and serial links. Built-in hardware diagnostics, a watchdog timer and a 64-bit hardware serial number support reliable operation and software protection.Optional S-256 or S-512 battery-backed SRAM modules add data logger storage. Software is developed in C, and the controller suits remote monitoring and control tasks in environmental monitoring, power management and factory automation.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automationData logging with optional battery-backed SRAM

I-8811 CR is an 8-slot serial embedded controller built around an 80188-40 CPU running the MiniOS7 embedded operating system, which has a DOS-like command structure and boots in 0.4 to 0.8 seconds. It gives engineers a compact controller that can access the full range of I-8K and I-87K series I/O modules, including DI, DO, DIO, AI, AO, counter/frequency and motion modules.The controller provides four serial ports (two RS-232, one RS-485 and one switchable RS-232/RS-485), a 64-bit hardware serial number for software protection, a built-in watchdog and a hardware diagnostic function. Software is developed in C language. This ordering code is the blue cover version.Designed for remote data acquisition and control, the I-8811 CR suits environmental monitoring, power management and factory automation. When fitted with an S-256 (256 KBytes) or S-512 (512 KBytes) battery backup SRAM, it also provides data logger storage. The unit operates from +10 to 30 VDC across -25 to +75 °C.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automationData logging with battery backup SRAM (S-256 or S-512)

The I-8811-G CR is an 8-slot embedded controller built around an 80188-40 CPU and the MiniOS7 DOS-like operating system. It accepts the full range of I-8K and I-87K I/O modules, including digital, analogue, counter/frequency and motion types, so one controller can be configured for a mixed I/O set in a single DIN-rail or wall-mounted unit.Four serial COM ports (two RS-232, one RS-485 and one switchable RS-232/RS-485) make it suitable for remote data acquisition and control. Battery-backed S-256 or S-512 SRAM modules add data logging storage, and a built-in watchdog and hardware diagnostics help support unattended operation.This gray-cover variant is rated for an operating range of -25 ~ +75 °C and runs from a +10 ~ 30 VDC supply. It is typically used for environmental monitoring, power management and factory automation.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automation

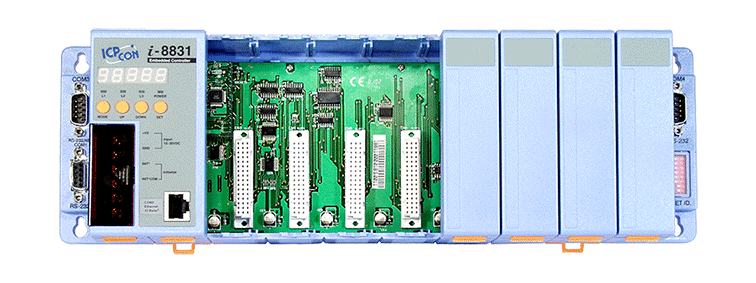

I-8831 CR is an 8-slot Ethernet embedded controller built around an 80188-40 CPU and the MiniOS7 embedded operating system, which the source describes as DOS-like. MiniOS7 boots in 0.4 ~ 0.8 second and includes built-in hardware diagnostics, so the controller can be deployed where a compact, programmable station with local I/O expansion is needed.The controller accepts I-8K and I-87K series modules across its eight slots, covering digital, analogue, counter/frequency and motion functions. An Ethernet RJ-45 port and three serial ports give engineers network access and serial device connectivity from a single unit. The XServer library is supplied to simplify TCP/IP program development, and the controller can be fitted with optional S-256 or S-512 battery-backed SRAM for data logging.The blue cover version is supplied with the CR ordering suffix. The unit is rated for an operating temperature of -25 ~ +75 °C and can be mounted on a DIN-rail or wall.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

I-8831-80 CR is an 8-slot Ethernet embedded controller built around an 80186-80 CPU and the MiniOS7 DOS-like embedded operating system. It is intended for engineers who need a compact, networked controller to drive a modular I/O stack from a single unit, with the slots accepting I-8K and I-87K series modules.The controller provides one RJ-45 Ethernet port alongside three serial COM ports, two RS-232 and one switchable RS-232/RS-485, so it can connect to both network and serial field devices. MiniOS7 boots in 0.4 to 0.8 seconds and includes built-in hardware diagnostics. Software is developed in C, and a 64-bit hardware serial number supports software protection.Battery-backed SRAM modules, the S-256 (256 KB) and S-512 (512 KB), can be fitted as optional accessories to add data logger storage. The unit is suited to remote data acquisition and control, including environmental monitoring, power management and factory automation.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automation

The I-8831-80-G CR is an Ethernet embedded controller with eight slots for I-8K and I-87K I/O modules. It runs MiniOS7, a DOS-like embedded operating system that starts in 0.4 to 0.8 seconds and includes built-in hardware diagnostics. Modules for digital and analogue I/O, counter and frequency, and motion control are all supported.For TCP/IP development, the controller provides the XServer library, which covers most of the Ethernet communication functions. The bundled demo programs help engineers complete the remaining application-specific code quickly. The three serial COM ports, two RS-232 and one RS-232/RS-485, support remote data acquisition and control.Optional S-256 (256 KB) or S-512 (512 KB) battery-backed SRAM modules add data logger storage. Both are sold separately as accessories.ApplicationsEnvironment monitoringPower managementFactory automationRemote data acquisition and control

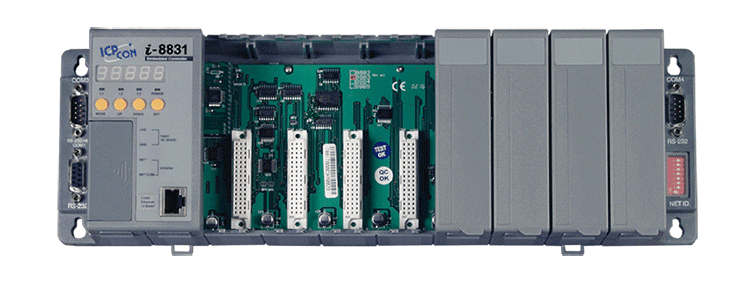

The I-8831-G CR is an Ethernet embedded controller that hosts up to eight I-8K and I-87K I/O modules in a single DIN-rail or wall-mounted unit. It runs the DOS-like MiniOS7 operating system, which boots in 0.4 to 0.8 seconds and includes built-in hardware diagnostics. Support covers DI, DO, DIO, AI, AO, counter/frequency and motion modules.Software development is done in C, and the bundled XServer library handles much of the TCP/IP plumbing so that engineers can concentrate on the application-specific logic. The unit also provides a 64-bit hardware serial number for software protection and a built-in watchdog for unattended operation.Connectivity comprises one RJ-45 Ethernet port and three COM ports, two RS-232 and one RS-232/RS-485. Optional S-256 or S-512 battery-backed SRAM modules add data logger storage. The unit suits remote data acquisition and control tasks in environment monitoring, power management and factory automation.ApplicationsRemote data acquisition and controlEnvironment monitoringPower managementFactory automation

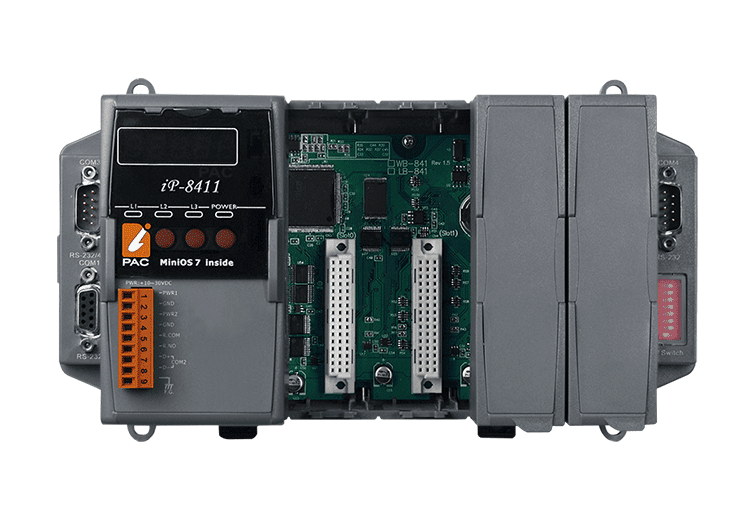

iP-8411 CR is an embedded controller built around the MiniOS7 DOS-like operating system, which boots in 0.4 ~ 0.8 second. Its backplane offers four slots for I-8K and I-87K series I/O modules, covering DI, DO, DIO, AI, AO, counter/frequency and motion modules, so one controller can be configured to suit a range of field signals.The unit provides four serial COM ports, two RS-232, one RS-485 with 3000 VDC isolation and one switchable RS-232/RS-485, for remote data acquisition, environmental monitoring, power management and factory automation. Redundant power inputs carry 1 kV isolation against noise and surges, and the rated operating range of -25 ~ +75 °C suits harsh industrial sites. The CR ordering code is the RoHS variant named in the product description.Programming uses a C language software development toolkit that includes TCP/IP and Modbus libraries, with 512 KB Flash, 16 KB EEPROM and a microSD slot for storage expansion of up to 32 GB.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automationIndustrial monitoring, measurement and control

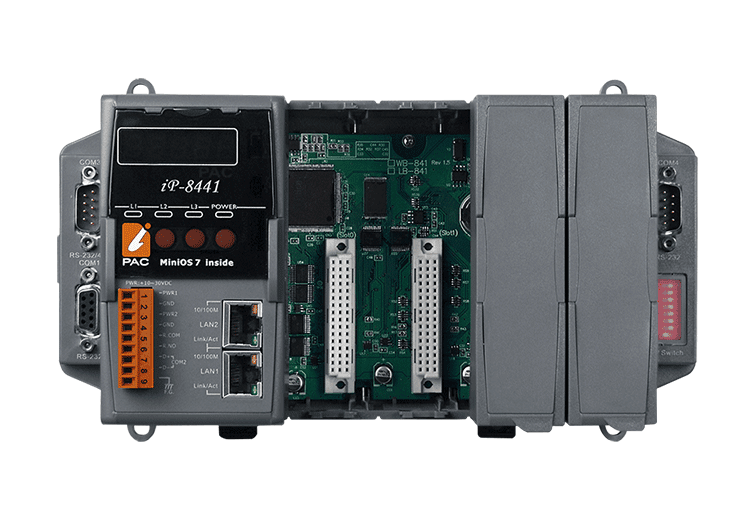

iP-8441 CR is an embedded Ethernet PAC built around an 80186-compatible, 80 MHz CPU and the DOS-like MiniOS7 operating system. Its backplane takes four I-8K or I-87K series I/O modules, so digital, analogue, counter/frequency and motion modules can be combined in one controller for remote data acquisition and control.Connectivity is covered by two RJ-45 10/100 Base-TX Ethernet ports and four serial ports, three of which are RS-232 or RS-485 and one RS-232-only. A C language development toolkit with TCP/IP and Modbus libraries, plus demo programs, helps shorten the time needed to build network applications. Storage includes 512 KB flash, 16 KB EEPROM and a microSD slot supporting up to 32 GB.The controller accepts redundant +10 ~ 30 VDC power inputs with 1 kV isolation and operates from -25 ~ +75 °C, making it suited to monitoring, measurement and control in harsh environments. The CR ordering suffix denotes the RoHS-compliant version.ApplicationsIndustrial monitoring, measurement and controlRemote data acquisition and controlEnvironmental monitoringPower managementFactory automation

The iP-8811 is an embedded controller built around the MiniOS7 DOS-like operating system, which boots in roughly 0.4 to 0.8 seconds. Its eight-slot backplane accepts I-8K and I-87K series modules, covering digital, analogue, counter/frequency and motion functions, so one controller can be configured for a wide range of I/O mixes.Four serial ports (RS-232 and RS-485) make the iP-8811 suitable for remote data acquisition and control tasks. Redundant power inputs with 1 kV isolation help protect the unit against noise and surges, and the rated operating range of -25 to +75 °C suits harsh industrial sites.Software is developed in C using the included toolkit, which provides TCP/IP and Modbus libraries. Program storage is 512 KB of Flash, with 16 KB of EEPROM and a microSD slot supporting up to 32 GB for additional storage. The unit mounts on DIN-rail or wall.ApplicationsRemote data acquisition and controlEnvironmental monitoringPower managementFactory automationIndustrial monitoring, measurement and control

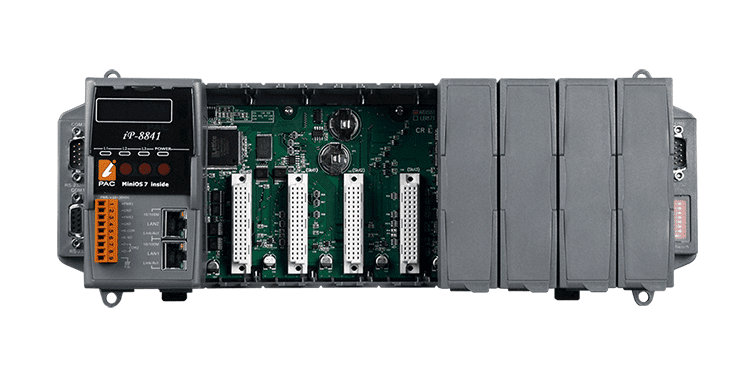

iP-8841 CR is an embedded controller built around an 80186-class CPU running at 80 MHz and the DOS-like MiniOS7 operating system. MiniOS7 boots in roughly 0.4 to 0.8 seconds, so the controller is ready quickly after power-up. The eight-slot backplane accepts I-8K and I-87K series I/O modules, covering digital, analogue, counter/frequency and motion functions, which lets you tailor the I/O count to the application.For connectivity, the controller provides two 10/100 Base-TX Ethernet ports and four serial COM ports, including RS-232 and RS-485 options, suited to remote data acquisition and control. Software is developed in C using the supplied toolkit, which includes TCP/IP and Modbus libraries and an XServer library with demo programs to speed up network application development.The unit has redundant power inputs with 1 kV isolation and an operating range of -25 ~ +75 °C, making it suitable for monitoring, measurement and control in harsh industrial environments. This ordering code corresponds to the RoHS-listed variant.ApplicationsIndustrial monitoring, measurement and controlRemote data acquisition and controlEnvironmental monitoringPower managementFactory automation

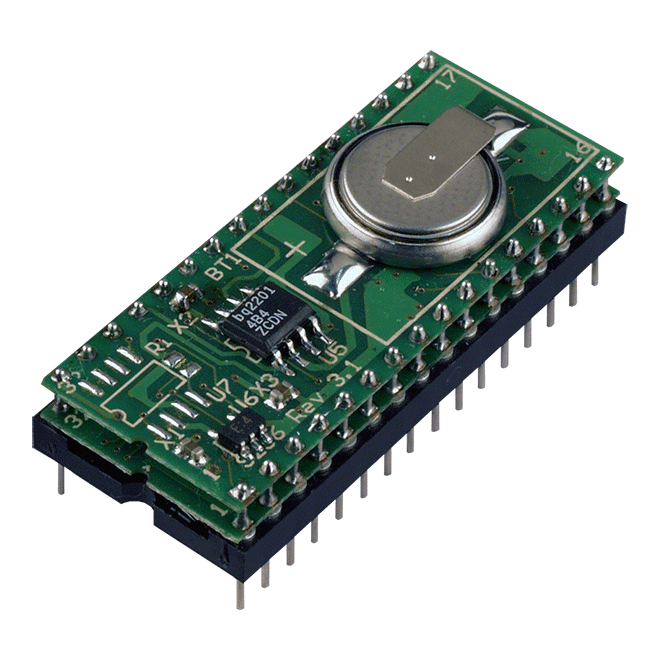

The S256 adds 256 KB of battery backed SRAM to the I-8000 embedded controller family, giving engineers non-volatile style storage for data that must survive power interruptions.The module is supplied as a CPU module option and is listed under the iP-8000/I-8000 range within the MiniOS7 PAC series. It is rated to provide 10,000 hours of backup time and is RoHS compliant.Choose the S256 when a project needs retained SRAM storage on an I-8000 controller and the stated 10,000-hour backup period meets the application's requirements.ApplicationsRetaining data in I-8000 embedded controllers during power interruptions

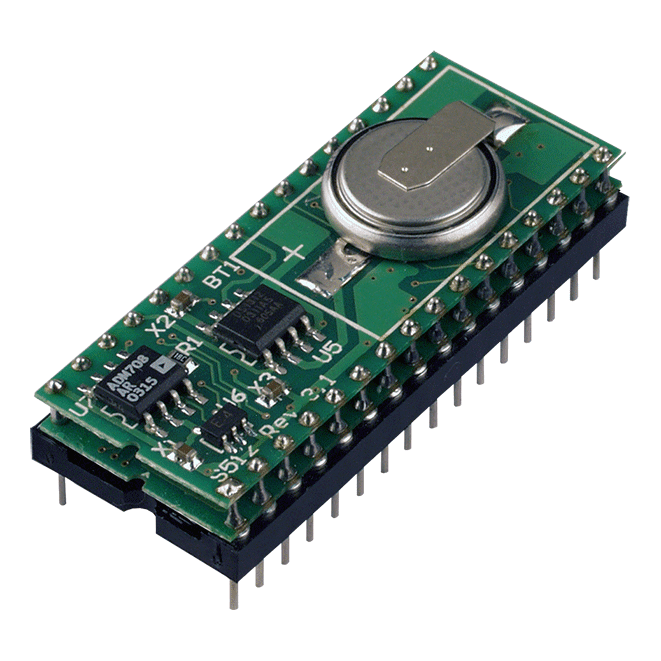

S512 is a 512 KB battery backup SRAM module designed for use with the I-8000 embedded controller series. It adds battery-backed memory to the controller so that stored data can be kept through power interruptions.The module is rated for 10,000 hours of backup time, which is the main specification to check when planning data retention. It is listed as RoHS compliant and belongs to the MiniOS7 PAC range within the iP-8000/I-8000 family.512 KB battery-backed SRAM capacityDesigned for I-8000 embedded controllersRated for 10,000 hours of backup timeApplicationsRetaining data in I-8000 embedded controller systems during power interruptions
