D-sub Cable

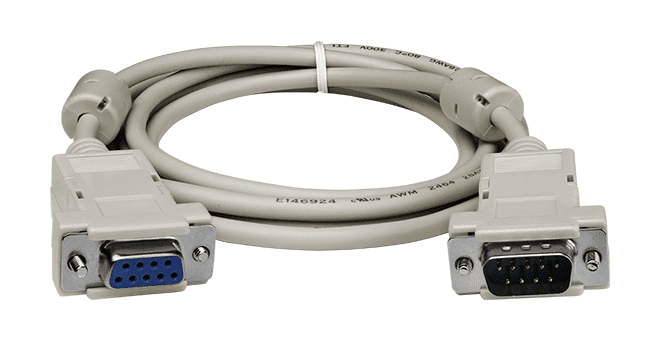

CA-0918-3W is a 1.8 m DB9 male to DB9 female cable for RS-232 serial links. Only pins 2, 3 and 5 are wired, so it carries the standard RS-232 signals between two DB9 serial ports.The cable is fully shielded to reduce interference from EMI and RFI, and a ferrite core is fitted to further suppress unwanted noise. It suits engineers who need a short, clean serial extension or connection between DB9 equipped devices.Fully shielded construction against EMI/RFI interferenceFerrite core fitted for noise suppressionRS-232 wiring on pins 2, 3 and 5DB9 male to DB9 female connectors1.8 m lengthRoHS and WEEE certifiedApplicationsRS-232 serial connections between DB9 equipped devices

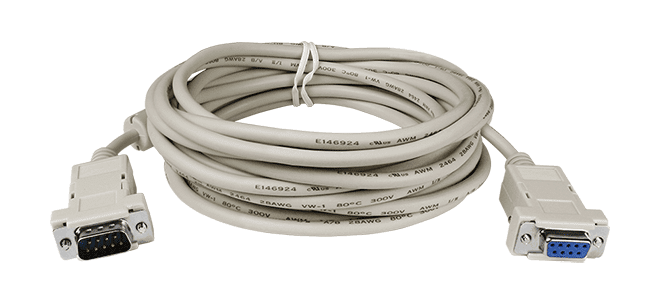

The CA-0950-3W is a 5 m DB9 male to DB9 female cable for RS-232 serial links. It is wired on pins 2, 3 and 5 as specified in the product description, so it suits point-to-point serial connections where those signals are used.Full shielding helps protect the signal lines against unwanted EMI and RFI interference. The integrated ferrite core adds further suppression of high-frequency noise, which is useful in cabinets and installations with nearby switching equipment.Fully shielded construction for EMI/RFI protectionFerrite core fitted for noise suppressionRS-232 wiring on pins 2, 3 and 55 m lengthRoHS and WEEE certified
