Machine Automation

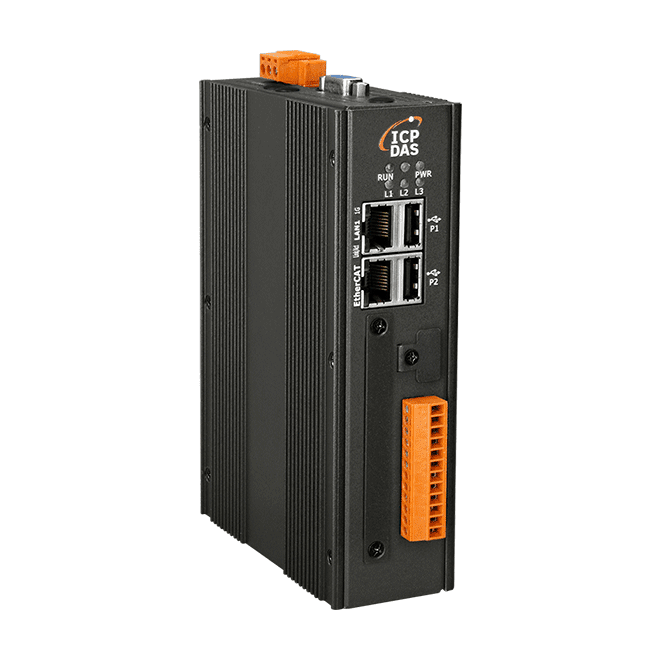

The EMP-2848M CR is a compact programmable automation controller that combines a SoftPLC with an integrated multi-axis motion control kernel, built around a configurable EtherCAT master. It suits small and medium-sized motion projects where installation space and cost are the limiting factors.A quad-core Cortex-A53 processor running at 1.6 GHz and Real-Time Linux (RT-Preempt, Kernel 4.14.98) provides deterministic execution for motion tasks. The EtherCAT master updates up to 128 slaves, including 16 servo or stepper drives, within a 500 μs cycle time, and can connect to standard third-party EtherCAT slaves such as I/O, drives and encoders.Programming is carried out in Win-GRAF, which supports all five IEC 61131-3 languages (SFC, ST, FBD, LD and IL) and allows several languages in one project. The integrated web server assists with EtherCAT network configuration, diagnostics and testing of motion functions.ApplicationsSmall and medium-sized motion control applications where cost and space are key factorsMulti-axis control of servo and stepper drives over EtherCATEtherCAT networks with I/O, encoders and other third-party slaves

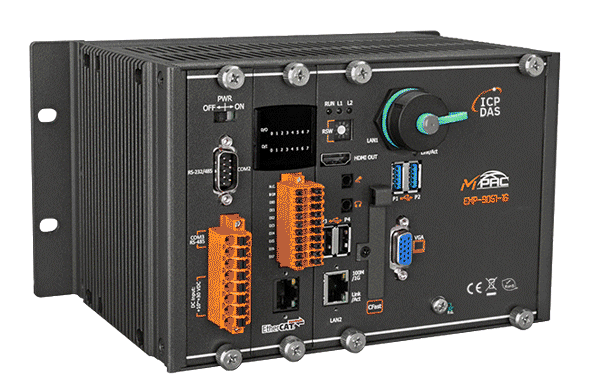

The EMP-9051-16 CR combines a Windows 10 IoT Enterprise PAC, an EtherCAT Master and an operator interface in a single metal housing. It is intended for engineers who want HMI, data acquisition and motion control running on one platform, with up to 16 axes of EtherCAT control and up to 512 nodes.Motion features include synchronised motion (E-GEAR and E-CAM), virtual axes and multi-axis linear interpolation, with circular interpolation for any 2 or 3 axes and helical interpolation for any 3 axes. A second CPU supports EtherCAT communication retention, so EtherCAT communication and process recipes are maintained even if the OS or a program crashes.On the I/O side the unit provides 8 wet-contact digital inputs and 8 open-collector sink digital outputs, both isolated at 3000 VDC or Vrms. It also offers two 10/100/1000 Mbit/s Ethernet ports, four USB 2.0 ports, an RS-485 port and an RS-232/RS-485 port, VGA and HDMI display output, and redundant 19 to 30 VDC power inputs.ApplicationsMachine automation with multi-axis EtherCAT motion controlIntegrated HMI, data acquisition and control in a single PACSynchronised motion applications using electronic gearing and cam profiles

The EMP-9051-32 CR is a Windows 10 IoT based programmable automation controller with an EtherCAT master for up to 32 axes. Its Intel Core i5-8365UE processor, 16 GB DDR4 memory and 128 GB mSATA SSD let control, HMI and data acquisition run on a single unit, without expansion slots, so it suits compact motion-control panels built around EtherCAT drives and I/O.Motion features include synchronised E-GEAR and E-CAM motion, virtual axes, multi-axis linear interpolation and a coupled control system. A second CPU supports EtherCAT communication retention, which is intended to keep EtherCAT communication and process recipes running if the OS or a program crashes.8 digital inputs (wet contact, 3000 VDC isolation)8 open-collector digital outputs, sink type, 100 mA per channelDual 10/100/1000 Mbit/s Ethernet, 4 x USB 2.0, RS-485 and isolated RS-232/RS-485 portsVGA and HDMI display outputs for local operator screensApplicationsMulti-axis motion control with EtherCAT drives and I/OIntegrating HMI, data acquisition and control in one PACSynchronised and coordinated axis movements such as linear and multi-axis interpolation

The EMP-9058-16 CR is a SoftPLC-based motion controller that runs a PLC, multi-axis motion logic and Windows applications side by side. Its EtherCAT master and motion engine run on a dedicated processor in a real-time environment, so control timing stays deterministic while Windows software such as HMIs or data processing tools operates alongside it.Programming follows IEC 61131-3, with FBD, LD, IL, ST and SFC available, and motion function blocks based on PLCopen and CiA402. The controller is rated for 16 axes in this ordering code, with a 0.5 ms cycle time specified for the series. Modbus TCP/RTU and an OPC UA server are built into the PLC runtime, so the unit can act as a Modbus/EtherCAT gateway or connect directly to standard OPC UA clients.This variant uses the Intel Core i5-8365UE processor with 16 GB DDR4 memory and has no expansion slots. Its 8 digital inputs and 8 open-collector outputs are provided on board, and it is suited to machine-builders and system integrators who need a compact, metal-housed controller for control panels or machine cabinets.ApplicationsMulti-axis machine motion control with EtherCAT servo or stepper drivesMachine-builder and OEM automation with in-house or third-party Windows HMIsData gathering and processing alongside PLC controlConnecting machines to SCADA or cloud systems via OPC UAModbus network integration as a Modbus/EtherCAT gateway

EMP-9058-32 CR is a Win-GRAF SoftPLC motion controller that runs EtherCAT motion control for up to 32 axes on an Intel Core i5-8365UE processor. The motion engine and EtherCAT master run on a dedicated processor in a real-time environment, giving time-deterministic control with a 0.5 ms cycle time.The controller runs Windows 10 IoT Enterprise alongside the PLC runtime, so PLC logic, motion control and in-house or third-party Windows applications such as HMIs or data processing tools can operate side by side. Programming interfaces and shared memory let Windows software access PLC data directly.This variant has no expansion slots, so I/O is limited to the onboard 8 digital inputs and 8 open-collector outputs, with the serial, Ethernet and USB ports provided on the unit. Choose this ordering code when you need the 32-axis controller in its base configuration, with the RS-485 and RS-232/RS-485 serial ports and the built-in OPC UA server.ApplicationsMulti-axis machine automation with single-axis and multi-axis movements and interpolationMachine-builder control systems combining PLC logic with Windows-based HMI and data gatheringVertical and horizontal OPC UA communication with SCADA, cloud and other machinesModbus network integration as a Modbus/EtherCAT gateway

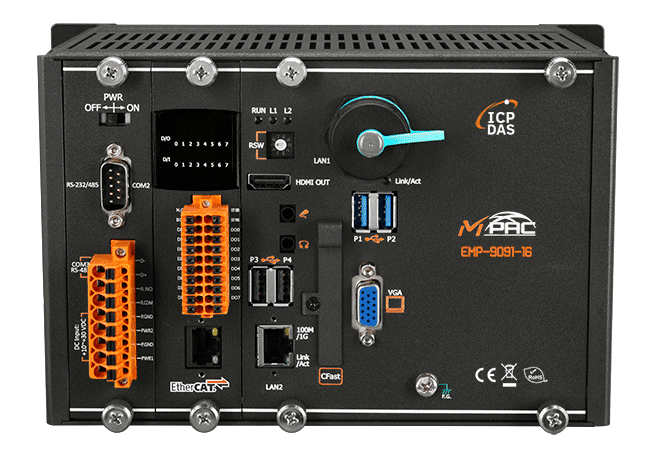

The EMP-9091-16 CR is a Windows 10 IoT based programmable automation controller with an EtherCAT Master pre-installed, supporting up to 16 axes. It brings computing, I/O and operator interface into a single unit, which suits engineers combining HMI, data acquisition and motion control in one compact controller.This variant uses an Intel Atom E3950 CPU with 8 GB DDR4 SDRAM. Motion features include synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation. A second CPU supports EtherCAT communication retention, aimed at keeping EtherCAT communication and process recipes running if the OS or a program crashes.Up to 16 EtherCAT axes and 512 nodes8 wet-contact digital inputs and 8 open-collector sink digital outputs, both 3000 V isolatedDual RJ-45 10/100/1000 Mbit/s Ethernet ports and 4 USB 2.0 portsRedundant power inputs, +19 ~ 30 VDCApplicationsMulti-axis motion control with EtherCAT drivesCombined HMI, data acquisition and control in a single PACMachine automation

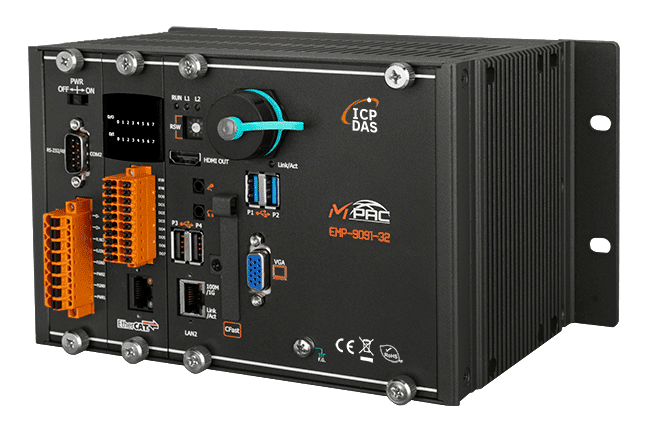

The EMP-9091-32 CR is a Windows 10 IoT based programmable automation controller with an EtherCAT Master pre-installed, supporting up to 32 axes. It combines computing, I/O and operator interface in a single DIN-rail or wall-mounted unit, which suits engineers who need HMI, data acquisition and motion control in one compact PAC.This variant uses an Intel Atom E3950 CPU with 8 GB DDR4 SDRAM, paired with a 128 GB mSATA SSD and a CFast card slot. Motion features include synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation. A second CPU supports EtherCAT communication retention, so EtherCAT communication and process recipes can continue even if the OS or program crashes.Connectivity includes two 10/100/1000 Mbps Ethernet ports, VGA and HDMI outputs, four USB 2.0 ports, one RS-485 and one RS-232/RS-485 port (both 3000 VDC isolated), and 8 wet-contact digital inputs and 8 open-collector sink digital outputs. The unit accepts +19 ~ 30 VDC input with redundant power inputs and is rated for operation from -25 ~ +60 °C.ApplicationsMulti-axis motion control with EtherCAT servo and I/O nodesIntegrated HMI and control in a single PACData acquisition and machine automation

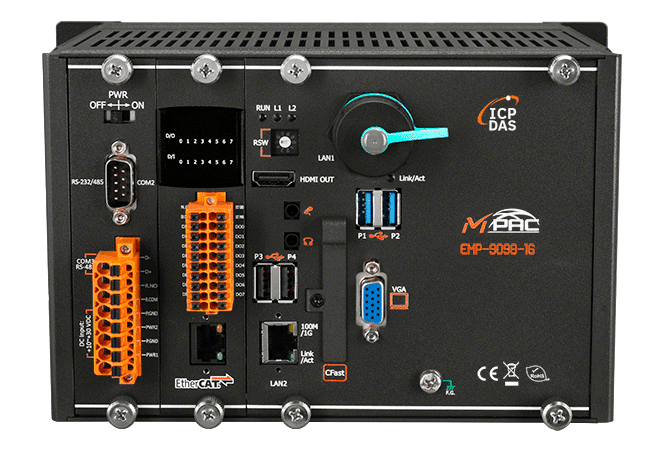

The EMP-9098-16 CR is a SoftPLC-based motion controller that uses EtherCAT as its main real-time fieldbus. It controls up to 16 axes through an integrated real-time EtherCAT master and a multi-axis motion kernel, with the motion engine and master running on a dedicated processor for time-deterministic operation.Windows 10 IoT Enterprise runs alongside the PLC runtime, so PLC logic, motion control and Windows applications such as HMIs or data processing software can operate side by side. Programming interfaces and shared memory give Windows applications direct access to PLC data. This variant uses the Intel Atom E3950 CPU, with 8 GB DDR4 SDRAM and no expansion slots.Engineers can program the controller in all five IEC 61131-3 languages and use PLCopen and CiA402 motion function blocks for single-axis and interpolated multi-axis movements. Modbus TCP/RTU connectivity lets the unit act as a Modbus/EtherCAT gateway, and the built-in OPC UA server supports connection to standard OPC UA clients.ApplicationsMulti-axis machine automation and motion controlMachine-builder control panelsModbus/EtherCAT gateway applicationsIntegration of Windows HMI, data gathering and processing software with PLC controlConnection of machines to SCADA or cloud systems via OPC UA

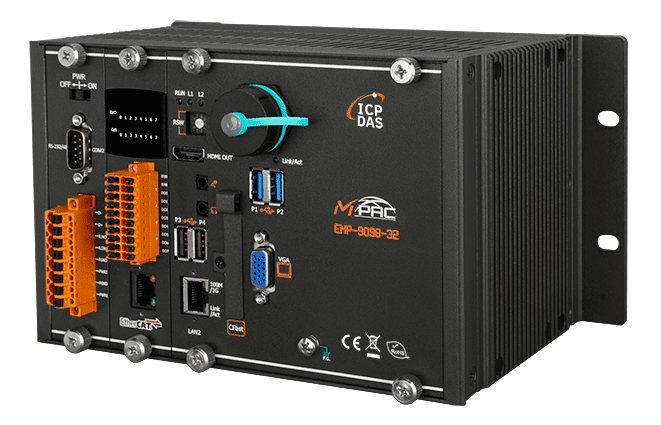

EMP-9098-32 CR is a SoftPLC-based motion controller for multi-axis machines that need deterministic EtherCAT control with up to 32 axes. The integrated real-time EtherCAT master and motion engine run on a dedicated processor, so motion timing is kept separate from the Windows environment.The controller runs Windows 10 IoT Enterprise alongside the PLC runtime, so PLC logic, motion control and in-house or third-party Windows software such as HMI or data processing can operate together. Shared memory and programming interfaces give Windows applications direct access to PLC data. Motion function blocks follow PLCopen and CiA402, and the SoftPLC supports all five IEC 61131-3 languages.32-axis motion control with a 0.5 ms cycle time, and up to 512 EtherCAT nodesModbus TCP/RTU and OPC UA server for connection to higher-level systemsSecond CPU with EtherCAT communication retention, keeping EtherCAT running if the OS or a program crashes8 digital inputs (sink/source) and 8 open-collector digital outputs, both isolated at 3000E3950 CPU with 8 GB DDR4 memory and dual watchdog timersCompact metal housing for DIN-rail or wall mounting, with redundant power inputsApplicationsMulti-axis machine automation with EtherCAT servo and stepper drivesMachine building, including single- and multi-axis movement and interpolationIntegration of Windows HMI, data gathering and processing applications with PLC controlConnection of machines to SCADA or cloud systems via OPC UA

The EMP-9251-16 CR combines computing, I/O and operator interface in a single Metal Motion PAC running Windows 10 IoT Enterprise (64-bit). The EtherCAT Master is pre-installed, so the unit can drive up to 16 axes and up to 512 EtherCAT nodes from one controller, with HMI, data acquisition and control integrated in one enclosure.Motion features include synchronised motion (E-GEAR, E-CAM), virtual axes, multi-axis linear interpolation and a coupled control system. A second CPU supports EtherCAT communication retention, which keeps EtherCAT communication and the process recipe running even if the OS or a program crashes.This ordering code provides 2 expansion slots for e9K, I-9K and I-97K series I/O, alongside 8 wet-contact digital inputs and 8 open-collector digital outputs (sink). Dual Gigabit Ethernet, VGA and HDMI outputs, RS-232/RS-485 and RS-485 ports and four USB 2.0 ports complete the connectivity.16-axis EtherCAT Master with 2-slot I/O expansionIntel Core i5-8365UE CPU (1.6 ~ 4.1 GHz, 4C8T) with 16 GB DDR4 SDRAMSynchronised motion, virtual axes and multi-axis linear interpolationSecond CPU for EtherCAT communication retention during OS or program crashesRedundant power inputs, +19 ~ 30 VDC (2 kV isolated)Dual watchdog timer and 128 KB MRAM non-volatile memoryApplicationsMulti-axis machine motion controlIntegrated HMI, data acquisition and controlMachine automation with EtherCAT drives and I/O

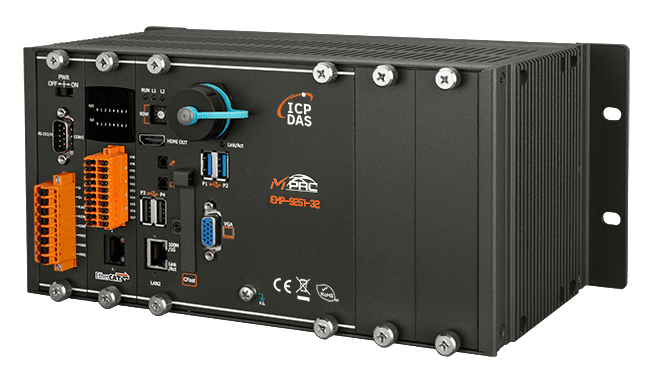

The EMP-9251-32 CR is a Windows 10 IoT based programmable automation controller with an EtherCAT Master built in, supporting up to 32 axes. It suits engineers who need motion control, I/O and an operator interface in a single DIN-rail or wall-mounted unit, with a 1.6 ~ 4.1 GHz Intel Core i5-8365UE processor and 16 GB DDR4 memory.Synchronised motion functions, including electronic gearing and cam profiles, virtual axes and multi-axis linear interpolation, are provided for coordinated machine control. Two slots accept e9K, I-9K or I-97K series I/O modules, and the on-board 8 digital inputs and 8 open-collector digital outputs (sink type) cover basic machine signalling without expansion.Connectivity includes two 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports, one RS-232/RS-485 and one RS-485 serial port, both 3000 VDC isolated, and VGA and HDMI video outputs. A redundant power input, dual watchdog timer and a second CPU that maintains EtherCAT communication through an OS or program crash help support continuous operation.ApplicationsMulti-axis motion control and synchronised machine axesIntegrated HMI, data acquisition and control in a single PACMachine automation with EtherCAT distributed I/O and drives

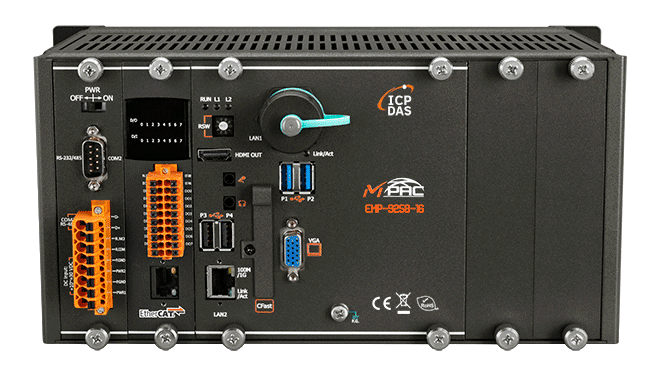

EMP-9258-16 CR is a Win-GRAF based motion controller for machine builders who need EtherCAT motion control of up to 16 axes alongside Windows applications. The Intel Core i5-8365UE CPU runs Windows 10 IoT Enterprise with the SoftPLC runtime and the real-time EtherCAT master, so PLC logic, motion control and Windows software such as HMI or data processing can run side by side without interfering with each other.The SoftPLC supports all five IEC 61131-3 languages (FBD, LD, IL, ST and SFC) and includes PLCopen function blocks for single and multi-axis control, with support for the standard CiA402 EtherCAT slave drive profile. A second CPU provides EtherCAT communication retention, so the EtherCAT link and process recipe are maintained even if the operating system or a program crashes.Connectivity covers EtherCAT, Modbus TCP and RTU, and an OPC UA server, with two 10/100/1000 Base-TX Ethernet ports, RS-485 and RS-232/RS-485 serial ports, and four USB 2.0 ports. Eight isolated digital inputs and eight open-collector digital outputs are provided, and two slots accept e9K, I-9K or I-97K series I/O modules.ApplicationsMulti-axis machine motion control with single-axis and interpolated movesMachine automation with integrated HMI or data gathering on WindowsModbus/EtherCAT gateway applications in machine control panelsSystems integrating in-house or third-party Windows software with PLC control

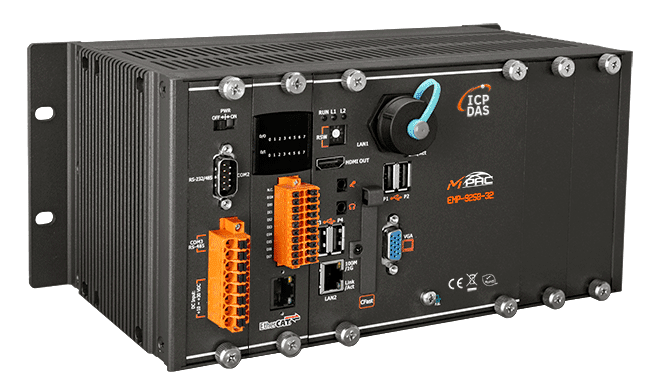

The EMP-9258-32 CR combines an IEC 61131-3 SoftPLC with a real-time EtherCAT master and a multi-axis motion kernel, so one controller can handle logic, coordinated motion and Windows applications side by side. It is suited to machine builders who need to control up to 32 axes on EtherCAT servo or stepper drives with a 0.5 ms cycle time.Motion is handled by PLCopen function blocks for single-axis and multi-axis control, with CiA402 drive support and linear, circular and helical interpolation. Windows software such as HMIs or data-gathering applications can access PLC data through shared memory and the provided C/C++/C#/LabVIEW programming interfaces, while an integrated OPC UA server allows standard OPC UA clients to connect without customisation.This two-slot variant adds expansion capacity for e9K, I-9K and I-97K I/O modules, alongside 8 digital inputs and 8 open-collector digital outputs on the main unit. Dual Ethernet, RS-232/RS-485 and RS-485 serial ports, four USB 2.0 ports, and Modbus TCP/RTU support allow it to act as a Modbus/EtherCAT gateway in mixed networks.ApplicationsMulti-axis servo and stepper motion control in machine automationMachine-builder control panels and OEM equipmentIntegrating in-house or third-party Windows HMI and data-processing software with PLC logicConnecting PLC and motion data to SCADA or cloud systems via OPC UAModbus/EtherCAT gateway for mixed fieldbus networks

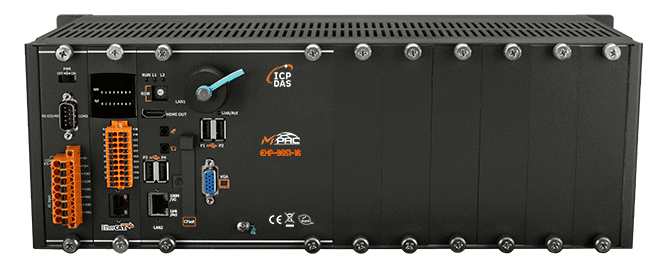

The EMP-9651-16 CR is a Windows 10 IoT based programmable automation controller with an EtherCAT Master for up to 16 axes. It brings computing, motion control and operator interface together in a single metal unit, with an Intel Core i5-8365UE processor and 16 GB DDR4 SDRAM.Synchronised motion functions such as E-GEAR and E-CAM, virtual axes and multi-axis linear interpolation are included. The six-slot variant accepts e9K, I-9K and I-97K series I/O modules, so the system can be extended to suit the machine's I/O requirements.A second CPU supports EtherCAT communication retention, keeping EtherCAT communication and process recipes running even if the operating system or a program crashes. Dual Ethernet, VGA and HDMI outputs, USB 2.0 ports and isolated RS-232/RS-485 serial ports support HMI and data acquisition tasks.ApplicationsMulti-axis motion control with EtherCAT-connected drives and I/OMachine automation combining HMI, data acquisition and control in one PACSystems requiring expandable I/O alongside EtherCAT motion control

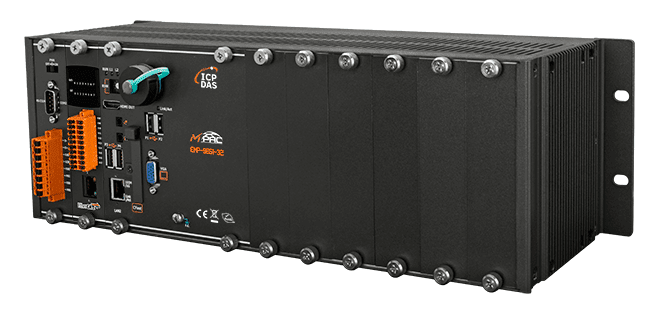

The EMP-9651-32 is a Windows 10 IoT Enterprise controller that brings EtherCAT master motion control, I/O expansion and operator interface into a single unit. It suits machine builders who want one platform to coordinate up to 32 axes while running HMI and data acquisition tasks on the same hardware.Motion features include synchronised motion with E-GEAR and E-CAM, virtual axes and multi-axis linear interpolation. Up to 512 EtherCAT nodes can be connected through the single RJ-45 EtherCAT port, using shielded Ethernet cable of at least CAT 5e.The unit is built around an Intel Core i5-8365UE processor with 16 GB DDR4 memory and a second CPU that supports EtherCAT communication retention. Its six slots accept e9K, I-9K and I-97K series I/O modules, and the front panel provides VGA and HDMI outputs, dual Gigabit Ethernet, USB 2.0, RS-232/RS-485 and RS-485 serial ports.ApplicationsMulti-axis machine automation and motion controlIntegrated HMI, data acquisition and control in a single PACEtherCAT-based machine and production line control

Ethernet Remote Unit with High-speed 4-axis Motion Control Module.

Ethernet Remote Unit with High-speed 4-axis Motion Control Module.

Ethernet Remote Unit with High-speed 6-axis Motion Control Module.

The MN-2091U CR adds one axis of motion control to a Motionnet distributed motion network. Each module is a serial slave connected to the controller with standard Cat.5 LAN cable, and a single line can carry up to 64 single-axis modules, so axis count can grow as the machine does.The 26-pin HD D-Sub connector links the module to servo and stepper drivers. Servo interface outputs include SVON, ERC and ALM_RST, while ALM, RDY and INP are read as inputs. Each axis also has limit, home, slow-down and emergency inputs. Motion profiles include trapezoidal and S-curve acceleration and deceleration, multi-axis linear and 2-axis circular interpolation, and on-the-fly speed and position changes.Three-way isolation separates power, communication and I/O, which the manufacturer states improves noise immunity and protects the device. The module runs from a 24 VDC ±5% supply with a 1000 V isolated input and is rated for 0 to +60 °C operation.ApplicationsDistributed multi-axis motion control on a Motionnet fieldbusMachine automation with servo driversPositioning axes driven by stepper driversHighly integrated machine automation with reduced driver wiring

The MN-2091U-T adds one motion axis to a distributed Motionnet network. Each module connects to the controller in series over standard Cat.5 LAN cable, so axis count can be grown along a single line without a dedicated motion card in every machine segment. The ordering code MN-2091U-T CR is listed with RoHS in its description.Pulse output runs at up to 6.6 MHz and supports OUT/DIR and CW/CCW modes with a 28-bit counter. Trapezoidal and S-shaped acceleration profiles, on-the-fly speed and position changes, and linear and two-axis circular interpolation give control over motion quality. Limit, home, slow-down and latch inputs are provided per axis, with a 26-pin HD D-Sub connector for servo and stepper drivers. ICP DAS offers cables for a range of driver brands, which reduces wiring between drivers and the controller.Operates at 0 ~ +60 °C with a 24 VDC ±5% input.ApplicationsDistributed multi-axis motion control on a Motionnet fieldbusHighly integrated machine automationServo driver and stepper driver control

The MN-3253 CR adds 32 isolated digital input channels to a Motionnet network, letting you extend remote input capacity without running separate cabling for each signal. Each input port can be configured as NPN or PNP for 12 to 24 V sensors, which simplifies matching the module to the field devices you already use.Cyclic time is 15.1 μs per device at 20 Mbps, and a full line of 64 modules covers 2048 input points within 0.97 ms. Transfer speed is chosen from 2.5, 5, 10 or 20 Mbps using a DIP switch. Input status is updated automatically through the Motionnet system at a constant interval, and you can set interrupts on selected inputs so the controller does not have to poll them repeatedly.The module provides 3000 Vrms input isolation and separates power, communication and I/O for improved protection. Status LEDs show communication state, I/O state and internal 3.3 V power, and a termination resistor switch is provided. Wiring uses 13-pin pluggable terminal blocks, and the plastic housing mounts on a DIN rail. Rated operating range is 0 to +60 °C.ApplicationsMachine automationDistributed digital input expansion for Motionnet systems

MN-3253T CR is a Motionnet expansion module that adds 32 isolated digital input channels to a distributed control network. Each Motionnet transfer line can carry up to 64 modules, so a single line can scale to 2048 input channels. With 64 modules connected, signals for all 2048 points can be exchanged within 0.97 ms.Every input port can be configured as NPN or PNP for 12~24 V signals, which suits mixed sensor types on one module. Isolation is provided between power, communication and I/O, and an input-change interrupt can be set for chosen points so the host does not need to poll them continuously. Status LEDs show communication state and I/O activity to support commissioning and fault finding.The module uses a plastic housing with pluggable 13-pin terminal blocks and mounts on a DIN rail. It is rated for 0 ~ +60 °C operation and is supplied as the RoHS-compliant terminal block version of the MN-3253 series.ApplicationsMachine automationDistributed digital input expansion on Motionnet systems

MN-3254 CR is a distributed I/O expansion module for Motionnet systems, providing 16 isolated digital input channels and 16 isolated digital output channels in a single DIN-rail housing. Each Motionnet transfer line can carry up to 64 modules, allowing the I/O count to grow to 1024 inputs and 1024 outputs on one network.Timing is deterministic: each device has a cyclic time of 15.1 μs at 20 Mbps, and I/O status is updated automatically over the Motionnet system at a constant interval. Input points can be configured for interrupts, so the controller does not need to poll inputs that are not changing. Each input port can be set to NPN or PNP operation over 12 to 24 V, and the output flywheel diodes can be connected to different supply sources port by port.The CR variant is the RJ-45 connector version listed in the ordering information. Isolation of 3000 Vrms on both the digital inputs and outputs, along with a 1000 V isolated 24 VDC power input, helps separate field wiring from the communication network and the logic supply.ApplicationsMachine automation

The MN-3254T adds 16 isolated digital inputs and 16 isolated digital outputs to a Motionnet network. Each input port can be set to NPN or PNP operation across 12 to 24 V, so it suits sensors from either sourcing convention.Motionnet transfer speed is selectable at 2.5, 5, 10 or 20 Mbps by DIP switch. At 20 Mbps the communication time per device is 15.1 μs. Power, communication and I/O are isolated from one another. The outputs are open-collector sink type, rated at 200 mA per channel, with internal flywheel diodes that can be returned to different supplies on each eight-channel port.LED indicators show communication state, the internal 3.3 V supply, the termination resistor switch and I/O status, which helps with commissioning and fault finding. The plastic housing mounts on a DIN rail and is specified for 0 to +60 °C operation.ApplicationsMachine automationDistributed I/O on Motionnet networks
