Win-GRAF ViewPAC

The VP-1238-CE7 combines a 5.7-inch touch display with a programmable automation controller in one panel-mounted unit. Its 1 GHz Cortex-A8 processor runs Windows CE 7.0 and the embedded Win-GRAF SoftLogic environment, so control logic written to IEC 61131-3 can run alongside the operator interface on the same device.Three slots accept high-profile I-8K parallel or I-87K serial I/O modules, allowing the controller to be configured for the signals an installation needs. Communication options include OPC UA, Modbus TCP/IP and Modbus RTU, together with DCON and user-defined protocols. Engineers can build the HMI with the included eLogger tool or with Visual Studio 2008 (VB .NET or C#).The front panel is rated NEMA 4/IP65, and the unit is designed for panel mounting with a 153 x 136 mm cut-out. The CR suffix in the ordering code identifies the RoHS-compliant version of this model.ApplicationsOperator panels combining HMI and PLC-style control on one deviceMachine control with local data logging and file accessPanel-mounted monitoring and control in industrial cabinets

The VP-2208-CE7 CR is a panel-mount controller that brings the operator interface, data acquisition and logic control into a single device. It runs Windows CE 7.0 on a Cortex-A8 1.0 GHz processor and drives a 7-inch 800 x 480 TFT display with a resistive touch panel, so one unit can handle both the control task and the screen that operators use.Logic is developed with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. The HMI can be built with the bundled eLogger tool using drag-and-drop objects, or with Visual Studio 2008 (VB .NET or C#) for more custom HMI and data management applications. Both approaches can exchange data with Win-GRAF applications.Connectivity includes one Gigabit-capable RJ-45 port, two isolated RS-232/RS-485 ports, two USB 2.0 ports and Power over Ethernet support. Modbus RTU/TCP, OPC UA and DCON are supported. The NEMA 4/IP65 front panel and fanless design are rated for operation from -10 to +60 °C.ApplicationsIntegrated HMI, data acquisition and control in a single panel-mount unitOperator stations and local control panelsData logging and file access on a PAC with SQL Compact Edition 3.5

The VP-4208-CE7 CR is a 10.4-inch ViewPAC that runs Win-GRAF SoftLogic control logic and a Windows CE 7 operator interface on one platform. It suits engineers who want the HMI, data acquisition and control handled in a single panel-mounted device rather than separate PC and PLC hardware.The unit is built around a Cortex-A8 1.0 GHz processor with 512 MB DDR3 SDRAM and an 800 x 600 TFT LCD with a 5-wire resistive touch panel. Logic is programmed to IEC 61131-3 using the embedded Win-GRAF environment, and the HMI can be built with the free eLogger editor using drag-and-drop objects, or developed in Visual Studio 2008 (VB .NET or C#) with data exchange to Win-GRAF applications.Connectivity includes a 10/100/1000 Base-TX Ethernet port with PoE power, two USB 2.0 ports, one RS-485 and two RS-232/RS-485 ports, all isolated. Modbus RTU/TCP master and slave, OPC UA server and DCON are supported. The front panel is rated NEMA 4/IP65 and the fanless design operates from -10 to +60 °C.ApplicationsPanel-mounted operator interfaces combining HMI, data acquisition and controlMachine and process control in areas exposed to water spray, humidity and dustData logging and file-based data management at the machine level

The VP-4238-CE7 CR combines an IEC 61131-3 soft PLC, an HMI and a Windows CE 7.0 runtime in one panel-mounted unit. Its 1 GHz Cortex-A8 processor and 10.4-inch TFT LCD with rubber keypad let an engineer run control logic and operator screens on the same device, without a separate PC or panel terminal.Three slots accept high profile I-8K parallel or I-87K serial I/O modules, so the controller can be sized to the application. Communication is covered by Ethernet, RS-232, RS-485 and two USB 2.0 ports, with Modbus RTU/TCP, Modbus ASCII, OPC UA and DCON support. Win-GRAF applications and the included eLogger HMI editor can be combined with Visual Studio 2008 (VB .NET, C#) for custom HMI and data management work.Embedded Win-GRAF SoftLogic with eLogger HMI and Visual Studio 2008 SDK optionsIP65 / NEMA 4 front panel for panel mounting+10 ~ 30 VDC input with redundant power inputsThis ordering code is listed as RoHS compliant. Operating range is -20 ~ +70°C with a 10 ~ 90% RH non-condensing humidity rating.ApplicationsPanel-mounted operator terminals combining HMI screens with control logicMachine and process control where IEC 61131-3 logic and touch operation are needed in one unitData logging and file access on a Windows CE platform

12.1" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0.

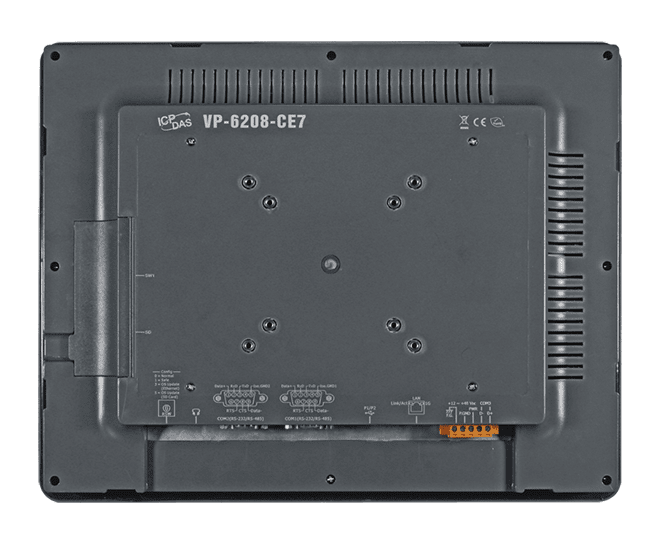

The VP-6208-CE7 CR is the 15-inch member of the Win-GRAF ViewPAC series. It combines a Windows CE 7 computing platform, an operator display and an embedded Win-GRAF SoftLogic controller in a single panel-mount unit, so HMI, data acquisition and control can run in one device rather than across separate PLC and panel PC hardware.The 1024 x 768 TFT display has a 5-wire resistive touch panel and sits behind a NEMA 4/IP65 rated front panel. The unit uses a fanless design rated for -10 ~ +60°C operation. Logic can be written in IEC 61131-3 languages with Win-GRAF, while the HMI can be built with the bundled eLogger tool or with Visual Studio 2008 (VB .NET, C#), and both can exchange data.For connectivity, the unit provides a Gigabit Ethernet port, two USB 2.0 ports and three isolated serial ports (one RS-485 and two RS-232/RS-485). It supports Modbus RTU/TCP, OPC UA and DCON, and it can be powered from PoE or a +12 ~ 48 VDC supply. The ordering description identifies this variant as RoHS.ApplicationsOperator panels combining HMI, data acquisition and control in one PACMachine and process control where a touch display is needed at the equipmentData logging and file access with SQL Compact Edition 3.5 and FTP/web services

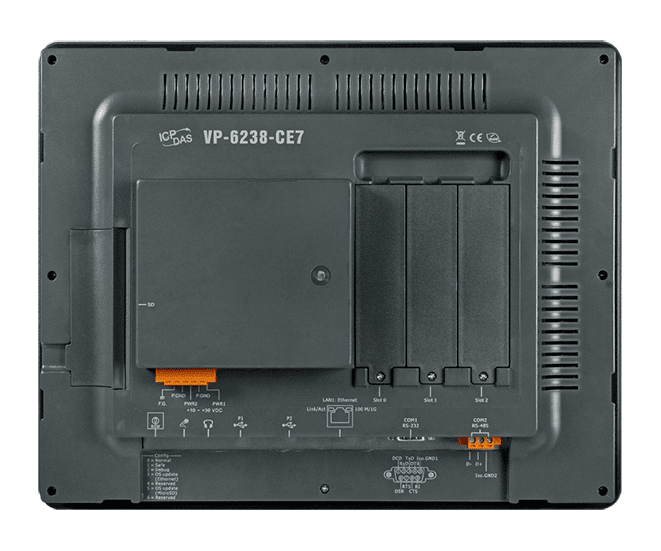

The VP-6238-CE7 is a 15-inch panel-mount programmable automation controller that combines an operator display with a Win-GRAF logic controller. A Cortex-A8 CPU running at 1.0 GHz executes Windows CE 7.0 and embedded Win-GRAF SoftLogic programmed to IEC 61131-3, so control logic and the front-panel HMI can share one device.Three slots accept high-profile I-8K parallel or I-87K serial I/O modules, allowing the unit to be configured for local I/O. Communication is handled by one RJ-45 10/100/1000 Base-TX Ethernet port, an RS-232 port, an isolated RS-485 port and two USB 2.0 ports. Supported protocols include OPC UA, Modbus TCP/IP and Modbus RTU master and slave.The front panel is rated NEMA 4/IP65 and the unit is installed through a 366 x 290 mm panel cut-out. It operates from -20 to +70 °C and has redundant power inputs rated at +10 to 30 VDC. This ordering code is the RoHS-marked version of the VP-6238-CE7 series.ApplicationsMachine-side operator panels and HMILocal control and automation with integrated logicData acquisition and data loggingData management applications using VB .NET or C#
