VP-2208-CE7 Win-GRAF ViewPAC, 7-inch HMI with Cortex-A8 1 GHz CPU
A 7-inch Win-GRAF ViewPAC combining WinCE 7 computing, IEC 61131-3 SoftLogic control and an operator HMI in one panel-mount unit, with PoE and Modbus TCP/RTU support.
- 7-inch 800 x 480 TFT LCD with 4-wire resistive touch panel
- Cortex-A8 1.0 GHz CPU running Windows CE 7.0
- Embedded Win-GRAF SoftLogic programmable to IEC 61131-3
- Modbus RTU/TCP master and slave, OPC UA server and DCON protocol
- Powered from PoE or +12 ~ 48 VDC input
- 1 x RJ-45 10/100/1000 Base-TX, 2 x RS-232/RS-485 (2500 VDC isolated), 2 x USB 2.0
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "VP-2208-CE7 Win-GRAF ViewPAC, 7-inch HMI with Cortex-A8 1 GHz CPU"

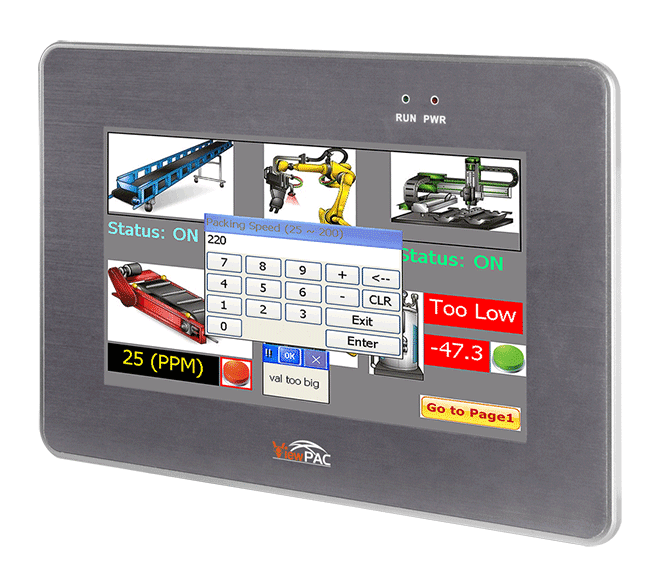

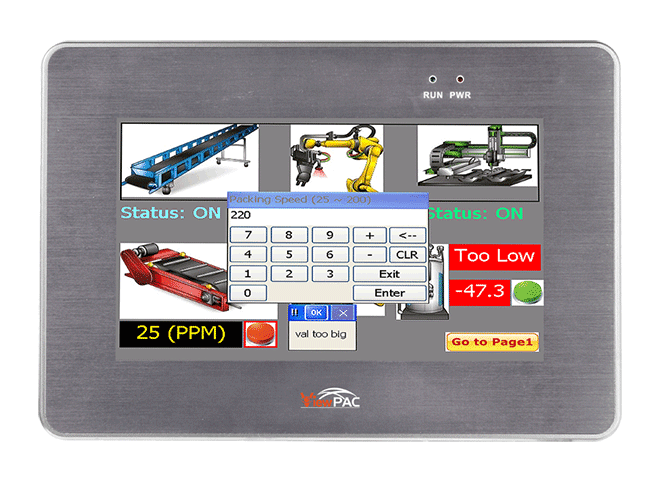

The VP-2208-CE7 CR is a panel-mount controller that brings the operator interface, data acquisition and logic control into a single device. It runs Windows CE 7.0 on a Cortex-A8 1.0 GHz processor and drives a 7-inch 800 x 480 TFT display with a resistive touch panel, so one unit can handle both the control task and the screen that operators use.
Logic is developed with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. The HMI can be built with the bundled eLogger tool using drag-and-drop objects, or with Visual Studio 2008 (VB .NET or C#) for more custom HMI and data management applications. Both approaches can exchange data with Win-GRAF applications.

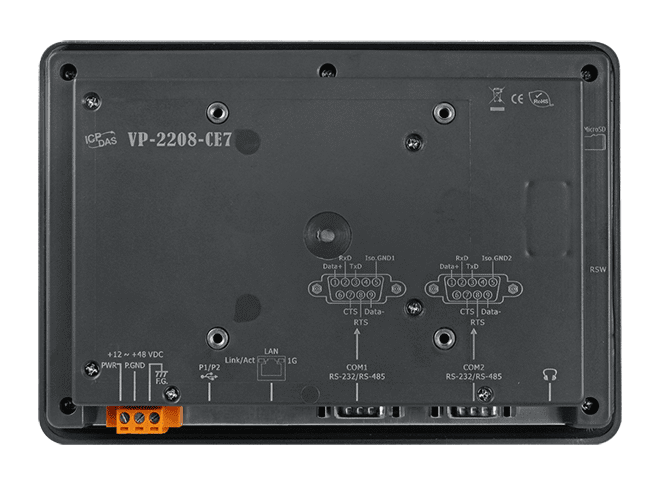

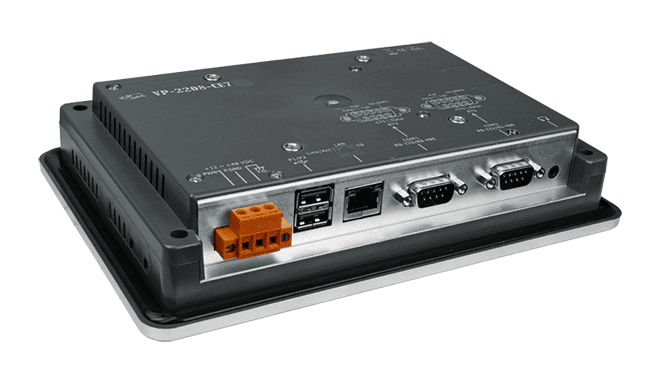

Connectivity includes one Gigabit-capable RJ-45 port, two isolated RS-232/RS-485 ports, two USB 2.0 ports and Power over Ethernet support. Modbus RTU/TCP, OPC UA and DCON are supported. The NEMA 4/IP65 front panel and fanless design are rated for operation from -10 to +60 °C.
Applications
- Integrated HMI, data acquisition and control in a single panel-mount unit
- Operator stations and local control panels
- Data logging and file access on a PAC with SQL Compact Edition 3.5
| Product type: | ViewPAC |
|---|---|
| Interface: | RJ-45, RS-232/RS-485, USB 2.0 |
| Protocol: | Modbus TCP |
| Ports: | 5 |
| PoE: | Yes |
| Isolation: | 2500 VDC (COM ports) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocol • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | LCD |
| Size | 7" (16:9) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 500 : 1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 213 x 148 x 44 (W x L x H) |
| Panel Cut-out (mm) | 197 x 133, ± 1 (W x H) |
| Installation | Panel mounting, VESA wall mounting (75 x 75) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1 Kg |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
