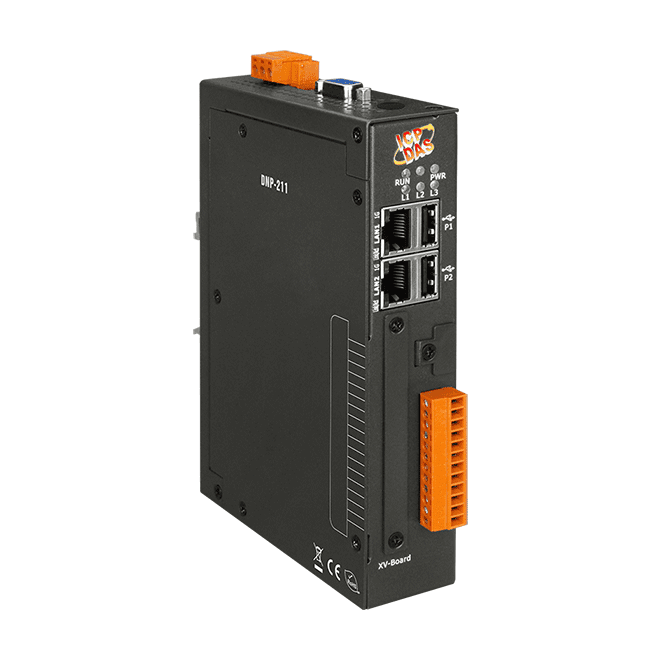

The DNP-211 CR bridges DNP3 field devices and Ethernet-based Modbus TCP masters. On the DNP3 side it acts as the master, reading from and writing to outstations over TCP, UDP or serial. On the Modbus side it is a server that accepts requests from Modbus TCP clients and either answers them directly or forwards the related DNP3 data.Mapping between DNP3 points and Modbus addresses is set up in the DNP-211 utility, so existing DNP3 networks can be exposed to a Modbus TCP host without rewiring the field devices. Outstation connection status is also available at a Modbus address, which helps supervisory logic detect a lost link.Capacity covers up to 32 DNP3 outstations and 16 Modbus TCP client connections, with 8192 digital I/O bits and 2048 channels each for counter and analogue points. It is a suitable choice where an engineer needs a compact DIN-rail gateway with a metal housing and a wide 12 to 48 VDC supply range.ApplicationsIntegrating DNP3 outstations, RTUs and IEDs with Modbus TCP master systemsSCADA communication in utilities such as electric and water companiesConnecting existing DNP3 networks to Ethernet-based Modbus TCP masters

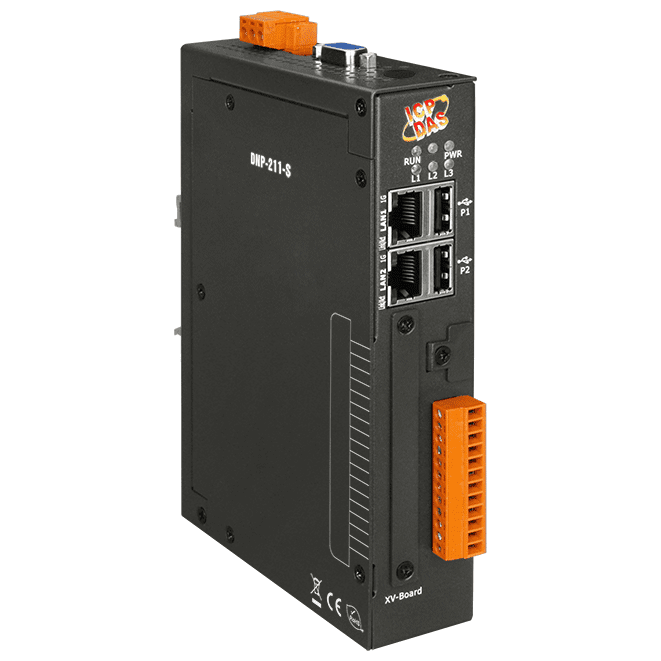

DNP-211-S bridges Modbus TCP field devices and DNP3 master stations. It polls several Modbus TCP servers and exposes their data as one DNP3 outstation, so a master station can read and control the underlying devices without needing a native Modbus driver.The gateway accepts DNP3 over RS-485, TCP/IP or UDP and supports Binary, Binary Output, Analog and Analog Output data. Analog values can be handled as word, int32, float or double. Mapping between Modbus TCP addresses and DNP3 points is set up in the DNP-211-S utility software, and the DNP3 side reports the Modbus TCP connection status.Suited to utility and SCADA installations, the unit uses a metal housing, a 12 to 48 VDC supply and DIN-rail or optional wall mounting. It is rated for operation from -25 to +75 °C.ApplicationsSCADA master station integration with Modbus TCP devicesElectric and water utility communicationsConnecting RTUs and IEDs to a DNP3 master station

The DS-2212i CR brings a standard RS-232 serial device onto Ethernet, so it can be reached over a LAN or the Internet without changing the device's software. Its virtual COM mode lets Windows applications open a standard PC COM port that is mapped to the remote module, while TCP Server and TCP Client modes cover direct network connections between serial equipment and host systems.The 2-port Ethernet switch with LAN bypass allows the unit to be daisy-chained along a cable run, which simplifies device placement and reduces switch infrastructure. The module can be powered from a PoE source meeting IEEE 802.3af Class 1 or from a +12 ~ 48 VDC terminal block, and the isolated RS-232 port is rated at 3000 VDC for signal isolation.Configuration is handled through the built-in web server, which supports static IP or DHCP addressing, and the module can be installed on a DIN rail. The unit carries CE, UKCA, FCC, RoHS and WEEE marks and is rated for an operating temperature of -25 ~ +75 °C.ApplicationsConnecting RS-232 devices to Ethernet networksRemote access to serial devices over Ethernet or the InternetSerial-bridge or serial-tunnel links between two serial devices over TCP/IPVirtual COM access to serial devices from Windows PCs

DS-2215i CR is a serial-to-Ethernet device server that brings an RS-422/485 serial device onto an Ethernet network without changing the device or its software. It can be run as a virtual COM port on Windows, as a TCP server or as a TCP client, and it can also link two serial devices across TCP/IP in a pair-connection setup.The built-in 2-port Ethernet switch with LAN bypass allows daisy-chain wiring, which helps when locating devices and reducing cabling. The unit supports static IP or DHCP addressing, UDP-based discovery and a built-in web server for configuration. Power can come from PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block.The serial port is isolated, with 3000 VDC signal isolation, and the module is housed in a plastic DIN-rail enclosure rated for -25 ~ +75 °C operation. The VxComm Utility supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.ApplicationsAdding Ethernet connectivity to RS-422/485 serial devicesPair-connection serial-bridge or serial-tunnel links over TCP/IPVirtual COM access to serial devices from Windows PCsRemote access to serial devices on daisy-chained Ethernet networks

DS-2222i CR brings two RS-232 serial devices onto an Ethernet network without cable length restrictions. It suits engineers who need to reach legacy serial equipment over TCP/IP without rewriting host software, whether through a Virtual COM port on a Windows PC or a direct TCP connection.Each serial port is isolated, with 3000 VDC signal isolation and 1000 VDC power isolation. The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a run to simplify wiring and reduce infrastructure. Power can come from IEEE 802.3af Class 1 PoE or from a +12 ~ 48 VDC terminal block.Configuration is through the built-in HTTP web server, with static IP or DHCP addressing. A pair-connection mode can link two serial devices across an IP network as a serial bridge or tunnel, and UDP Search helps locate units on the network.ApplicationsConnecting RS-232 devices to Ethernet networksVirtual COM access to serial devices from Windows PCsSerial-bridge or serial-tunnel links between two serial devices over TCP/IPDaisy-chained Ethernet installations in control cabinets on DIN-rail

The DS-2225i CR brings RS-422/485 serial devices onto Ethernet, so equipment without a network port can be reached from computers, servers or PLCs across a local network or the Internet. Two isolated RS-422/485 ports with 3000 VDC signal isolation handle the serial side, and the unit is marked RoHS in the ordering description.Operating modes include Virtual COM, TCP Server and TCP Client, plus pair-connection for serial-bridge or serial-tunnel links that carry data over TCP/IP between two serial devices. The VxComm Utility maps the device to virtual COM ports on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016. Addressing can be static or DHCP, and the built-in web server and UDP search aid configuration and discovery.The two Ethernet ports form a switch with LAN bypass, allowing daisy-chain wiring that reduces cabling in the field. Power comes either from IEEE 802.3af Class 1 PoE or from a +12 ~ 48 VDC terminal block. The plastic DIN-rail housing is rated for an operating range of -25 ~ +75 °C.ApplicationsAdding Ethernet connectivity to RS-422/485 serial devicesRemote access and monitoring of serial devices over Ethernet or the InternetSerial-bridge and serial-tunnel links between two serial devices over TCP/IPDaisy-chained Ethernet device layouts

DS-2232i CR brings RS-232 serial devices onto Ethernet, so they can be reached across a network instead of being limited by direct serial cable length. It offers Virtual COM, TCP Server and TCP Client operating modes, and can also be set up as a serial bridge or serial tunnel to route data over TCP/IP between two serial devices.The VxComm Utility maps the unit's serial ports to standard COM ports on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, allowing existing software to access the device without modification. Configuration is possible through the built-in web server, which supports static IP or DHCP addressing, and devices can be located on the network with the UDP Search discovery function.The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a line. Power can come from a PoE source (IEEE 802.3af, Class 1) over standard Category 5 cable, or from a +12 ~ 48 VDC terminal block. The module includes a dual watchdog and, as an i-version unit, provides 3000 VDC signal isolation and ESD protection. It is designed for DIN-rail mounting.ApplicationsConnecting serial devices, computers and servers that lack Ethernet capability to a networkRemote monitoring of serial devices over Ethernet or the InternetSerial bridging or tunnelling between two serial devices over TCP/IP

DS-2235i CR is a serial-to-Ethernet device server that brings RS-422/485 devices onto an IP network. Its three isolated serial ports let several field devices connect through one unit, with data carried over TCP/IP in Virtual COM, TCP server or TCP client mode.The VxComm Utility can map the serial ports to standard Windows COM ports, so existing software can reach serial devices over the network without modification. Pair-connection (serial-bridge or serial-tunnel) operation links two serial devices across Ethernet. A 2-port switch with LAN bypass supports daisy-chain wiring, and power can come from PoE (IEEE 802.3af, Class 1) or a DC terminal block.A dual watchdog, made up of a CPU watchdog and a host watchdog, is included to help the module keep operating in demanding environments. The CR ordering code corresponds to the RoHS-marked version of the DS-2235i.ApplicationsNetworking legacy RS-422/485 serial devices over TCP/IPSerial-bridge and serial-tunnel links between two serial devicesRemote access to and monitoring of serial devices over Ethernet or the InternetDaisy-chained Ethernet device layoutsConnecting serial devices that lack native Ethernet capability

The DS-712 CR lets an RS-232 device join an Ethernet network without changing its serial software. Its built-in COM port can be presented as a standard virtual COM port on Windows PCs using the VxComm utility, or the unit can operate as a TCP server or TCP client for direct socket communication.Because the device server is protocol independent, it suits a wide range of network-enabled applications. The DS-712 CR uses a male DB-9 connector with a 5-wire RS-232 port, and it runs from a non-regulated 12 VDC to +48 VDC supply with reverse polarity protection. The plastic housing mounts on a DIN rail or a wall.Key operating limits include a maximum baud rate of 115200 bps, an operating temperature range of -25 ~ +75 °C and a 5 ~ 90% RH non-condensing humidity rating. The unit is CE, UKCA, FCC, RoHS and WEEE listed.ApplicationsFactory automationBuilding automationHome automation

DS-715 CR brings a serial RS-422 or RS-485 device onto an Ethernet network without changing the device itself. Its single serial port is provided on a removable terminal block and can be wired as a 4-wire RS-422 port or a 2-wire RS-485 port, with 2000 Vrms isolation between the serial side and the rest of the unit.With the VxComm driver and utility, the serial port can be mapped to a standard COM port on Windows PCs, so existing COM-based software can continue to work over the network. The unit can also operate standalone as a TCP Server or TCP Client, which suits applications where the serial device is accessed directly over TCP/IP. The 10/100 Base-TX RJ-45 port auto-negotiates and supports auto MDI/MDI-X.The built-in MiniOS7 firmware and watchdog timer support dependable operation in harsh environments. The unit accepts 12 VDC to +48 VDC non-regulated input with reverse polarity protection, draws 2.0 W, and can be fitted to a DIN rail or a wall. Its operating range is -25 to +75 °C.ApplicationsFactory AutomationBuilding AutomationHome Automation

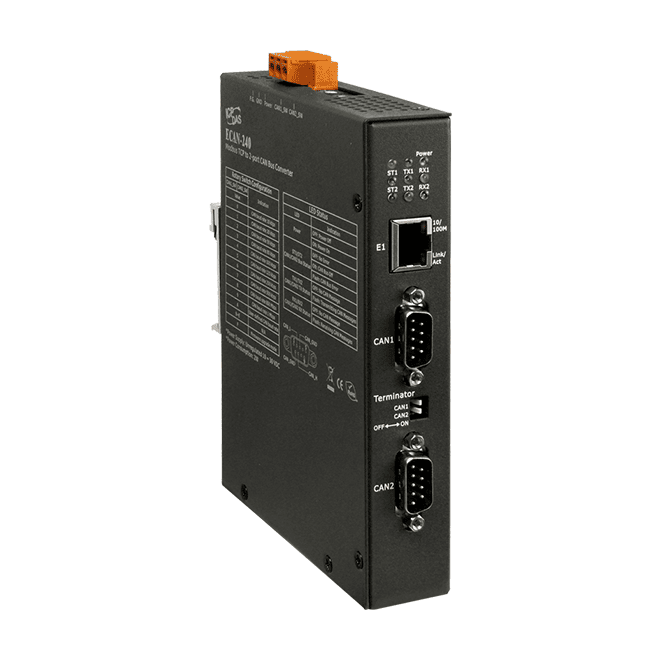

ECAN-240 CR is a Modbus TCP to 2-port CAN bus gateway. It connects two CAN bus networks to an Ethernet network, so CAN devices can be reached from Modbus TCP clients and the two CAN segments can exchange data through the module.Each of the two CAN interfaces follows ISO 11898-2 and supports CAN 2.0A and CAN 2.0B frames, with baud rates from 10 k to 1M bps set by rotary switches. A built-in 120 ohm terminal resistor is enabled or disabled with a DIP switch. The CAN ports are isolated, rated at 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupler stage.Beyond Modbus TCP server operation, the gateway offers pair connection between CAN networks over TCP or UDP, and a transparent mode in which TCP (port 10003) or UDP (port 57540) packets carry CAN frames for custom software. The metal housing is rated for -25 ~ +75 °C operation and mounts on a DIN rail.ApplicationsIntegrating CAN devices into Modbus TCP industrial networksLinking two CAN bus segments across Ethernet via pair connectionCustom TCP or UDP applications that access CAN frames directly

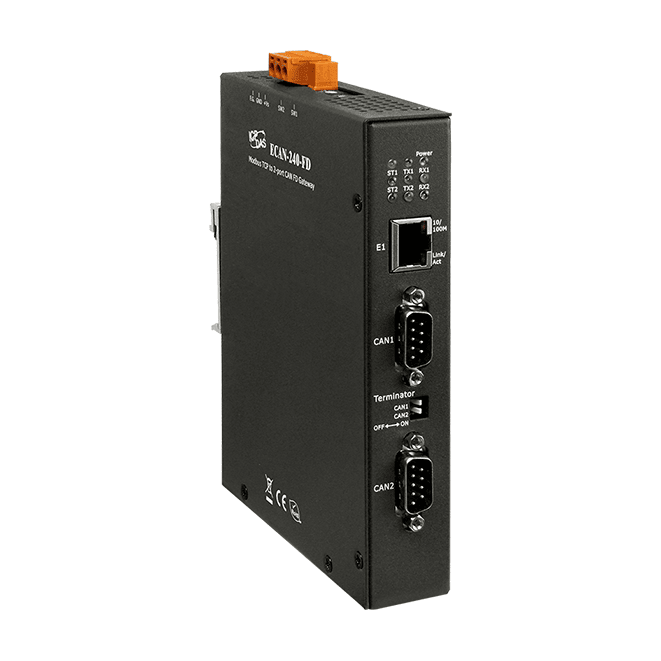

The ECAN-240-FD bridges CAN and CAN FD networks to Ethernet using the Modbus TCP industrial protocol. It gives an Ethernet-based controller or SCADA system access to two CAN bus networks through a single RJ-45 port, so CAN devices can be integrated into a wider industrial network without custom gateway software.The module provides two CAN bus interfaces, each on a 9-pin D-sub connector, and supports CAN 2.0 A/B and CAN FD in line with ISO 11898-2. CAN FD can be switched between the ISO and non-ISO (Bosch) standards, and a built-in DIP switch enables or disables the 120 Ω terminal resistor on each bus.Beyond Modbus TCP server operation, the gateway can also run in TCP/UDP transparent mode for CAN and CAN FD frames, or in CAN pair mode, which links two CAN networks across Ethernet over UDP. The ordering code ECAN-240-FD CR is the RoHS-listed version of this model.ApplicationsModbus TCP access to CAN and CAN FD devicesTCP/UDP transparent communication between CAN devices and Ethernet clientsCAN pair connection linking two CAN networks over Ethernet via UDP

The ECAT-2611 CR is a protocol converter gateway that connects EtherCAT and Modbus RTU networks. It operates as a SubDevice on both sides and passes I/O data between them, so an EtherCAT Main Device and a Modbus RTU Main Device can exchange data through its internal data exchange buffer.It suits system integrators who need to bring older serial automation equipment into an EtherCAT architecture. The serial protocol conversion is handled in the module, so no PLC function blocks are required and the connected device needs no hardware or software changes.This CR ordering code includes the CA-0915 DB9 male to DB9 female cable, 1.5 M, for connecting the serial port. Key figures include a 10 ms cycle time, up to 256 WORD input and 256 WORD output data, and serial communication up to 115200 bps.ApplicationsRetrofitting older Modbus RTU automation devices into EtherCAT communication structuresExchanging I/O data between an EtherCAT Main Device and a Modbus RTU Main DeviceIntegrating serial Modbus RTU equipment into EtherCAT-based machine control systems

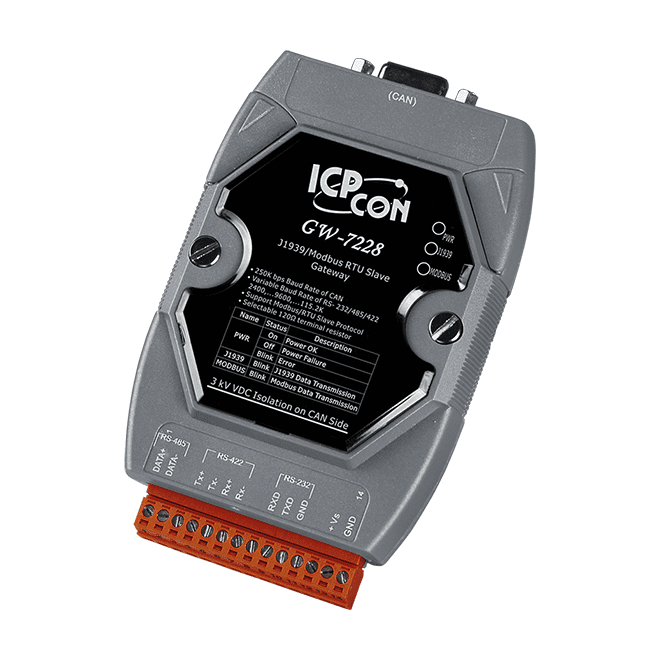

GW-7228-G CR bridges a J1939 network and a Modbus RTU network. On the J1939 side it transmits and receives PDU1, PDU2, broadcast and destination-specific messages, so vehicle data can be made available to Modbus RTU masters without custom firmware on either end.On the Modbus side the gateway operates as a slave and answers requests from the master, with the Modbus Network ID configurable from 1 to 250. Parameters for both the J1939 and Modbus RTU sides are set using the supplied Utility software.Engineers typically select this model for diesel power-train work, truck and bus in-vehicle networks, and truck-trailer links. The CA-0910 cable is included with the unit.ApplicationsDiesel power-train applicationsIn-vehicle networks for trucks and busesTruck-trailer connectionsFleet management systemsOn-board diagnosticsVehicle automation

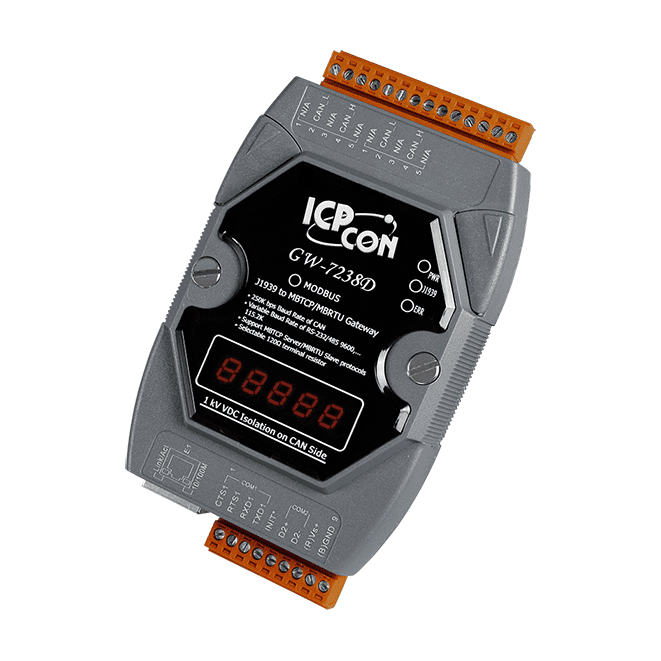

The GW-7238D-G CR bridges a J1939 CAN network and Modbus TCP or Modbus RTU systems. On the J1939 side it handles PDU1, PDU2, broadcast and destination-specific messages, so engineers can expose vehicle data to Modbus-based supervisory or monitoring equipment without custom firmware.On the Modbus side the gateway acts as a Modbus TCP server or Modbus RTU slave, answering requests from a Modbus TCP client or RTU master. Its J1939 Transport Protocol support covers messages from 9 to 1785 bytes, and it supports BAM connection management. Settings are configured with the supplied utility software.Hardware features include a built-in jumper for a 120 Ω terminal resistor, an internal watchdog and an RS-485 port with self-turner. The unit is DIN-rail mounted and rated for an operating range of -25 to +75 °C. The CA-0910 cable is included with this ordering code.ApplicationsDiesel power-train applicationsIn-vehicle networks for trucks and busesTruck-trailer connectionsOn-board diagnosticsVehicle automation

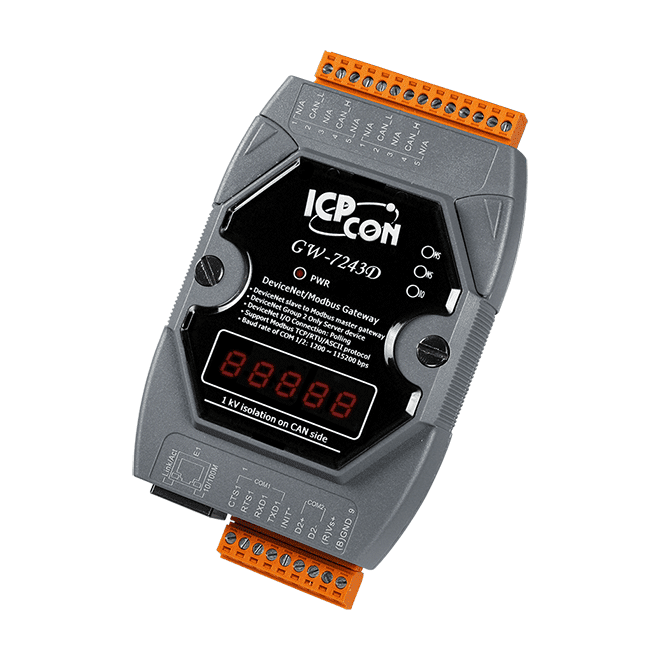

GW-7243D-G CR connects Modbus slave devices to a DeviceNet network. On the DeviceNet side it operates as a Group 2 Only Server and waits for the DeviceNet master to establish its connections. On the Modbus side it acts as the master, cyclically issuing commands to the slave devices it is configured to read and write.Modbus TCP client and Modbus RTU/ASCII master interfaces run at the same time, so slave devices with an Ethernet, RS-232 or RS-485 interface can all be mapped into one DeviceNet installation. This removes the need for a separate gateway for each communication type.A GW-7243D Utility tool is supplied for configuration and for generating the EDS file, which helps speed up commissioning of the DeviceNet and Modbus setup.ApplicationsProduction cells and automated manufacturing linesFood and beverage packing and bottling linesBrewery equipmentBakery and dinnerware productionHVAC module productionRolling steel door and overhead storage bin productionLCD manufacturing plant automation

The GW-7433D-G bridges CANopen networks and Ethernet-based control systems. On the field side it operates as a CANopen master, using PDO and SDO services to communicate with slave devices. On the plant side it appears as a Modbus TCP server and a Modbus RTU slave, so an existing CANopen installation can be monitored and controlled from any Modbus TCP client or Modbus RTU master.Slave devices are predefined using the manufacturer's utility software. At start-up the gateway collects the required information from those slaves. It supports up to 20 CANopen slave devices, and up to five Modbus TCP clients can access the unit at the same time.The listen mode lets engineers monitor CANopen slave data without taking part in the network traffic. Slaves can be added or removed on line, and CANopen status, slave and gateway communication states, and disconnections can be queried through Modbus commands.ApplicationsControl systemsBuilding automationFactory automationDistributed data acquisitionWind turbine monitoring and control, integrating large inverters and PLCs

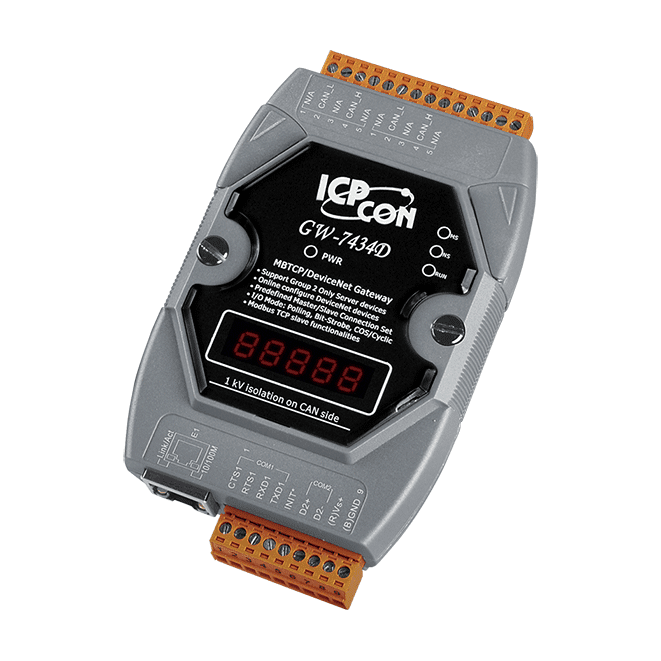

The GW-7434D-G CR bridges a DeviceNet network to Ethernet-based PLCs, HMIs and SCADA systems. It operates as a DeviceNet master with predefined master/slave connection set functions, polling slaves automatically and cyclically, so engineers can read and write DeviceNet I/O using Modbus TCP commands without implementing the DeviceNet protocol themselves.Beyond the DeviceNet bridge, the unit can act as a Modbus TCP server or VxComm server for devices on its RS-232 or RS-485 port. This allows a host to reach DeviceNet slaves and serial Modbus RTU or Modbus ASCII devices through one Ethernet connection. Configuration is handled with the vendor's Utility software.Modbus TCP to DeviceNet master gateway with up to 512 bytes of Modbus I/O mapped to DeviceNet I/OSupports Poll, Bit-Strobe and Change of State/Cyclic I/O operation modesIdeal for integrating existing DeviceNet networks into Ethernet-based control or monitoring systemsApplicationsDeviceNet gas valve stationRobotic arm controlTouch HMI applicationsModbus TCP/RTU slave to DeviceNet master gatewaySingle Modbus/TCP to multi-Modbus/RTU converterProtocol converter for serial devices using VxComm

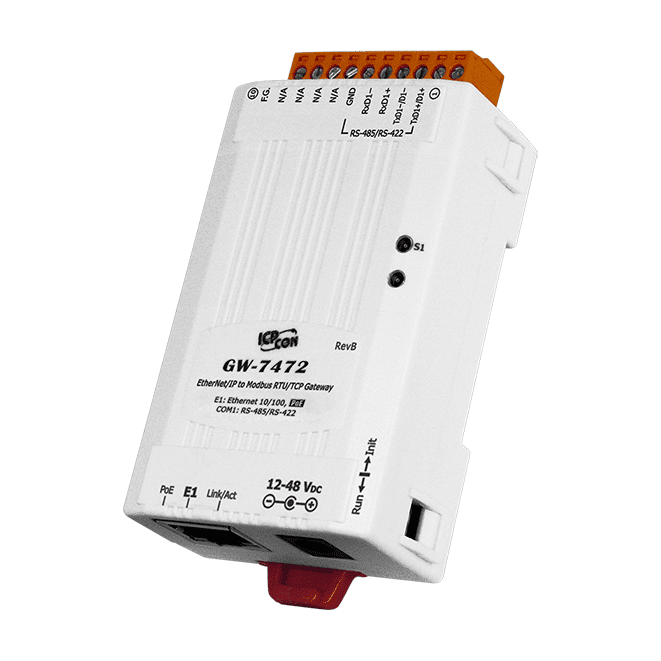

The GW-7472 CR links EtherNet/IP, Modbus RTU and Modbus TCP networks, so an EtherNet/IP scanner can exchange register data with Modbus RTU slaves and Modbus TCP servers through one device. Register values read from the Modbus side are presented as input data to the scanner, and output data from the scanner is written back to the Modbus registers.The Modbus RTU master port supports 2-wire RS-485 and 4-wire RS-422. The Ethernet port provides IEEE 802.3af Class 1 Power over Ethernet, and a DC adapter can serve as an alternative supply. The two power inputs are redundant, so if one fails the other takes over.The compact housing suits installations where space is limited, such as mounting close to a serial device or within a machine. The unit is designed for DIN-rail installation and includes a removable terminal block connector.ApplicationsControl systemBuilding automationFactory automationDistributed data acquisition

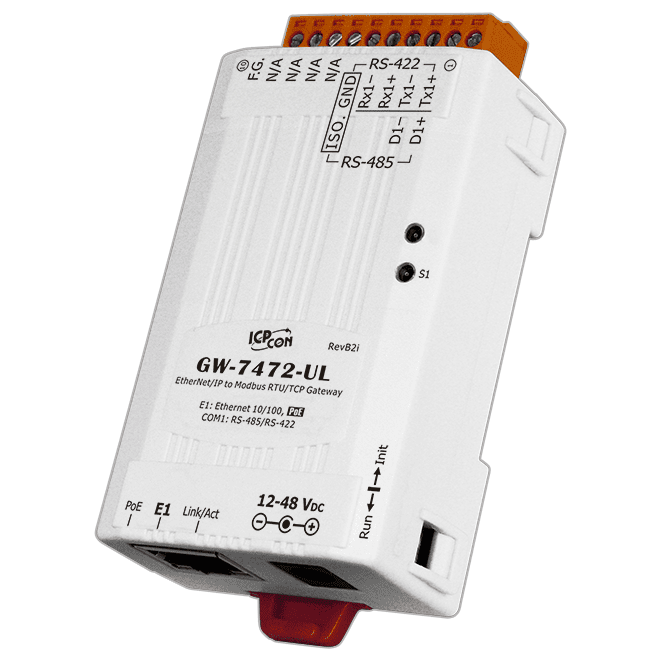

The GW-7472-UL bridges EtherNet/IP, Modbus RTU and Modbus TCP networks. It acts as an EtherNet/IP adapter to a scanner, reads register data from Modbus RTU slaves and Modbus TCP servers, and presents that data as EtherNet/IP input data. Output data from the scanner is written back to the register data of the Modbus devices.This standard GW-7472-UL variant is rated for an operating range of -25 ~ +70 °C. The UTA variant of the series extends this to -40 ~ +70 °C, so this ordering code suits installations that do not require sub-zero operation at the lower limit. The unit is supplied with a DC-jack to 2-wire power cable, 0.3 M (CA-002-UL).The compact housing measures 52 x 27 x 77.4 mm and mounts on DIN-rail. It accepts power over Ethernet to IEEE 802.3af Class 1, or from a DC adapter, and the two power inputs are redundant. Firmware can be updated over Ethernet.ApplicationsControl SystemBuilding AutomationFactory AutomationDistributed data acquisition

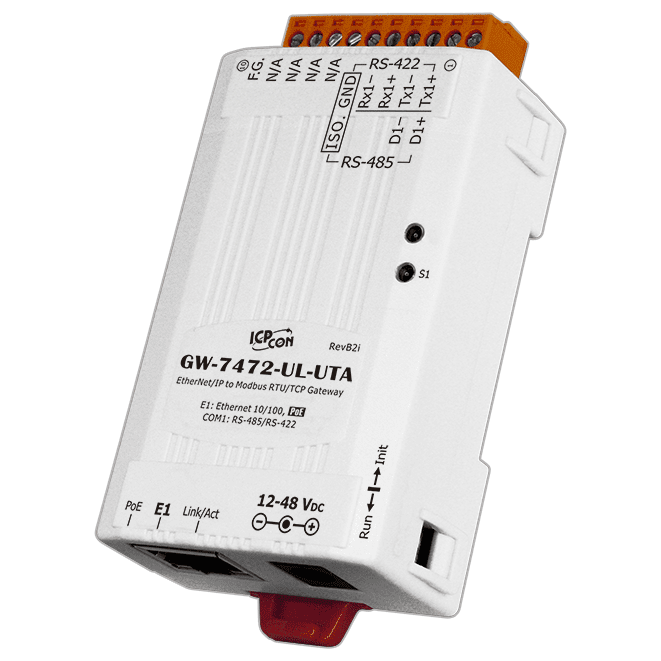

GW-7472-UL-UTA is a DIN-rail gateway that exchanges register data between an EtherNet/IP scanner, Modbus RTU slaves and Modbus TCP servers. It polls the Modbus devices and presents their data as input data to the EtherNet/IP scanner, while output data from the scanner is written back to the Modbus registers. Its compact housing suits installations where space is limited, including mounting close to a serial device.This UTA variant is specified for an operating range of -40 ~ +70 °C and uses conformal coating for resistance to moisture and salt spray, which suits coastal and high-humidity sites. Power can come from a PoE switch over a standard Category 5 cable (IEEE 802.3af, Class 1), or from a DC adapter via the DC jack. The two inputs are redundant, so the unit stays powered if one source fails. The order includes a 0.3 m DC-jack to 2-wire power cable (CA-002-UL).Configuration options include a Modbus RTU master with up to 30 commands, support for up to 10 Modbus TCP servers, and firmware updates over Ethernet. The unit carries UL, CE, UKCA, RoHS and WEEE certifications.ApplicationsControl SystemBuilding AutomationFactory AutomationDistributed data acquisition

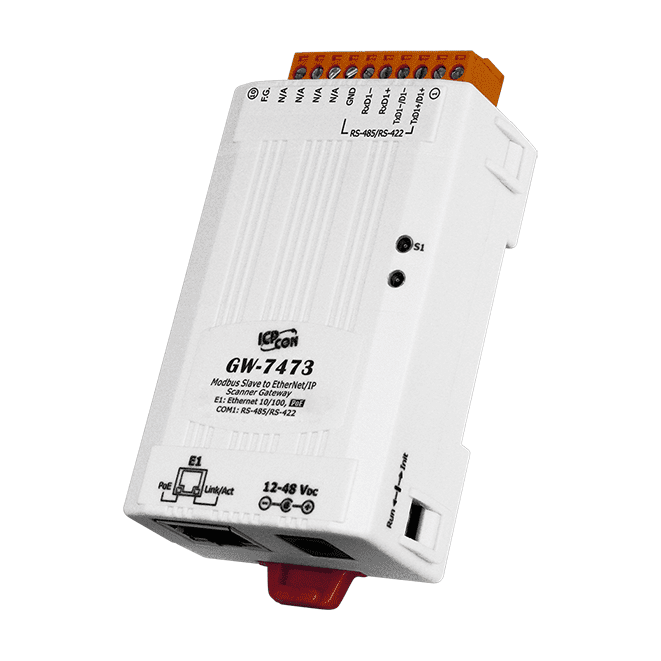

The GW-7473 CR lets a Modbus master read and write data held by EtherNet/IP adapters without custom programming. Register data read from the adapters is presented as input registers to Modbus TCP clients and Modbus RTU masters, while output data written by those masters is passed on to the adapter registers.Its compact DIN-rail housing (52 x 27 x 77.4 mm) suits tight control cabinets, and it can be mounted close to a serial device or fitted into a machine. Power can come from a PoE switch over a standard Category 5 cable, meeting IEEE 802.3af Class 1, or from a DC adapter. The two supplies are redundant, so the unit stays powered if one source fails.The gateway is rated for an operating range of -25 ~ +75 ℃ and is suitable for control, building automation, factory automation and distributed data acquisition projects.ApplicationsControl SystemBuilding AutomationFactory AutomationDistributed data acquisition

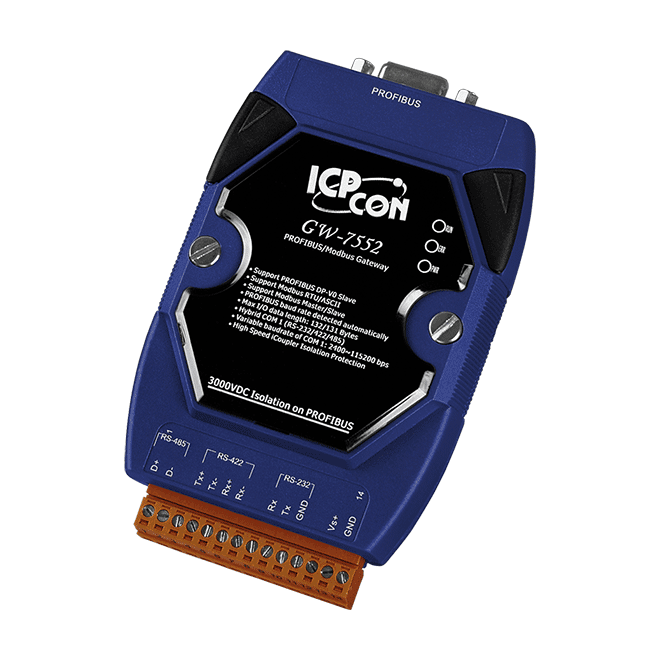

The GW-7552-B connects Modbus devices to a PROFIBUS DP network. It acts as a DP-V0 slave towards the PROFIBUS master, so the master can read and write data held by Modbus devices such as PLCs, sensors and ICP DAS M-7000 series modules, without changes to the PROFIBUS network design.The gateway can operate as a Modbus master or slave and supports both RTU and ASCII formats. Its hybrid COM 1 port is selectable between RS-232, RS-422 and RS-485, with the modes used one at a time. Serial settings cover 7 or 8 data bits, no, odd or even parity, 1 or 2 stop bits, and baud rates from 1200 to 115200. A utility is provided for configuring the GW-7552-B.Transmission rate on the PROFIBUS side is detected automatically, and the node address is set from 0 to 126 using a DIP switch. The PROFIBUS side has 3000 VDC isolation, and the network side uses High Speed iCoupler isolation. The GW-7552-B is housed in a plastic case for DIN-rail mounting, with an operating range of -25 ~ +75 °C.ApplicationsIndustrial automationFactory automationProcess automation

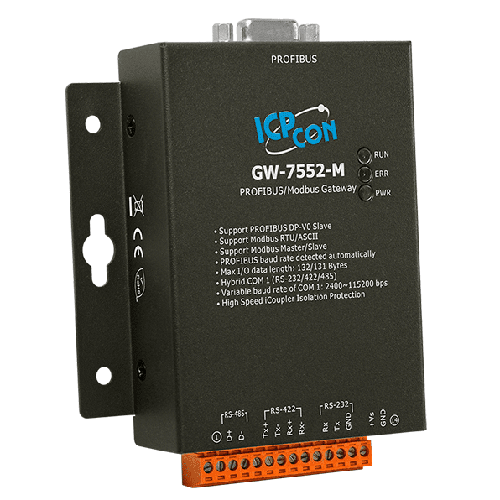

The GW-7552-M CR bridges a PROFIBUS DP network and Modbus serial devices. It operates as a DP-V0 slave, so a PROFIBUS master can read and write data from Modbus equipment without changes to the field devices. Typical Modbus endpoints include PLCs, sensors and ICP DAS M-7000 series modules.Configuration is carried out with the manufacturer's utility software. The PROFIBUS node address is set from 0 to 126 using a DIP switch, and the transmission rate is detected automatically. The serial side is a hybrid COM 1 port that can be set to RS-232, RS-422 or RS-485, and it supports Modbus Master or Slave operation in RTU or ASCII format.The gateway uses high speed iCoupler isolation on the network side and provides 3000 VDC isolation on the PROFIBUS side. Its metal housing is mounted on a DIN rail and is rated for an operating range of -25 ~ +75℃, which suits panel-based installations in factory and process automation.ApplicationsIndustrial automationFactory automationProcess automation
