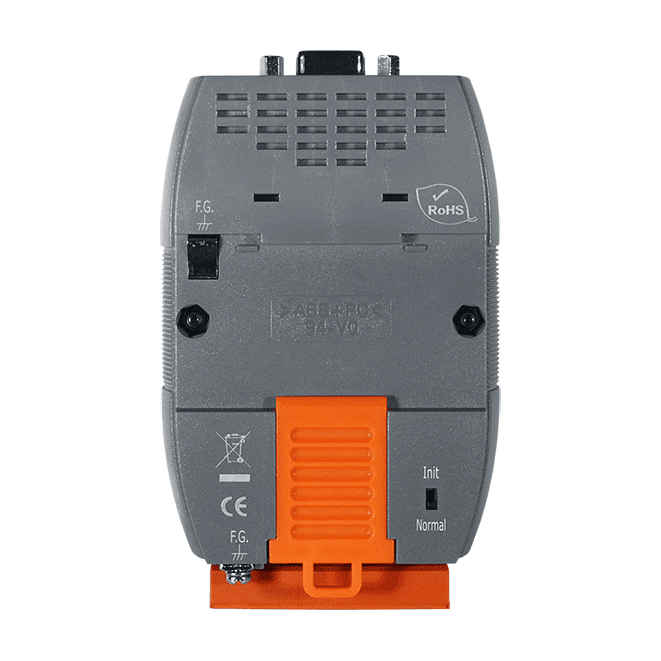

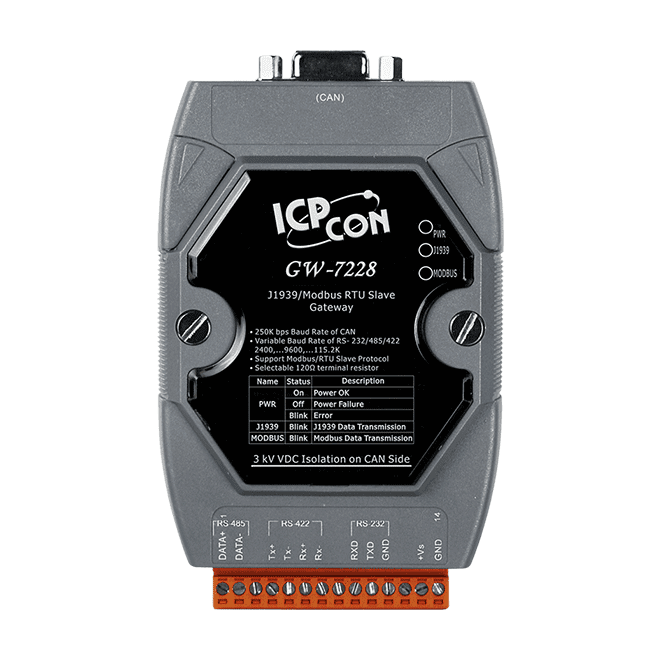

GW-7228-G J1939 to Modbus RTU Slave Gateway, CA-0910 Cable Included
Protocol gateway that converts J1939 CAN messages to a Modbus RTU slave interface for diesel power-train and in-vehicle networks. Supplied with CA-0910 cable.
- Converts J1939 messages to a Modbus RTU slave interface, with the Modbus Network ID set from 1 to 250
- Transmits and receives PDU1, PDU2, broadcast and destination-specific J1939 messages
- J1939 Transport Protocol supports messages of 9 to 1785 bytes, including BAM of Connection Management Messages
- Built-in jumper selects a 120 Ω terminal resistor on the CAN bus
- CAN side isolation rated 3000 VDC power protection and 2500Vrms photo-coupler isolation
- Watchdog and network address management included
4 531,52 kr per st.
| 1–9 st. | 4 531,52 kr | |
|---|---|---|
| 10–30 st. | 4 398,56 kr | −3 % |
| 31+ st. | 4 309,93 kr | −5 % |
Produktinformation "GW-7228-G J1939 to Modbus RTU Slave Gateway, CA-0910 Cable Included"
GW-7228-G CR bridges a J1939 network and a Modbus RTU network. On the J1939 side it transmits and receives PDU1, PDU2, broadcast and destination-specific messages, so vehicle data can be made available to Modbus RTU masters without custom firmware on either end.
On the Modbus side the gateway operates as a slave and answers requests from the master, with the Modbus Network ID configurable from 1 to 250. Parameters for both the J1939 and Modbus RTU sides are set using the supplied Utility software.
Engineers typically select this model for diesel power-train work, truck and bus in-vehicle networks, and truck-trailer links. The CA-0910 cable is included with the unit.
Applications
- Diesel power-train applications
- In-vehicle networks for trucks and buses
- Truck-trailer connections
- Fleet management systems
- On-board diagnostics
- Vehicle automation
| Product type: | Protocol gateway |
|---|---|
| Interface: | CAN, RS-232, RS-422, RS-485 |
| Protocol: | J1939, Modbus RTU |
| Ports: | 3 serial, 1 CAN |
| Isolation: | 2500Vrms photo-coupler (CAN) |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | PWR / J1939 / MODBUS |
| COM Ports | |
| Ports | 1 x RS-232(TXD, RXD, GND) 1 x RS-422(Tx+, Tx-, Rx+, Rx-) 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU |
| J1939 | |
| Ports | 1 |
| Baud Rate | 250k |
| Isolation | 3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Pin Assignment | C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 108 x 72 x 35 (H x W x L) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
