PCI Express Multi-function

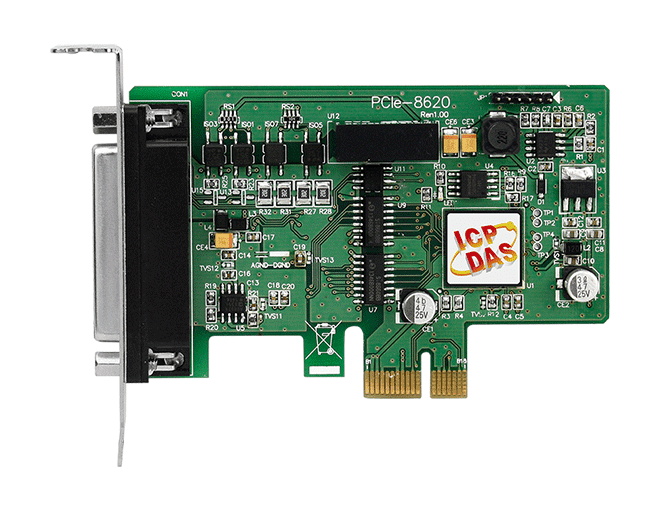

The PCIe-8620 CR is a PCI Express x1 data acquisition board that combines eight single-ended 16-bit analogue inputs with four isolated digital inputs and four isolated digital outputs on one card. All eight analogue channels sample simultaneously at up to 200 kS/s each, so it suits applications where channel-to-channel timing matters. Input ranges are software-selectable at ±10 V or ±5 V.Isolation is rated at 2500 VDC bus-type across the analogue and digital I/O. A built-in MagicScan controller and a 2048-sample hardware FIFO help buffer high-rate acquisition. The board includes a second-order anti-alias filter, with a typical -3 dB frequency of 15 kHz on the ±5 V range and 23 kHz on the ±10 V range.This is a low-profile board for compact PCs, and it is supplied with both full-height and low-profile brackets for standard-size systems. The ordering code includes one CA-PC25M D-Sub connector and one low-profile bracket. The card is CE, UKCA, FCC, RoHS and WEEE listed, with an operating range of 0 ~ +60°C.ApplicationsIsolated high-speed analogue data acquisition in PCsData acquisition in computers with limited installation space

The PCIe-8622 CR is a full-profile PCI Express x1 data acquisition board for PC-based measurement systems that need synchronous multi-channel analog input. All 16 single-ended channels are sampled simultaneously at 16-bit resolution, with a programmable input range of ±10 V or ±5 V and a sampling rate of 200 kS/s per channel.Isolation is provided on the digital side as well as the analogue input, with 2500 VDC bus-type isolation. The board adds 12 isolated digital inputs, 12 isolated digital outputs with readback, and two 16-bit analog outputs. A 2048-sample hardware FIFO buffers analog input data, and a second-order anti-alias filter has a typical -3 dB frequency of 15 kHz on the ±5 V range and 23 kHz on the ±10 V range.All I/O is routed through a single SCSI II 68-pin high-density connector, which keeps the installation footprint small. Engineers should note the 0 ~ +60 °C operating temperature range when specifying the board for enclosed or industrial PC environments.ApplicationsMulti-channel analog data acquisition in PC-based test and measurement systemsSynchronous sampling of multiple analog signalsMixed analog and digital I/O on a single PCI Express board

The PCIe-LM4 CR is a multifunction PCI Express x1 board for PC-based measurement and control. It brings together four strain gauge (load cell) inputs, four differential analog inputs, a 2-axis pulse output and encoder interface, two 16-bit analog outputs and sixteen isolated digital inputs and sixteen digital outputs on a single card.Each load cell and analog input uses a 24-bit ADC with a sampling rate of up to 15 kS/s. The motion section supports CW/CCW, Pulse/DIR and EA/EB modes, which suits engineers who need pulse-based axis control and encoder feedback alongside sensor measurement in one host PC.A 4-bit Card ID switch lets you tell boards apart in software when two or more PCIe-LM4 cards are fitted to the same computer. Software support includes DLL access and sample programs for several development environments.ApplicationsLoad cell and strain gauge measurementTwo-axis pulse-based motion control with encoder feedbackMulti-channel analog and digital I/O in PC-based systems

The PEX-1002H is a PCI Express x1 multi-function board for PC-based measurement. It combines a 12-bit analogue input section, sampling at up to 44 kS/s, with 16 digital inputs and 16 digital outputs, all at 5 V/TTL levels. It suits engineers who need analogue acquisition and digital I/O in one slot.The analogue inputs can be configured as 32 single-ended or 16 differential channels, with gains of 1, 10, 100 and 1000 and bipolar ranges from ±10 V down to ±0.01 V. Acquisition can be started by software, the internal programmable pacer or an external 5 V/TTL trigger. Pull-high and pull-low jumpers define the state of unconnected digital input channels, so they do not float.An on-board 4-bit Card ID switch lets software identify each board when several cards are fitted to one computer. Driver support covers DLL and ActiveX control, with sample programs for a range of languages and LabVIEW. The unit is rated for operation from 0 to +60 °C and comes with one CA-4002 D-Sub connector.ApplicationsLaboratory automationProduction testSensor interface

PEX-1002L CR is a PCI Express x1 multi-function data acquisition board for engineers who need analogue input, digital input and digital output on a single card. The analogue front end offers 32 single-ended or 16 differential channels at 12-bit resolution, sampling at up to 110 kS/s, with gain settings of 1, 2, 4 and 8.Each board carries a 4-bit Card ID switch, so individual cards can be told apart in software when two or more are installed in the same computer. Pull-high and pull-low jumpers set a defined state for the digital input channels when they are left unconnected, rather than leaving them floating. Triggering can be software, internal programmable pacer or external 5 V/TTL.The CR ordering option includes one CA-4002 D-Sub connector. Driver support covers Linux, DOS and Windows, with a DLL, ActiveX control and sample programs for several development environments, including LabVIEW, C#.NET and Visual Basic.NET.ApplicationsLaboratory automationProduction testSensor interface

PEX-1202H is a PCI Express x1 multi-function board for engineers who need analogue acquisition and digital I/O in a single slot. It provides 32 single-ended or 16 differential 12-bit analogue inputs sampled at up to 44 kS/s, with a 1024-sample FIFO to buffer readings.Acquisition can be started by software, by the internal programmable pacer or by an external 5 V/TTL signal, with pre-, middle- and post-trigger options. The board also offers continuous capture and the MagicScan function, along with two 12-bit analogue outputs rated at ±5 V or ±10 V. The 16 digital inputs have pull-high/low jumpers that set a defined state when channels are unconnected or broken, and the 16 digital outputs are 5 V/CMOS.A 4-bit Card ID switch lets software identify each board when two or more PEX-1202H cards are fitted in one computer. Supported operating systems include Linux, DOS and Windows, with DLL and ActiveX control and sample programs for several development languages. The female DB37 connector is supplied with a CA-4002 D-Sub connector included in this ordering code.ApplicationsHigh speed data acquisition systemProcess monitor and controlVibration analysisDigital pattern generator from digital I/O port

PEX-1202L is a PCI Express x1 multi-function board for engineers who need fast analog acquisition alongside digital I/O in a single PC slot. It offers 32 single-ended or 16 differential 12-bit analog inputs with a maximum sampling rate of 110 kS/s and a 1 K word FIFO, so it suits high speed acquisition tasks.The board also provides two 12-bit analog outputs, 16 digital inputs and 16 digital outputs. The digital inputs are 5 V/TTL and the digital outputs are 5 V/CMOS. Three external triggers (pre-trigger, middle-trigger and post-trigger) and an internal programmable pacer give flexible control over acquisition timing. Card ID switching lets software identify individual boards when two or more PEX-1202L cards are installed in one computer.This ordering code includes one CA-4002 D-Sub connector. The PEX-1202H, rated at 44 kS/s, is listed as a similar model in the same series.ApplicationsHigh speed data acquisition systemProcess monitoring and controlVibration analysisDigital pattern generator from digital I/O port
