PCIe-8622 PCI Express DAQ Board, 16-ch 16-bit 200 kS/s AI with Isolated DI
PCI Express DAQ board with 16 simultaneously sampled 16-bit analog inputs at 200 kS/s per channel, plus 12 isolated digital inputs, 12 isolated digital outputs and 2 analog outputs.
- 16 single-ended analog inputs, 16-bit, sampled simultaneously at 200 kS/s per channel
- Programmable input range of ±10 V or ±5 V, with gain settings of 1 and 2
- 2048-sample hardware FIFO for analog input data
- 12 isolated digital inputs (5 V/TTL) and 12 isolated digital outputs (5 V/CMOS) with DO readback
- 2 analog outputs at 16-bit resolution, static update mode
- 2500 VDC bus-type isolation
5 905,37 kr per st.
| 1–9 st. | 5 905,37 kr | |
|---|---|---|
| 10–30 st. | 5 728,10 kr | −3 % |
| 31+ st. | 5 617,31 kr | −5 % |
Produktinformation "PCIe-8622 PCI Express DAQ Board, 16-ch 16-bit 200 kS/s AI with Isolated DI"

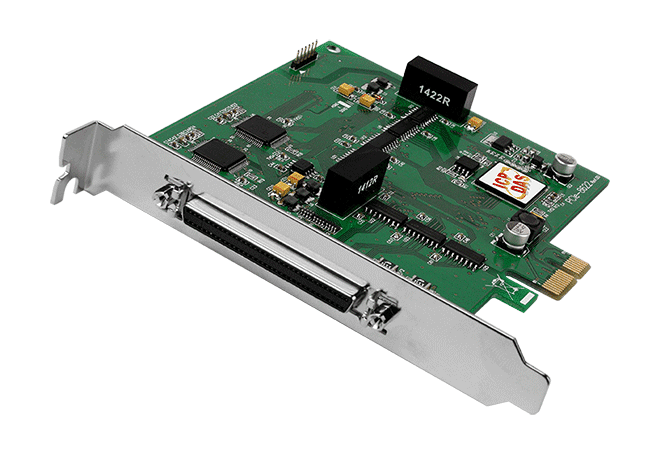

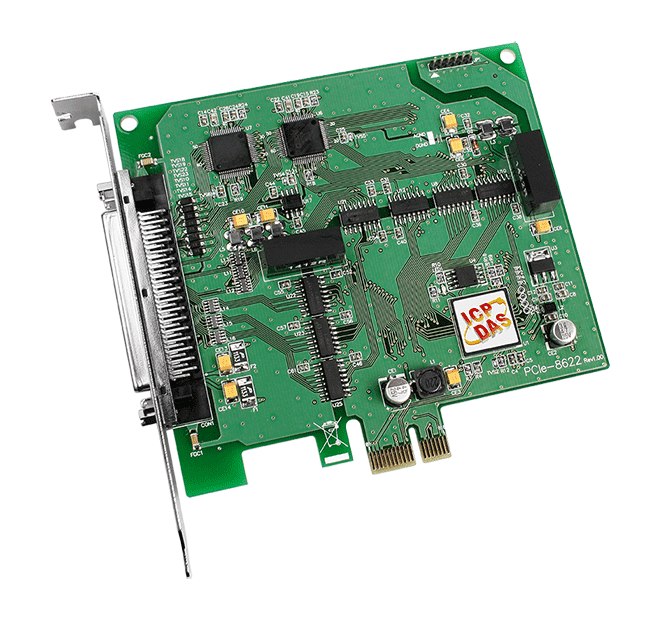

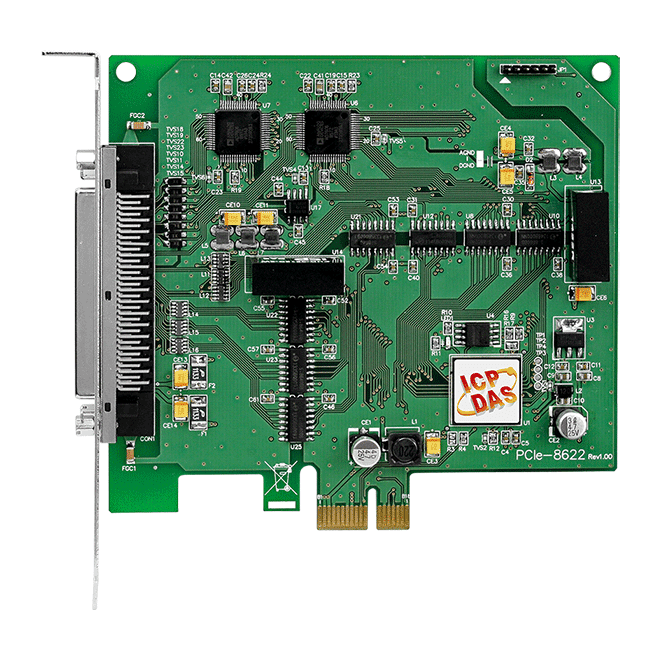

The PCIe-8622 CR is a full-profile PCI Express x1 data acquisition board for PC-based measurement systems that need synchronous multi-channel analog input. All 16 single-ended channels are sampled simultaneously at 16-bit resolution, with a programmable input range of ±10 V or ±5 V and a sampling rate of 200 kS/s per channel.
Isolation is provided on the digital side as well as the analogue input, with 2500 VDC bus-type isolation. The board adds 12 isolated digital inputs, 12 isolated digital outputs with readback, and two 16-bit analog outputs. A 2048-sample hardware FIFO buffers analog input data, and a second-order anti-alias filter has a typical -3 dB frequency of 15 kHz on the ±5 V range and 23 kHz on the ±10 V range.
All I/O is routed through a single SCSI II 68-pin high-density connector, which keeps the installation footprint small. Engineers should note the 0 ~ +60 °C operating temperature range when specifying the board for enclosed or industrial PC environments.
Applications
- Multi-channel analog data acquisition in PC-based test and measurement systems
- Synchronous sampling of multiple analog signals
- Mixed analog and digital I/O on a single PCI Express board
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 12 |
| Digital outputs: | 12 |
| Analog inputs: | 16 |
| Analog outputs: | 2 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | SCSI II 68-pin x 1 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 16 single-ended (Simultaneously) |
| Range | Gain: 1, 2 Bipolar Range: ±10 V, ±5 V |
| Resolution | 16-bit |
| Accuracy | 0.05 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | 200 kS/s |
| Input Impedance | 10,000 MΩ/4 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| FIFO Size | 2048 samples |
| Trigger Mode | Software, Pacer, External |
| Isolation | 2500 VDC (Bus-type) |
| Data Transfer | Polling, Interrupt, DMA |
| Analog Output | |
| Channels | 2 |
| Range | ±5 V, ±10 V |
| Resolution | 16-bit |
| Accuracy | ±10 LSB |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 2.8 V/µs |
| Operation Mode | Static update |
| Digital Input | |
| Channels | 12 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Data Transfer | Polling |
| Isolation | 2500 VDC |
| Digital Output | |
| Channels | 12 |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 1.0 MHz (Typical) |
| Isolation | 2500 VDC |
| DO Readback | Yes |
| Timer/Counter/Frequency | |
| Channels | 2 |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 32-bit |
| Power | |
| Consumption | 600 mA @ +3.3 V 250 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 120 x 125 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
