DLW-1023 CR is a compact environmental monitoring station that combines weather measurements with particulate and gas sensing in one housing. It reports wind speed and direction, atmospheric pressure, illuminance, sea level, temperature and humidity, alongside PM1, PM2.5 and PM10 particulates and CO and CO2 concentrations. It suits engineers who need outdoor air and weather data without assembling separate sensors.The station offers an RS-485 port running Modbus RTU and a 10/100 Base-TX Ethernet port that supports Modbus TCP and MQTT. It can be powered from a +12 to +48 VDC terminal block or from PoE (IEEE 802.3af, Class 1). Onboard alarm conditions are indicated by LEDs, and the unit can be integrated with the WISE controller to send alarm notifications.Mechanically, the unit has an IP54 rating and a one-piece moulded body that can be fitted with a U-bolt or to a wall. The intake and output filter patches are replaceable, which the manufacturer describes as a routine maintenance task. The operating temperature range is -20 to +50°C.ApplicationsSmart greenhouse and agricultural monitoringEnvironmental data collection in remote areas with limited communicationAir quality and weather monitoring at ports and marine sitesIndustrial exhaust emissions monitoringMulti-station water management and pumping station monitoring

DLW-1100 CR is a mini weather station for outdoor monitoring. It measures wind speed and direction, atmospheric pressure, illuminance, precipitation, sea level, temperature and relative humidity, and reports the readings over RS-485 or Ethernet. Power can come from PoE (IEEE 802.3af) or a +12 to +48 VDC terminal block.The unit is built to be installed quickly outdoors. Its one-piece moulded body can be fitted to a straight or horizontal rod using the U-bolt, or mounted on a wall. It carries an IP67 ingress protection rating and has a data logger, real-time clock and watchdog timer, so it can keep recording and recover from communication faults without manual intervention.Engineers can integrate the station with Modbus RTU over RS-485, Modbus TCP and MQTT over Ethernet. It can also be paired with the WISE controller to set alarm notifications for weather conditions. Choose this ordering code when you need a self-contained weather sensor with industrial-grade communication rather than separate instruments.ApplicationsOutdoor weather monitoringSmart farming and greenhouse environmental dataPort and marine weather data collectionMulti-site environmental monitoring over RS-485 or Ethernet

DLW-1120 CR is a mini weather station for monitoring outdoor conditions and airborne particulates in a single unit. It measures wind speed and direction, atmospheric pressure, sea level, illuminance, precipitation, temperature and humidity, along with PM1, PM2.5 and PM10 concentrations, making it suited to engineers who need local environmental data fed into a wider monitoring system.The unit offers an RS-485 port running Modbus RTU and a 10/100 Base-TX Ethernet port that supports PoE, with Modbus TCP and MQTT available over Ethernet. Data can be logged on the device, and it can be integrated with the WISE controller to set alarm notifications for the monitored parameters. The housing is rated IP54 and can be fitted with a U-bolt or to a wall.Typical use cases include greenhouse and agricultural monitoring, outdoor data collection at ports and marine sites, and remote stations where weather and particulate readings must be reported to a central control system.ApplicationsOutdoor weather monitoringSmart greenhouse and agricultural environmental monitoringPort and marine air quality and weather data collectionRemote multi-station data collection and reporting

The DLW-1200 CR is a compact outdoor weather station that measures wind speed, wind direction, temperature and humidity, and it also supports hazardous gas detection. It suits engineers who need local weather data delivered straight into a control or IIoT system over either a serial or an Ethernet link.Readings are available over RS-485 with Modbus RTU or over 10/100 Base-TX Ethernet with Modbus TCP and MQTT. The Ethernet port can be powered by PoE (IEEE 802.3af, Class 1) or from a 12 to 48 VDC terminal block. The unit can also be integrated with the WISE controller to set up alarm notifications on weather conditions.Wind speed, wind direction, temperature and humidity measurement in one housingIP67-rated enclosure with U-bolt or wall mountingOperating range of -20 to +50°CApplicationsSmart greenhouses and agricultural IoT systemsLarge scale farming and crop monitoringMulti-station data collection at remote pumping stationsPort and marine air quality and weather monitoringIndustrial exhaust emissions monitoring

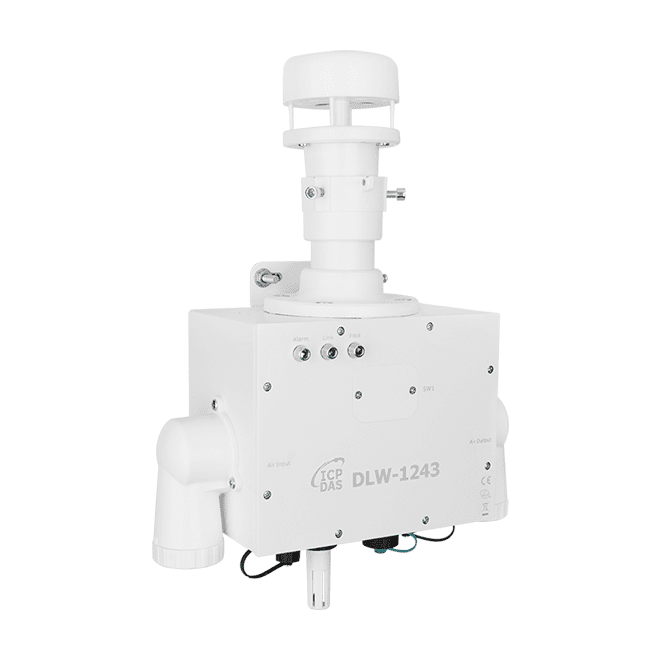

The DLW-1243 CR is a compact outdoor weather station that combines meteorological sensing with hazardous gas detection in a single moulded housing. It reports wind speed, wind direction, temperature and humidity alongside CO, CO2 and NH3 readings, making it suited to engineers who need environmental data from one point on site.Connectivity is provided by an RS-485 port for Modbus RTU and a 10/100 Base-TX Ethernet port with PoE (IEEE 802.3af, Class 1) for Modbus TCP and MQTT. The unit can also be powered from a +12 to +48 VDC terminal block. Its built-in data logger, real-time clock and watchdog timer support unattended operation, and it can be paired with the WISE controller to send alarm notifications.The housing carries an IP54 rating and mounts on a U-bolt or to a wall. The operating range of -20 to +50 °C suits outdoor installations, and the sensors are specified for measurement ranges that include -40 to +80 ℃ for temperature. Typical deployments include greenhouse climate monitoring, remote pumping stations, port and marine air quality, and industrial exhaust monitoring.ApplicationsSmart greenhouse and agricultural monitoringRemote pumping station and water infrastructure monitoringPort and marine air quality and weather monitoringIndustrial exhaust emissions and environmental monitoring
