DLW-1100 Mini Weather Station with RS-485 and PoE Ethernet, Modbus and MQTT
Compact outdoor weather station measuring wind speed and direction, pressure, illuminance, precipitation, sea level, temperature and humidity, with Modbus RTU/TCP and MQTT output.
- Measures wind speed, wind direction, atmospheric pressure, illuminance, precipitation, sea level, temperature and humidity
- One RS-485 port (Modbus RTU, 1200 to 115200 bps) and one 10/100 Base-TX Ethernet port
- Supports Modbus TCP and MQTT over Ethernet, with password and IP filter access control
- Powered by PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block
- IP67 ingress protection rating for outdoor installation
- One-piece moulded body, mountable on a rod with U-bolt or on a wall
34 545,88 kr per st.
| 1–9 st. | 34 545,88 kr | |
|---|---|---|
| 10–30 st. | 33 515,49 kr | −3 % |
| 31+ st. | 32 817,48 kr | −5 % |
Produktinformation "DLW-1100 Mini Weather Station with RS-485 and PoE Ethernet, Modbus and MQTT"

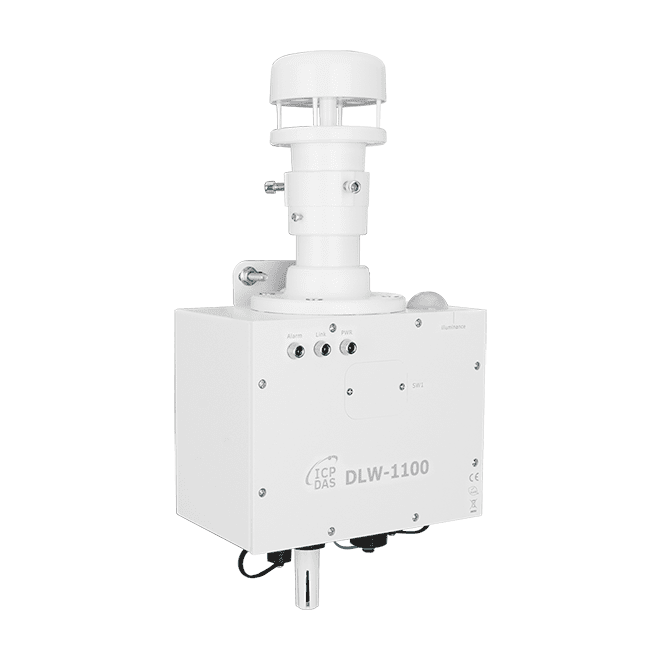

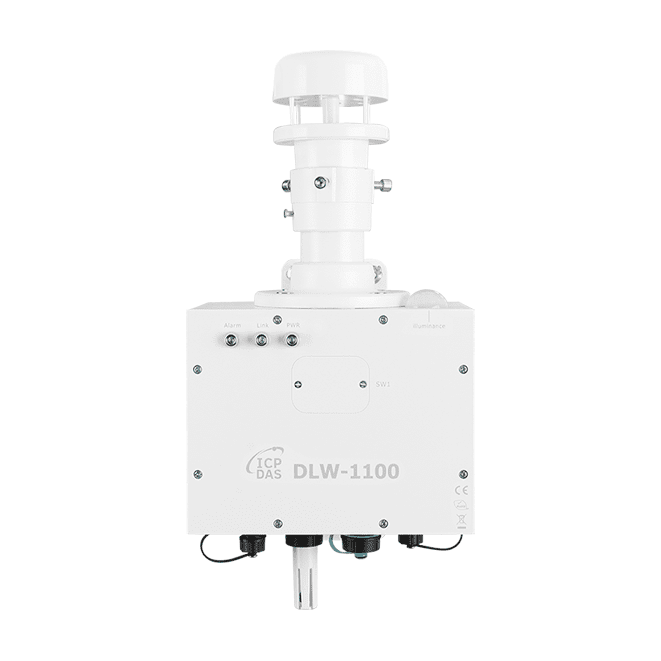

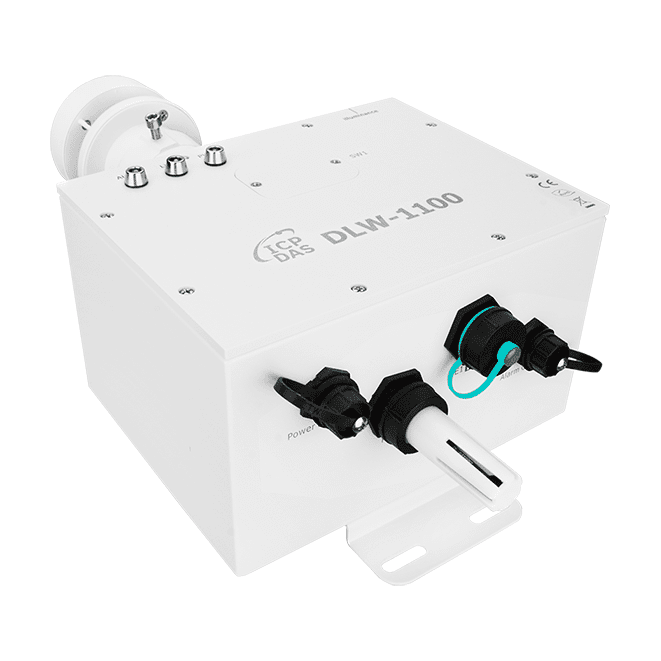

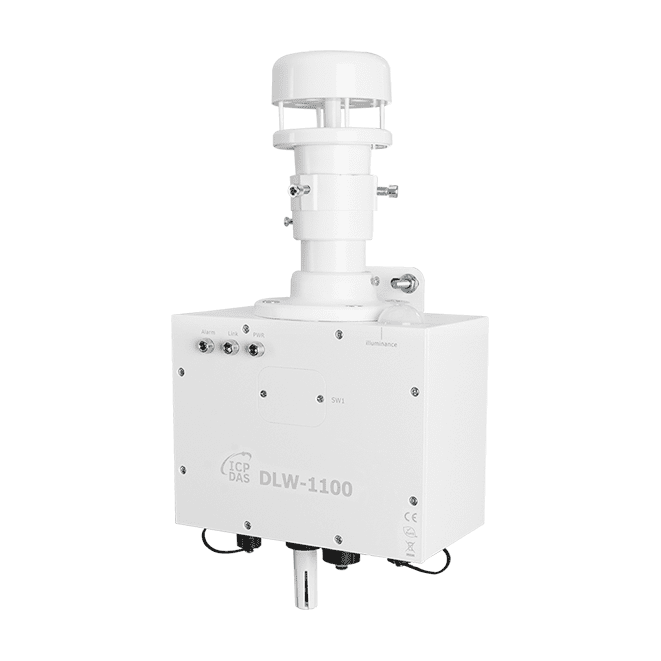

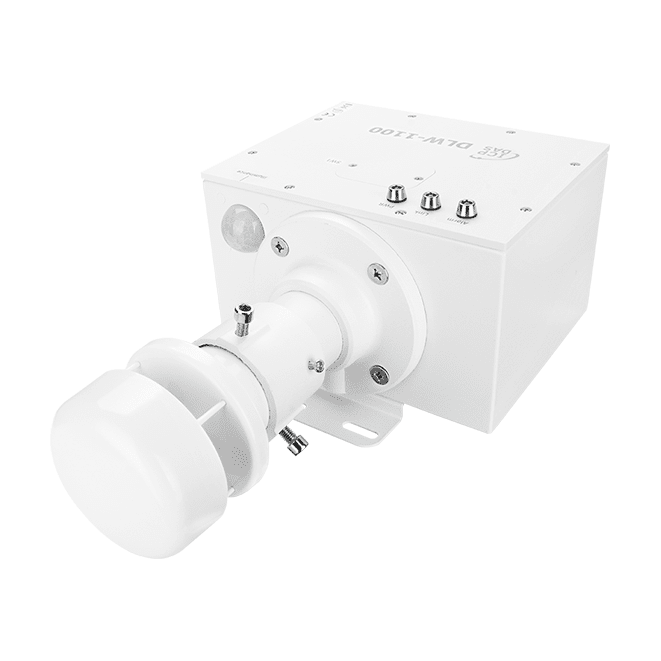

DLW-1100 CR is a mini weather station for outdoor monitoring. It measures wind speed and direction, atmospheric pressure, illuminance, precipitation, sea level, temperature and relative humidity, and reports the readings over RS-485 or Ethernet. Power can come from PoE (IEEE 802.3af) or a +12 to +48 VDC terminal block.

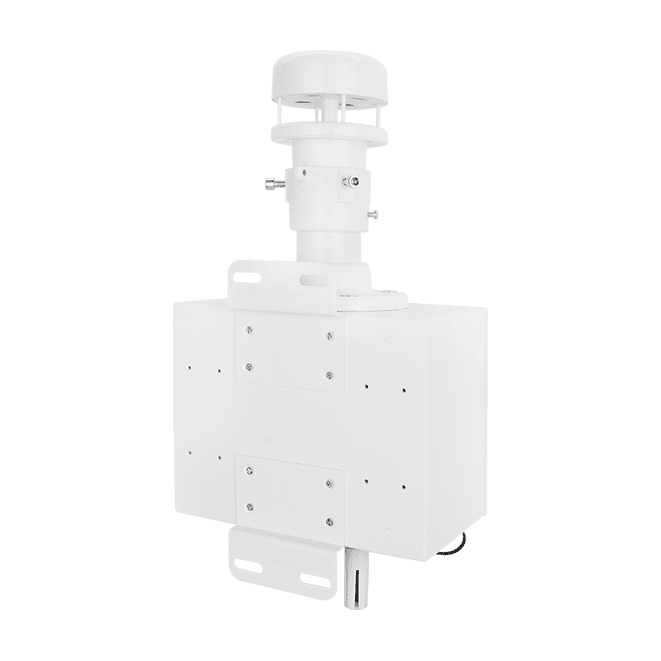

The unit is built to be installed quickly outdoors. Its one-piece moulded body can be fitted to a straight or horizontal rod using the U-bolt, or mounted on a wall. It carries an IP67 ingress protection rating and has a data logger, real-time clock and watchdog timer, so it can keep recording and recover from communication faults without manual intervention.
Engineers can integrate the station with Modbus RTU over RS-485, Modbus TCP and MQTT over Ethernet. It can also be paired with the WISE controller to set alarm notifications for weather conditions. Choose this ordering code when you need a self-contained weather sensor with industrial-grade communication rather than separate instruments.
Applications
- Outdoor weather monitoring
- Smart farming and greenhouse environmental data
- Port and marine weather data collection
- Multi-site environmental monitoring over RS-485 or Ethernet
| Product type: | Weather station |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | PhotoMOS, Form Ax4, SPST 100VDC @ 1A |
| Ports: | 1 x RS-485, 1 x 10/100 Base-TX |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | PoE, +12 to +48 VDC |
| Operating temperature: | -20 to +50 °C |
| Mounting: | U-bolt, wall |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| LED Indicators | |
| Status | PWR: Green for normal Operation Link: Green for the Ethernet-linked Alarm: Red for an alarm condition |
| System | |
| Alarm | Weather Monitoring (Wind Speed, Wind Direction, Pressure, Illuminance, Sea Level, RH/T, Precipitation), |
| Real Time Clock | Yes |
| Data Logger | Yes |
| Relay Output | PhotoMOS Relay, Form Ax4, SPST 100VDC @ 1A |
| Temperature Measurement | |
| Range | -40 ~ +80℃ |
| Resolution | 0.1℃ |
| Accuracy | ±0.5℃ |
| Humidity Measurement | |
| Range | 0 ~ 100% |
| Resolution | 0.1% |
| Accuracy | ±5% |
| Life Time | 10 years |
| Illuminance Measurement | |
| Range | 0 ~ 200,000 Lux |
| Resolution | 1 Lux |
| Accuracy | ± 5% |
| Sea Level | |
| Range | -50 ~ 9000 m |
| Resolution | 0.1 m |
| Atmospheric Pressure | |
| Range | 300 ~ 1200 hPa |
| Accuracy | 1 hPa |
| Resolution | 0.1 hPa |
| Precipitation | |
| Range | 0 ~ 100 mm/hr |
| Accuracy | 0.01 mm/hr |
| Resolution | ± 10% |
| Wind Speed | |
| Rnge | 0 ~ 40 m/s |
| Accuracy | 5% |
| Resolution | 0.01 m/s |
| Wind Direction | |
| Range | 0 ~ 359° |
| Accuracy | <3° |
| Resolution | 1° |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP and MQTT |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus RTU |
| Power | |
| Consumption | PoE: 1.10 W Max Non-PoE: 0.88 W Max |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 190 x 134 x 389 (W x L x H) |
| Installation | U-bolt or Wall Mounting |
| Ingress Protection Rating | IP67 |
| Weight | 2.45 KG |
| Environment | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -30 to +75°C |
| Humidity | 10% to 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
