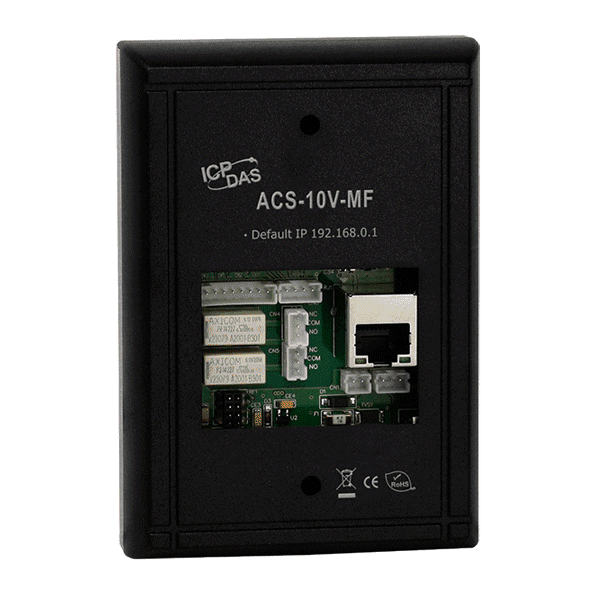

The ACS-10V-MF CR is an RFID proximity card reader for access control, combining door access, voice guidance and elevator floor control in one unit. It reads Mifare Classic, Ultralight and DESFire cards and can store up to 8192 cards, making it suited to community door access and elevator control.The reader includes electric door lock control and door position detection, plus an anti-sabotage micro switch. It keeps access records and provides a built-in RTC and WDT. Elevator floor control supports up to 16 floors.Connectivity covers a 10/100Base-T(X) Ethernet port, an RS-485 port and CAN (ISO-11898-2). Four digital inputs and two Form C relay outputs support door and system integration. The unit is wall mounted and rated for -20 ~ +60 °C operation.ApplicationsCommunity door access controlElevator access and floor controlAccess control systems requiring door position monitoring

The ACS-10V-MF-TC is an RFID proximity card reader for access control systems. It reads ISO 14443 A cards, including Mifare Classic, Ultralight and DESFire, and combines door access control, voice guidance and elevator floor control in one unit.This -TC ordering code is the Chinese voice version of the reader. The built-in voice message function gives users audible feedback at the door. The unit has an Ethernet port, an RS-485 port and a CAN bus interface, so it can be integrated into different access control architectures.Door security is handled by an electric door lock output, door position detection and an anti-sabotage micro switch. Access records are kept on the device, and it can store up to 8192 cards. It is suited to community door access and elevator control installations.ApplicationsCommunity door access controlElevator floor controlAccess control systems

The ACS-10VP-MF is a wall-mounted RFID proximity card reader for access control. It reads Mifare Classic, Ultralight and DESFire cards and combines door access, voice guidance and elevator floor control in one unit. This ordering code is the English voice version.Its Ethernet port supports Power over Ethernet (IEEE 802.3af, Class 1), so the reader can be powered from the same cable as its network connection. An RS-485 port is also provided for serial communication. Two digital inputs and two Form C relay outputs allow the reader to handle door lock control and door position detection, and a micro switch provides anti-sabotage detection.Stores up to 8192 cards and provides access records.Supports elevator floor control for up to 32 floors.Built-in RTC and WDT for timekeeping and watchdog protection.ApplicationsCommunity door accessElevator controlAccess control systems

The ACS-11-MF is a proximity card reader with a built-in keypad, designed for access control installations where credentials are presented by card, by code or by both. It reads ISO 14443 A cards including Mifare Classic, Ultralight and DESFire, and gives spoken feedback through its built-in voice message function.Beyond credential reading, the unit controls an electric door lock, monitors door position and supports elevator floor control of up to 32 floors. It stores up to 8192 cards and keeps access records. An anti-sabotage micro switch and a choice of Ethernet, RS-485 or CAN communication suit it to engineers building networked access control systems.The reader is wall mounted and rated for an operating temperature of -20 ~ +60 °C. Its 2.0 W consumption and reverse polarity protection simplify integration into existing low-voltage access control wiring.ApplicationsCommunity door accessElevator floor controlAccess control systems

The ACS-11-MF-TC CR is an access control reader that accepts both keypad entry and ISO 14443 A RFID cards, covering Mifare Classic, Ultralight and DESFire card types. It combines door access control, voice guidance and elevator floor control in a single unit, making it suited to community door access and lift control schemes.Door hardware can be driven directly through two Form C relay outputs, while four digital inputs and a door position detection function report door status. A built-in micro switch provides anti-sabotage detection, and the reader stores access records with a capacity of 8192 cards.Communication is available over a 10/100Base-T(X) Ethernet port, an RS-485 port and a CAN bus interface, with a built-in RTC and WDT. The unit is wall mounted and measures 83 x 120 x 28 mm (W x L x H), with an operating range of -20 ℃ to +60 ℃.ApplicationsCommunity door access controlElevator floor controlAccess control systems

ACS-11P-MF CR is a keypad and RFID proximity card reader for access control systems. It combines door access control, voice guidance and elevator floor control in one unit, which suits community door access and lift control installations.The reader accepts ISO 14443 A cards, including Mifare Classic, Ultralight and DESFire, and offers electric door lock control with door position detection. An anti-sabotage micro switch, access records and built-in RTC and WDT help protect the installation and support day-to-day management. Communication is available over Ethernet with PoE or over RS-485, and the unit is powered from PoE (IEEE 802.3af, Class 1).Engineers will find the following points useful when specifying this reader:Keypad and RFID induction control for access decisionsTwo digital inputs and two Form C relay outputs for door and floor controlEthernet 10/100Base-T(X) with PoE, plus a single RS-485 port (9600 baud, N, 8, 1)Wall mounting, with the outlet box fitting noted in the source data for the United StatesApplicationsCommunity door access controlElevator floor controlAccess control systems for managed buildings

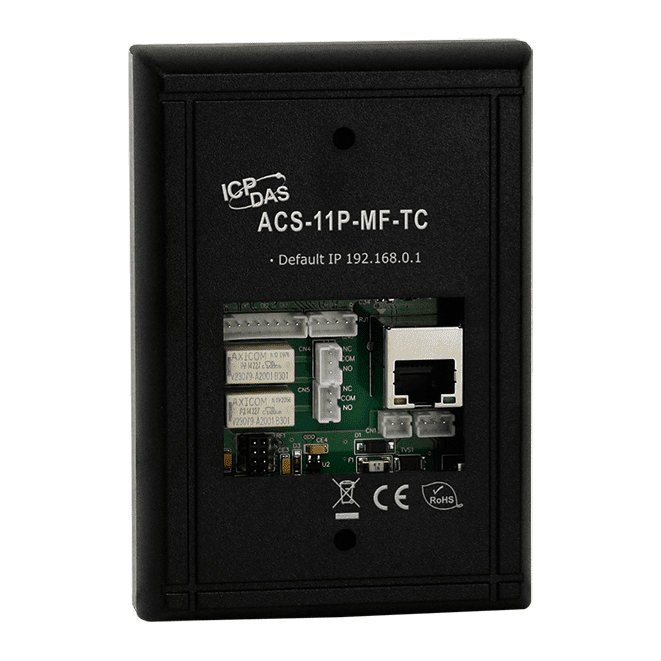

ACS-11P-MF-TC is an access control reader that combines keypad entry and RFID card reading (ISO 14443 A, Mifare Classic, Ultralight and DESFire cards) in one unit. It also handles electric door lock control, door position detection and elevator floor control, with built-in voice messages in the Chinese version ordered here.The reader connects over a 10/100Base-T(X) Ethernet port with PoE (IEEE 802.3af, Class 1) or over RS-485 at 9600 baud, N, 8, 1. Two digital inputs and two Form C relay outputs allow it to interface with door hardware and wider access control wiring. A micro switch provides anti-sabotage detection, and the unit stores access records and holds up to 8192 cards.Designed for wall mounting, the reader suits community door access and elevator control installations. Its built-in RTC and watchdog timer support reliable operation, and it is rated for -20 ~ +60 °C with 10 ~ 95% RH non-condensing humidity. The unit is certified CE, UKCA, FCC, RoHS and WEEE.ApplicationsCommunity door access controlElevator floor controlBuilding access control systems

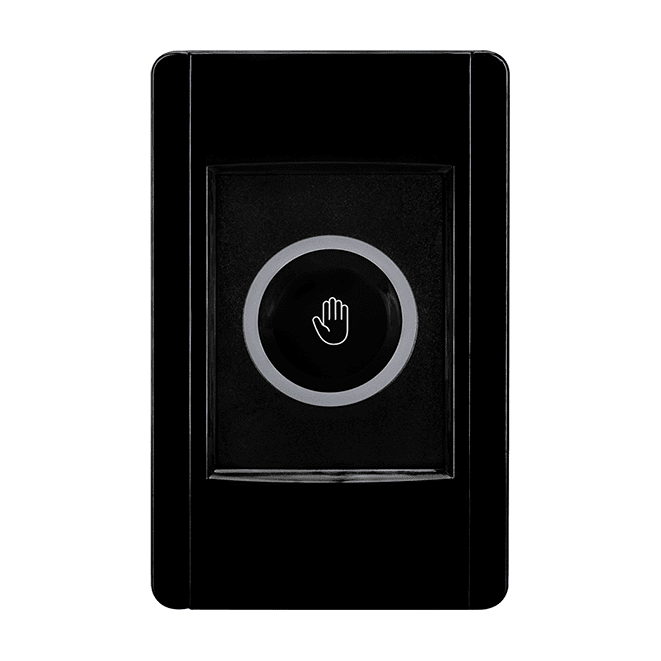

ACS-20B-MRTU CR is a wall-mounted, touch-free switch for door opening. The user triggers it with a palm held close to the sensor, so staff and visitors do not need to touch a handle or push plate when entering or leaving a room or building. The black-cover CR variant is the colour version of the ACS-20B-MRTU.The switch can run in Sensing/Standby, Lock or Toggle Switch mode. In toggle mode, the first trigger switches the output ON and the next trigger switches it OFF, which makes it suitable for controlling other electrical equipment as well as door systems. Induction distance (1 ~ 12 cm) and relay hold time (0.5 ~ 20 sec) are adjustable, and eight lockup periods can be set per day.An RS-485 port with Modbus RTU Slave protocol allows an access control system to enable or disable the switch remotely and read back its recorded switch events, each with a time stamp, up to 1,600 records. A red and blue status indicator shows standby and sensing states.ApplicationsTouch-free door opening for access controlHygienic entry points in medical institutions, food industry and officesRetail stores and industrial plantsToggle control of other electronic devices

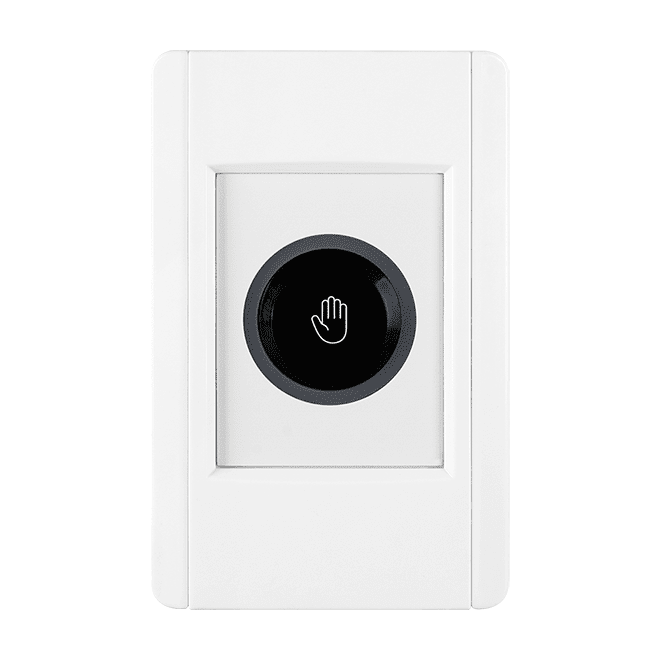

ACS-20W-MRTU CR is a wall-mounted no-touch infrared sensor switch with a white cover. It lets people open a door by palm induction, so occupants do not need to touch a handle or button when entering or leaving a room or building. The induction distance and relay hold time are adjustable, and a double-colour indicator shows the switch status.The switch has a Modbus RTU slave interface on RS-485, allowing an access control system to enable or disable it remotely and to read back its time-stamped induction records. Each entry or exit can be logged, with storage for 1,600 records. The single Form C relay provides both N.C. and N.O. contacts, and the switch can operate in Sensing/Standby, Lock or Toggle Switch mode, so it can also control other electronic equipment.Typical sites include medical institutions, retail stores, food processing, industrial plants and offices, where reducing contact with door hardware helps limit the spread of germs.ApplicationsTouch-free door opening in access control systemsHygienic entry in medical institutions, retail stores and the food industrySwitching other electronic devices in toggle modeDoor access in industrial plants and offices

The ALM-04-MRTU CR is an MP3 alert module that brings audible and relay-based alarm signalling into RS-485 monitoring and control networks. It speaks Modbus RTU, so it can be polled or driven from SCADA software and HMI panels that already use that protocol.Four isolated dry-contact digital inputs, each supporting up to 8 alarm modes, detect field events. A single Form A relay output can drive an external device, while the audio line out feeds an external amplifier or sounder. Up to 64 MP3 files are held on a micro SD card, which also stores the module configuration.Typical choices include building and factory automation, security and visitor call systems, and fire alarm applications. The module mounts on a panel, wall or DIN rail and accepts a 9 to 28 VDC supply with reverse polarity protection.ApplicationsBuilding AutomationSecurity AutomationMachine AutomationFactory AutomationTesting EquipmentGuest/Visitor BellFire Alarm System

The ALM-Horn-BR CR is a piezo alarm siren that gives an audible and visual alert from a single dry-contact signal. Its water-clear upper cover houses 8 blue and 8 red ultra-bright LEDs, with blue indicating system status and red indicating alarm status. Four selectable alarm tones are set by DIP switch, so one unit can be matched to the sound expected on site.The unit accepts a dry-contact input from alarm sources such as security, building automation or fire alarm devices, with NC or NO input mode selected by switch. A single open-collector output is available for passing the signal on. The siren is rated at 120 ±5 dB at 10 cm / 3.0 kHz without the waterproof membrane, and carries IP43 protection.Choose this model when you need a self-contained alarm siren rather than a networked device. The -WF and -MRTU variants add WLAN and RS-485 Modbus connectivity respectively. The ALM-Horn-BR CR is supplied for panel or wall mounting and operates from -20 ~ +75 °C.ApplicationsAudible and visual alarm signalling from dry-contact security alarm outputs (SA)Alarm signalling from building automation outputs (BA)Alarm signalling from fire alarm outputs (FA)

ALM-Horn-MRTU-BR is a piezo alarm siren that reports and responds over RS-485 using Modbus RTU, so it can be polled or controlled from SCADA, HMI or Modbus utility software. It accepts a dry contact signal on its single digital input and provides one open collector output, making it suitable for passing alarm conditions between field devices and a supervisory system.The -BR version has a water clear upper cover fitted with 8 blue and 8 red ultra-bright LEDs. Blue indicates system status and red indicates alarm status. DIP switches select one of four alarm tones and set the input to NO or NC operation. The siren produces 120 ± 5 dB at 10 cm / 3.0 kHz without the waterproof membrane.The unit runs from 12 ~ 48 VDC with reverse polarity protection and draws 0.48 W in standby. It measures 119 x 119 x 48 mm, mounts on a panel or a wall, carries an IP43 rating and operates from -20 ~ +75 °C.ApplicationsAlarm signalling from dry contact sources such as security, building and fire alarm systemsRemote alarm monitoring and control in SCADA, HMI and Modbus-based supervisory systemsLocal audible and visual alarm indication in industrial and building automation installations

The ALM-Horn-RGB CR is a network-connected alarm siren and status beacon. A piezo transducer sounder is combined with 8 user-definable RGB 3 colour Ultrabright LEDs behind a water clear upper cover, so audible and visual alerts can be given from a single unit. It is powered over Ethernet and supports Modbus TCP, with a built-in web server included.One digital input accepts dry contact signals from devices such as SA, BA or FA outputs, with NC/NO input mode selectable. A single open-collector output and four selectable alarm tones allow the unit to be matched to the alarm scheme in use. The Modbus interface makes it straightforward to integrate with SCADA software, HMI panels and utility systems for monitoring or control.The housing carries an IP43 rating and the unit operates from -20 ~ +75 °C. It accepts a 12 ~ 48 VDC input range and can be installed on a panel or wall.Sounder rated at 100 ± 5 dB @10cm/3.0 KHz (without waterproof membrane)Piezo transducer siren with four selectable alarm tonesApplicationsBuilding AutomationSecurity AutomationMachine AutomationFactory AutomationTesting EquipmentFire Alarm System

AR-200 CR is a dynamic signal acquisition module for vibration monitoring and analysis. It accepts two IEPE accelerometers, each supplied with a built-in 3 mA excitation current, and digitises the signals with a 16-bit converter. Sampling of both channels runs simultaneously, at rates up to 200 kHz per channel.Recordings are written to a Micro SD card, so data can be taken away and analysed offline. Capture can be started by a push button, a schedule, an analog threshold, a digital input or a remote command from the supplied utility on a host PC, which also lets you set the sampling rate and scheduling for each application. A single relay output and one digital input add basic event handling to the unit.The logger suits panel or machine installations that need to run unattended. It works from a wide +10 to +30 VDC supply, operates from -25 to +75 °C, and provides 4 kV contact ESD protection on all terminals. Mounting is by wall or DIN-rail.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

The AR-400 is a dynamic signal acquisition module for vibration monitoring and analysis. It samples four channels simultaneously with 16-bit resolution and supplies a built-in 3 mA excitation current for IEPE accelerometers, so compatible sensors can be connected directly without an external supply.Acquired data is written to a micro SDHC card (4 to 32 GB), allowing offline analysis after capture. Recording can be started by push button, schedule, analog threshold, digital input or remote trigger from the utility software installed on a host PC, which also handles sample rate and sampling schedule settings.Suited to condition monitoring setups where vibration data must be captured at defined times or on defined events.Includes a relay output (Form A, 5A@250 VAC) and a digital input for use within trigger or control logic.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

180° Hold-Down Clip (include 50 pcs).

90° Hold-Down Clip (include 50 pcs).

The BRK-2841M CR is a metal-cased MQTT communication server for machine-to-machine and industrial IIoT networks. It acts as a broker for distributing MQTT messages and as a concentrator for field data, supporting MQTT V3.1, V3.1.1 and V5.0 clients.Broker features include QoS message delivery, retained messages, identity authentication, communication encryption, Last Will messages and bridging. Settings are made through the browser-based Web UI, which reduces the effort of setting up and maintaining a broker. For resilience, several units can be grouped into a redundant system using the bridge, cluster, load balancer and high-availability functions, so that a hardware or network failure does not halt field services.Data can be written directly to mainstream databases such as MySQL. During connection outages, data is buffered to a MicroSD card (sold separately) and back-filled once the link is restored.ApplicationsBridge architecture deploymentsRedundancy architecture deploymentsCluster architecture deploymentsPlastic injection molding machine monitoring

CA-LLD-DC100-L010 is a 1 m liquid leak detection cable for monitoring large areas where leaks may travel along an unpredictable route. Its sensing wires make it a practical choice for open floors and surfaces with several possible leak points, rather than a single fixed sensing spot.The cable has a 6 mm fluoropolymer carrier. Its sensing wires are 2 × 30 AWG, enclosed in a conductive fluoropolymer jacket. It can be fixed directly to water supply and return lines, so it can cover pipework as well as the surrounding floor area. The maximum continuous operating temperature is 70 °C.This ordering code is the without position variant, supplied in a 1 m length. It is RoHS and WEEE certified.ApplicationsLeak detection in open areasMonitoring water supply and return linesCovering larger surface areas with multiple potential leak points

CA-LLD-DC100-L030 is a 3M liquid sensing cable for detecting leaks across a wide area when the likely leak path cannot be predicted in advance. It suits open floor areas and larger surfaces where several leak points may appear.The cable can be run directly along water supply and return lines, so it can cover pipework without a dedicated sensor installation at each joint. Its 6 mm fluoropolymer carrier houses two 30 AWG sensing wires with a conductive fluoropolymer jacket.Designed for continuous operating temperatures up to 70°CSupplied in 3M length, identified by the -L030 suffixRoHS and WEEE certifiedApplicationsLeak detection along water supply and return linesOpen areas and larger surfaces with multiple potential leak pointsWide-area water leak monitoring where the leak path is not predetermined

CA-LLD-DC100-L100 is a 10M liquid leak detection cable for monitoring larger surface areas where the route a leak will take is hard to predict. Its length and flexible layout suit open areas and installations with several possible leak points.The cable can be fixed directly to water supply and return lines, so it can be routed along pipework to cover the areas where leaks are most likely to occur. It is supplied in the 'w/o Position' variant listed by the manufacturer.Construction is a 6 mm fluoropolymer carrier with two 30 AWG sensing wires enclosed in a conductive fluoropolymer jacket. The maximum continuous operating temperature is 70°C. The product is listed as RoHS and WEEE compliant.ApplicationsOpen areas with a wide surface to monitorWater supply and return linesLarger surface areas with multiple potential leak points

The CA-LLD-DC100-L300 is a 30 m liquid leak detection cable designed to cover larger areas where the path a leak might take is hard to predict. It suits open spaces with several possible leak points and can be fixed directly to water supply and return lines.Built with a 6 mm fluoropolymer carrier and two 30 AWG sensing wires enclosed in a conductive fluoropolymer jacket, the cable is rated for a maximum continuous operating temperature of 70 °C. This ordering code is the version without position detection.The cable is RoHS and WEEE compliant.ApplicationsWater leak detection over open or large surface areasMonitoring multiple potential leak pointsFixing to water supply and return lines

The CA-LLD-DC100-L500 is a liquid leak detection cable designed to monitor a wide area where the path a leak might take cannot easily be predicted. It suits open areas and larger surfaces with several possible leak points.The cable can be fixed directly to water supply and return lines, so it can follow the pipework rather than relying on a fixed sensor position. This version is supplied without position detection, as indicated by the 'w/o Position' designation in its description.The 6 mm cable uses a fluoropolymer carrier and two 30 AWG sensing wires with a conductive fluoropolymer jacket. It is rated for a maximum continuous operating temperature of 70 °C and is RoHS and WEEE listed.ApplicationsWater supply and return line leak monitoringOpen areas and large surfaces with multiple potential leak points

The CA-LLD-DC100X-L010 is a 1 m liquid leak detection cable for covering wide, open areas where the likely leak path cannot be predicted in advance. It can be run alongside liquid supply and return lines, and it suits larger surfaces with several potential leak points.Compared with the standard CA-LLD-DC100-Lxxx cable for iSN-101/104, this variant adds two functions when used with the CA-LLD-DC100X-TR terminal resistor. Cable-break detection reports a broken signal leader cable or detection cable immediately and passes the alarm to the iSN-101/104 buzzer. Snap-in connectors at both ends allow several detection cables to be connected in series.The signal leader cable plus all detection cables can reach a maximum of 500 m. The 6 mm fluoropolymer-jacketed cable carries two 30 AWG sensing wires and is rated for a maximum continuous operating temperature of 70 °C.ApplicationsLiquid leak detection over wide or open areasMonitoring liquid supply and return linesLarger surface areas with multiple potential leak points
