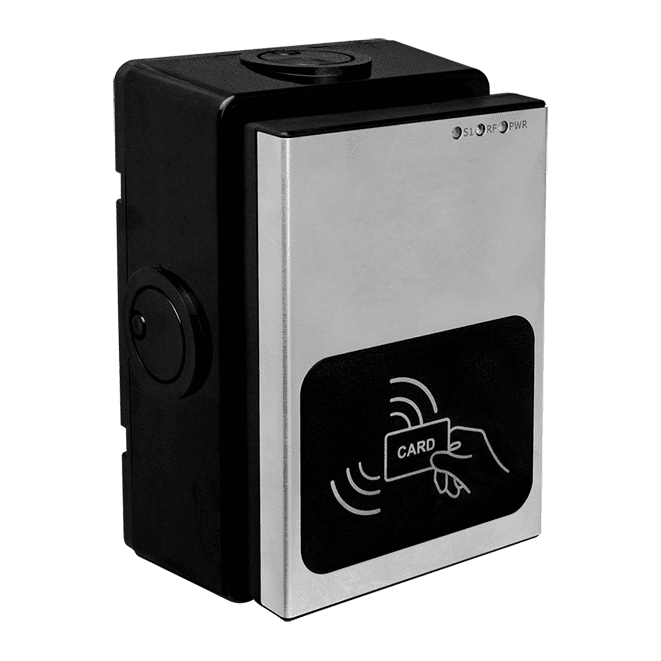

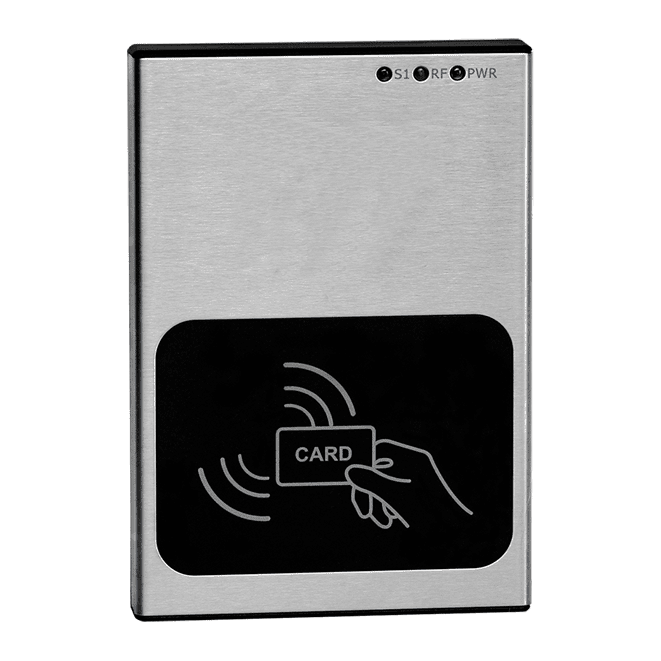

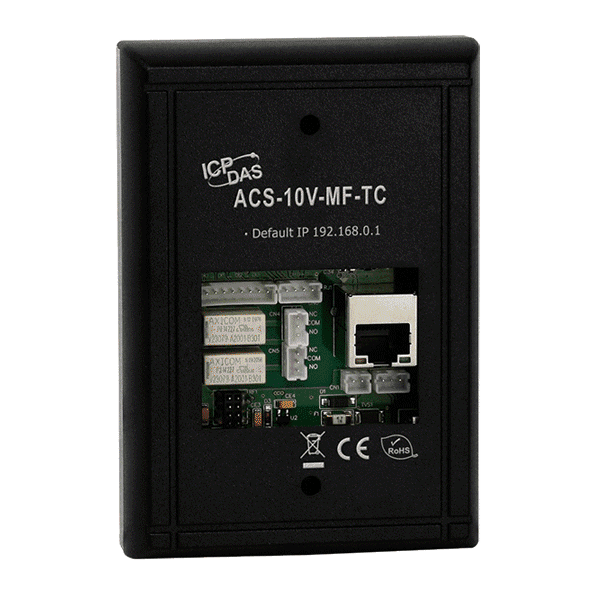

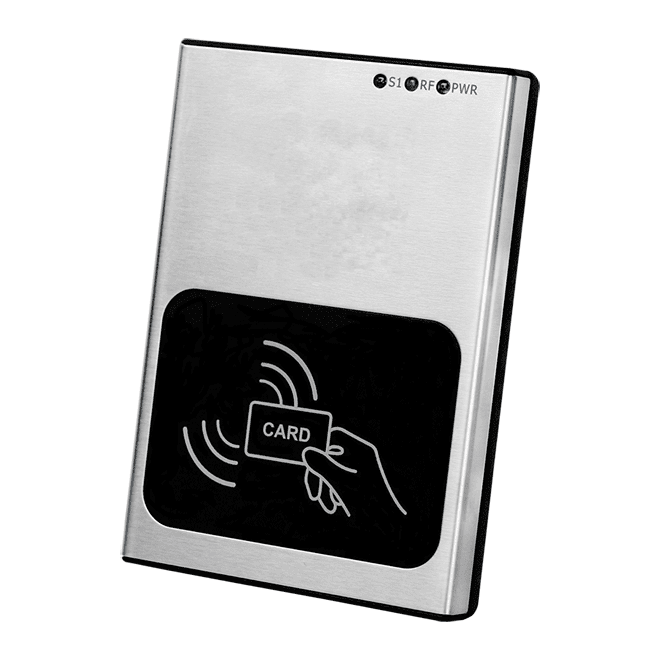

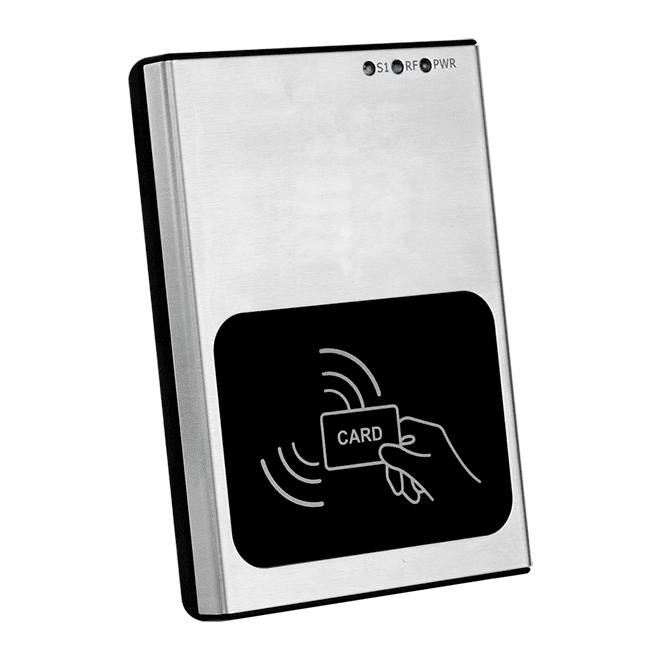

ACS-10V-MF-TC RFID Access Control Card Reader, Ethernet/RS-485/CAN
Proximity card reader for access control with ISO 14443 A RFID, Chinese voice messages, elevator floor control and door position detection, plus Ethernet, RS-485 and CAN interfaces.
- Reads ISO 14443 A RFID cards, supporting Mifare Classic, Ultralight and DESFire
- Built-in Chinese voice message function
- Ethernet (10/100Base-T(X)), RS-485 and CAN bus interfaces
- Electric door lock control with door position detection
- Anti-sabotage micro switch for tamper detection
- Elevator floor control for up to 16 floors
1 750,56 kr per st.
| 1–9 st. | 1 750,56 kr | |
|---|---|---|
| 10–30 st. | 1 706,24 kr | −3 % |
| 31+ st. | 1 673,00 kr | −4 % |
Produktinformation "ACS-10V-MF-TC RFID Access Control Card Reader, Ethernet/RS-485/CAN"
The ACS-10V-MF-TC is an RFID proximity card reader for access control systems. It reads ISO 14443 A cards, including Mifare Classic, Ultralight and DESFire, and combines door access control, voice guidance and elevator floor control in one unit.
This -TC ordering code is the Chinese voice version of the reader. The built-in voice message function gives users audible feedback at the door. The unit has an Ethernet port, an RS-485 port and a CAN bus interface, so it can be integrated into different access control architectures.
Door security is handled by an electric door lock output, door position detection and an anti-sabotage micro switch. Access records are kept on the device, and it can store up to 8192 cards. It is suited to community door access and elevator control installations.
Applications
- Community door access control
- Elevator floor control
- Access control systems
| Product type: | Card reader |
|---|---|
| Interface: | CAN, Ethernet, RS-485 |
| Digital inputs: | 4 |
| Relay outputs: | 2 |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Wall |
Specifikationer
| Keypad | |
|---|---|
| Supported | No |
| System | |
| Micro Switch | Channel x 1, SPDT, 6A @125/250 VAC, for anti-sabotage detection |
| RFID | |
| Standard | ISO 14443 A |
| Supported Card | Mifare Classic, Ultralight, DESFire |
| Digital Input | |
| Channels | 4 |
| Type | Dry contact (Source), Wet Contact (Sink, Source) |
| Relay Output | |
| Channels | 2 |
| Type | Form C |
| Contact Rating | 2A@30VDC, 0.5A@120VAC |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
| Ports | 1 x RS-485 (D+, D-) |
| Baud Rate | 9600 |
| Data Format | N, 8, 1 |
| CAN | |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 1M |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 83 x 120x 28 (W x L x H) |
| Installation | Wall Mounting (Suitable for the outlet box in United States) |
| Environment | |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
