Digitala I/O-kort
The DIO-48 CR is an ISA bus digital I/O board that gives a PC 48 bi-directional 5 V/TTL channels. The lines are grouped into six 8-bit bi-directional ports, and each port's direction is programmable under software control, so the board can be set up for a mix of inputs and outputs.Every I/O line is buffered on the board, which provides higher driving capability. Pull-up or pull-down resistors on the I/O lines keep an unconnected digital input at a defined high or low level instead of letting it float. The board emulates two industrial-standard 8255 PPI ports in mode 0, which helps when porting existing 8255-based code.Timing resources include a 32-bit programmable internal timer and a 16-bit event counter, with four interrupt sources. The board supports daughter boards from the DB-24 and DB-16 families as well as OPTO-22 compatible daughter boards.ApplicationsDigital I/O expansion in ISA bus PCsSwitching and sensing 5 V/TTL logic signalsTiming and event counting alongside digital I/O
ISA Bus, 32-ch DI, 32-ch DO, 3x Timer/Counter Board.
ISA Bus, 32-ch DI, 32-ch DO, 6x Timer/Counter Board.
The ISO-C64 CR is an ISA bus digital output board that gives a PC 64 isolated open-collector channels, split across four isolated banks (groups A, B, C and D). It is intended for driving field logic signals while keeping the host computer protected from damaging voltages and free of ground-loop problems.Each output uses a Darlington transistor with an integral suppression diode, which suits switching inductive loads. The output port requires an external power supply. The board is supplied with one CA-4037W cable and two CA-4002 D-Sub connectors, so it can be connected to field wiring straight away.Choose this variant when you need high channel density with galvanic separation on an ISA-based system. The board is CE, UKCA, RoHS and WEEE certified. The related ISO-P64 and ISO-P32C32 are available if a different interface or channel count is required.ApplicationsFactory automationProduct testLaboratory automation
The ISO-P32C32 CR is an ISA bus digital I/O board for PC-based control and test work, providing 32 isolated digital inputs and 32 isolated digital outputs. The inputs use photo-coupler circuits and can be powered internally through the built-in DC/DC converter or from an external supply, selected by jumper. The outputs use Darlington transistors with an integral suppression diode for inductive loads.The board isolates the host PC from field logic signals, which helps prevent ground-loop problems and protects the computer from damaging voltages. Channels 0 to 15 and 16 to 31 form separate isolated input groups, and the outputs are arranged in two further isolated groups. Interrupt handling is supported, with channel 0 and channel 16 as interrupt sources.This ordering code includes one CA-4037W cable and two CA-4002 D-Sub connectors, so the board can be wired to field signals straight away. Each D-Sub connector carries 16 input and 16 output channels. The output port requires an external power supply.ApplicationsFactory AutomationProduct TestLaboratory Automation
The ISO-P32S32W CR is an ISA bus digital I/O card that gives a PC 32 optically isolated digital inputs and 32 isolated NPN open-collector outputs. Each input is isolated by a photocoupler, which keeps the host computer separated from field signals and protects it from voltages that could damage it.The outputs are current-sinking NPN transistors with an integral suppression diode for inductive loads. Output capability is split between 8 channels rated at 500 mA and 24 channels rated at 100 mA. External power is needed to drive the digital input and output ports, and the card has an onboard DC/DC converter. Two interrupt sources, channel 0 and channel 16, are available for event-driven handling.The card is intended for factory automation, product test and laboratory automation, where a PC needs to read switch and sensor states and drive loads through isolated, field-wired connections. The included CA-4037W cable and CA-4002 D-Sub connectors simplify field wiring.ApplicationsFactory AutomationProduct TestLaboratory Automation
The ISO-P64 CR is an ISA bus data acquisition board that brings 64 optically isolated digital inputs into a PC. The inputs are split into four isolated banks, so field signals are kept electrically separate from the host computer, which helps eliminate ground-loop problems and protects the PC from damaging voltages.Each input uses a photocoupler and accepts either dry (volt-free) or wet contact signals. The input supply can be set by jumper to the board's internal DC/DC converter, which draws power from the PC side, or to an external supply. Inputs 0 to 15 and 32 to 47 form group A, while inputs 16 to 31 and 48 to 63 form group B. Channels 0 and 16 can be used as interrupt sources.Field wiring is made through a female DB37 connector and a 40-pin box header, with the CA-4037W cable and two CA-4002 D-Sub connectors included in this ordering code. Each D-Sub connector carries 16 input and 16 output channels, so the board suits factory automation, product test and laboratory automation setups.ApplicationsFactory AutomationProduct TestLaboratory Automation
P16R16DIO CR is an ISA bus interface board that combines 16 isolated digital inputs with 16 electromechanical relay outputs. It installs in PC/AT/XT systems and suits engineers who need both sensing and switching on a single card.Each digital input accepts AC/DC 5 ~ 24 V with sink/source operation and is isolated to 5000 Vrms. The relay bank provides eight SPDT and eight SPST contacts, each with an LED showing its state. The board uses one 37-pin D-Sub connector, and its function equals that of two P8R8DIO units.This CR order includes one CA-4037B cable and two CA-4002 D-Sub connectors. The connector pin assignment is compatible with the 725 series.Hardware note: power draw is 200 mA at +5 V and 260 mA at +12 V (maximum).ApplicationsFactory AutomationProduct TestLaboratory AutomationSecurity Control
The PCI-D128SU CR gives a PC 128 digital I/O lines organised as four 32-bit bi-directional ports. Each channel can be configured in software as an input or an output, which suits general-purpose digital control and monitoring in engineering test and automation work.Logic levels can be set to 1.8 V, 2.5 V, 3.3 V or 5 V TTL, so the board can interface with a range of signal standards. Pull-high and pull-low jumpers define the state of digital inputs when a channel is disconnected or interrupted, rather than leaving it floating. Pattern-matching and change-of-state interrupt monitoring are available for event-driven designs.An onboard 4-bit Card ID switch allows software to identify each board when two or more are fitted in the same computer. All connections run through a single high-density female SCSI II 100-pin connector, with two 20-pin box headers also provided. DLL and ActiveX control, plus sample programs for several development environments including LabVIEW, are supplied to help with application development.ApplicationsGeneral-purpose digital input and output in PC-based control and test systemsEvent-driven monitoring using pattern matching and change-of-state interruptsDigital waveform generation on output channelsMulti-board installations requiring individual board identification
PCI-D96SU is a universal PCI digital I/O board for PC-based systems that need a large number of TTL-level signals. It supports the 3.3 V and 5 V PCI bus and provides 96 digital I/O lines arranged as three 32-bit bi-directional ports. Each channel can be configured in software as an input or an output, so one card can cover a wide range of switching and monitoring tasks.The board offers a selectable DIO operating voltage of +1.8 V, +2.5 V, +3.3 V or +5 V, allowing it to match the logic level of the connected equipment. Pull-high and pull-low jumpers let you define the state of digital inputs when channels are disconnected or interrupted, rather than leaving them floating. Pattern-matching and change-of-state interrupt monitoring are supported, along with a digital pattern generator.An onboard Card ID switch allows software to identify the board when two or more cards are installed in the same computer. All signals are routed through a single high-density SCSI II 100-pin connector, which saves installation space. Driver support includes a DLL and ActiveX control, with sample programs for a range of development environments, including LabVIEW and Visual Basic.NET.ApplicationsDigital I/O in PC-based data acquisition systemsMulti-board installations where individual cards must be identified in softwareDigital pattern generation and waveform output

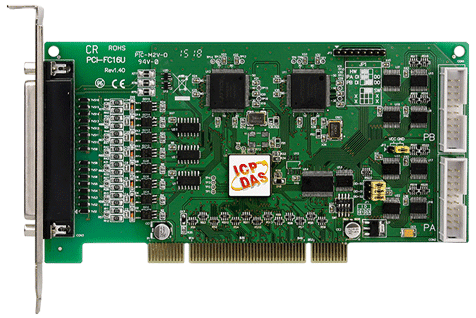

PCI-FC16U CR is a 32-bit PCI board for high-speed counting and frequency measurement, fitted to the universal PCI bus so it works in both 3.3 V and 5 V slots. Its 16 counter channels can each be set up for frequency measurement or up-counting, with signals up to 250 kHz.The board also provides 32 programmable digital I/O channels, each rated 5 V/TTL. Pull-high and pull-low resistors on the DI channels hold a defined level when an input is disconnected or interrupted, rather than leaving it floating. An onboard 4-bit Card ID switch lets software tell boards apart when two or more are installed in the same PC.Driver support covers DOS and Windows, with a DLL and ActiveX control. Sample programs are provided for several languages and environments, including C#.NET, Visual Basic.NET and LabVIEW, to help engineers start application development quickly. The package includes one CA-4002 D-Sub connector.ApplicationsHigh-speed pulse counting and event totalisingFrequency measurement of pulse signals up to 250 kHzDigital I/O for PC-based test and controlMulti-board PC systems needing software board identification
The PCI-M512U CR is a universal PCI card that combines 512 KB of SRAM with 12 digital inputs and 16 digital outputs, all at 5 V/TTL levels. It fits both 3.3 V and 5 V PCI slots, so it suits a range of host PCs used for data acquisition and digital control.Two lithium batteries keep the SRAM contents when the PC loses power. According to the source, they can retain the data for 10 years. Because there are two batteries, one can be replaced while the other keeps the memory powered, so the stored data is not lost during the swap. Four on-board LEDs show the battery state, including normal, low voltage and fault conditions.The digital inputs and outputs use static update operation with a typical response speed of 1.0 MHz. The card has a 20-pin box header x 2 connector and a 4-bit card ID. The operating range is 0 ~ +60°C, and it is CE, UKCA, RoHS and WEEE listed.ApplicationsRetaining process or event data across PC power lossDigital I/O on PCI-based industrial PCs and data acquisition systemsSystems where non-volatile data storage improves reliability

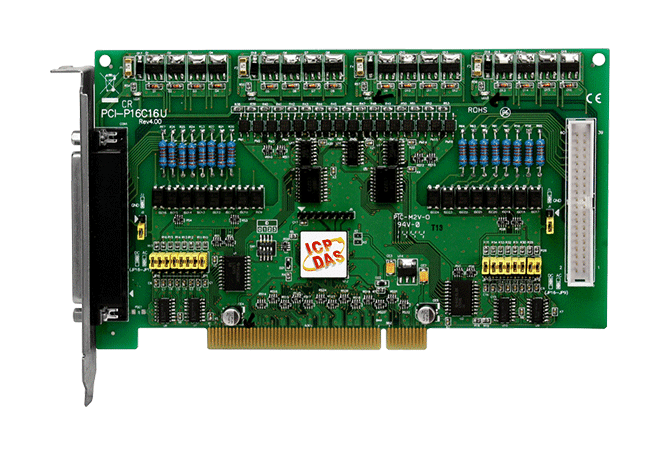

The PCI-P16C16U CR is a universal PCI card for 3.3 V/5 V slots that gives a host PC 16 optically isolated digital inputs and 16 open-collector sink (NPN) digital outputs. The input side isolates the computer from ground loops and voltage spikes, so field signals can be floated safely.Each input accepts AC or DC signals from 5 to 24 V, with a selectable DC filter for noisy lines. The outputs suit alarm and warning circuits, signal switching and driving external loads that need a higher voltage level, with each channel rated at 600 mA/+30 V at 100% duty.Where two or more boards share one computer, the 4-bit Card ID switch lets software identify each card. This order includes a CA-4037W cable and two CA-4002 D-Sub connectors for wiring.ApplicationsAlarm and warning notificationsControl of signal outputsSwitching external circuits that require a higher voltage levelSignal transmissionDigital input monitoring in PC-based data acquisition
The PCI-P16POR16U is a universal PCI card, supporting 3.3 V and 5 V PCI bus slots, that combines 16 optically isolated digital inputs with 16 PhotoMOS relay outputs on a single board. The inputs accept AC or DC signals from 5 to 24 V, with selectable DC filtering, and are suited to sensing external voltages, switches and contact closures.Isolation is the main reason to choose this card. The digital inputs provide 5000 Vrms photo-isolation protection, so field wiring can float relative to the host computer, which helps prevent ground loops and shields the PC from voltage spikes. The PhotoMOS relay outputs, rated at 300 V (AC peak or DC) and 130 mA, switch without mechanical contacts, so there is no contact bounce, sparking or acoustical noise, and they provide low leakage current when off.A 4-bit onboard Card ID switch lets software identify the board when two or more cards are installed in the same computer. The card is described as a direct replacement for the PCI-P16POR16 and needs no software or driver changes. It is supplied with one CA-4037W cable and two CA-4002 D-Sub connectors and carries CE, UKCA, FCC, RoHS and WEEE certification.ApplicationsControlling the ON/OFF state of external devicesDriving external relays or small power switchesActivating alarmsContact closure and switch sensingSensing external voltages
The PCI-P16R16U CR is a universal PCI card for 3.3 V and 5 V slots that combines 16 optically isolated digital inputs with 16 relay outputs. The inputs carry 5000 Vrms of isolation, so field signals can be kept floating and ground loops are avoided.The relay outputs, eight SPDT and eight SPST, can switch external devices, drive external relays or small power switches, or trigger alarms. An on-board 4-bit Card ID switch lets software tell cards apart when two or more are fitted in one computer.Software support covers Linux, DOS and Windows, with DLL and ActiveX control options and sample programs for several languages, including C#, Visual Basic.NET and LabVIEW, to speed up application development. The package includes one CA-4037W cable and two CA-4002 D-Sub connectors.ApplicationsSwitching external devices and small power loads via relaysDriving external relaysActivating alarms and signallingDigital input monitoring with galvanic isolation to prevent ground loopsMulti-card digital I/O in a single computer
The PCI-P8R8U is a universal PCI card that combines eight optically isolated digital inputs with eight relay outputs. The photo-coupler inputs provide 5000 Vrms isolation, so input signals can be fully floated, which helps prevent ground loops in industrial control and monitoring setups.The relay channels can switch external loads, drive external relays or small power switches, or trigger alarms. A 4-bit Card ID switch on the board lets software tell cards apart when two or more are installed in one computer. Drivers and sample programs are provided for Linux, DOS and Windows, with a DLL, ActiveX control and examples for several languages, including Visual Basic, C#.NET and LabVIEW.This ordering code includes one CA-4002 D-Sub connector for wiring the board.ApplicationsMonitoring digital input signals with galvanic isolation to avoid ground loopsSwitching ON/OFF states of external devicesDriving external relays or small power switchesActivating alarmsMulti-card digital I/O systems in a single PC
The PCI-TMC12AU is a 3.3 V/5 V universal PCI board that combines twelve independent 16-bit timers/counters with 16 channels of 5 V/TTL digital input and 16 channels of 5 V/TTL digital output. It is a drop-in replacement for the PCI-TMC12A and works without changes to existing software or drivers, which makes it a practical choice when upgrading or maintaining a PC-based measurement or control system.The timers/counters are built on four onboard 8254 chips. Two internal clock sources, 8 M/1.6 M and 0.8 M/80 K, are selected by jumper and provide a high-resolution reference for timing. Timers can be cascaded to form 32-bit or 48-bit counters, and the gate input can be driven from an external source or from the output of a previous timer/counter.The board suits industrial and laboratory work where event timing and pulse measurement are needed alongside discrete I/O. Each timer/counter channel supports an external clock input and an output, and the card includes a CA-4002 D-Sub connector for field wiring.ApplicationsPulse, event and switch-toggle countingFrequency readingsElapsed time measurementPulse-width measurementPWM (pulse-width-modulated) outputPulse (square wave) and rate generationIndustrial and laboratory applications
The PEX-730 CR is a PCI Express x1 digital I/O board that combines 16 optically isolated digital inputs and 16 isolated open-collector outputs with 16 TTL-level inputs and 16 TTL-level outputs. Isolation is rated at 3750 Vrms, so field inputs can be floated to avoid ground loops and the host computer is protected from damaging voltages.The isolated outputs are NPN Darlington sink types with an integrated suppression diode for inductive loads, rated at 100 mA/+30 V per channel at 100% duty. They suit alarm and warning signalling, control of external circuits needing a higher voltage level, and general signal output control. The inputs support wet contact sensing from 9 to 24 V, and the internal power supply for dry-contact inputs is isolated to 3000 VDC.When more than one card is fitted in the same PC, the onboard 4-bit Card ID switch lets software identify each board. The PEX-730 CR is designed as a direct replacement for the PISO-730U and PISO-730A with no software or driver modifications required.ApplicationsFactory automationProduct testLaboratory automation
PEX-730A is a PCI Express x1 digital I/O board that combines 32 optically isolated channels (16 DI and 16 PNP source DO) with 32 TTL-level channels (16 DI and 16 DO). The isolated channels provide 3750 Vrms photo-isolation, so input signals can float free of the ground reference, which helps prevent ground loops and protects the host computer from damaging voltages.The isolated digital outputs are PNP (current sourcing) with an integrated suppression diode for inductive loads, which suits alarm and signal output control, switching external circuits that need a higher voltage level, and signal transmission. The order code includes one CA-4002 D-Sub connector for field wiring.A 4-bit Card ID switch lets software identify each board when two or more cards are installed in one computer. The PEX-730A is designed as a direct replacement for the PISO-730U/PISO-730A and needs no software or driver modification.ApplicationsFactory automationProduct testLaboratory automation
The PEX-C64 is a PCI Express x1 digital output board that gives a host PC 64 optically isolated channels for driving field logic and loads. Each channel uses a Darlington transistor output with an integrated suppression diode for inductive loads, and the isolation rated at 3750 Vrms keeps the computer separated from ground loops and voltage spikes on the field side.Engineers choose this board for factory automation, product test and laboratory automation where a dense block of sink-type outputs is needed in a single slot. Outputs are arranged into four isolated banks when four isolated external power supplies are used. An onboard 4-bit Card ID switch makes individual boards easy to identify in software when two or more cards are installed in the same computer.The PEX-C64 is designed as a drop-in replacement for the PISO-C64U, with no modification required to existing software or driver. This ordering code includes one CA-4037B cable and two CA-4002 D-Sub connectors.ApplicationsFactory automationProduct testLaboratory automation
PEX-D144LS is a PCI Express x1 digital I/O board that provides 144 TTL-level lines, grouped into eighteen 8-bit bidirectional ports. The ports are arranged in sets of three (Port A, Port B and Port C), and every port starts as an input at power-up or after a reset.The board uses a high-density connector to save space inside the computer. An onboard Card ID switch lets software tell boards apart when two or more are installed in the same PC. Pull-high/pull-low jumpers allow each DI channel to be set to a defined state instead of floating when a line is disconnected or interrupted.Driver support covers Linux, DOS and Windows, with a DLL and ActiveX control. Sample programs are included for C/C++, Delphi, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, which helps engineers get a custom application running quickly. Choose the PEX-D144LS CR when you need a PCIe option with pull-high/low DI jumpers and a SCSI II connector.ApplicationsPC-based digital I/O monitoring and controlData acquisition systems using PCI ExpressMulti-board installations in a single computer

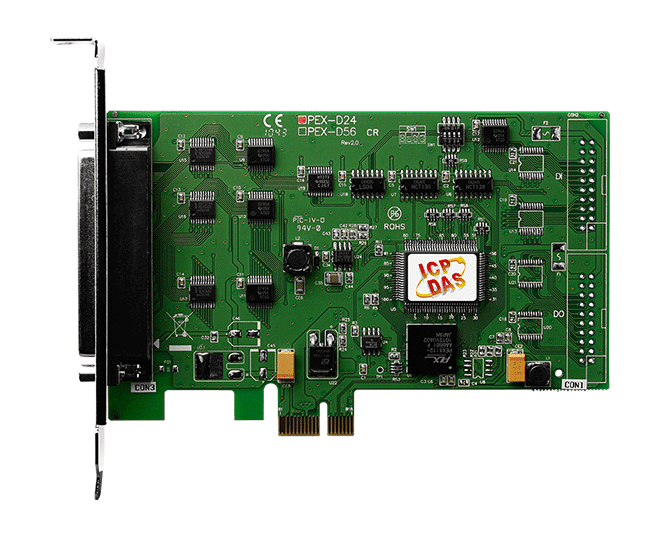

The PEX-D24 is a PCI Express x1 digital I/O board providing 24 buffered TTL input/output lines. The lines are organised as three 8-bit bidirectional ports, and the board emulates two industrial-standard 8255 PPI ports in Mode 0, so existing 8255-style programming carries over.It is designed as a direct replacement for the PIO-D24 and PIO-D24U series, requiring no changes to software or drivers. Input/output response is approximately 2 μs (500 kHz maximum), and the digital outputs offer higher driving capability, with sink of 64 mA at 0.8 V and source of 32 mA at 2.0 V.A 4-bit Card ID, set by an SMD switch, lets software identify each board when two or more are installed in the same computer. Four interrupt sources are also provided for event-driven designs.ApplicationsUpgrading existing PIO-D24 or PIO-D24U installations to PCI ExpressDigital I/O on PCs where several DAQ boards must be told apart in software
PEX-D48 CR is a PCI Express x1 digital I/O board providing 48 buffered TTL input/output lines. The lines are grouped into six 8-bit bi-directional ports (PA, PB and PC), and port C can be split into two 4-bit segments. All ports power up in input mode or after a reset.The board is designed as a direct replacement for the PIO-D48, PIO-D48U and PIO-D48SU series, so existing software and drivers can be retained without modification. It emulates two industrial-standard 8255 PPI ports in Mode 0, with a digital I/O response time of approximately 2 μs (500 kHz maximum).An onboard 4-bit Card ID, set by SMD switch, makes individual boards easy to identify when two or more are installed in the same computer. Pull-high and pull-low jumpers let the digital input state be predefined if channels are disconnected or a line is broken.ApplicationsPC-based digital I/O and machine controlReplacement or upgrade of existing PIO-D48 series installations

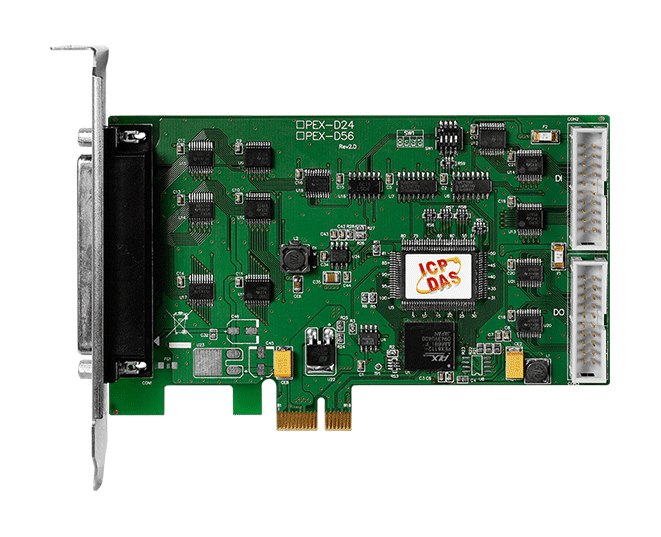

PEX-D56 CR adds 56 buffered TTL digital input/output lines to a PC through a PCI Express x1 slot. The board emulates two industrial-standard 8255 PPI ports in Mode 0 and presents its lines as three 8-bit bidirectional ports, with a female DB37 connector and two 20-pin box headers for field wiring.It is designed as a direct replacement for the PIO-D56 and PIO-D56U series, so existing software and drivers do not need to be modified. A 4-bit Card ID set by SMD switch lets software identify individual boards when two or more cards are installed in the same computer.Digital I/O response is approximately 2 μs (500 kHz maximum). The digital outputs offer higher driving capability, rated at 64 mA sink and 32 mA source on CON3. The board operates from 0 to +60 °C.ApplicationsDigital I/O control and monitoring in PC-based systemsUpgrading or extending PIO-D56 and PIO-D56U installationsMulti-board systems where individual cards must be identified in software
