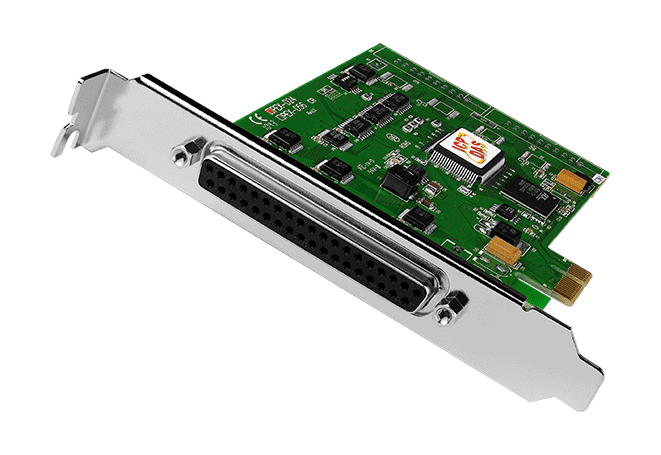

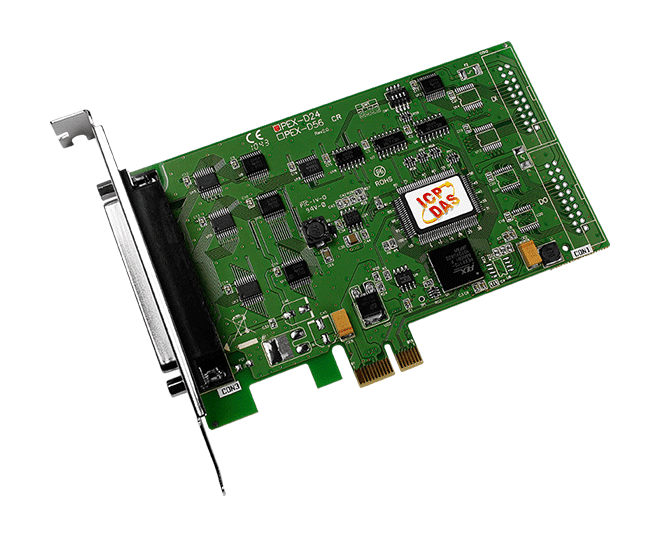

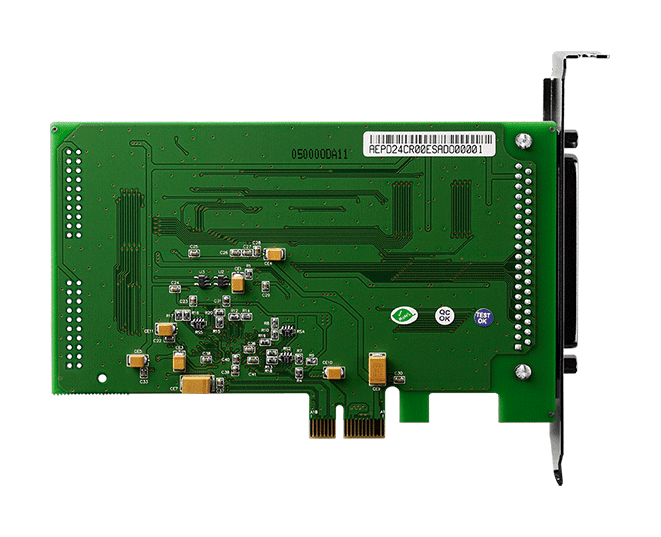

PEX-D24 PCI Express Digital I/O Board, 24-ch Buffered TTL DIO
PCI Express x1 digital I/O board with 24 buffered TTL lines, emulating two 8255 PPI ports in Mode 0. A drop-in option for PIO-D24 and PIO-D24U systems.
- PCI Express x1 interface with an 8-bit data bus
- 24 buffered TTL digital input/output lines in three 8-bit bidirectional ports
- Emulates two industrial-standard 8255 PPI ports (Mode 0)
- Drop-in replacement for PIO-D24 and PIO-D24U without software or driver changes
- Response time approximately 2 μs, 500 kHz maximum
- Higher driving capability on digital outputs (sink 64 mA @ 0.8 V, source 32 mA @ 2.0 V)
1 868,46 kr per st.
| 1–9 st. | 1 868,46 kr | |
|---|---|---|
| 10–30 st. | 1 813,18 kr | −3 % |
| 31+ st. | 1 768,96 kr | −5 % |
Produktinformation "PEX-D24 PCI Express Digital I/O Board, 24-ch Buffered TTL DIO"
The PEX-D24 is a PCI Express x1 digital I/O board providing 24 buffered TTL input/output lines. The lines are organised as three 8-bit bidirectional ports, and the board emulates two industrial-standard 8255 PPI ports in Mode 0, so existing 8255-style programming carries over.
It is designed as a direct replacement for the PIO-D24 and PIO-D24U series, requiring no changes to software or drivers. Input/output response is approximately 2 μs (500 kHz maximum), and the digital outputs offer higher driving capability, with sink of 64 mA at 0.8 V and source of 32 mA at 2.0 V.
A 4-bit Card ID, set by an SMD switch, lets software identify each board when two or more are installed in the same computer. Four interrupt sources are also provided for event-driven designs.
Applications
- Upgrading existing PIO-D24 or PIO-D24U installations to PCI Express
- Digital I/O on PCs where several DAQ boards must be told apart in software
| Product type: | Digital I/O board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 24 |
| Digital outputs: | 24 |
| Ports: | 3 x 8-bit |
| Power input: | 650 mA @ +3.3 V |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 24 (Bi-Direction) |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 24 (Bi-Direction) |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V |
| Response Speed | 500 kHz (Typical) |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 650 mA @ +3.3 V 0 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 86 x 134 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
