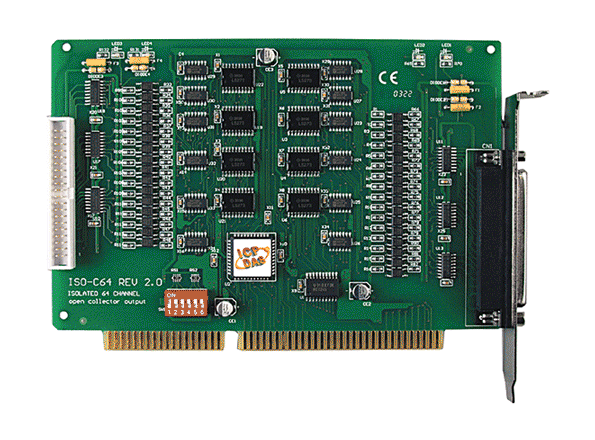

ISO-C64 ISA Bus Isolated 64-Channel Digital Output Board
ISA bus digital output board with 64 isolated open-collector channels in four isolated banks, rated 3750 Vrms isolation, for interfacing field logic signals.
- 64 isolated digital output channels, open-collector type
- Four isolated banks (groups A, B, C and D)
- 3750 Vrms isolation voltage
- Darlington transistor output with integral suppression diode for inductive loads
- Output port uses an external power supply
- Supplied with one CA-4037W cable and two CA-4002 D-Sub connectors
2 382,09 kr per st.
| 1–9 st. | 2 382,09 kr | |
|---|---|---|
| 10–30 st. | 2 304,54 kr | −3 % |
| 31+ st. | 2 260,22 kr | −5 % |
Produktinformation "ISO-C64 ISA Bus Isolated 64-Channel Digital Output Board"
The ISO-C64 CR is an ISA bus digital output board that gives a PC 64 isolated open-collector channels, split across four isolated banks (groups A, B, C and D). It is intended for driving field logic signals while keeping the host computer protected from damaging voltages and free of ground-loop problems.
Each output uses a Darlington transistor with an integral suppression diode, which suits switching inductive loads. The output port requires an external power supply. The board is supplied with one CA-4037W cable and two CA-4002 D-Sub connectors, so it can be connected to field wiring straight away.
Choose this variant when you need high channel density with galvanic separation on an ISA-based system. The board is CE, UKCA, RoHS and WEEE certified. The related ISO-P64 and ISO-P32C32 are available if a different interface or channel count is required.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | Digital output board |
|---|---|
| Interface: | ISA Bus |
| Digital outputs: | 64 |
| Isolation: | 3750 Vrms |
| Power input: | External |
