Gateway

The I-7188E2-MTCP is a palm-sized programmable gateway for bringing serial equipment onto an Ethernet network. It bridges an RS-232 port and an RS-485 port to a 10BASE-T connection, so engineers can expose legacy serial devices to Modbus TCP clients without redesigning the field hardware.Built around an 80188-40 CPU with 384 KB SRAM and 512 KB Flash, the unit runs the built-in MiniOS7 and Modbus firmware. Application code can be written in C using the supplied software development tool kits, including XServer and Modbus libraries.This ordering code is the blue cover version. It mounts on a DIN rail and operates from a +10 ~ 30 VDC supply across an operating temperature range of -25 ~ +75 °C.ApplicationsIntegrating RS-232/RS-485 devices into Ethernet networksModbus TCP to RTU gateway for SCADA and HMI communicationConnecting serial equipment to SCADA packages such as Indusoft, ISaGARF, DasyLab, Trace Mode, Citect and iFix

The I-7188E2D-MTCP CR is a palm-sized programmable device server that brings serial equipment onto Ethernet. It provides one RS-232 and one RS-485 port on the serial side and a 10BASE-T RJ-45 connection on the network side, so existing field devices can be reached over an Ethernet network without replacing them.Beyond simple serial-to-Ethernet bridging, the unit operates as a Modbus TCP to RTU gateway, allowing SCADA and HMI software that speaks Modbus TCP to read and write devices on the serial bus. ICP DAS supplies XServer and Modbus libraries, along with C-language development tools, so the behaviour of the unit can be customised for the application. The built-in MiniOS7 runs the programme.The CR ordering variant is supplied with a blue cover and carries an 80188 40 MHz CPU, 384 KB SRAM, 512 KB flash and 2 KB EEPROM. A five-digit 7-segment LED display, a programmable LED indicator and a watchdog timer support on-site status checking and unattended operation. It mounts on a DIN rail and accepts a +10 to 30 VDC supply.ApplicationsConnecting serial RS-232/RS-485 devices to Ethernet networksProviding Modbus TCP access to Modbus RTU devices for SCADA and HMI systemsIntegrating serial devices with SCADA packages such as Indusoft, DasyLab and iFix

The I-7188E2D-MTCP-G is a programmable gateway that brings serial devices onto Ethernet. It offers one 10BASE-T RJ-45 port alongside RS-232 and RS-485 serial ports, and can act as a Modbus TCP to RTU gateway so that Modbus TCP clients such as SCADA and HMI software can reach RTU-based equipment.Built around an 80188-40 CPU with 512 KB flash and 384 KB SRAM, the unit runs ICP DAS MiniOS7 and is programmed in C using the supplied software development tool kit. XServer and Modbus libraries are provided for building custom serial-to-Ethernet logic, with a 5-digit 7-segment LED display, a programmable LED indicator and a built-in watchdog timer for status and reliability.The -G suffix identifies the gray cover version. The unit is specified for a +10 to 30 VDC supply, -25 to +75 °C operation and DIN-rail mounting in a compact 72 x 112 x 33 mm housing.ApplicationsIntegrating serial devices into Ethernet networksModbus TCP to RTU gateway for SCADA and HMI systemsCommunication with SCADA software such as Indusoft, DasyLab, Trace Mode, Citect and iFix

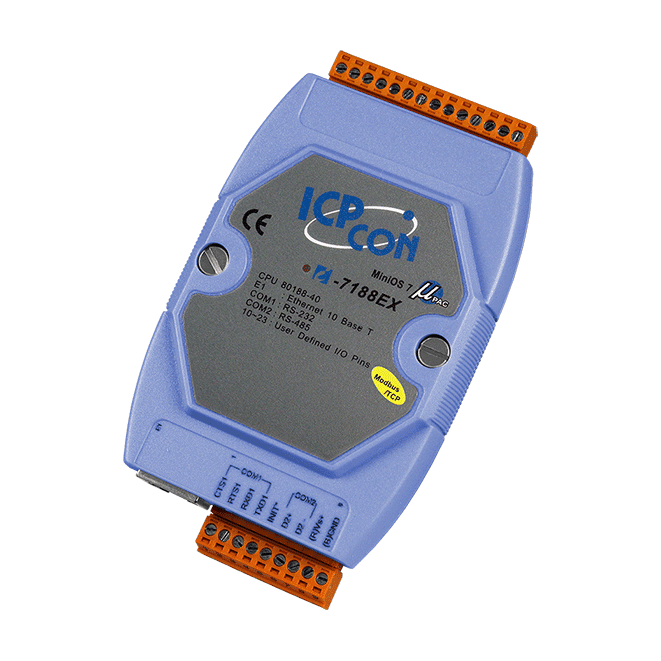

The I-7188EX-MTCP is a palm-sized programmable device server that connects RS-232 and RS-485 serial devices to an Ethernet network. It also acts as a Modbus TCP to RTU gateway, so SCADA and HMI software that speaks Modbus TCP can reach serial field devices without custom drivers.Engineers can extend the unit with the included C language development toolkit, which provides XServer and Modbus libraries, running on the MiniOS7 operating system. The ordering code I-7188EX-MTCP CR is the blue-cover version of this gateway.Hardware features include an 80188-40 CPU, 512 KB flash and 512 KB SRAM, a real-time clock, a watchdog timer and a 64-bit hardware serial number. An I/O expansion bus accepts one X-board for added analogue or digital I/O or serial ports.ApplicationsIncorporating serial RS-232/RS-485 devices into Ethernet networksModbus TCP access to serial Modbus RTU devices for SCADA and HMI systemsSerial device integration with SCADA packages such as Indusoft, ISaGRAF, DASYLab, Trace Mode, Citect and iFix

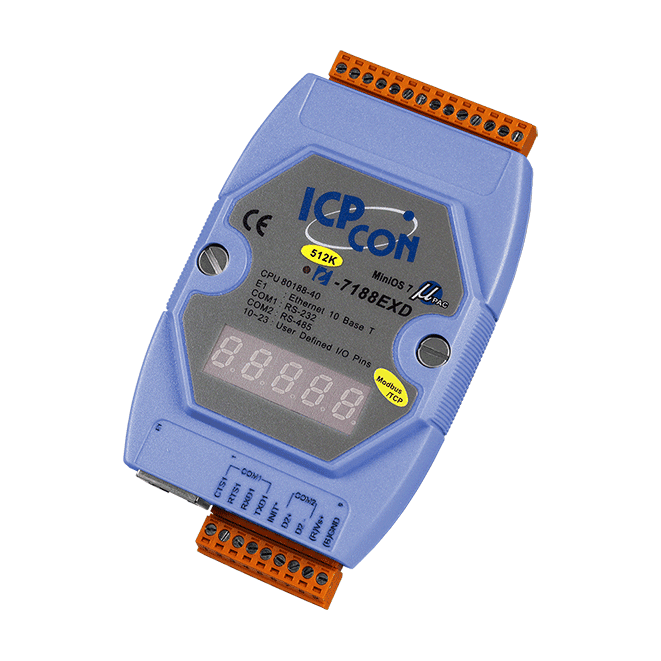

The I-7188EXD-MTCP is a programmable serial-to-Ethernet device server with one RS-232 and one RS-485 port, bridging serial equipment onto a 10 Base-T network. It also works as a Modbus TCP to RTU gateway, so SCADA and HMI software using Modbus TCP can communicate with serial Modbus devices.ICP DAS supplies XServer and Modbus libraries in C for building custom applications. These tools let engineers bring serial devices onto Ethernet and Internet communication and use the standard Modbus protocol with SCADA packages. The manufacturer cites Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix as examples.Hardware is built around an 80188 CPU at 40 MHz with 512 KB flash and 512 KB SRAM, plus a real-time clock, watchdog timer and a 5-digit 7-segment LED display. An I/O expansion bus supports one X-board, with a range of more than 50 boards offering A/D, D/A, D/I, D/O and serial functions. This blue-cover CR variant is supplied with the same specification as the standard model.ApplicationsConnecting RS-232/RS-485 devices to Ethernet networksModbus TCP to RTU gateway for SCADA and HMI systemsAdding A/D, D/A, D/I, D/O or serial I/O through a single expansion board

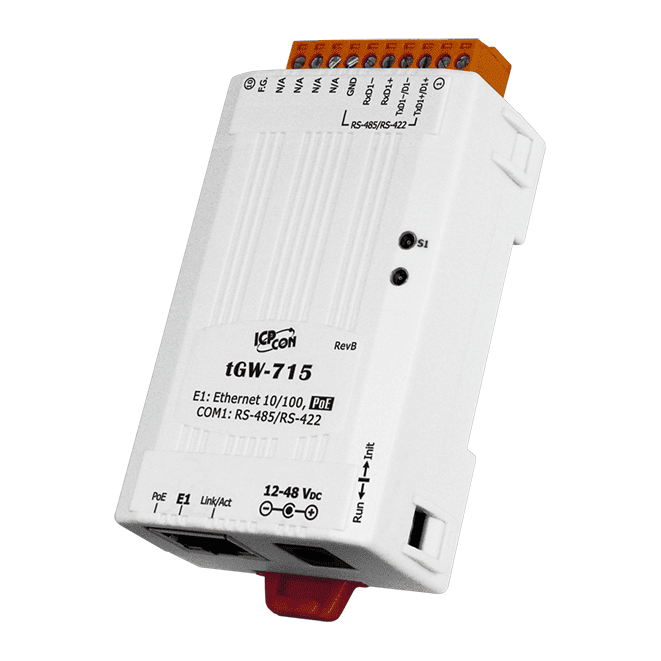

tGW-715 CR bridges Modbus TCP/UDP hosts on an Ethernet network with serial Modbus RTU or ASCII devices on RS-422/485. It lets a supervisory system reach field devices without being limited by the cable lengths of legacy serial links, and it can act as master or slave on either side of the conversion.The gateway can also be used in pair-connection, serial-bridge or serial-tunnel arrangements, routing serial Modbus data over TCP/IP between two RTU or ASCII devices. A read-cache stores previous requests and responses, so repeated queries from several HMI or SCADA masters to the same slave are answered quickly, reducing traffic on the RS-485 bus.Power can be supplied over Ethernet via IEEE 802.3af Class 1 PoE, or from a +12 ~ 48 VDC terminal block input where no PoE switch is available. The listing includes a DC-jack to 2-wire power cable, 0.3 M. The unit is housed in a plastic case for DIN-rail mounting and is rated for -25 ~ +75 °C operation.ApplicationsFactory automationBuilding and home automationRemote diagnosis and managementSolar monitoring

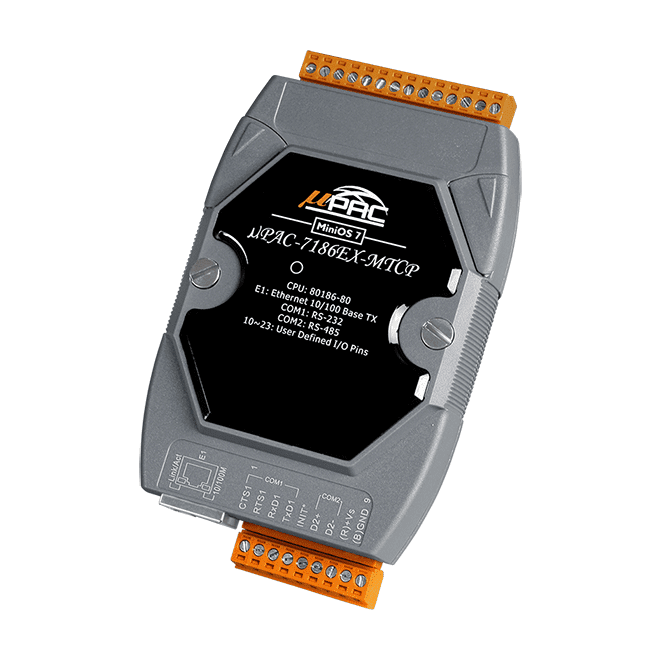

uPAC-7186EX-MTCP-G CR is a compact programmable device server for bringing serial equipment onto an Ethernet network. Its built-in Modbus TCP to RTU gateway function lets SCADA and HMI software poll RS-232 or RS-485 devices over the standard Modbus TCP protocol, without writing a custom driver for each one.The unit runs the MiniOS7 real-time operating system from ICP DAS, and application code is developed in C using the supplied software development tool kit and Modbus libraries. The 80186 CPU at 80 MHz, 512 KB of flash and 512 KB of SRAM provide room for custom logic that sits between the serial and Ethernet sides.For hardware expansion, the unit provides an I/O expansion bus that accepts one X-board. A watchdog timer, a real-time clock and a 64-bit hardware serial number support dependable unattended operation and device identification. The housing is designed for DIN-rail installation and operates from +10 to 30 VDC across -25 to +75 °C.ApplicationsConnecting RS-232 and RS-485 serial devices to Ethernet networksModbus TCP to Modbus RTU protocol conversion for SCADA and HMI systemsIntegration of serial devices with SCADA packages such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFixCustom serial-to-Ethernet communication logic written in C

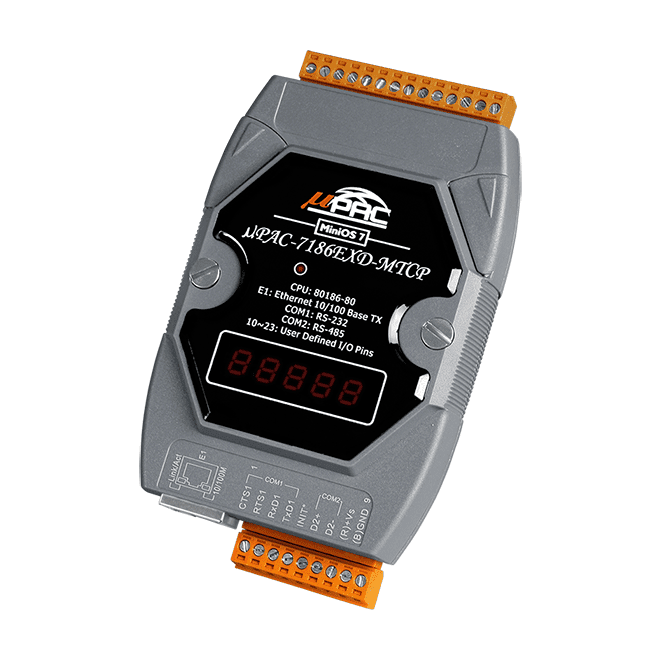

uPAC-7186EXD-MTCP-G is a palm-sized programmable device server that brings serial equipment onto an Ethernet network. It acts as a Modbus TCP to RTU gateway, so SCADA and HMI systems that speak Modbus TCP can reach RTU-based devices on its RS-232 and RS-485 ports without custom communication code.The unit runs the MiniOS7 operating system and can be programmed in C using the supplied development toolkit, which includes Modbus libraries. Engineers can add their own logic to handle serial protocols or data processing directly on the gateway. A single-board I/O expansion bus is also provided for adding analogue or digital I/O.This gray-cover variant includes a 5-digit 7-segment LED display and a programmable status LED for local diagnostics. Its 10 to 30 VDC supply, DIN-rail mounting and -25 to +75 °C operating range suit control cabinet installations.ApplicationsConnecting Modbus RTU serial devices to Modbus TCP SCADA or HMI systemsIncorporating serial devices into Ethernet and Internet communication networksSerial-to-Ethernet device server for RS-232 and RS-485 equipmentIntegrating serial devices with SCADA packages such as Indusoft, iFix and Citect

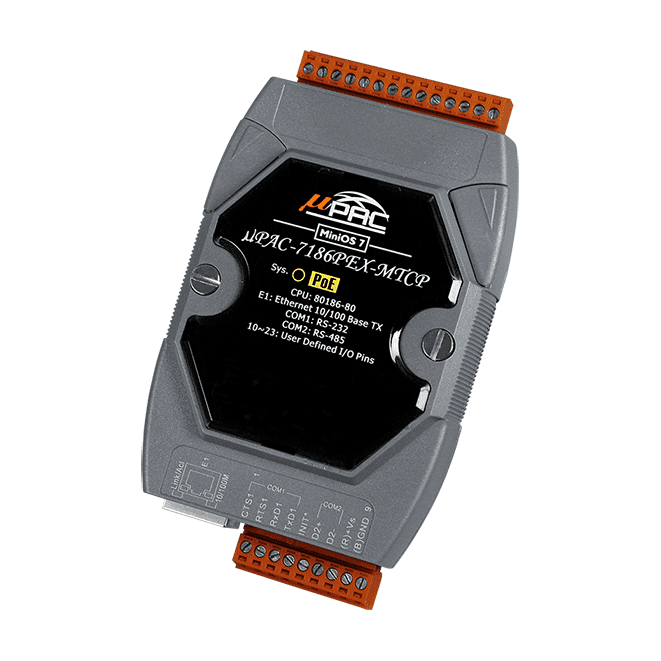

uPAC-7186PEX-MTCP-G is a palm-sized programmable gateway that brings RS-232 and RS-485 serial devices onto an Ethernet network. It converts Modbus TCP requests from SCADA or HMI software into Modbus RTU or Modbus ASCII traffic for the equipment connected to its serial ports.The unit receives power over the Ethernet cable through IEEE 802.3af Class 1 PoE, so it can be supplied directly from a PoE switch. The MiniOS7 operating system and C language development toolkits let engineers add custom integration logic, and the I/O expansion bus accepts one X-board for additional functions.The -G suffix in this ordering code denotes the gray cover version. The unit mounts on a DIN rail and is rated for an operating temperature of -25 ~ +75 °C.ApplicationsIntegrating serial Modbus RTU or ASCII devices into Ethernet networksModbus communication with SCADA and HMI softwareAdding Ethernet connectivity to serial equipment in DIN-rail cabinets

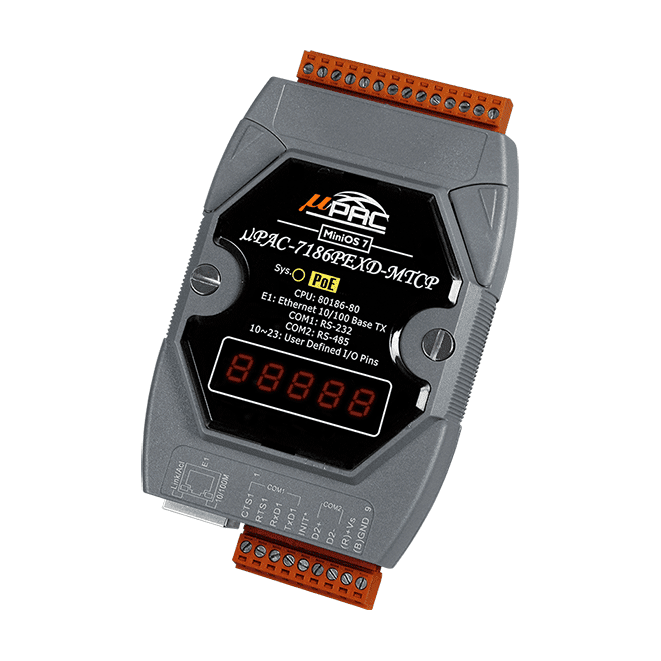

The uPAC-7186PEXD-MTCP-G bridges serial Modbus devices and Ethernet networks. It works as a Modbus TCP to Modbus RTU or Modbus ASCII gateway, letting SCADA and HMI systems that speak Modbus reach RS-232 and RS-485 equipment over a single RJ-45 connection.Power can be supplied over the Ethernet cable through Power over Ethernet, using a standard Category 5 cable from a PoE switch, which removes the need for a separate local supply at the installation point. The unit runs the built-in MiniOS7 operating system and can be programmed in C with ICP DAS software development tool kits, including Xserver, VxComm and Modbus libraries.The I/O expansion bus accepts one X-board to add functions such as digital I/O, analogue I/O or timer/counter. This grey-cover variant is supplied with the 7-segment LED display and is designed for DIN-rail mounting in the operating range of -25 ~ +75 °C.ApplicationsConnecting RS-232 and RS-485 Modbus RTU or Modbus ASCII devices to SCADA and HMI systems over EthernetAdding PoE-powered gateway nodes to existing Ethernet infrastructureExpanding a controller with a single X-board for additional I/O functions
