PROFIBUS

The GW-7552-B connects Modbus devices to a PROFIBUS DP network. It acts as a DP-V0 slave towards the PROFIBUS master, so the master can read and write data held by Modbus devices such as PLCs, sensors and ICP DAS M-7000 series modules, without changes to the PROFIBUS network design.The gateway can operate as a Modbus master or slave and supports both RTU and ASCII formats. Its hybrid COM 1 port is selectable between RS-232, RS-422 and RS-485, with the modes used one at a time. Serial settings cover 7 or 8 data bits, no, odd or even parity, 1 or 2 stop bits, and baud rates from 1200 to 115200. A utility is provided for configuring the GW-7552-B.Transmission rate on the PROFIBUS side is detected automatically, and the node address is set from 0 to 126 using a DIP switch. The PROFIBUS side has 3000 VDC isolation, and the network side uses High Speed iCoupler isolation. The GW-7552-B is housed in a plastic case for DIN-rail mounting, with an operating range of -25 ~ +75 °C.ApplicationsIndustrial automationFactory automationProcess automation

The GW-7552-M CR bridges a PROFIBUS DP network and Modbus serial devices. It operates as a DP-V0 slave, so a PROFIBUS master can read and write data from Modbus equipment without changes to the field devices. Typical Modbus endpoints include PLCs, sensors and ICP DAS M-7000 series modules.Configuration is carried out with the manufacturer's utility software. The PROFIBUS node address is set from 0 to 126 using a DIP switch, and the transmission rate is detected automatically. The serial side is a hybrid COM 1 port that can be set to RS-232, RS-422 or RS-485, and it supports Modbus Master or Slave operation in RTU or ASCII format.The gateway uses high speed iCoupler isolation on the network side and provides 3000 VDC isolation on the PROFIBUS side. Its metal housing is mounted on a DIN rail and is rated for an operating range of -25 ~ +75℃, which suits panel-based installations in factory and process automation.ApplicationsIndustrial automationFactory automationProcess automation

GW-7553-B bridges a PROFIBUS DP network and Modbus TCP devices. It presents itself as a DP-V0 and DP-V1 slave to the PROFIBUS master, so existing PROFIBUS control systems can read and write data from Modbus TCP equipment such as PLCs, sensors and I/O modules.Each direction carries up to 240 bytes of input and output data. The Modbus side supports Master and Slave modes and the RTU, ASCII and TCP formats. The PROFIBUS transmission rate is detected automatically, and the station address (0 to 126) is set either by DIP switch or stored in EEPROM.The unit has a built-in web server, so it can be configured from a standard web browser. An RS-232 port is provided for firmware and configuration updates. Electrical isolation is rated at 2500 Vrms for the network side and 3000 VDC on the PROFIBUS side, and the module is designed for an operating range of -25 ~ +75 ℃.ApplicationsIndustrial automationFactory automationProcess automation

GW-7553-CPM is a PROFIBUS DP-V0 slave gateway that places CANopen devices on a PROFIBUS network. The PROFIBUS master reads and writes the CANopen nodes through the gateway, so existing CANopen equipment can be brought into a PROFIBUS system without replacing it.The gateway supports the CiA CANopen DS-301 v4.02 standard, with 110 CANopen SDO/PDO commands and the Node Guarding and Heartbeat Consumer protocol. The PROFIBUS transmission rate is detected automatically, the station address is set from 0 to 126 with a DIP switch, and up to 240 bytes of input and 240 bytes of output data are available. Galvanic isolation is provided on both networks, with 3000 VDC on the PROFIBUS side and 2500 Vrms for the high-speed iCoupler network isolation.Firmware and configuration are handled over RS-232 using the configuration utility software. Status is shown by PWR, RUN and ERR LEDs, and the unit mounts on a DIN-rail.PROFIBUS DP-V0 slave, station address 0 to 126 set by DIP switchAutomatic PROFIBUS transmission rate detection, from 9.6 k up to 12 MUp to 240 bytes input and 240 bytes output dataCANopen DS-301 v4.02, 110 SDO/PDO commandsApplicationsIndustrial AutomationFactory AutomationProcess Automation

The GW-7553-CPM-M bridges a PROFIBUS DP network and CANopen devices. It presents itself as a DP-V0 slave, so a PROFIBUS master can access CANopen slave devices connected to the gateway.It supports the CiA CANopen DS-301 v4.02 standard, Node Guarding and Heartbeat Consumer protocols, and 110 CANopen SDO/PDO commands. Input and output data lengths are each up to 240 bytes. The PROFIBUS address is set from 0 to 126 using a DIP switch, and the transmission rate is detected automatically.Isolation is provided on both networks: 2500 Vrms high-speed iCoupler on the network side and 3000 VDC on the PROFIBUS side. The unit has a metal casing, DIN-rail mounting and an RS-232 port for firmware and configuration updates, with utility software supplied for setup. It is suited to automation, factory and process applications.ApplicationsIndustrial AutomationFactory AutomationProcess Automation

The GW-7553-M lets a PROFIBUS DP master communicate with Modbus TCP devices such as PLCs, sensors and Modbus TCP I/O modules, so existing Modbus equipment can be brought into a PROFIBUS network without changes to the master. It operates as a PROFIBUS DP-V0 and DP-V1 slave, and supports up to 240 bytes of input data and 240 bytes of output data.Configuration is handled through the built-in web server, which can be accessed from a standard web browser. The unit also offers Modbus Master or Slave operation and supports the RTU, ASCII and TCP formats, with a node address range of 0 to 126 set by DIP switch or EEPROM. An RS-232 port is provided for firmware updates and configuration.Electrical isolation is rated at 2500 Vrms on the network side and 3000 VDC on the PROFIBUS side. The metal casing is intended for DIN-rail installation across an operating range of -25 ~ +75 °C, making it suitable for factory and process automation installations.ApplicationsIndustrial AutomationFactory AutomationProcess Automation

GW-7557-B is a PROFIBUS DP-V0 slave gateway for bringing HART field devices onto a PROFIBUS network. The PROFIBUS master reads and writes the HART slaves through the gateway, so transmitters, actuators and current output devices can be integrated without a separate HART host on the bus.The unit supports four HART channels in point-to-point or multi-drop mode, with two HART masters permitted and up to 15 HART modules connectable. Short and long HART frames and HART burst mode are supported, and the PROFIBUS side can exchange up to 240 bytes of input and 240 bytes of output data.Configuration is handled through an RS-232 port and the utility software supplied with the module. The plastic-case, DIN-rail version suits installations where galvanic separation between the fieldbus and the logic side matters, with 2500 Vrms bus-to-logic isolation and 3000 VDC isolation on the PROFIBUS side.ApplicationsIndustrial automationFactory automationProcess automation

GW-7557-M is a PROFIBUS DP-V0 slave gateway for bringing HART devices onto a PROFIBUS network. The PROFIBUS master reads and writes data from HART slave devices such as transmitters, actuators and current output instruments, so existing HART equipment can be integrated without replacing it.The gateway offers four HART channels, supports point-to-point and multi-drop HART operation, and allows two HART masters. Up to 15 HART modules can be connected, and burst mode is supported. Configuration is handled with the utility software supplied by the manufacturer.The metal-case version (-M) suits panel and DIN-rail installations in industrial automation, factory automation and process automation. It provides 2500 Vrms network isolation and 3000 VDC isolation on the PROFIBUS side, with an operating range of -25 ~ +75 °C.ApplicationsIndustrial AutomationFactory AutomationProcess Automation

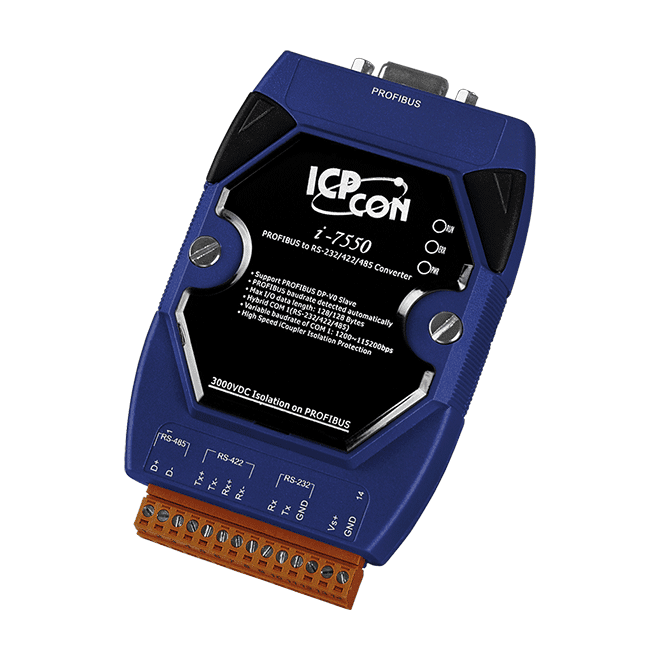

Serial devices on PROFIBUS without rewriting the controller side. The I-7550-B acts as a PROFIBUS DP-V0 slave, allowing existing RS-232, RS-422 or RS-485 equipment to be integrated into a PROFIBUS network. It suits engineers who need to bring legacy or third-party serial instruments into a PROFIBUS architecture.A Hybrid COM 1 port lets you select the physical serial standard that matches your device, and only one mode can be used at a time. Serial settings support 7 or 8 data bits, none, odd or even parity and 1 stop bit, with baud rates from 1200 to 115200 bps. The PROFIBUS transmission rate is detected automatically, and the station address is set from 0 to 126 using a DIP switch.The unit is housed in a plastic case and mounts on a DIN rail. Isolation is provided by a high-speed iCoupler on the network side and 3000 VDC on the PROFIBUS side, which helps protect the serial equipment and the bus during installation in industrial cabinets.ApplicationsIndustrial automationFactory automationProcess automation

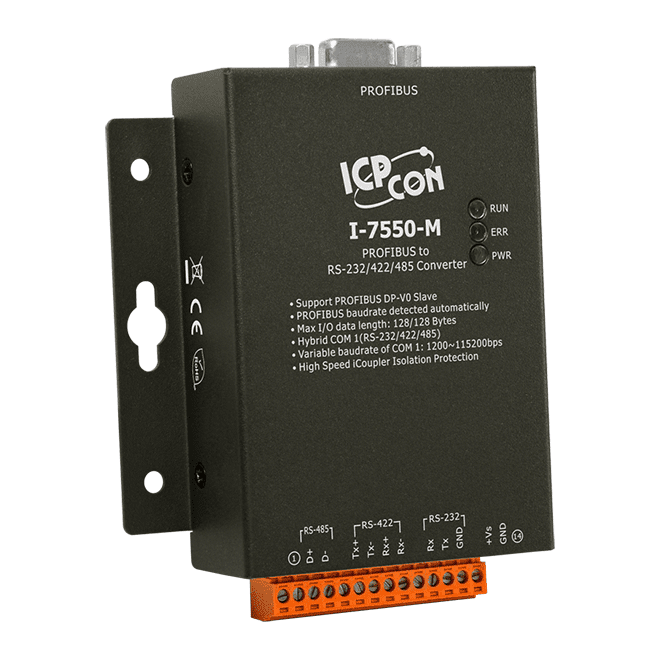

The I-7550-M lets engineers bring existing serial equipment onto a PROFIBUS DP network without redesigning the device. It acts as a DP-V0 slave, passing data between the PROFIBUS master and a single serial port that can be configured for RS-232, RS-422 or RS-485.The Hybrid COM 1 port is selected by wiring, so one physical port serves all three electrical standards, though only one can be active at a time. The 7 or 8 data bit, none/odd/even parity and 1 stop bit formats, with baud rates from 1200 to 115200, cover the common settings found on field instruments and controllers. The PROFIBUS transmission rate is detected automatically, and the station address is set from 0 to 126 using a DIP switch.Designed for industrial automation, factory automation and process automation, the metal housing mounts on a DIN rail. Operating temperature is -25 ~ +75℃, and the unit carries CE, UKCA, FCC, RoHS and WEEE marks.ApplicationsIndustrial automationFactory automationProcess automation

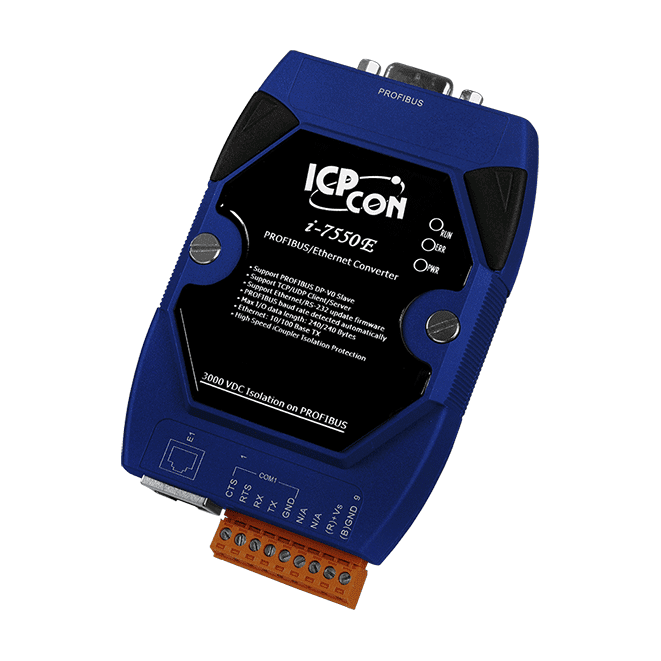

I-7550E CR is a PROFIBUS DP-V0 slave gateway that bridges a PROFIBUS master to Ethernet devices using TCP or UDP. Engineers can connect existing Ethernet equipment to a PROFIBUS network without changing the master, with up to 240 bytes of input and 240 bytes of output data.The Ethernet side can operate as a TCP/UDP server or client, so the converter can suit either polling or initiating communication patterns. Configuration is carried out through the built-in web server using a standard web browser, and the bus address (0~126) is set by DIP switch or stored in EEPROM.Isolation is provided on both sides, with 2500 Vrms high speed iCoupler isolation on the network side and 3000 VDC on the PROFIBUS side. The plastic DIN-rail housing is rated for an operating temperature of -25 ~ +75℃.ApplicationsIndustrial automationFactory automationProcess automation

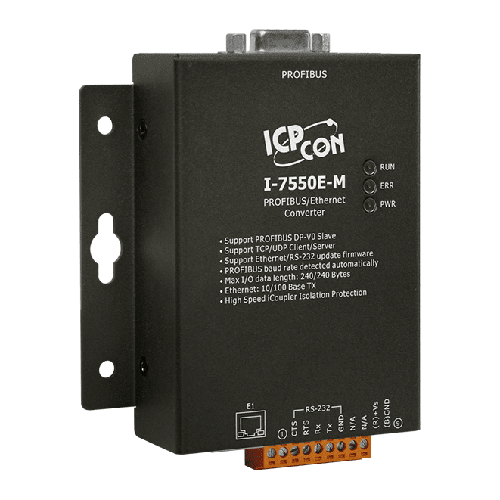

I-7550E-M is a PROFIBUS DP-V0 slave gateway that links a PROFIBUS master to Ethernet devices that speak TCP or UDP. It can be configured as a TCP/UDP server or client, so it can be matched to the communication pattern your network requires.Configuration is handled through the built-in web server, so settings can be made from a standard web browser. Slave addressing is set by DIP switch or stored in EEPROM, and the module accepts up to 240 bytes of input data and 240 bytes of output data. The transmission rate is detected automatically across the listed PROFIBUS baud rates, from 9.6 k up to 12 M.The ordering code I-7550E-M CR specifies the metal-cased version, suited to DIN-rail installation in industrial cabinets. Isolation is rated at 2500 Vrms for bus-to-logic and 3000 VDC for DC-to-DC on the PROFIBUS side, and the unit operates from -25 to +75 °C.ApplicationsIndustrial automationFactory automationProcess automation

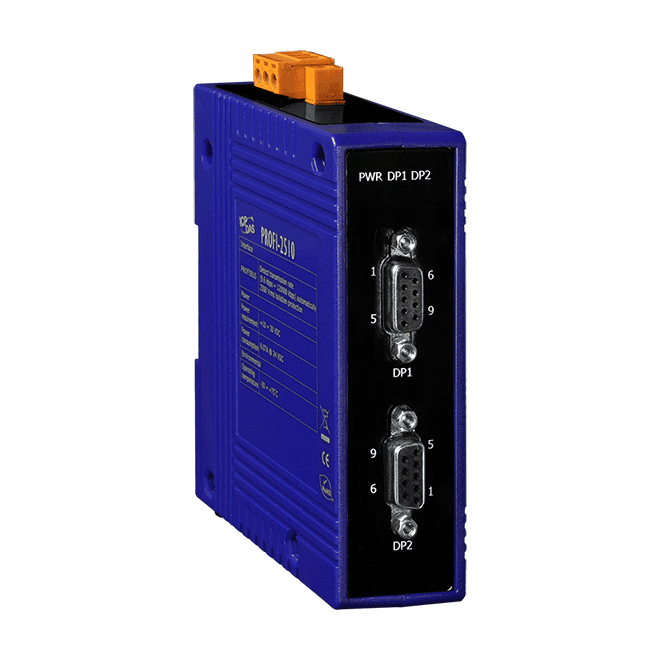

The PROFI-2510 is a PROFIBUS repeater for engineers who need to join two or more PROFIBUS segments into one physical network or extend an existing installation. It works across the full range of PROFIBUS DP rates, from 9.6 kbps to 12 Mbps, without manual configuration because the transmission rate is detected automatically.Using the repeater to split a long bus into segments lets you raise the maximum number of bus nodes beyond what a single segment allows. The 3000 VDC isolation on the PROFIBUS side and the network isolation protection help keep one segment electrically separated from another, and the 4 kV ESD protection on every terminal adds robustness during installation.The unit mounts on a DIN-rail and is rated for an operating range of -25 to +75 °C, with a power consumption of 1 W. Status is shown by PWR, TxD and RxD LEDs, which make it easier to confirm activity on each side during commissioning and fault finding.ApplicationsIndustrial automationFactory automationProcess automation

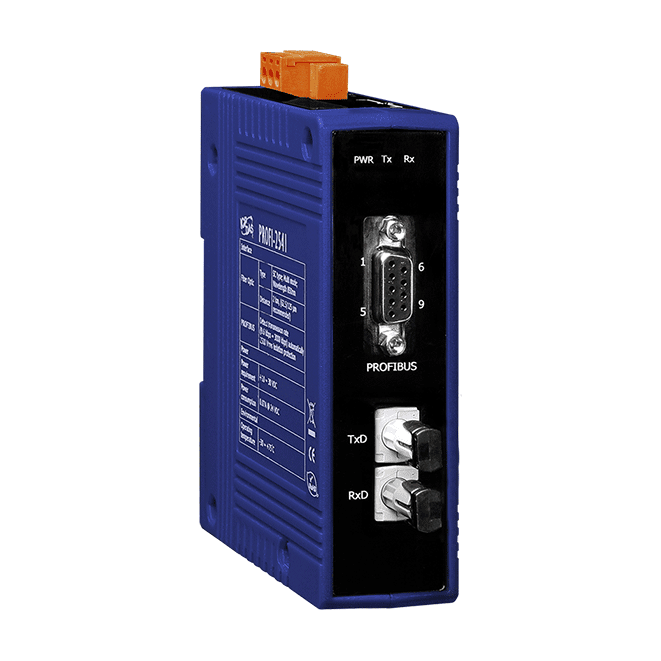

PROFI-2541 CR carries PROFIBUS DP traffic over multi-mode fibre optic cable, so engineers can run fieldbus links where copper cabling is exposed to electrical interference, surges, lightning or chemical corrosion. Two units are used as a pair, one at each end of the fibre link.The converter detects the PROFIBUS transmission rate automatically, up to 3 Mbps, and passes data transparently in both directions. The 850 nm fibre link supports a length of up to 1.4 km (4593 ft) between two units. The PROFIBUS side has 3000 VDC isolation, the unit includes network isolation protection, and every terminal is rated for 4 kV ESD protection.The unit mounts on a DIN-rail and draws 1 W. Status LEDs for power, TxD and RxD aid commissioning, and the operating temperature range is -25 ~ +75℃. It is certified to CE, UKCA, FCC and WEEE.ApplicationsIndustrial automationFactory automationProcess automation

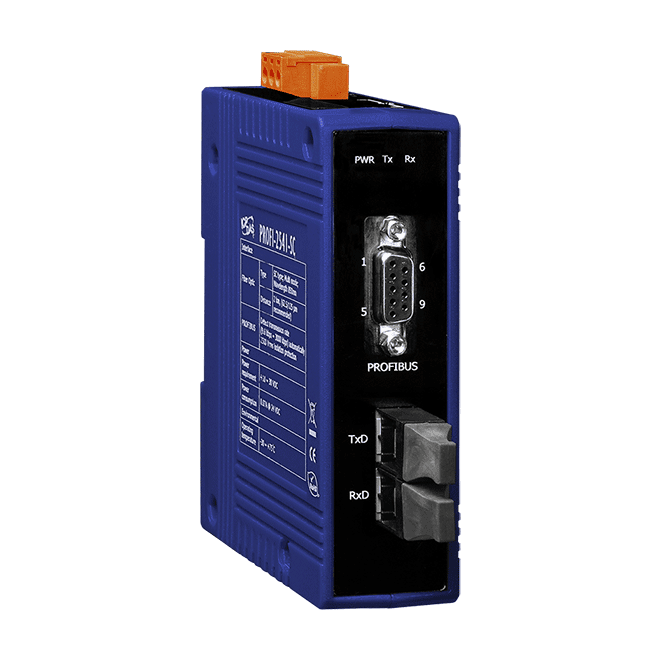

PROFI-2541-SC CR converts PROFIBUS DP signals to multi-mode fibre optic cable, so a PROFIBUS segment can be extended over distance while the data path stays protected from electrical interference, surges and lightning. It suits plants where copper cabling is exposed to harsh conditions.The converter detects the PROFIBUS transmission rate automatically, up to 3 Mbps, and passes traffic transparently in both directions. Up to 32 stations per PROFIBUS segment are supported. The fibre link uses 62.5/125 μm multi-mode cable at 850 nm, with a maximum length of 1.4 km (4593 ft) between two PROFI-2541 units.Network isolation protection is included, and the PROFIBUS side is rated at 3000 VDC isolation protection. Status is shown by PWR, TxD and RxD LEDs. The unit mounts on a DIN-rail, operates from -25 ~ +75℃, and has a 1 W power consumption.ApplicationsIndustrial automationFactory automationProcess automation

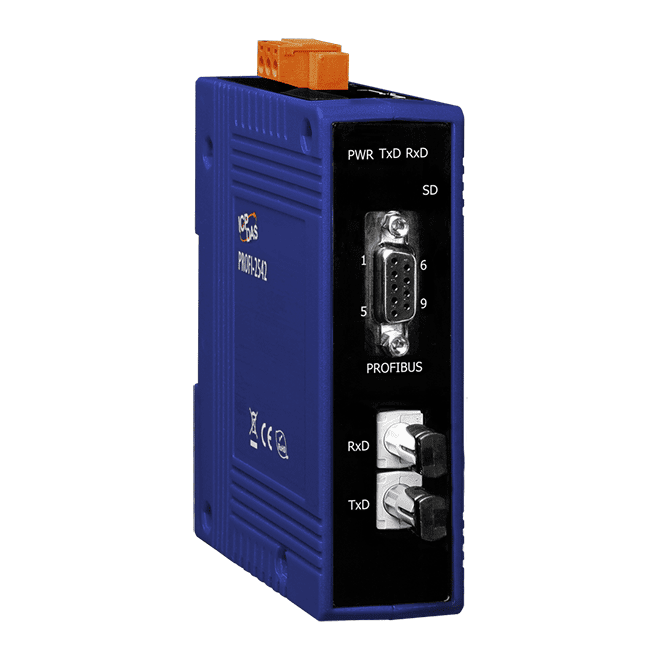

The PROFI-2542 CR extends PROFIBUS DP networks over single-mode fiber optic cable. Fiber carries the signal immune to electromagnetic and radio frequency interference, so it suits plants where cable runs are exposed to electrical noise, surges, lightning or corrosive conditions. Two units with 1310 nm single-mode links can be placed up to 10 km apart.Each unit detects the PROFIBUS transmission rate automatically, up to 12 Mbps, and passes data transparently in both directions. The bus side provides 3000 VDC isolation, and the network is protected against ESD with 4 kV contact discharge on all terminals. Up to 32 stations per PROFIBUS segment are supported.The unit mounts on a DIN rail and operates from -25 to +75 ℃. Status LEDs for power, transmit and receive help with commissioning and fault finding. It is aimed at automation engineers in factory and process plants who need a robust fiber link for PROFIBUS.ApplicationsIndustrial automationFactory automationProcess automation

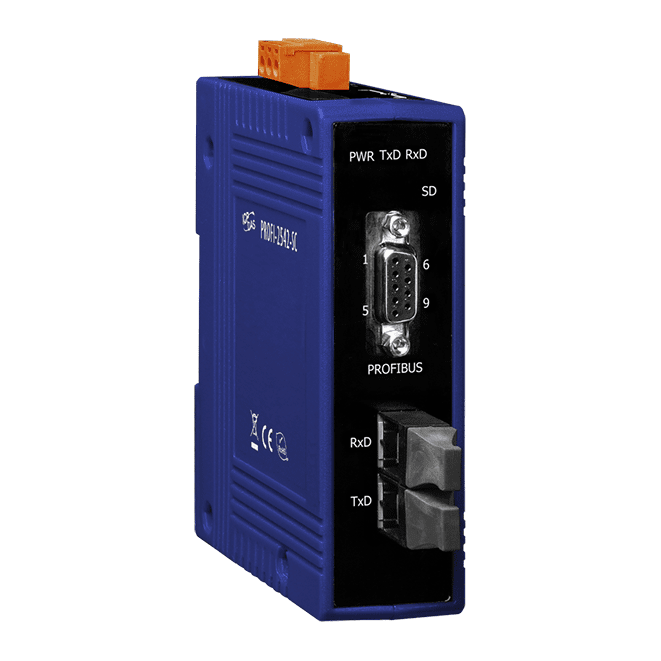

The PROFI-2542-SC extends a PROFIBUS DP segment over single-mode fibre, which suits runs where electrical noise, surges, lightning or corrosive atmospheres would make copper cabling unreliable. A pair of units links two PROFIBUS sections with a fibre span of up to 10 km, with data passing transparently in both directions.On the PROFIBUS side the unit detects the transmission rate automatically, up to 12 Mbps, and supports up to 32 stations per segment. The bus side has 3000 VDC isolation, and the fibre side uses a 1310 nm wavelength with SC-type connectors. Status is shown by PWR, TxD and RxD LEDs, which helps with commissioning and fault finding.Mounting and environment: the unit is designed for DIN-rail installation and is rated for an operating temperature of -25 ~ +75 °C, with a storage range of -30 ~ +85 °C and humidity of 5 ~ 95% RH, non-condensing.ApplicationsIndustrial automationFactory automationProcess automation
