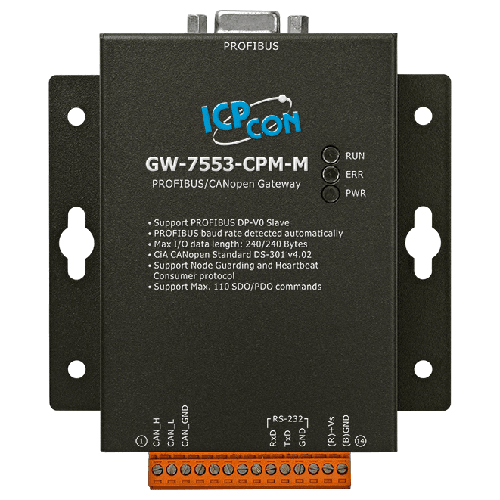

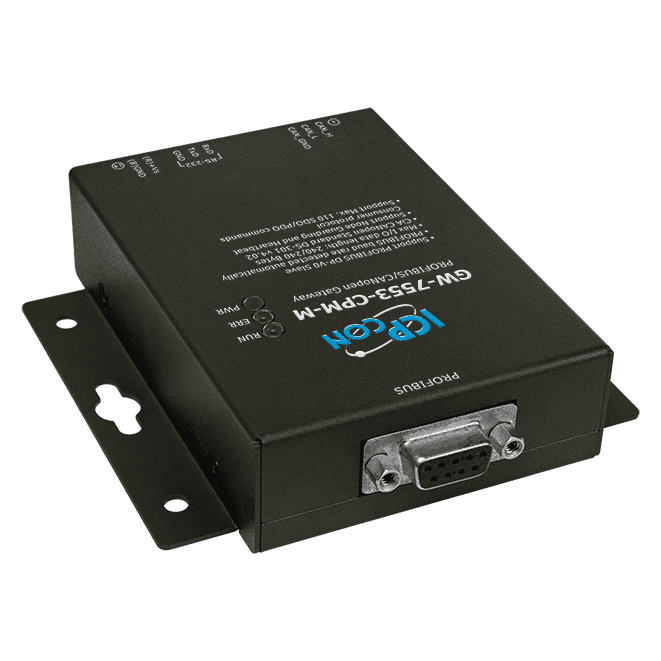

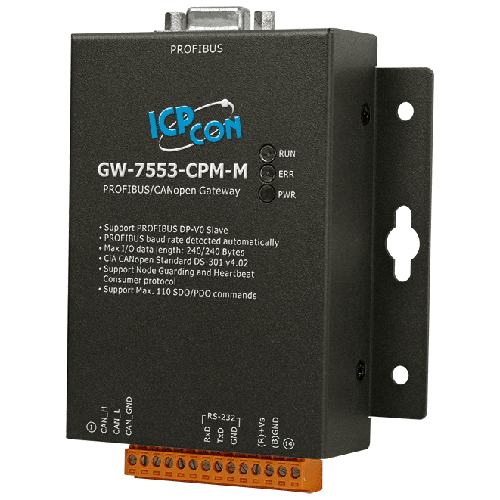

GW-7553-CPM-M PROFIBUS DP-V0 Slave to CANopen Gateway, Metal Case
Metal-cased PROFIBUS DP-V0 slave to CANopen gateway that lets a PROFIBUS master access CANopen slave devices. Configured with utility software and mounted on DIN-rail.
- PROFIBUS DP-V0 slave interface giving a PROFIBUS master access to CANopen slave devices
- CANopen support to CiA DS-301 v4.02 with Node Guarding and Heartbeat Consumer protocols
- 110 CANopen SDO/PDO commands supported
- Up to 240 bytes input and 240 bytes output data length
- PROFIBUS address set from 0 to 126 by DIP switch; transmission rate detected automatically
- 2500 Vrms high-speed iCoupler network isolation and 3000 VDC isolation on the PROFIBUS side
4 897,81 kr per st.
| 1–9 st. | 4 897,81 kr | |
|---|---|---|
| 10–30 st. | 4 754,08 kr | −3 % |
| 31+ st. | 4 654,58 kr | −5 % |
Produktinformation "GW-7553-CPM-M PROFIBUS DP-V0 Slave to CANopen Gateway, Metal Case"
The GW-7553-CPM-M bridges a PROFIBUS DP network and CANopen devices. It presents itself as a DP-V0 slave, so a PROFIBUS master can access CANopen slave devices connected to the gateway.
It supports the CiA CANopen DS-301 v4.02 standard, Node Guarding and Heartbeat Consumer protocols, and 110 CANopen SDO/PDO commands. Input and output data lengths are each up to 240 bytes. The PROFIBUS address is set from 0 to 126 using a DIP switch, and the transmission rate is detected automatically.
Isolation is provided on both networks: 2500 Vrms high-speed iCoupler on the network side and 3000 VDC on the PROFIBUS side. The unit has a metal casing, DIN-rail mounting and an RS-232 port for firmware and configuration updates, with utility software supplied for setup. It is suited to automation, factory and process applications.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Gateway |
|---|---|
| Interface: | CANopen, PROFIBUS, RS-232 |
| Protocol: | CANopen, PROFIBUS DP-V0 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| COM Ports | |
| Ports | RS-232 (For updating firmware and configuration) 3-pin screwed terminal block (RxD, TxD, GND) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Specification | CANopen DS-301 ver4.02 |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 96 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
