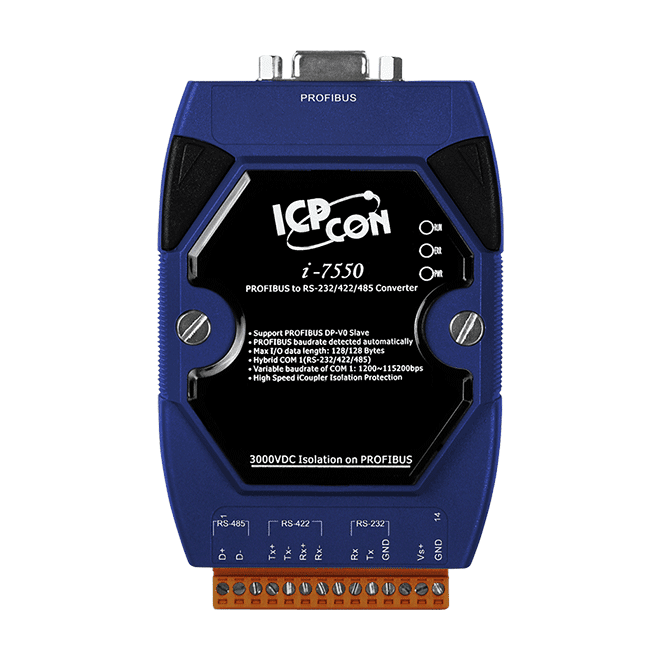

I-7550-B PROFIBUS DP-V0 Slave to RS-232/422/485 Converter
PROFIBUS DP-V0 slave converter that connects RS-232, RS-422 or RS-485 serial devices to a PROFIBUS network, with 3000 VDC isolation on the bus side.
- PROFIBUS DP-V0 slave interface with transmission rate detected automatically
- Hybrid COM 1 port selectable for RS-232, RS-422 or RS-485
- Maximum input and output data length of 128 bytes each
- Station address set from 0 to 126 by DIP switch
- Serial data formats: 7 or 8 data bits, none, odd or even parity, 1 stop bit
- Baud rates from 1200 to 115200 bps on the serial port
3 700,55 kr per st.
| 1–9 st. | 3 700,55 kr | |
|---|---|---|
| 10–30 st. | 3 589,76 kr | −3 % |
| 31+ st. | 3 512,20 kr | −5 % |
Produktinformation "I-7550-B PROFIBUS DP-V0 Slave to RS-232/422/485 Converter"
Serial devices on PROFIBUS without rewriting the controller side. The I-7550-B acts as a PROFIBUS DP-V0 slave, allowing existing RS-232, RS-422 or RS-485 equipment to be integrated into a PROFIBUS network. It suits engineers who need to bring legacy or third-party serial instruments into a PROFIBUS architecture.
A Hybrid COM 1 port lets you select the physical serial standard that matches your device, and only one mode can be used at a time. Serial settings support 7 or 8 data bits, none, odd or even parity and 1 stop bit, with baud rates from 1200 to 115200 bps. The PROFIBUS transmission rate is detected automatically, and the station address is set from 0 to 126 using a DIP switch.
The unit is housed in a plastic case and mounts on a DIN rail. Isolation is provided by a high-speed iCoupler on the network side and 3000 VDC on the PROFIBUS side, which helps protect the serial equipment and the bus during installation in industrial cabinets.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Converter |
|---|---|
| Interface: | RS-232/RS-422/RS-485 |
| Protocol: | PROFIBUS DP-V0 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| COM Ports | |
| Ports | RS-232/RS-422/RS-485(can’t be used simultaneously) 3-pin screwed terminal block (RxD, TxD, GND) 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-) 2-pin screwed terminal block (DATA+, DATA-) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| PROFIBUS | |
| Controller | Siemens SPC3 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
