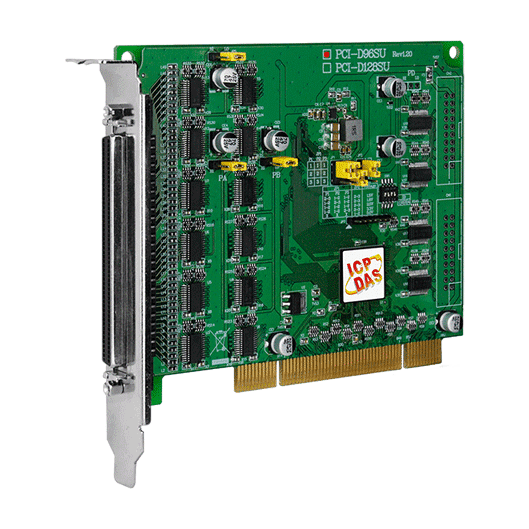

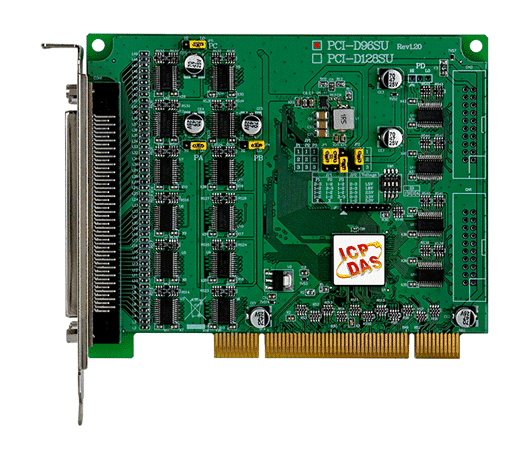

PCI-D96SU Universal PCI Digital I/O Board, 96-ch Bi-directional I/O
Universal 3.3 V/5 V PCI card providing 96 bi-directional digital I/O lines in three 32-bit ports, with selectable 1.8 V to 5 V TTL levels and a SCSI II 100-pin connector.
- Supports the 3.3 V/5 V universal PCI bus, 32-bit, 33 MHz
- 96 bi-directional digital I/O channels in three 32-bit ports
- Software-selectable DIO operating voltage: +1.8 V, +2.5 V, +3.3 V or +5 V
- Digital pattern generator with pattern-matching and change-of-state interrupt monitoring
- Pull-high/pull-low jumpers to predefine DI status for disconnected channels
- Card ID switch for identifying boards when two or more are installed
2 603,68 kr per st.
| 1–9 st. | 2 603,68 kr | |
|---|---|---|
| 10–30 st. | 2 526,13 kr | −3 % |
| 31+ st. | 2 470,73 kr | −5 % |
Produktinformation "PCI-D96SU Universal PCI Digital I/O Board, 96-ch Bi-directional I/O"
PCI-D96SU is a universal PCI digital I/O board for PC-based systems that need a large number of TTL-level signals. It supports the 3.3 V and 5 V PCI bus and provides 96 digital I/O lines arranged as three 32-bit bi-directional ports. Each channel can be configured in software as an input or an output, so one card can cover a wide range of switching and monitoring tasks.
The board offers a selectable DIO operating voltage of +1.8 V, +2.5 V, +3.3 V or +5 V, allowing it to match the logic level of the connected equipment. Pull-high and pull-low jumpers let you define the state of digital inputs when channels are disconnected or interrupted, rather than leaving them floating. Pattern-matching and change-of-state interrupt monitoring are supported, along with a digital pattern generator.
An onboard Card ID switch allows software to identify the board when two or more cards are installed in the same computer. All signals are routed through a single high-density SCSI II 100-pin connector, which saves installation space. Driver support includes a DLL and ActiveX control, with sample programs for a range of development environments, including LabVIEW and Visual Basic.NET.
Applications
- Digital I/O in PC-based data acquisition systems
- Multi-board installations where individual cards must be identified in software
- Digital pattern generation and waveform output
| Product type: | DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 96 |
| Digital outputs: | 96 |
| Ports: | 3 |
| Power input: | +5 V |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female SCSI II 100-pin x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 96 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| ON Voltage Level | 1.8V/TTL(Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 1: 2.0 V Min.) 5V/TTL(Logic 1: 3.5 V Min.) |
| OFF Voltage Level | 1.8V/TTL(Logic 0: 0.65 V Max.) 2.5V/TTL(Logic 0: 0.7 V Max.) 3.3V/TTL(Logic 0: 0.8 V Max.) 5V/TTL(Logic 0: 1.5 V Max.) |
| Response Speed | 1 MHz (Typical) |
| Trigger Mode | Software (Pattern Match, Change of Status) |
| Data Transfer | Polling, Interrupt |
| Digital Output | |
| Channels | 96 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Operation Mode | Static update, Waveform generation |
| Load Voltage | 1.8V/TTL(Logic 0: 0.65 V Max. ,Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 0: 0.7 V Max. ,Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 0: 0.8 V Max. ,Logic 1: 2.0 V Min.) 5V/TTL(Logic 0: 1.5 V Max. ,Logic 1: 3.5 V Min.) |
| Response Speed | 1 MHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 32-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 129 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
