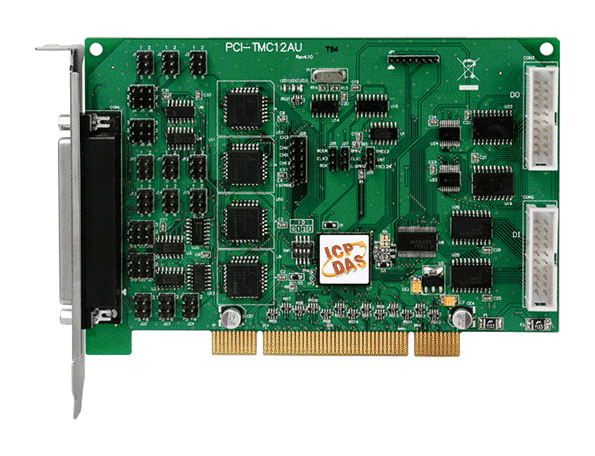

PCI-TMC12AU Universal PCI Timer/Counter Board, 12-ch 16-bit, 16-ch DI/DO
Universal PCI board with twelve 16-bit timers/counters, 16 TTL digital inputs and 16 TTL digital outputs. Includes one CA-4002 D-Sub connector.
- Universal PCI (3.3 V/5 V) interface with 32-bit, 33 MHz bus
- Twelve independent 16-bit timers/counters across four onboard 8254 chips
- Timers/counters can be cascaded to form 32/48-bit timers/counters
- 16-channel 5 V/TTL digital input and 16-channel 5 V/TTL digital output
- Two jumper-selectable internal clock sources for high-resolution timing
- Card ID set by SMD switch and digital output status readback
3 512,20 kr per st.
| 1–9 st. | 3 512,20 kr | |
|---|---|---|
| 10–30 st. | 3 401,41 kr | −3 % |
| 31+ st. | 3 334,93 kr | −5 % |
Produktinformation "PCI-TMC12AU Universal PCI Timer/Counter Board, 12-ch 16-bit, 16-ch DI/DO"
The PCI-TMC12AU is a 3.3 V/5 V universal PCI board that combines twelve independent 16-bit timers/counters with 16 channels of 5 V/TTL digital input and 16 channels of 5 V/TTL digital output. It is a drop-in replacement for the PCI-TMC12A and works without changes to existing software or drivers, which makes it a practical choice when upgrading or maintaining a PC-based measurement or control system.
The timers/counters are built on four onboard 8254 chips. Two internal clock sources, 8 M/1.6 M and 0.8 M/80 K, are selected by jumper and provide a high-resolution reference for timing. Timers can be cascaded to form 32-bit or 48-bit counters, and the gate input can be driven from an external source or from the output of a previous timer/counter.
The board suits industrial and laboratory work where event timing and pulse measurement are needed alongside discrete I/O. Each timer/counter channel supports an external clock input and an output, and the card includes a CA-4002 D-Sub connector for field wiring.
Applications
- Pulse, event and switch-toggle counting
- Frequency readings
- Elapsed time measurement
- Pulse-width measurement
- PWM (pulse-width-modulated) output
- Pulse (square wave) and rate generation
- Industrial and laboratory applications
| Product type: | PCI DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Power input: | +5 V, 500 mA |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 24 mA @ 0.8 V Source: 15 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 12 |
| Type | 5 V/TTL(82C54 compatible timer) |
| Resolution | 16-bit |
| Input Frequency | 10 MHz max. |
| Reference Clock | Internal: 8 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 500 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 150 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
