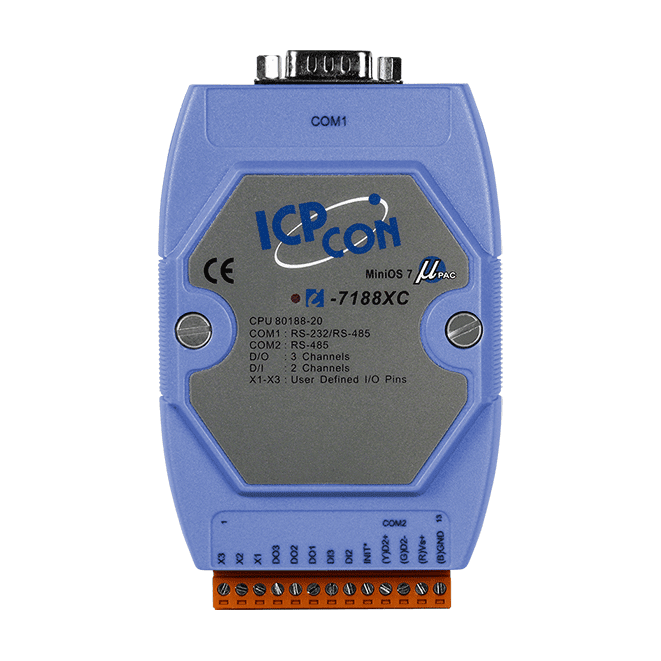

I-7188XC-512 Serial PAC with MiniOS7, 2 DI, 3 DO and I/O Expansion Bus
Palm-size serial PAC with an 80188 CPU running MiniOS7, offering 2 dry contact inputs, 3 open-collector outputs, RS-232/RS-485 ports and an I/O expansion bus. Blue cover variant.
- Built-in MiniOS7 operating system, programmed in C
- 512 KB Flash and 2 KB EEPROM storage
- 2 dry contact digital inputs and 3 open-collector digital outputs (+30 VDC max., 100 mA)
- 1 x RS-485 and 1 x RS-232/RS-485 serial ports, up to 115200 bps
- I/O expansion bus with X-board I/O type
- Programmable system LED indicator
2 382,09 kr per st.
| 1–9 st. | 2 382,09 kr | |
|---|---|---|
| 10–30 st. | 2 304,54 kr | −3 % |
| 31+ st. | 2 260,22 kr | −5 % |
Produktinformation "I-7188XC-512 Serial PAC with MiniOS7, 2 DI, 3 DO and I/O Expansion Bus"
I-7188XC-512 is a compact programmable automation controller for engineers who need a PC or PLC style controller in a small, DIN-rail mounted package for harsh industrial settings. It runs the MiniOS7 operating system and is programmed in C.

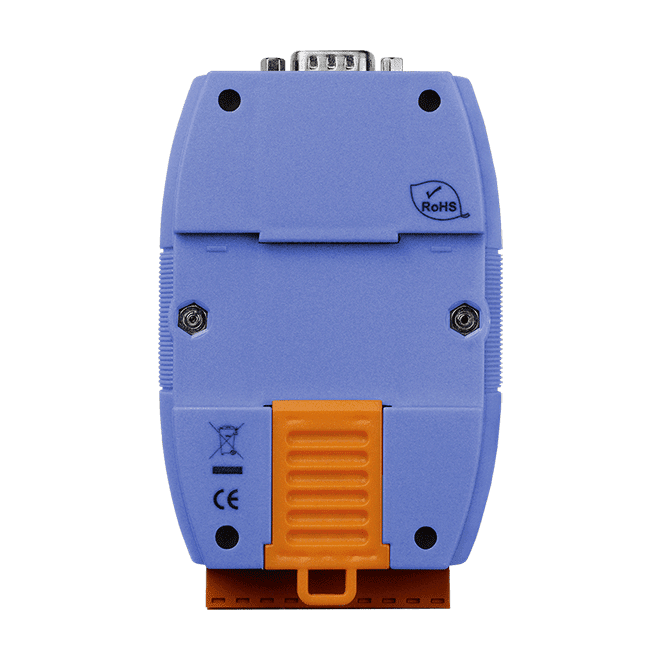

Built-in digital I/O, comprising 2 dry contact inputs and 3 open-collector outputs, together with two serial ports and an I/O expansion bus, lets you tailor the controller to your application. A programmable system LED and a built-in watchdog timer support dependable operation. The blue cover identifies this ordering variant.
Because the controller can be built into an OEM product as a processor core, it suits designs where time to market, development cost and technical risk need to be kept under control. Listed certifications are CE, UKCA, FCC, RoHS and WEEE.
Applications
- Replacing PC or PLC devices in harsh environments
- Palm-size embedded control systems
- OEM processor core for integrated products
| Product type: | Serial PAC |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 3 |
| Ports: | 2 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 20 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
