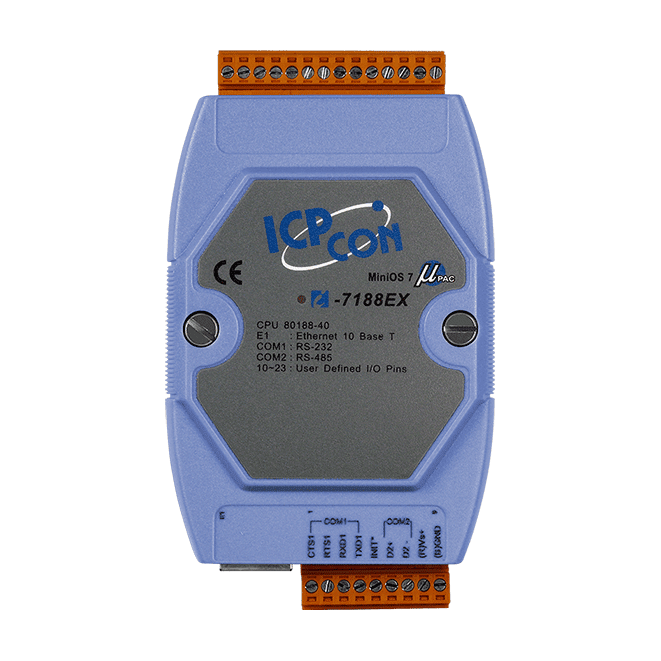

I-7188EX Ethernet PAC with MiniOS7, 40 MHz CPU and I/O Expansion Bus
Palm-size Ethernet programmable automation controller running MiniOS7, with RS-232 and RS-485 serial ports and one I/O expansion bus slot for X-boards. Blue cover (CR) variant.
- Built-in MiniOS7 operating system with C language development toolkit
- 80188-40 CPU with 512 KB flash, 512 KB SRAM and 2 KB EEPROM
- 1 x 10BASE-T RJ-45 Ethernet port (NE2000 compatible)
- 1 x RS-232 and 1 x RS-485 serial ports, up to 115200 bps
- Standard Modbus protocol for communication with SCADA software
- One I/O expansion bus interface supporting one X-board
2 940,90 kr per st.
| 1–9 st. | 2 940,90 kr | |
|---|---|---|
| 10–30 st. | 2 852,45 kr | −3 % |
| 31+ st. | 2 797,17 kr | −5 % |
Produktinformation "I-7188EX Ethernet PAC with MiniOS7, 40 MHz CPU and I/O Expansion Bus"
I-7188EX CR is a compact programmable automation controller built around an 80188-40 CPU and the MiniOS7 operating system. It combines a 10BASE-T Ethernet port with RS-232 and RS-485 serial interfaces, so it can bridge serial field devices onto an Ethernet network and act as a Modbus-based link to SCADA software.
Application development uses the C language toolkit supplied with MiniOS7, including Modbus libraries. The unit provides 512 KB of flash, 512 KB of SRAM and 2 KB of EEPROM, a real-time clock, a watchdog timer and a 64-bit hardware serial number for device identification.
Hardware can be extended through a single I/O expansion bus, which accepts one X-board. The source documentation references more than 50 compatible boards offering analogue, digital and serial functions. The blue-cover CR ordering code is the standard variant offered here.
Applications
- Integrating serial devices into Ethernet and Internet networks
- Modbus communication with SCADA systems
- Stand-alone programmable control with local I/O expansion
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
