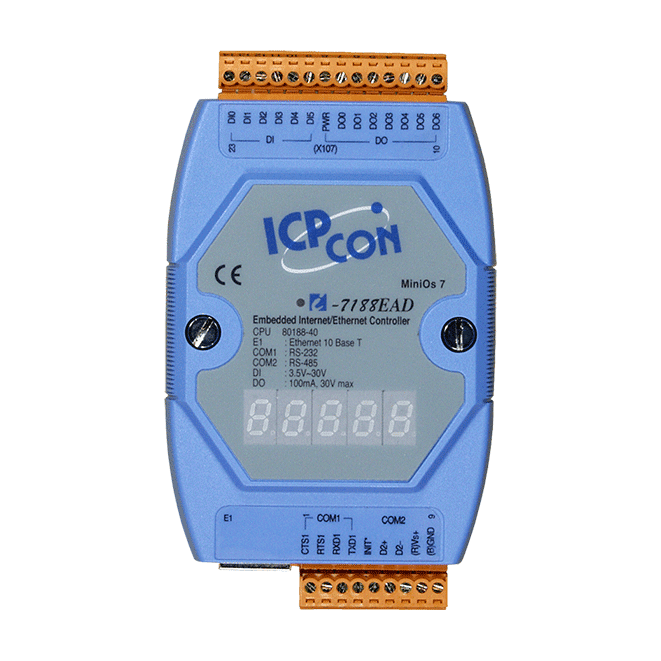

I-7188EAD Ethernet PAC with MiniOS7, 6 DI, 7 DO and 7-Segment LED Display
Palm-size Ethernet programmable automation controller with 80188-40 CPU, MiniOS7, 6 digital inputs, 7 open-collector outputs and RS-232/RS-485 serial ports.
- Built-in MiniOS7 operating system with C language development tool kits
- 10BASE-T NE2000 compatible Ethernet port plus RS-232 and RS-485 serial ports, up to 115200 bps
- 6 digital inputs accepting dry or wet contacts, with wet inputs sinking
- 7 open-collector digital outputs rated +30 VDC max. and 100 mA load current
- 512 KB Flash, 2 KB EEPROM, 512 KB SRAM and 31 bytes NVRAM
- 5-digit 7-segment LED display and system status LED
3 379,25 kr per st.
| 1–9 st. | 3 379,25 kr | |
|---|---|---|
| 10–30 st. | 3 279,53 kr | −3 % |
| 31+ st. | 3 213,06 kr | −5 % |
Produktinformation "I-7188EAD Ethernet PAC with MiniOS7, 6 DI, 7 DO and 7-Segment LED Display"
I-7188EAD CR is a compact programmable automation controller for bridging serial devices onto Ethernet. It combines an 80188-40 CPU running the built-in MiniOS7 with 6 digital inputs, 7 open-collector outputs, a 10BASE-T Ethernet port and both RS-232 and RS-485 serial interfaces in a DIN-rail housing.
Engineers can develop custom logic in C using the supplied software development tool kits. Serial devices can be integrated into Ethernet and internet networks, and the controller can communicate with SCADA packages over the standard Modbus protocol, using the XServer and Modbus libraries provided.
The blue cover version (CR suffix) is the RoHS-compliant variant of the I-7188EAD, with a 5-digit 7-segment LED display for local status indication and a built-in watchdog timer to support unattended operation.
Applications
- Integrating serial RS-232/RS-485 devices into Ethernet and internet networks
- Modbus-based communication with SCADA software
- Local digital input monitoring and open-collector output switching
- Custom control logic programmed in C on a compact controller
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Digital inputs: | 6 |
| Digital outputs: | 7 |
| Ports: | 1 Ethernet, 1 RS-232, 1 RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Blue cover |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 6 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Wet: Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 7 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
