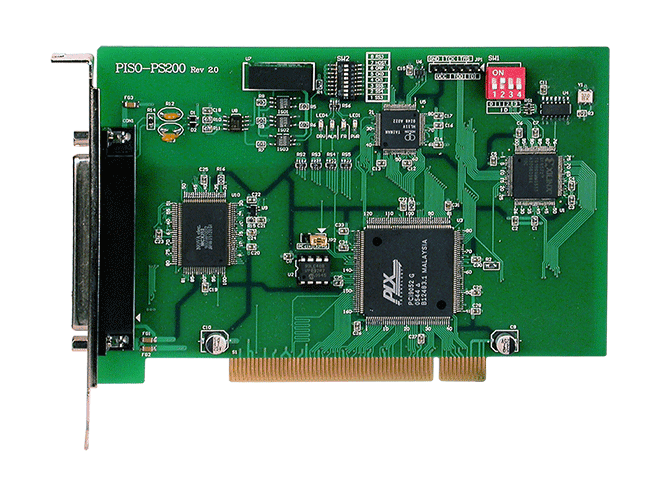

PISO-PS200 PCI 2-Axis Motion Control Card with FRnet Master
5 V PCI 2-axis pulse-type motion control card with an onboard FRnet Master for expanding remote I/O by up to 128 DI and 128 DO over a two-wire link.
- Independent 2-axis motion control with hand wheel and jog functions
- 2-axis linear and circular interpolation, plus continuous interpolation
- Programmable T/S-curve acceleration and deceleration
- Pulse output up to 4 MHz per axis in CW/CCW or PULSE/DIR modes
- 32-bit encoder counter per axis with A/B phase or Up/Down input
- Programmable automatic homing and software limits
6 625,54 kr per st.
| 1–9 st. | 6 625,54 kr | |
|---|---|---|
| 10–30 st. | 6 426,11 kr | −3 % |
| 31+ st. | 6 293,16 kr | −5 % |
Produktinformation "PISO-PS200 PCI 2-Axis Motion Control Card with FRnet Master"
The PISO-PS200 is a PCI motion control card for independent two-axis control of stepping and pulse-type servo drives. Each axis outputs pulses at up to 4 MHz and reads a 32-bit encoder counter, with hand wheel and jog operation and programmable automatic homing and software limits. It suits machines that need precise positioning on two axes from a single PC.
Interpolation and speed profiling run on the card itself. Linear and circular 2-axis interpolation, continuous interpolation and programmable T/S-curve acceleration and deceleration are included. The onboard FRnet Master expands remote I/O by up to 128 DI and 128 DO over a two-wire interface, scanned automatically within 2.88 ms.
The card is supported on Windows 7/10 (32/64-bit) and Windows XP/2000 (32-bit) and ships with the EzGo Utility. It requires a 5 V PCI bus and draws +5 V at 500 mA. The rated operating temperature range is -20 ~ +75°C.
Applications
- Semiconductor Manufacturing
- Component Inspection
- Manufacturing Quality Control
- Food and Beverage Inspection
- Microscopy and Medical Imaging
- Biometrics Applications
- X-Y-Z Table
- Fix-pitch Stamping Machinery
- Transfer Machinery
- Spinner
- Load/Unload
| Product type: | Motion control card |
|---|---|
| Interface: | PCI |
| Protocol: | FRnet |
| Digital inputs: | 2 local, up to 128 expandable |
| Digital outputs: | 2 local, up to 128 expandable |
| Isolation: | 2500 Vrms |
| Power input: | 5 V PCI bus |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| Utility | EzGo Utility |
| Hardware | |
| Connector | 37-pin D-Sub |
| General | |
| No. of Axes | 2 |
| Operation Mode | Semi-closed Loop |
| Speed Profile | T/S-curve |
| Position Control Mode | Incremental mode |
| Command Type | Pulse command |
| Axis I/O | |
| Servo Interface Output | SVON |
| Mechanical Switch Input | Home, LMT+/-, NHOME, EMG |
| Servo Interface Input | INP, ALM |
| Encoder Input | |
| Mode | A/B Phase, Up/Down |
| Ring Counter Mode | 32-bit |
| Counting Rate | 4 MHz (Max.) |
| Counter Width | 32-bit |
| Pulse Output | |
| Mode | CW/CCW, PULSE/DIR |
| Counter Width | 32-bit |
| Rate | 4 MHz (Max.) |
| Interpolation | |
| Circular | 2 axes |
| Linear | 2 axes |
| Digital Input | |
| Channels | Local: 2 DI Expandable: 128 DI |
| Isolation | 2500 Vrms optical isolation (with DN-8237) |
| Digital Output | |
| Channels | Local: 2 DO Expandable: 128 DO |
| Isolation | 2500 Vrms optical isolation (with DN-8237) |
| PC Bus | |
| Type | 5 V PCI bus |
| Power | |
| Consumption | +5 V @ 500 mA |
| Environment | |
| Operating Temperature | -20 ~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
