MN-SERVO-MJ3-EC Motionnet Single-axis Motion Control Module
Distributed Motionnet single-axis motion control module with e-CON Mini-Clamp connector for Mitsubishi MELSERVO-J3/J4 servo drivers. Up to 64 axes per line and 6.6 MHz pulse output.
- Motionnet communication up to 20 Mbps, with 2.5, 5, 10 and 20 Mbps transfer speeds
- Pulse output up to 6.6 MHz with 28-bit counter
- Controls up to 64 axes per line
- Multi-axis linear and 2-axis circular interpolation
- T/S-curve acceleration and deceleration, with speed and position changes on the fly
- Per-axis slow-down, home and positive/negative limit sensor inputs
3 024,70 kr per st.
| 1–9 st. | 3 024,70 kr | |
|---|---|---|
| 10–30 st. | 2 924,99 kr | −3 % |
| 31+ st. | 2 869,59 kr | −5 % |
Produktinformation "MN-SERVO-MJ3-EC Motionnet Single-axis Motion Control Module"

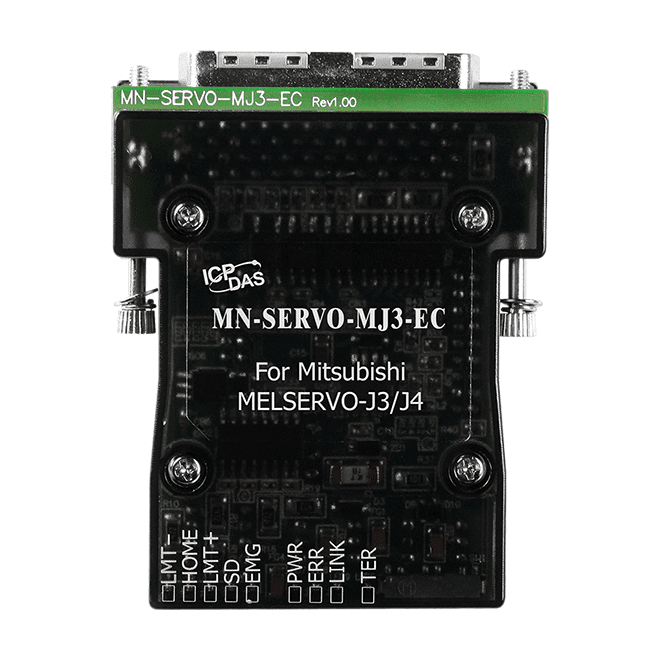

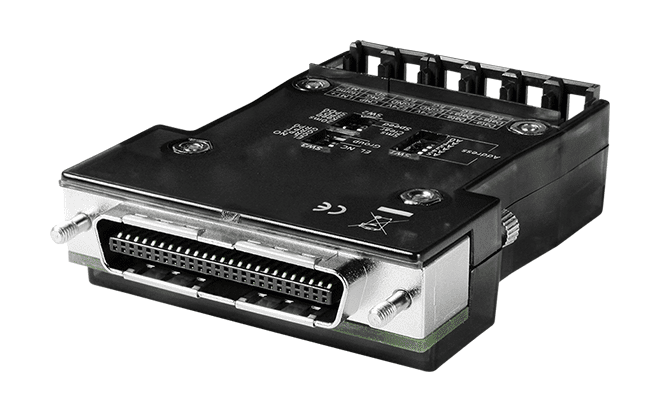

The MN-SERVO-MJ3-EC CR is a single-axis motion control slave module for distributed Motionnet networks. It connects directly to a Mitsubishi MELSERVO-J3/J4 servo driver, reducing the wiring needed between drivers and the controller. Modules are chained with standard Cat.5 LAN cable, and one serial line supports up to 64 single-axis modules.
Each axis offers pulse output up to 6.6 MHz with a 28-bit counter, and encoder input in CW/CCW or A/B phase modes. T/S-curve acceleration and deceleration are supported, and speed and position can be changed on the fly. Multi-axis linear and 2-axis circular interpolation are included, along with slow-down, home, positive and negative limit sensor inputs, software limits and compare trigger output.

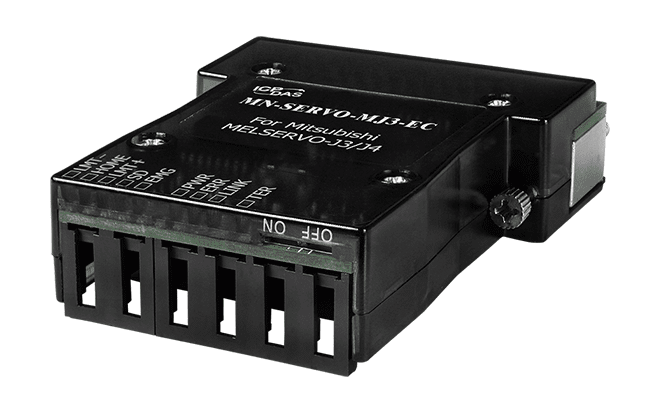

Three-way isolation between power, communication and I/O is intended to provide better noise immunity and device protection. The e-CON Mini-Clamp connector variant allows an easier, debris-free wire termination process. The rated operating temperature is 0 ~ +60 °C.
Applications
- Distributed multi-axis motion control on a Motionnet fieldbus
- Integrated machine automation with Mitsubishi MELSERVO-J3/J4 servo drivers
| Product type: | Motion control module |
|---|---|
| Interface: | Motionnet |
| Protocol: | Motionnet |
| Isolation: | 3-way |
| Power input: | 24 VDC ±5% |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Communication state (Link, Error) Internal 3.3 V Power Termination Resistor Switch Mechanic Switch Input |
| General | |
| Speed Profile | Trapezoidal/S Shaped Acc/Dec Driving |
| Auto-Home Search | 13 Types |
| Axis I/O | |
| Servo Interface Output | SVON, ERC, ALM_RST |
| Latch Input | Yes (shared with SD) |

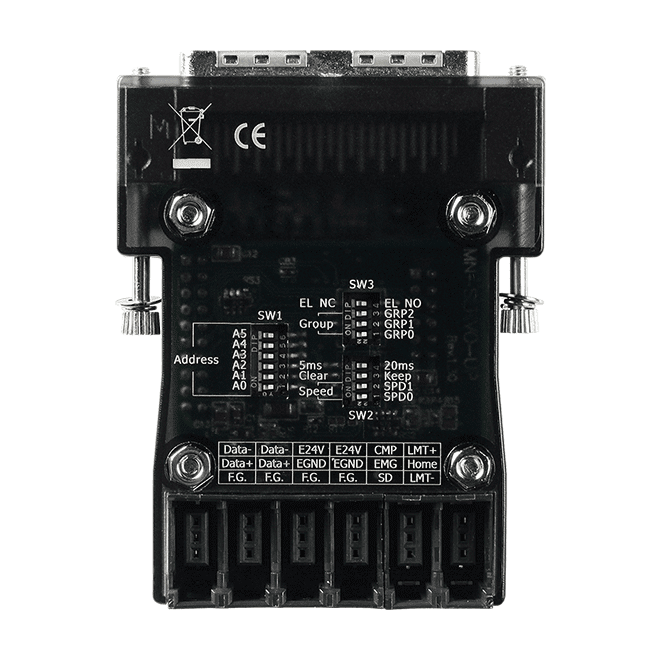

| Mechanical Switch Input | LMT+, LMT-, HOME, SD, EMG |
| Position Compare Output | High-Speed 5 V TTL or 24 V open collector |
| Servo Interface Input | ALM, RDY, INP |
| Encoder Input | |
| Mode | CW/CCW, A/B phase |
| Counter Width | 28-bit |
| Pulse Output | |
| Mode | OUT/DIR, CW/CCW |
| Counter Width | 28-bit |
| Rate | 6.6 MHz (Max.) |
| Motionnet | |
| Communication Connectors | Mini-Clamp Connector |
| Transfer Speed | 2.5, 5, 10, 20 Mbps |
| Power | |
| Input Range | 24VDC +/-5% (1000 V isolated) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
