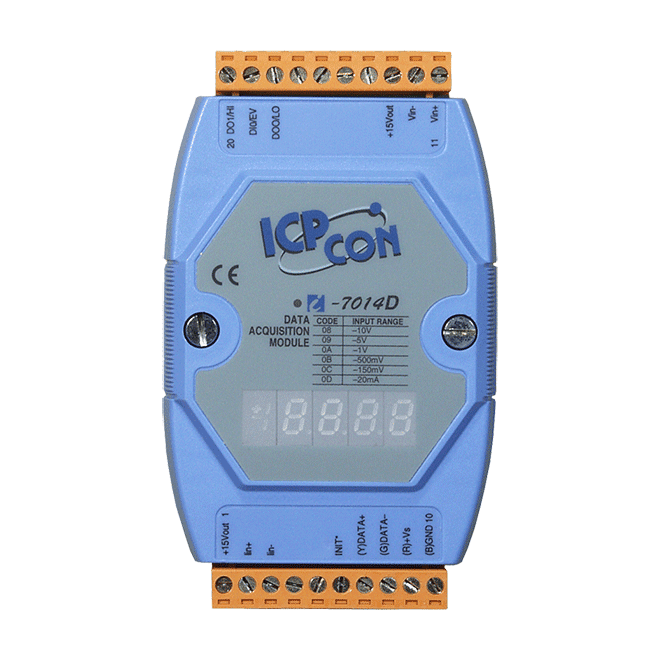

I-7014D 1-ch Transmitter Input Module with LED Display, DCON Protocol
Single-channel analogue input module for voltage, current and transmitter signals, with 16-bit resolution, a 50 Hz event counter and two open-collector alarm outputs over RS-485 DCON.
- Voltage, current and transmitter inputs: ±150 mV to ±10 V and ±20 mA
- 16-bit resolution with ±0.05% of FSR accuracy at 10 Hz sampling
- Isolated ±15 VDC, 30 mA loop supply for transmitter inputs
- 50 Hz event counter on one digital input, up to 65535 counts
- Two open-collector outputs for high/low alarm, 30 mA per channel
- Built-in dual watchdog: module and communication (programmable)
2 803,11 kr per st.
| 1–9 st. | 2 803,11 kr | |
|---|---|---|
| 10–30 st. | 2 714,48 kr | −3 % |
| 31+ st. | 2 659,08 kr | −5 % |
Produktinformation "I-7014D 1-ch Transmitter Input Module with LED Display, DCON Protocol"
The I-7014D CR suits engineers who need one analogue input for voltage, current or transmitter signals, plus a digital counter and alarm outputs, on a single RS-485 DCON node. The 16-bit input supports ranges from ±150 mV to ±10 V and ±20 mA, and the module provides an isolated ±15 VDC, 30 mA loop supply to power a two-wire transmitter.
A 5-digit 7-segment LED display and a power and communication indicator give local visibility of the module. The single digital input works as a 50 Hz event counter with counts up to 65535, while the two open-collector outputs can be set as high or low alarms with programmable power-on and safe values.
- Dual programmable watchdogs for the module and communication
- 3000 VDC intra-module isolation
- DIN-rail mounting, operating range -25 ~ +75 °C
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Digital inputs: | 1 |
| Digital outputs: | 2 |
| Analog inputs: | 1 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
| Type | 5-Digit 7 Segment LED Display |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 Differential |
| Type | Voltage Current |
| Range | Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current: ±20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.05% of FSR |
| Sampling Rate | 10 Hz |
| Input Impedance | Voltage: 30 kΩ Current: 125 Ω |
| Overvoltage Protection | ±15 VDC |
| Isolated Loop Power | ±15 VDC, 30 mA |
| Digital Input/Counter | |
| Channels | 1 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 65535 (16-bit) |
| Frequency | 50 Hz |
| Input Impedance | 3 kΩ |
| Overvoltage Protection | ±30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +30 VDC |
| Load Current | 30 mA/channel |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.9 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
