EC4-ENC4A EtherCAT SubDevice Module, 4-Channel SSI/BiSS-C Encoder Interface
Slim EtherCAT SubDevice with four independent SSI and BiSS-C absolute encoder channels, up to 48-bit position data, 10 MHz transmission and simultaneous sampling.
- EtherCAT SubDevice with four independent absolute encoder channels
- SSI and BiSS-C (unidirectional) transmission interfaces
- Up to 48-bit position resolution with binary or Gray data encoding
- 10 MHz maximum transmission frequency with simultaneous sampling of all channels
- Automatic cable delay compensation in BiSS-C mode, supporting cable lengths up to 70 m
- Supports Free-Run and Distributed Clock (DC) operation modes
8 398,26 kr per st.
| 1–9 st. | 8 398,26 kr | |
|---|---|---|
| 10–30 st. | 8 154,51 kr | −3 % |
| 31+ st. | 7 977,24 kr | −5 % |
Produktinformation "EC4-ENC4A EtherCAT SubDevice Module, 4-Channel SSI/BiSS-C Encoder Interface"

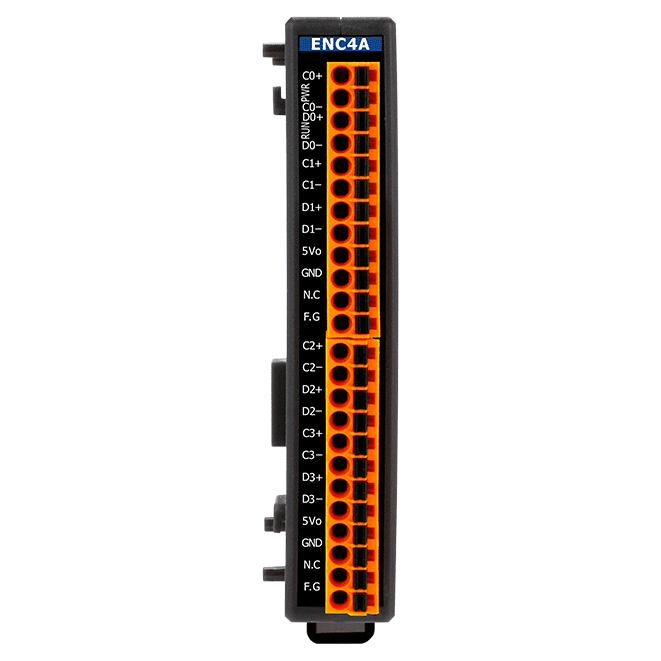

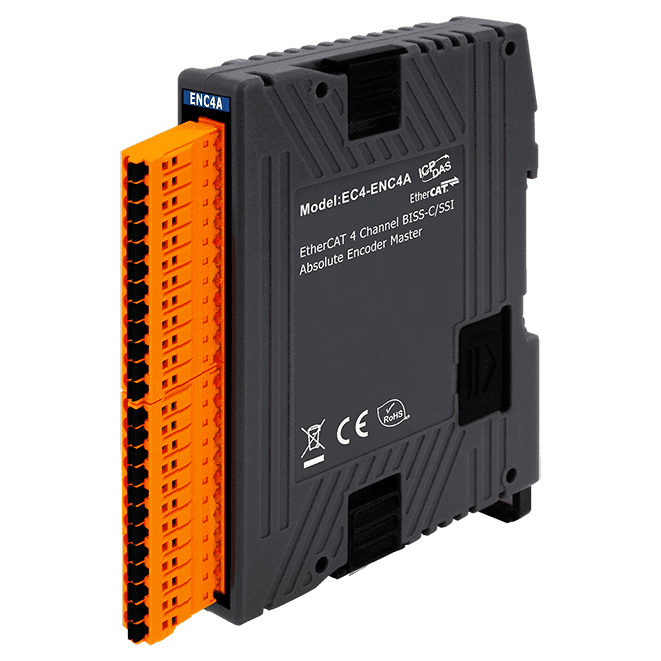

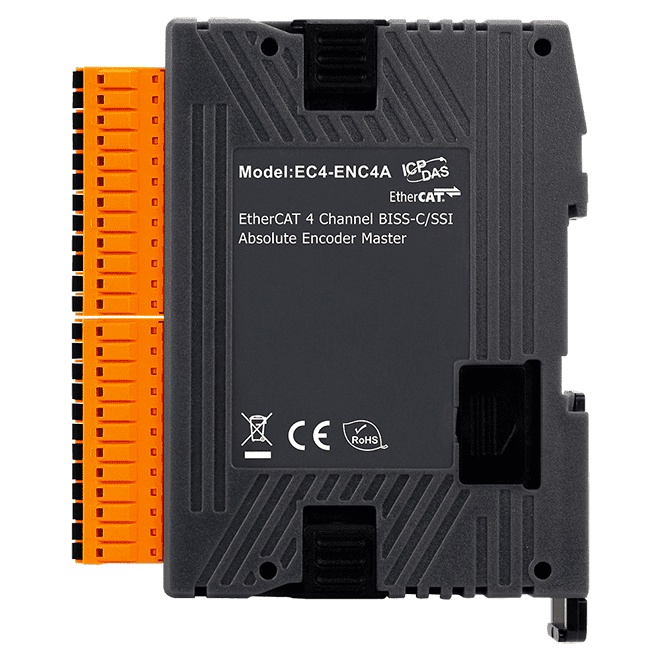

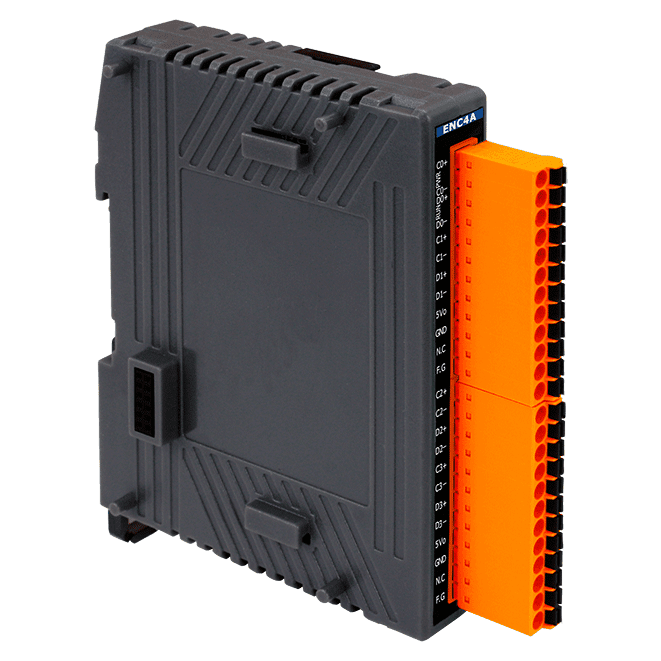

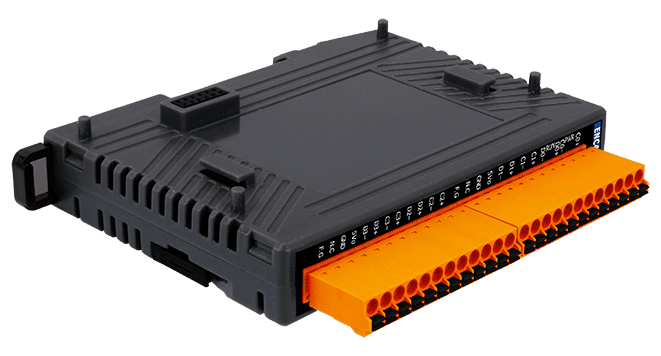

The EC4-ENC4A is a slim EtherCAT SubDevice that brings four independent absolute encoder channels onto an EtherCAT network. Each channel reads SSI or BiSS-C (unidirectional) encoders, so one module can cover several axes, with all channels sampled simultaneously.
Position data is processed on the fly within the EtherCAT cycle, and the module supports both Free-Run and Distributed Clock (DC) operation. Encoder position resolution is up to 48 bits, including error and warning bits and CRC in BiSS-C mode. Transmission runs at up to 10 MHz, and BiSS-C cable delays are compensated automatically over cable runs of up to 70 metres.

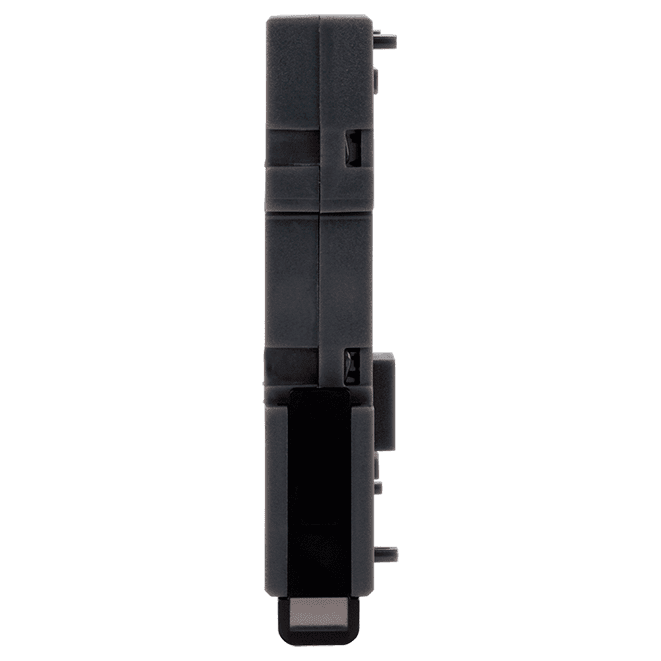

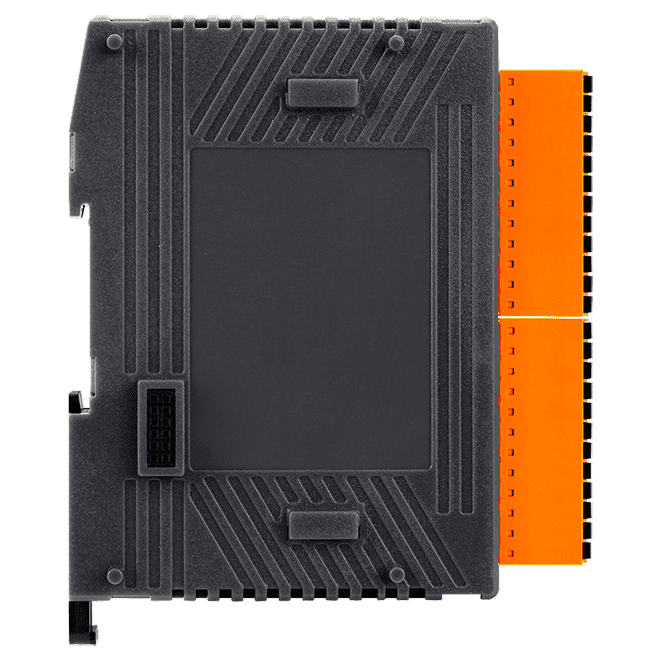

The module draws a maximum of 4.5 W from a +24 V DC supply and has a plastic housing for DIN-rail or wall mounting. It is specified for operation from -25 to +75 °C, with encoder inputs photo-isolated at 2000 VDC.
Applications
- Precision position measurement
| Product type: | EtherCAT SubDevice |
|---|---|
| Interface: | BiSS-C, SSI |
| Protocol: | EtherCAT |
| Isolation: | 2000 VDC |
| Power input: | +24 V DC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 KV Contact for each channel |
| LED Indicators | |
| Status | Power, EtherCAT status |
| Encoder Input | |
| No. of Axes | 4x encoder channel (0-3) |
| Resolution | max. 48 bit position |
| Sampling Type | Simultaneous |
| Transmission Interface | SSI mode BiSS-C mode |
| Photo-isolation | 2000 VDC |
| Input Level | 5V (default) |
| Frequency | 10MHz |
| EtherCAT | |
| Protocol | EtherCAT |
| Cycle Time | 200 μs |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 V DC |
| Consumption | Maximum 4.5W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 17.5 × 108 × 90 (W × L × D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90%, No condensation |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
