The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

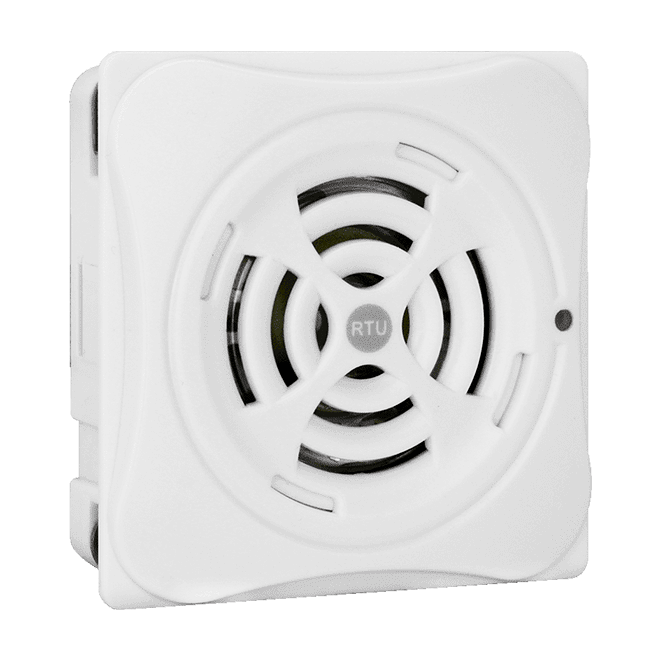

The ALM-04-MRTU CR is an MP3 alert module that brings audible and relay-based alarm signalling into RS-485 monitoring and control networks. It speaks Modbus RTU, so it can be polled or driven from SCADA software and HMI panels that already use that protocol.Four isolated dry-contact digital inputs, each supporting up to 8 alarm modes, detect field events. A single Form A relay output can drive an external device, while the audio line out feeds an external amplifier or sounder. Up to 64 MP3 files are held on a micro SD card, which also stores the module configuration.Typical choices include building and factory automation, security and visitor call systems, and fire alarm applications. The module mounts on a panel, wall or DIN rail and accepts a 9 to 28 VDC supply with reverse polarity protection.ApplicationsBuilding AutomationSecurity AutomationMachine AutomationFactory AutomationTesting EquipmentGuest/Visitor BellFire Alarm System

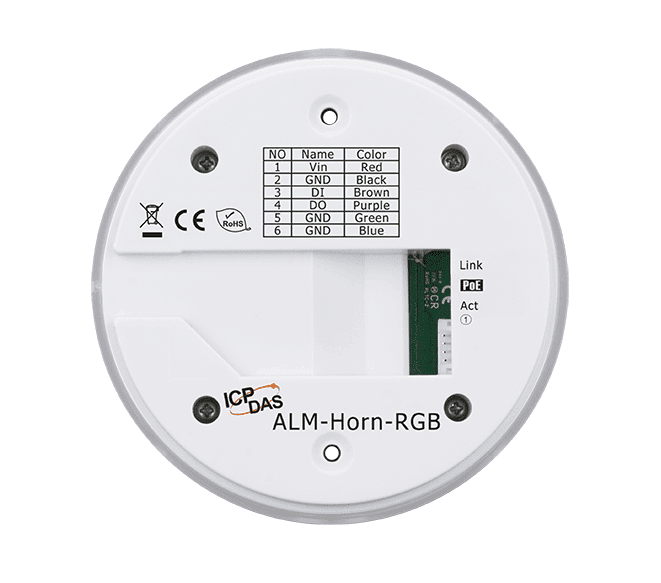

The ALM-Horn-RGB CR is a network-connected alarm siren and status beacon. A piezo transducer sounder is combined with 8 user-definable RGB 3 colour Ultrabright LEDs behind a water clear upper cover, so audible and visual alerts can be given from a single unit. It is powered over Ethernet and supports Modbus TCP, with a built-in web server included.One digital input accepts dry contact signals from devices such as SA, BA or FA outputs, with NC/NO input mode selectable. A single open-collector output and four selectable alarm tones allow the unit to be matched to the alarm scheme in use. The Modbus interface makes it straightforward to integrate with SCADA software, HMI panels and utility systems for monitoring or control.The housing carries an IP43 rating and the unit operates from -20 ~ +75 °C. It accepts a 12 ~ 48 VDC input range and can be installed on a panel or wall.Sounder rated at 100 ± 5 dB @10cm/3.0 KHz (without waterproof membrane)Piezo transducer siren with four selectable alarm tonesApplicationsBuilding AutomationSecurity AutomationMachine AutomationFactory AutomationTesting EquipmentFire Alarm System

AR-200 CR is a dynamic signal acquisition module for vibration monitoring and analysis. It accepts two IEPE accelerometers, each supplied with a built-in 3 mA excitation current, and digitises the signals with a 16-bit converter. Sampling of both channels runs simultaneously, at rates up to 200 kHz per channel.Recordings are written to a Micro SD card, so data can be taken away and analysed offline. Capture can be started by a push button, a schedule, an analog threshold, a digital input or a remote command from the supplied utility on a host PC, which also lets you set the sampling rate and scheduling for each application. A single relay output and one digital input add basic event handling to the unit.The logger suits panel or machine installations that need to run unattended. It works from a wide +10 to +30 VDC supply, operates from -25 to +75 °C, and provides 4 kV contact ESD protection on all terminals. Mounting is by wall or DIN-rail.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation
