The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

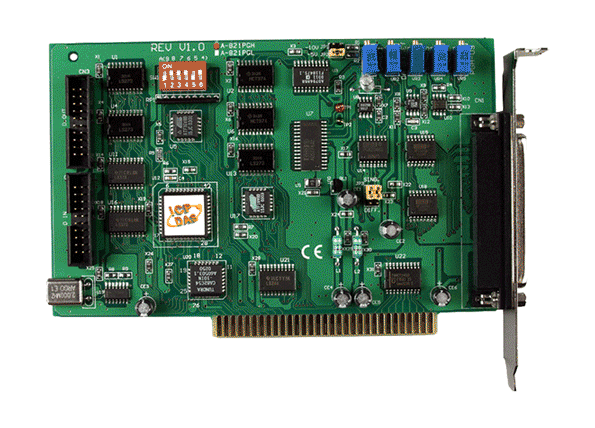

The A-821PGH CR is a 12-bit multifunction data acquisition board for PC/AT compatible computers with an ISA bus. It combines a fast analogue input stage, a single analogue output channel and TTL-level digital I/O on one card, which suits engineers who need signal capture and simple control from a single slot.The analogue inputs can be configured as 16 single-ended or 8 differential channels, sampling at up to 45 kS/s. The PGH version offers software-programmable gains of 1, 10, 100 and 1000, with input ranges of ±5 V, ±0.5 V, ±0.05 V and ±0.005 V. Triggering is available by software or pacer, with data transfer by polling or interrupt. A 16-bit timer/counter channel is also provided.Connection is through a 37-pin D-Sub connector, and the CA-4002 D-Sub connector is included with this ordering code. The board is rated for an operating temperature of 0 ~ +60°C and carries CE, UKCA, FCC and WEEE marks.ApplicationsSignal analysisIndustrial automationLaboratory automationSensor interfaceFFT & frequency analysisTransient analysisProduction testProcess control

The A-821PGH/S CR is a 12-bit multifunction data acquisition board for PC/AT compatible computers with an ISA bus. It combines 16 single-ended or 8 differential analogue inputs with one 12-bit analogue output, 16 digital inputs and 16 digital outputs, and a 16-bit timer/counter channel, all on one board.The analogue inputs sample at up to 45 kS/s and support software, pacer, external and event triggering. Data can be transferred by polling, interrupt or DMA, which suits both simple monitoring and time-critical acquisition. The A-821PGH variant of this series offers software-programmable gains of 1, 10, 100 and 1000.This ordering code is supplied with a DB-8225 terminal board and a CA-3710 D-Sub cable, rather than the CA-4002 D-Sub connector listed for the base A-821PGH. The board carries CE, UKCA, FCC and WEEE marks and operates from 0 ~ +60 °C.ApplicationsSignal analysisIndustrial automationLaboratory automationSensor interfaceFFT & frequency analysisTransient analysisProduction testProcess control

The A-821PGL is a 12-bit ISA bus multifunction board for engineers who need analogue acquisition, analogue output and digital I/O in a single PC expansion card. It provides 16 single-ended or 8 differential analogue inputs sampling at up to 45 kS/s, making it suited to signal analysis and transient capture.The low gain version offers software programmable gains of 1, 2, 4 and 8 for the analogue input channels. Several trigger sources are available, including software, pacer, external and event triggers, and data can be moved by polling, interrupt or DMA. The board also includes an analogue output with 0 ~ 5 V and 0 ~ 10 V ranges, along with 16 digital inputs and 16 digital outputs at 5 V/TTL levels and one 16-bit timer/counter channel.This ordering code includes one CA-4002 D-Sub connector for field wiring. The board is specified for an operating temperature of 0 ~ +60 °C.ApplicationsSignal analysisIndustrial automationLaboratory automationSensor interfaceFFT and frequency analysisTransient analysisProduction testProcess control
