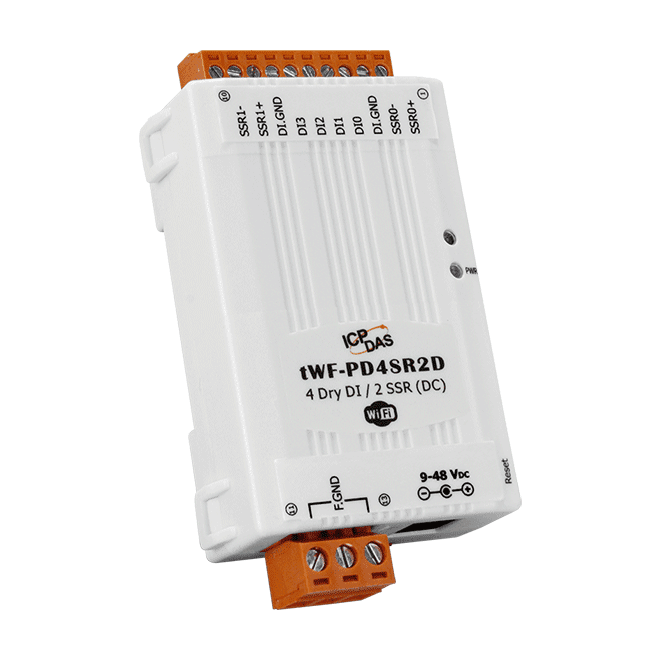

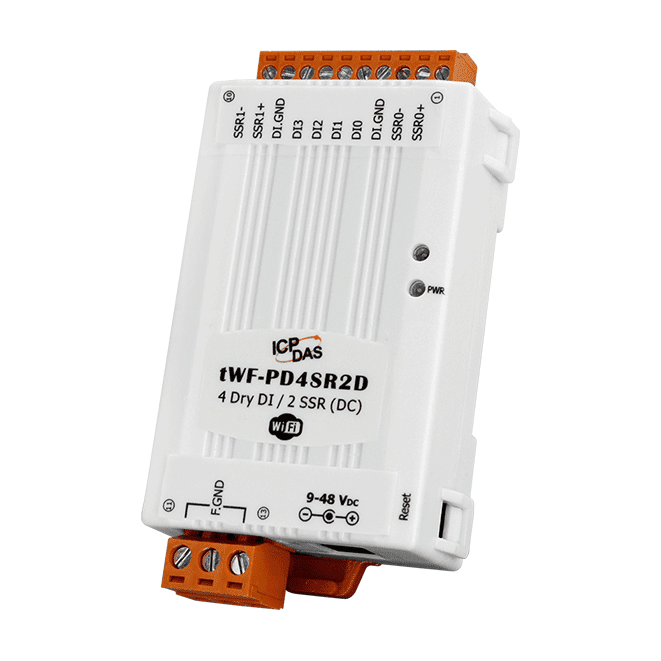

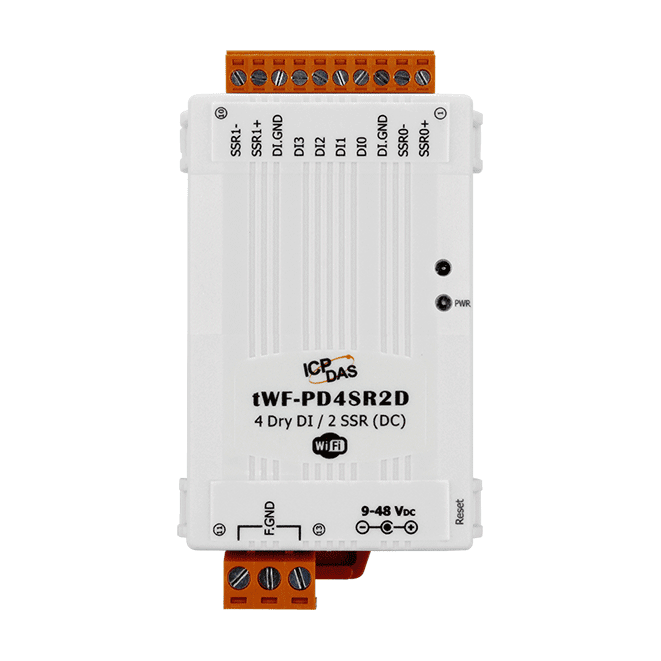

tWF-PD4SR2D Wi-Fi I/O Module, 4-ch Isolated DI and 2-ch DC SSR
Compact Wi-Fi remote I/O module with four isolated dry-contact digital inputs (32-bit counters) and two DC SSR outputs, supporting Modbus TCP for SCADA and HMI integration.
- Wi-Fi remote I/O module supporting IEEE 802.11 b/g/n in access point (limited AP) and station (STA) modes
- Four isolated dry-contact digital inputs with 32-bit counters, maximum frequency 20 Hz
- Two DC SSR outputs, DC 3 ~ 30 V/1 A, operate and release time 2 ms
- Modbus TCP support for SCADA and HMI integration
- Configuration via PC utility, Android APP or web browser (HTML)
- Photo-isolation 3750 VDC on digital inputs, EFT ±4 kV for power, ESD ±4 kV contact and ±8 kV air
1 528,97 kr per st.
| 1–9 st. | 1 528,97 kr | |
|---|---|---|
| 10–30 st. | 1 484,65 kr | −3 % |
| 31+ st. | 1 451,41 kr | −5 % |
Produktinformation "tWF-PD4SR2D Wi-Fi I/O Module, 4-ch Isolated DI and 2-ch DC SSR"
tWF-PD4SR2D CR is a compact Wi-Fi remote I/O module that brings wireless digital input and switching output to monitoring and control installations. It operates on IEEE 802.11 b/g/n and can run as an access point (limited AP) or as a station (STA), so it can be added to an existing wireless network or set up as its own link.
The module provides four photocoupler-isolated dry-contact digital inputs, each with a 32-bit counter, and two DC solid state relay outputs rated DC 3 ~ 30 V/1 A. Modbus TCP support allows straightforward integration with SCADA software and Modbus HMI applications. Configuration is possible through a PC utility, an Android app or a standard web browser. Network encryption options are Open, WEP and WPA2.
Engineers will find it suited to DC power switching and remote counting or status monitoring in building, factory and machine automation, as well as remote diagnosis, maintenance and test equipment. It is mounted on DIN-rail, accepts 9 ~ 48 VDC with reverse polarity protection, and is rated for -25 ~ +75 °C operation. The manufacturer lists this variant as Asia only.
Applications
- DC Power On/Off Control
- Building Automation
- Security Automation
- Machine Automation
- Factory Automation
- Remote Diagnosis
- Remote Maintenance
- Testing Equipment
| Product type: | Wi-Fi I/O Module |
|---|---|
| Interface: | Wi-Fi |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Relay outputs: | 2 (DC SSR) |
| Isolation: | 3750 VDC |
| Power input: | 9 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power 1 x Status |
| Wi-Fi | |
| Standard | IEEE 802.11 b/g/n |
| Mode | Access Point (Limited AP) & Station (STA) |
| Encryption | Open,WEP, WPA2 |
| Data Transmission Rate | Data Rate, 2.4 GHz |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 20 Hz Max. |
| Isolation | Photo-Isolation 3750 VDC |
| Relay Output | |
| Channels | 2 x DC Solid State Relay |
| Type | Solid State Relay (DC) |
| Contact Rating | DC 3 ~ 30 V/1 A |
| Operate Time | 2 ms |
| Release Time | 2 ms |
| Power on Value | Yes(OFF) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +9 VDC ~ +48 VDC |
| Consumption | 0.7W Max. |
| Mechanical | |
| Dimensions (mm) | 52 x 97 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
