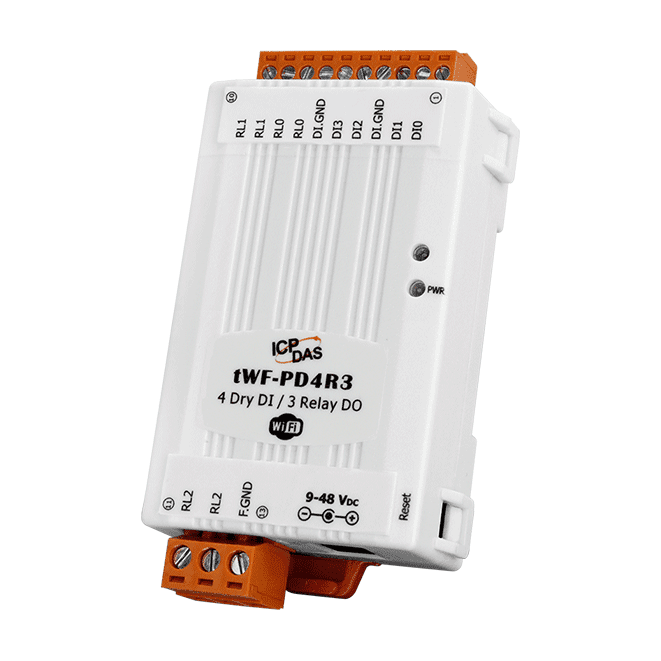

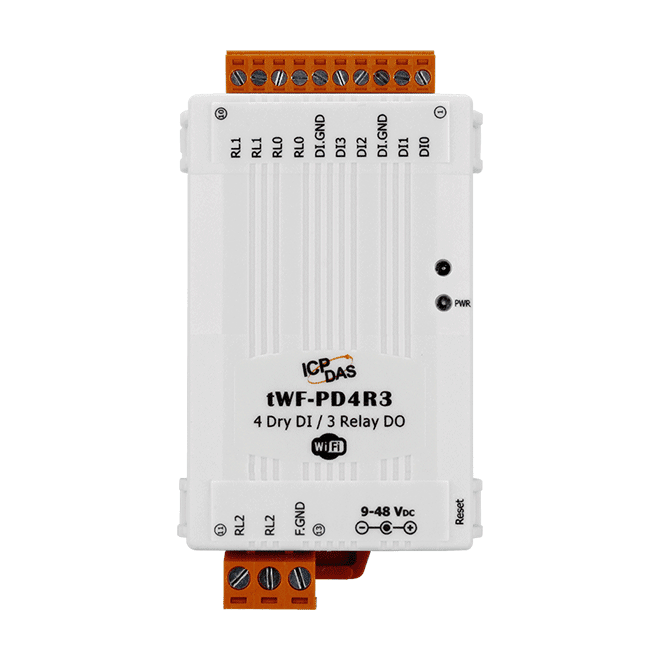

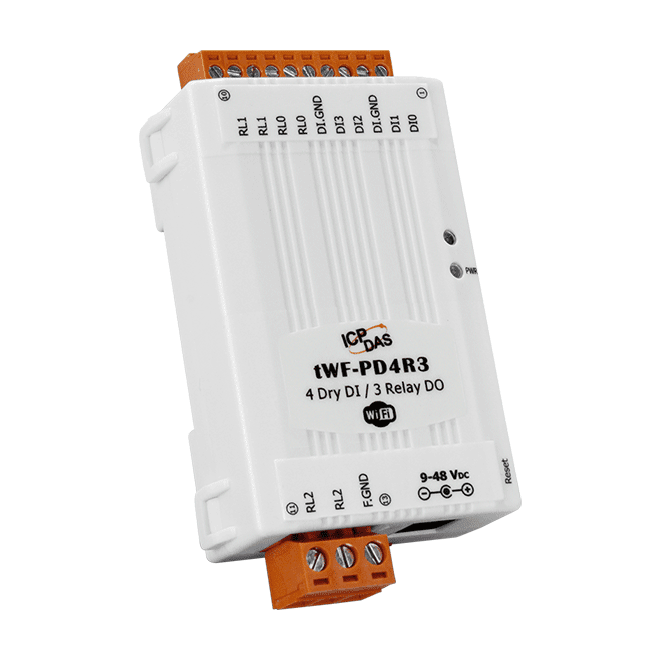

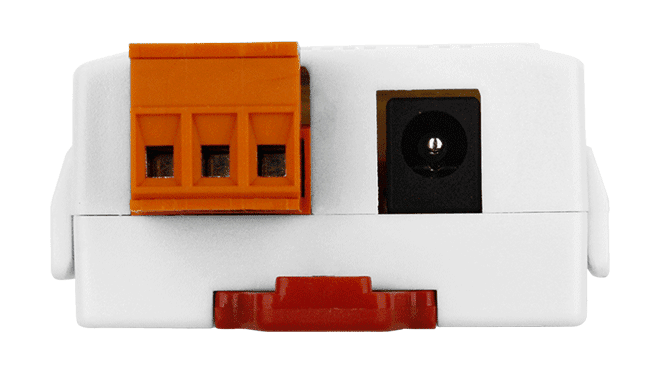

tWF-PD4R3 Wi-Fi I/O Module, 4-ch Isolated DI and 3-ch Power Relay
Compact Wi-Fi remote I/O module with four isolated dry-contact digital inputs, 32-bit counters and three Form A power relay outputs, with Modbus TCP support.
- Wi-Fi remote I/O with IEEE 802.11 b/g/n and both Access Point and Station modes
- Modbus TCP support for SCADA and HMI integration
- Four isolated dry-contact digital inputs, each with a 32-bit counter, 20 Hz max.
- Three Form A power relay outputs rated DC 30V/5A and AC 250V/5A
- Configuration via PC utility, Android APP or web browser (HTML)
- Wide 9 ~ 48 VDC input with reverse polarity protection
1 506,81 kr per st.
| 1–9 st. | 1 506,81 kr | |
|---|---|---|
| 10–30 st. | 1 462,49 kr | −3 % |
| 31+ st. | 1 440,34 kr | −4 % |
Produktinformation "tWF-PD4R3 Wi-Fi I/O Module, 4-ch Isolated DI and 3-ch Power Relay"
The tWF-PD4R3 CR adds wireless remote I/O to monitoring and control systems over IEEE 802.11 b/g/n. It can operate in Access Point or Station mode, so it can join an existing wireless network or serve as its own access point for local connections. Modbus TCP support allows direct integration with SCADA software and HMI Modbus applications.
Four photocoupler-isolated dry-contact inputs sense switch closures and count pulses, with every channel providing a 32-bit counter (up to 4294967295 counts) at up to 20 Hz. Three Form A power relay outputs, rated DC 30V/5A and AC 250V/5A, handle switching duties directly, with 5 ms operate and release times.
Setup can be carried out from a PC utility, an Android app or a standard web browser (HTML). The module accepts 9 ~ 48 VDC with reverse polarity protection and mounts on a DIN rail. It is rated for -25 ~ +75 °C operation and 10 ~ 95% RH non-condensing humidity.
Applications
- On/off control of all types
- Building automation
- Security automation
- Machine automation
- Factory automation
- Remote diagnosis
- Remote maintenance
- Testing equipment
| Product type: | Wireless I/O Module |
|---|---|
| Interface: | Wi-Fi |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Relay outputs: | 3 |
| Isolation: | Photo-isolation 3750 VDC |
| Power input: | 9 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power 1 x Status |
| Wi-Fi | |
| Standard | IEEE 802.11 b/g/n |
| Mode | Access Point (Limited AP) & Station (STA) |
| Encryption | Open,WEP, WPA2 |
| Data Transmission Rate | Data Rate, 2.4 GHz |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 20 Hz Max. |
| Isolation | Photo-Isolation 3750 VDC |
| Relay Output | |
| Channels | 3 x Form A |
| Type | Form A: Power Relay |
| Contact Rating | Form A: DC 30V/5A AC 250V/5A |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Power on Value | Yes(OFF) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +9 VDC ~ +48 VDC |
| Consumption | 0.7W Max. |
| Mechanical | |
| Dimensions (mm) | 52 x 97 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
