tGW-712 Modbus TCP to RTU/ASCII Gateway with PoE, 1-port RS-232
Compact Modbus TCP to RTU/ASCII gateway with PoE and one RS-232 port, linking Ethernet hosts to serial Modbus devices. Supplied with a DC-jack to 2-wire power cable, 0.3 m.
- Converts Modbus TCP/UDP master and slave traffic to Modbus RTU/ASCII master and slave on one RS-232 port
- Up to 32 TCP connections (masters) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced serial bus loading
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
- Static IP or DHCP network configuration with a built-in HTTP web server
- UDP responder for device discovery (UDP Search)
1 174,43 kr per st.
| 1–9 st. | 1 174,43 kr | |
|---|---|---|
| 10–30 st. | 1 130,11 kr | −4 % |
| 31+ st. | 1 107,95 kr | −6 % |
Produktinformation "tGW-712 Modbus TCP to RTU/ASCII Gateway with PoE, 1-port RS-232"

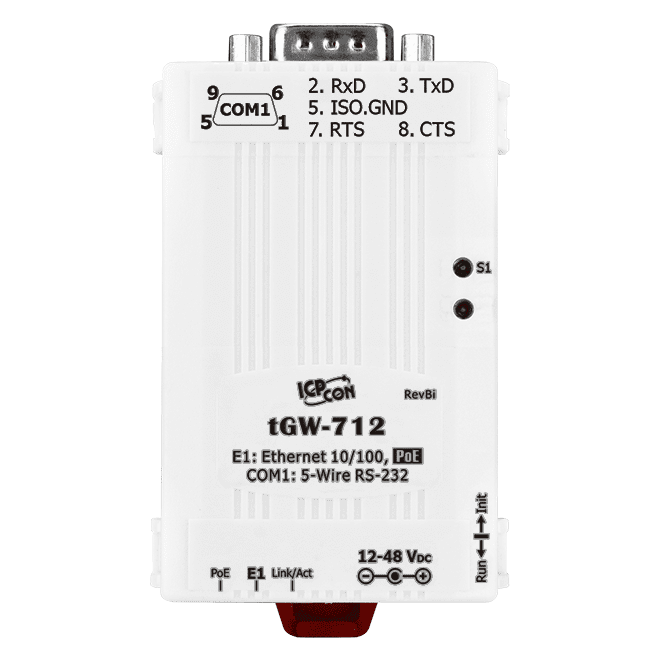

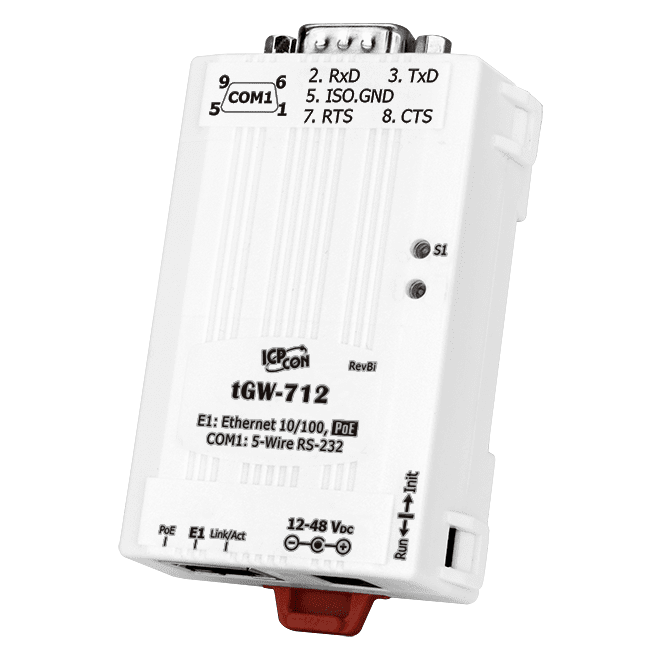

The tGW-712 CR bridges Modbus TCP hosts and serial Modbus RTU/ASCII devices, so a supervisory system on an Ethernet network can reach equipment that only has a serial interface. This variant provides one 5-wire RS-232 port on a male DB-9 connector, which keeps wiring simple for point-to-point connections.
Beyond simple protocol conversion, the gateway can be configured as a pair-connection, serial-bridge or serial-tunnel device, routing data over TCP/IP between two serial Modbus devices. A read-cache stores previous requests and responses in the module's memory buffer, returning repeated answers immediately to reduce traffic on the serial side and speed up TCP responses.
Power can be supplied over Ethernet using IEEE 802.3af Class 1 PoE from a compatible switch, or from a +12 ~ 48 VDC terminal block where no PoE is available. The unit is designed for low power consumption, rated at 0.07 A @ 24 VDC, and mounts on a DIN rail in a plastic housing.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-232 |
| Protocol: | Modbus RTU/ASCII, Modbus TCP |
| Ports: | 1 x RS-232, 1 x 10/100 Base-TX |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 52 mm x 90 mm x 27 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
