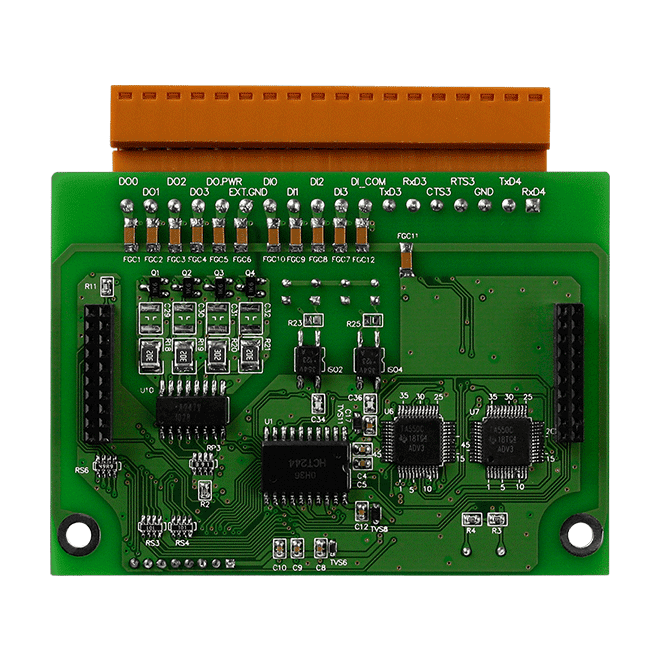

XW509 XW-board Expansion Board, 2-port RS-232 with 4-ch Isolated DI and DO
XW509 CR expansion board for uPAC-5000, LP-51xx and WP-51xx PACs, adding two non-isolated RS-232 ports, four isolated wet-contact digital inputs and four sink-type digital outputs.
- Two non-isolated 5-wire RS-232 ports
- Baud rates from 1,200 up to 115,200 bps
- 16C550 compatible UARTs with 16-byte hardware FIFO per port
- Four isolated digital inputs (wet contact) with sink or source wiring
- Four isolated sink-type (NPN) digital outputs, 10 ~ 40 VDC load voltage
- Digital output overload protection of 1.4 A
775,57 kr per st.
| 1–9 st. | 775,57 kr | |
|---|---|---|
| 10–30 st. | 753,41 kr | −3 % |
| 31+ st. | 731,25 kr | −6 % |
Produktinformation "XW509 XW-board Expansion Board, 2-port RS-232 with 4-ch Isolated DI and DO"
The XW509 CR is an XW-board expansion module that adds serial communication and discrete I/O to a supported PAC. It provides two non-isolated RS-232 ports with baud rates from 1,200 up to 115,200 bps, alongside four isolated digital inputs and four isolated digital outputs in a single board.
The serial ports are 16C550 compatible and each has an internal 16-byte hardware FIFO. Parity, data bit and stop bit options are configurable, with support for 5 to 8 data bits and 1, 1.5 or 2 stop bits.
The digital inputs accept sink or source wiring and are rated for wet contacts, with a 3750 Vrms isolation barrier. The four outputs are sink-type open collector channels, rated 10 ~ 40 VDC load voltage and 200 mA per channel at 25 °C. Each PAC accepts only one XW-board.
Applications
- Serial device communication with the host PAC
- Discrete sensing and switching on uPAC-5000, LP-51xx and WP-51xx controllers
- Machine and panel expansion where isolated I/O and additional COM ports are needed
| Product type: | Expansion board |
|---|---|
| Interface: | RS-232 |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 2 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 VDC ~ +50 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Isolation | 3750 Vrms |
| Input Impedance | 10 K Ohm |
| Overvoltage Protection | 60 VDC |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Isolation | 3750 Vrms |
| COM Ports | |
| Ports | RS-232 x 2 |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | 16 bytes |
| Power | |
| Consumption | 0.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
