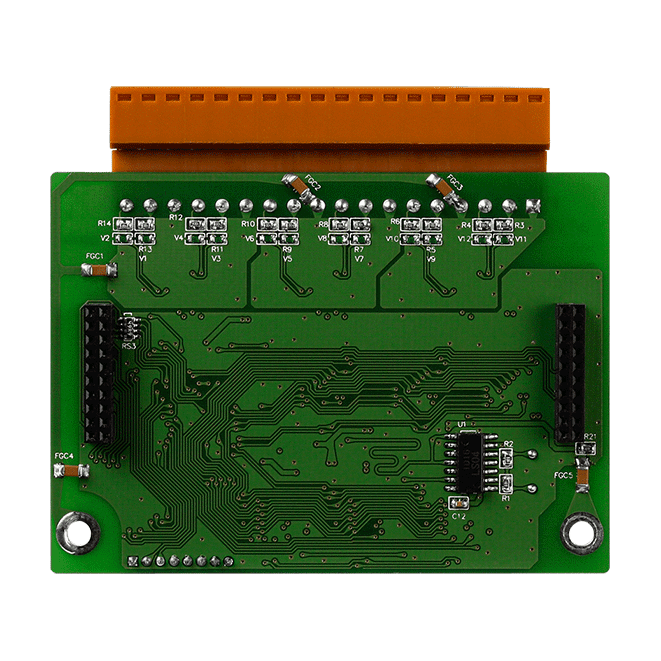

XW506 6-Port Non-Isolated RS-232 XW-Board Expansion Module
Six-port non-isolated RS-232 expansion board for uPAC-5000, LP-51xx and WP-51xx PACs, with a 16-byte FIFO per port and baud rates up to 115,200 bps.
- Six non-isolated 3-wire RS-232 ports on one XW-board
- Baud rates from 1,200 to 115,200 bps
- 16C550 compatible with a 16-byte hardware FIFO per port
- Parity: None, Even, Odd, Mark, Space; 5 to 8 data bits; 1, 1.5 or 2 stop bits
- Low power consumption, 0.2 W maximum
- Compact board, 66 x 82 x 13 mm (W x L x H)
1 373,86 kr per st.
| 1–9 st. | 1 373,86 kr | |
|---|---|---|
| 10–30 st. | 1 340,62 kr | −2 % |
| 31+ st. | 1 307,38 kr | −5 % |
Produktinformation "XW506 6-Port Non-Isolated RS-232 XW-Board Expansion Module"
The XW506 CR adds six serial RS-232 ports to a supported PAC through a single XW-board slot, making it a practical choice when a controller needs several point-to-point serial links. It is designed for the uPAC-5000, LP-51xx and WP-51xx series, and each PAC accepts only one XW-board.
Each port uses 3-wire RS-232 signalling without isolation and is 16C550 compatible. Baud rates run from 1,200 to 115,200 bps, and every port has its own 16-byte hardware FIFO to buffer incoming and outgoing data. Parity can be set to None, Even, Odd, Mark or Space, with 5 to 8 data bits and 1, 1.5 or 2 stop bits, so the board can be matched to most legacy and modern serial devices.
The board draws no more than 0.2 W and measures 66 x 82 x 13 mm (W x L x H). It is rated for operation from -25 to +75 °C with 10 to 95% RH non-condensing humidity, and carries CE, UKCA, FCC, RoHS and WEEE marking.
Applications
- Adding multiple RS-232 serial connections to uPAC-5000, LP-51xx or WP-51xx controllers
- Serial communication with instruments and devices that use RS-232 in industrial control panels
| Product type: | XW-board |
|---|---|
| Interface: | RS-232 |
| Ports: | 6 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| COM Ports | |
|---|---|
| Ports | RS-232 x 6 |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | 16 bytes |
| Power | |
| Consumption | 0.2 W Max. |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
