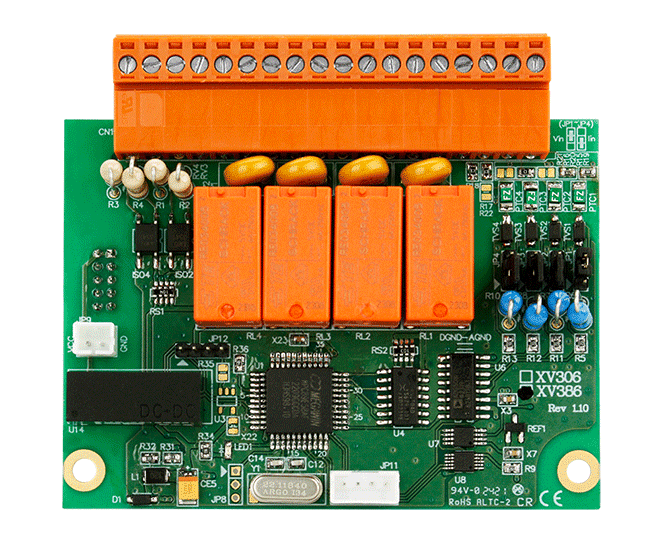

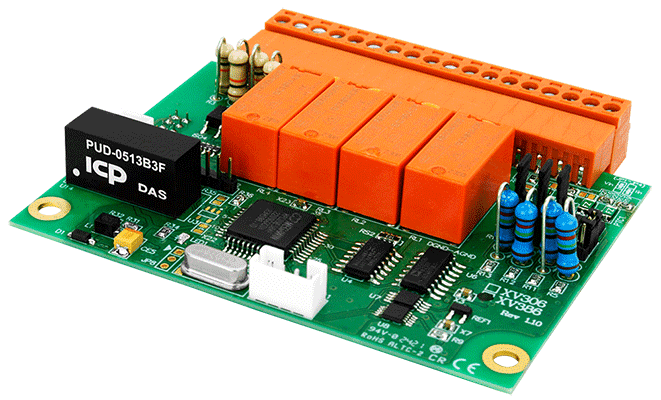

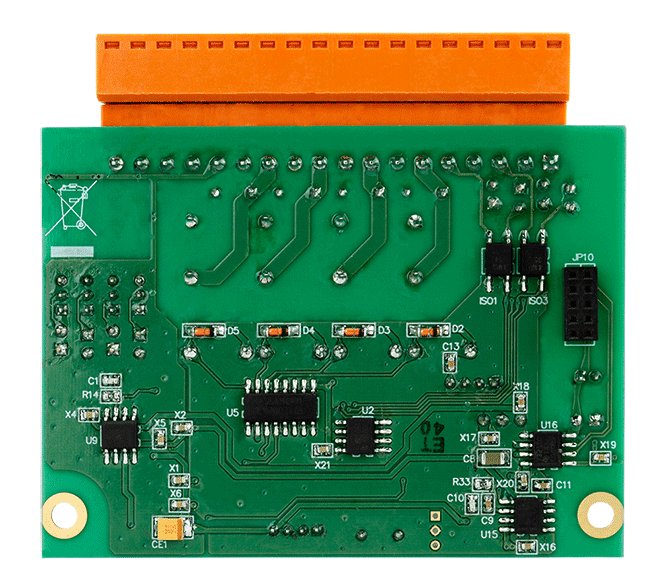

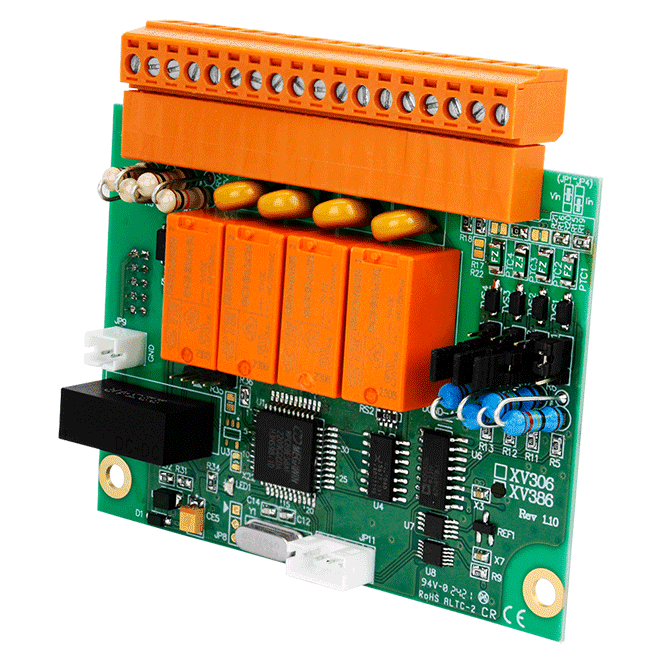

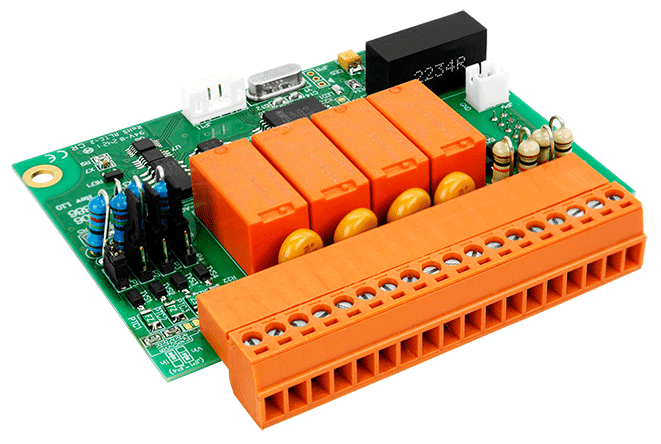

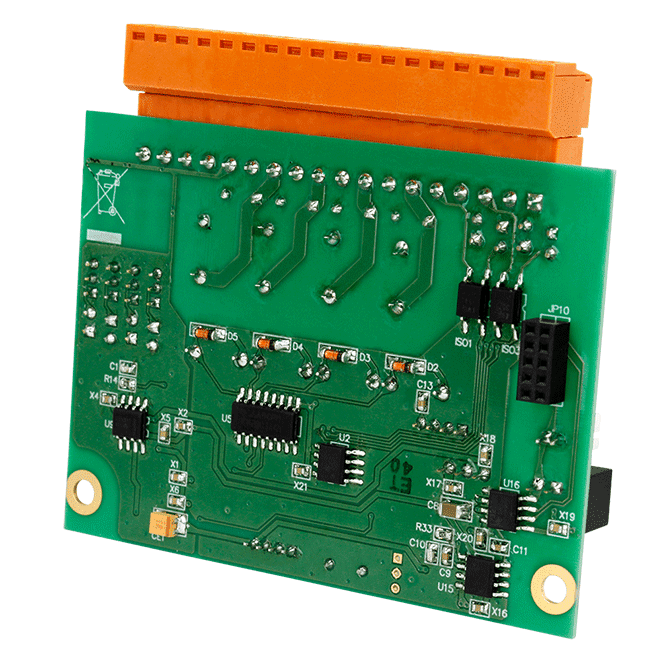

XV386 Expansion Board, 4-ch AI, 4-ch Wet DI and 4-ch 6A Power Relay
Multifunction XV-board expansion card with 4 analogue inputs, 4 wet-contact digital inputs and 4 Form A power relays, with Modbus/RTU over RS-232.
- Four analogue inputs, four wet-contact digital inputs and four Form A relays on one board
- Individual channel configuration, with jumper-selectable voltage or current input
- Channel 0 supports ±15 V and ±30 V; channels 1 to 3 offer multiple voltage and current ranges
- Digital inputs can operate as 32-bit counters, with open wire detection on current inputs
- Relay contacts rated 6 A at 35 VDC and 6 A at 240 VAC, with configurable power-on values
- 2000 VDC intra-module isolation and ±4 kV contact ESD protection
1 584,37 kr per st.
| 1–9 st. | 1 584,37 kr | |
|---|---|---|
| 10–30 st. | 1 540,05 kr | −3 % |
| 31+ st. | 1 506,81 kr | −5 % |
Produktinformation "XV386 Expansion Board, 4-ch AI, 4-ch Wet DI and 4-ch 6A Power Relay"
The XV386 CR is a compact expansion board that combines four analogue input channels, four wet-contact digital inputs and four Form A power relay outputs on one card. It suits engineers who need mixed analogue, digital and switching I/O on a single XV-board PAC I/O module without adding separate devices.
Each analogue channel can be configured individually. Channel 0 supports ±15 V and ±30 V, while channels 1 to 3 offer ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 to 20 mA and 4 to 20 mA, selected by jumper. The digital inputs are Sink/Source and can also operate as 32-bit counters, and the relays are rated 6 A at 35 VDC or 240 VAC.
For noisy industrial environments, the board provides 2000 VDC intra-module isolation and ±4 kV contact ESD protection on each terminal. It communicates over one RS-232 port at 115200 bps using Modbus/RTU, is powered at 5 VDC from the terminal block, and operates between -25 and +75 ℃.
Applications
- Industrial automation I/O expansion for XV-board PAC systems
- Mixed analogue sensor and digital signal acquisition
- Pulse and event counting with 32-bit counters
- Switching loads with 6 A power relay outputs
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus/RTU |
| Digital inputs: | 4 |
| Relay outputs: | 4 |
| Analog inputs: | 4 |
| Ports: | 1 |
| Isolation: | 2000 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Analog Input | |
| Channels | 4 |
| Type | ch0：±15 V, ±30 V ch1 ~ ch3：±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1 % Fast Mode: ±0.5 % |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 200 Hz |
| Input Impedance | 20 MΩ |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | ch1 ~ ch3：Yes |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4,294,967,285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
| Channels | 4 |
| Type | Power Relay (Form A) |
| Contact Material | Silver Cadmium Alloy |
| Contact Rating | 6 A @ 35 VDC 6 A @ 240 VAC |
| Operate Time | 5 ms (typical) |
| Release Time | 1 ms (typical) |
| Electrical Endurance | 1 x 10^5 ops. |
| Mechanical Endurance | 30 x 10^6 ops. |
| Power on Value | Yes |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 1.6 W Max.. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
