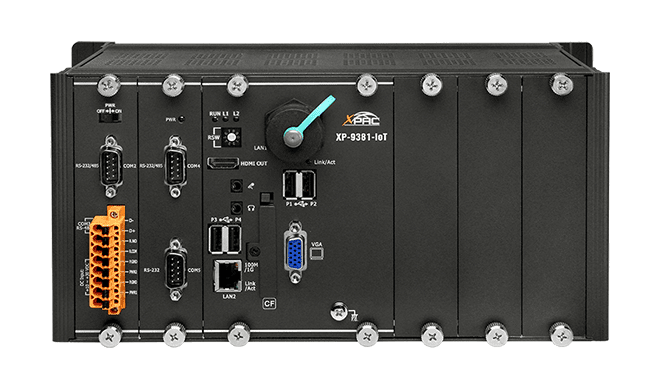

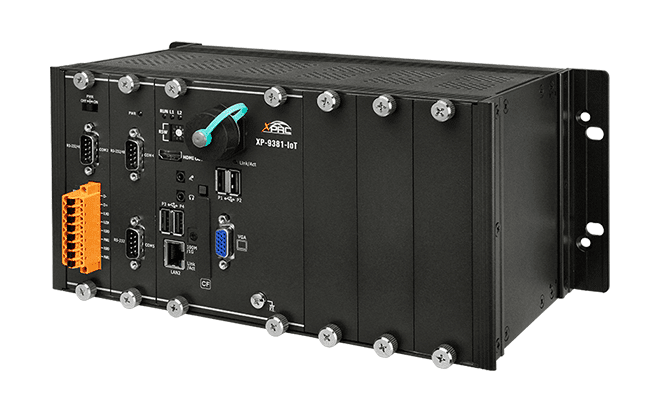

XP-9381-IoT Windows 10 IoT PAC, 3-slot Metal Standard with E3845 CPU
Windows 10 IoT Enterprise LTSC PAC with Intel E3845 CPU and three I/O expansion slots, combining control, data acquisition and HMI in one metal unit with VGA and HDMI output.
- Windows 10 IoT Enterprise LTSC (64-bit) operating system
- Intel Atom E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and 64 GB SSD
- Three slots for I-9K and I-97K series local I/O expansion modules
- Remote I/O expansion via Ethernet or RS-485 I/O modules
- VGA and HDMI display output with 2x 10/100/1000M Ethernet ports
- 1 x RS-232, 1 x RS-485 and 2 x RS-232/RS-485 ports, each 3000 VDC isolated
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "XP-9381-IoT Windows 10 IoT PAC, 3-slot Metal Standard with E3845 CPU"
The XP-9381-IoT is a Windows-based programmable automation controller that brings computing, I/O and operator interface into a single unit. It suits projects where HMI, data acquisition and control need to sit in one individual PAC rather than across separate devices.
The unit runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 quad-core CPU at 1.91 GHz, with 4 GB DDR3 SDRAM and a 64 GB SSD. Local I/O is provided by three expansion slots for I-9K and I-97K series modules, and remote I/O can be added through Ethernet or RS-485 I/O modules.
Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display output, four USB 2.0 ports, and a mix of isolated RS-232 and RS-485 serial ports. The XP-9381-IoT CR is supplied with CE, UKCA, RoHS and WEEE certification listed, and its +10 ~ 30 VDC input can be wired redundantly.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Local and remote I/O expansion for machine and process control
- Windows-based supervisory and data handling tasks
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB 2.0, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 64GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 18.7 W |
| Mechanical | |
| Dimensions (mm) | 300 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
