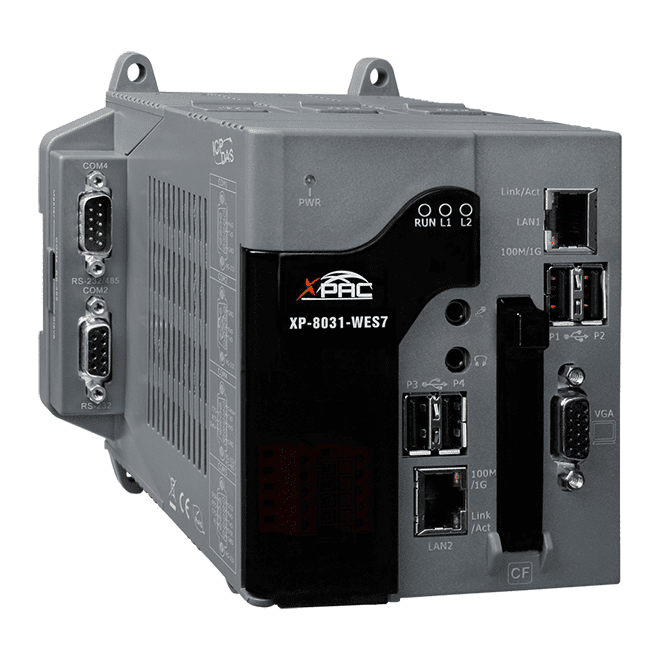

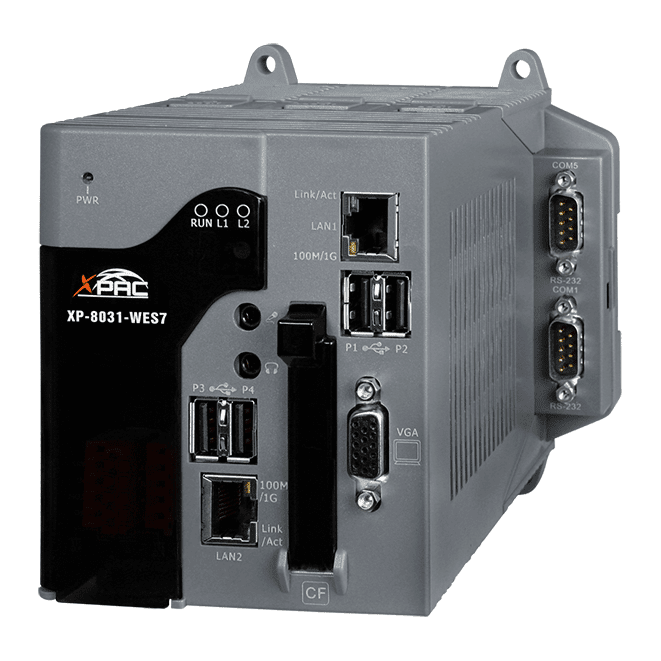

XP-8031-WES7 Windows Embedded Standard 7 PAC, x86 Dual-Core CPU, VGA
Windows Embedded Standard 7 PAC combining control, I/O and operator display in one unit, with a 1 GHz dual-core x86 CPU, 2 GB DDR3 and VGA output.
- Windows Embedded Standard 7 SP1 x86 (32-bit) operating system
- 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash
- VGA output supporting resolutions up to 1920 x 1080
- Dual 10/100/1000 Mbit/s Ethernet ports
- Three RS-232 ports, one RS-485 port (3000 VDC isolated) and one RS-232/RS-485 port
- Redundant power input with one power relay (1 A @ 24 VDC) for alarm
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "XP-8031-WES7 Windows Embedded Standard 7 PAC, x86 Dual-Core CPU, VGA"
The XP-8031-WES7 is a Windows-based PAC that brings computing, I/O and operator interface into a single unit. It suits projects where HMI, data acquisition and control must sit in one controller rather than across separate devices.
At its core is a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash, running Windows Embedded Standard 7 SP1 (32-bit). Because the operating system uses the Win32 API of Windows 7, desktop applications built on that interface can be ported with relatively little change. The unit offers dual Gigabit Ethernet, VGA output, four USB 2.0 ports and a mix of RS-232 and RS-485 serial ports.
For wider I/O coverage, remote expansion is available through ICP DAS Ethernet I/O modules and RS-485 I/O modules. The unit also features a redundant power input with a relay for power-fail alarm signalling, and it is rated for DIN-rail or wall mounting over an operating range of -25 ~ +75 °C.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Desktop-style Windows applications on industrial hardware
- Remote I/O expansion with Ethernet and RS-485 I/O modules
| Product type: | Windows PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 USB, 5 COM |
| Isolation: | 3000 VDC (RS-485), 1 kV (power) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Windows Embedded Standard 7 SP1 x86 (32-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2GB DDR3 SDRAM, 32 GB Flash |
| Storage | 1x CF card slot |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 1920 x 1080, 1024 x 768, 800 x 600 , 640 x 480 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Capacity | 20 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 12.0 (0.5 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 137 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
