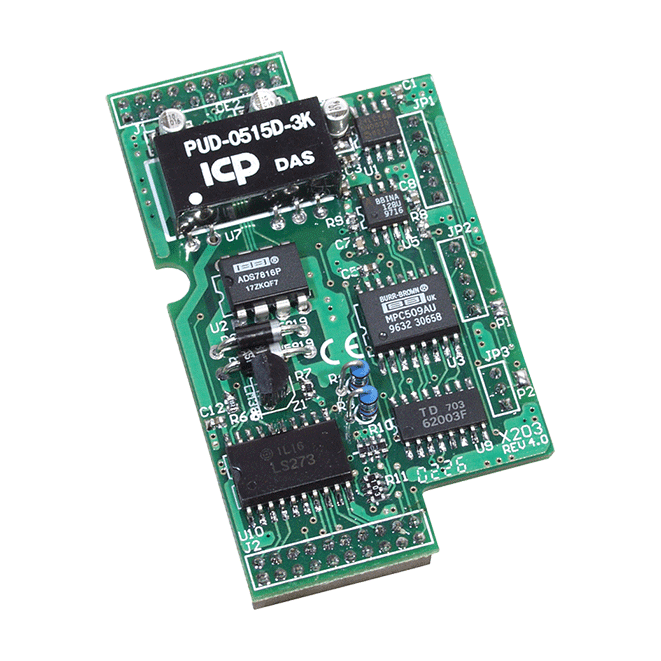

X203 X-Board for µPAC, 2-ch 0 ~ 20 mA Analogue Input, 2-ch DI and 6-ch DO
Non-isolated X-board for supported µPAC controllers, adding two 12-bit 0 ~ 20 mA analogue inputs, two wet-contact digital inputs and six NPN open-collector outputs.
- 2-channel 12-bit differential analogue input, 0 ~ 20 mA
- Analogue sampling rate of 1 KHz Max., 125 Ohm input impedance
- 2-channel wet-contact digital input, sink type, ON level +1V Max., OFF level +3.5 V ~ +30 VDC
- 6-channel NPN open-collector digital output, load voltage ≤ +30 VDC, 100 mA per channel
- Non-isolated analogue input, digital input and digital output channels
- Plugs into supported µPAC controllers; one X-board per µPAC
720,17 kr per st.
| 1–9 st. | 720,17 kr | |
|---|---|---|
| 10–30 st. | 698,01 kr | −3 % |
| 31+ st. | 686,93 kr | −5 % |
Produktinformation "X203 X-Board for µPAC, 2-ch 0 ~ 20 mA Analogue Input, 2-ch DI and 6-ch DO"
The X203 is an X-board that extends supported µPAC controllers with analogue, digital input and digital output channels on a single board. It combines two 12-bit differential current inputs (0 ~ 20 mA), two digital inputs and six digital outputs, all without isolation.
The analogue inputs sample at up to 1 KHz Max. and have a 125 Ohm input impedance, making the board suitable for reading current-loop signals. The digital inputs are wet-contact, sink-type inputs, and the six digital outputs are NPN open-collector drivers rated for up to +30 VDC and 100 mA per channel.
Each µPAC accepts only one X-board. The X203 is intended for the I-7188XB, I-7188XG, I-7188EX, I-7188EG and uPAC-7186EX series, and is supplied with CE, UKCA, FCC, RoHS and WEEE certifications. Operating temperature is -25 ~ +75 °C.
Applications
- Reading 0 ~ 20 mA current-loop sensor signals on a µPAC controller
- Monitoring switch and dry-contact status with wet-contact digital inputs
- Switching NPN-type loads through open-collector digital outputs
| Product type: | X-board |
|---|---|
| Digital inputs: | 2 |
| Digital outputs: | 6 |
| Analog inputs: | 2 |
| Isolation: | None |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Analog Input | |
|---|---|
| Channels | 2 |
| Resolution | 12-bit |
| Sampling Rate | 1 KHz Max. |
| Input Impedance | 125 Ohm |
| Common Voltage Protection | ±15 VDC |
| Digital Input | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +1V Max. |
| OFF Voltage Level | +3.5 V ~ +30 VDC |
| Isolation | None |
| Digital Output | |
| Channels | 6 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | NPN |
| Load Voltage | ≤ +30 VDC |
| Load Current | 100 mA |
| Isolation | None |
| Mechanical | |
| Dimensions (mm) | 38 mm x 64 mm |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
