WP-9828-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 8-Slot
8-slot Win-GRAF PAC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0, running IEC 61131-3 soft PLC logic and supporting I-9K and I-97K expansion modules.
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM, 256 MB flash and 4 GB SD card supplied (up to 32 GB)
- Windows CE 7.0 with embedded Win-GRAF SoftLogic programming to IEC 61131-3
- Eight expansion slots for high profile I-9K and I-97K I/O modules
- Modbus RTU/TCP master and slave, Modbus ASCII master, OPC UA server and DCON protocols
- Two RJ-45 10/100/1000 Base-TX Ethernet ports and two USB 2.0 ports
- One RS-232, one RS-485 and two RS-232/485 ports, the latter 3000 VDC isolated
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-9828-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 8-Slot"

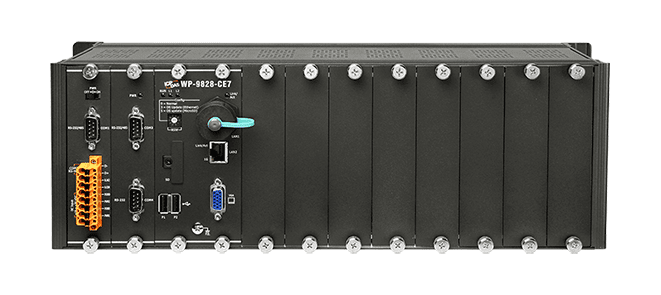

The WP-9828-CE7 is an 8-slot programmable automation controller that combines embedded Win-GRAF SoftLogic (IEC 61131-3) with a Windows CE 7.0 operating environment. It suits engineers who want logic control, HMI and data handling on one controller, with a VGA output for a local display and a wide choice of serial, Ethernet and USB ports.
The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB of flash, and it provides eight expansion slots for high profile I-9K and I-97K I/O modules. Logic can be developed in Win-GRAF, while HMI and data management applications can be written in VB .NET or C# using MS Visual Studio 2008 and exchange data with the Win-GRAF programs.
Communication covers Modbus RTU and TCP in master and slave roles, Modbus ASCII master, OPC UA server and DCON. Redundant power inputs of +10 ~ 30 VDC with 1 kV isolation support resilient installations. The metal housing mounts on DIN-rail or by wall mounting, and the unit operates from -25 ~ +75°C.
Applications
- Logic control applications developed in Win-GRAF IEC 61131-3 software
- HMI and data management applications written in VB .NET or C#
- Local operator display through the VGA output
- Data logging and file access with the embedded SQL server and FTP server
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus RTU/TCP |
| Ports: | 4 serial, 2 Ethernet, 2 USB |
| Isolation: | 1 kV (power), 3000 VDC (COM) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB SD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | WP-9228-CE7: 2 WP-9428-CE7: 4 WP-9828-CE7: 8 *Note: For High Profile I-9K and I-97K Modules Only |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-9228-CE7: 16.6 W (0.69 A @ 24 VDC) WP-9428-CE7: 16.8 W (0.7 A @ 24 VDC) WP-9828-CE7: 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | WP-9228-CE7: 239 x 133 x 164 (W x L x H) WP-9428-CE7: 300 x 133 x 164 (W x L x H) WP-9828-CE7: 422 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
