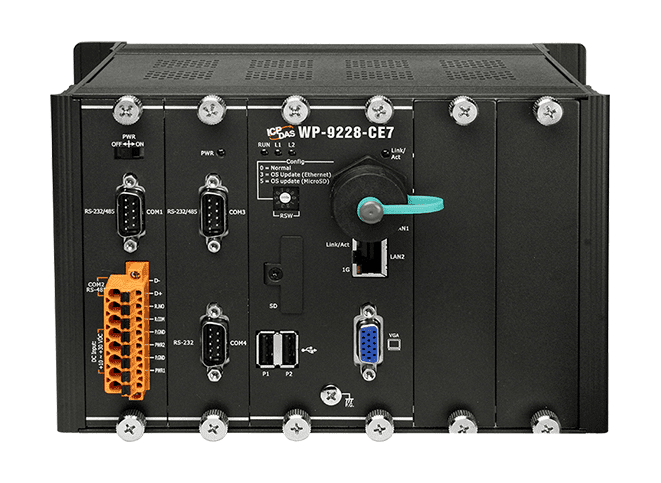

WP-9228-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 2-Slot
2-slot Win-GRAF PAC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0, offering IEC 61131-3 logic, Modbus TCP/RTU and expansion for I-9K and I-97K I/O modules.
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash, expandable with a 4 GB SD card (up to 32 GB)
- Embedded Win-GRAF SoftLogic programmable to IEC 61131-3
- Windows CE 7.0 operating system with VGA output at 800 x 600 or 1024 x 768
- Modbus RTU/TCP master and slave, Modbus ASCII master and OPC UA server
- Two expansion slots for high-profile I-9K and I-97K I/O modules
- Two 10/100/1000 Base-TX Ethernet ports, four COM ports and two USB 2.0 ports
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-9228-CE7 Win-GRAF PAC with Cortex-A8 CPU and WinCE 7.0, 2-Slot"
The WP-9228-CE7 CR is a Win-GRAF based programmable automation controller that combines soft PLC logic with a Windows CE 7.0 runtime. Its 1.0 GHz Cortex-A8 processor, 512 MB DDR3 SDRAM and 256 MB Flash suit engineers who want deterministic control alongside a PC-style display and development environment.
Logic is built with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. HMI and data management software can be written in MS Visual Studio 2008 (VB .NET or C#) and exchange data with the Win-GRAF application. The VGA output and eLogger HMI function support local operator screens.
This 2-slot version takes two high-performance I-9K (parallel) or I-97K (serial) I/O modules, with the metal casing offering a compact footprint of 239 x 133 x 164 mm (W x L x H). Choose the 4-slot WP-9428-CE7 CR or 8-slot WP-9828-CE7 CR where more expansion is needed.
Applications
- Logic control applications using IEC 61131-3 programming
- HMI and data management applications
- Expandable remote and local I/O control with I-9K and I-97K modules
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Protocol: | Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 2 x RJ-45, 4 x COM, 2 x USB |
| Isolation: | 1 kV (power), 3000 VDC (2 x COM) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB SD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | WP-9228-CE7: 2 WP-9428-CE7: 4 WP-9828-CE7: 8 *Note: For High Profile I-9K and I-97K Modules Only |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485, 2 x RS-232/485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-9228-CE7: 16.6 W (0.69 A @ 24 VDC) WP-9428-CE7: 16.8 W (0.7 A @ 24 VDC) WP-9828-CE7: 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | WP-9228-CE7: 239 x 133 x 164 (W x L x H) WP-9428-CE7: 300 x 133 x 164 (W x L x H) WP-9828-CE7: 422 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
