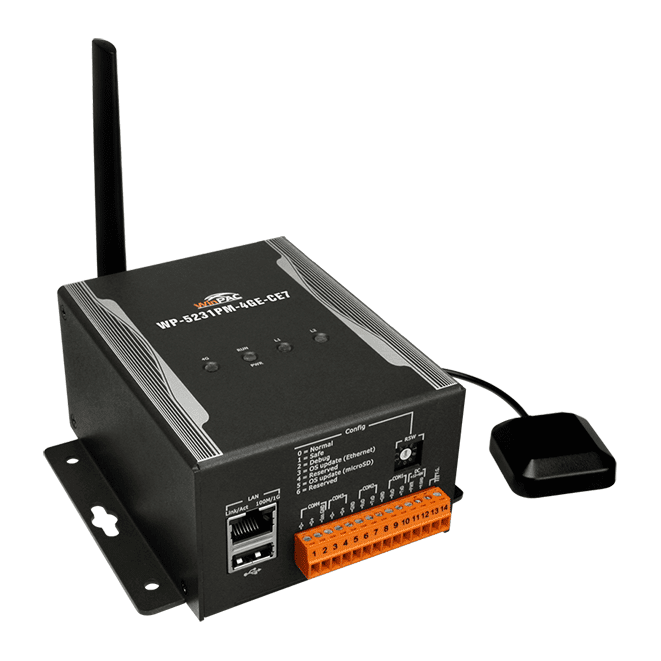

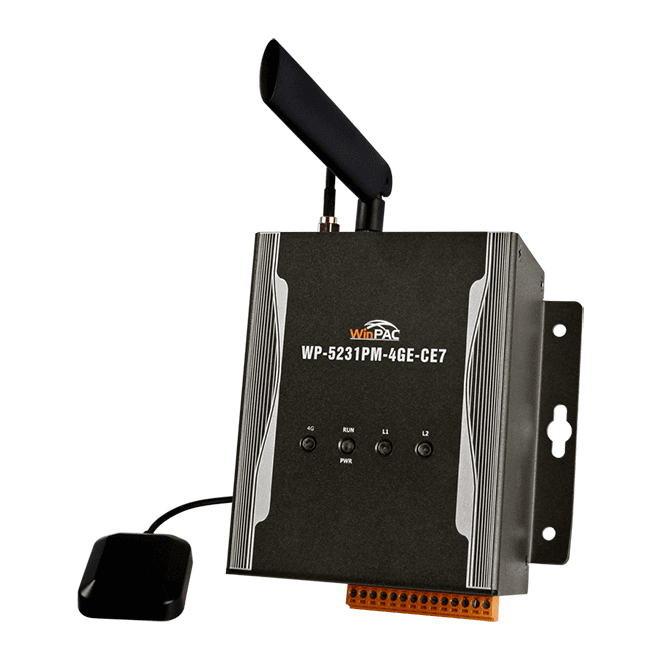

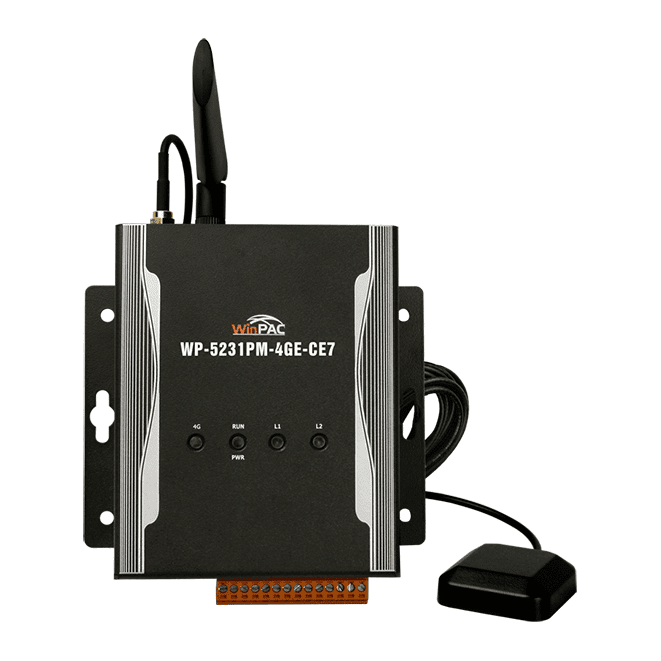

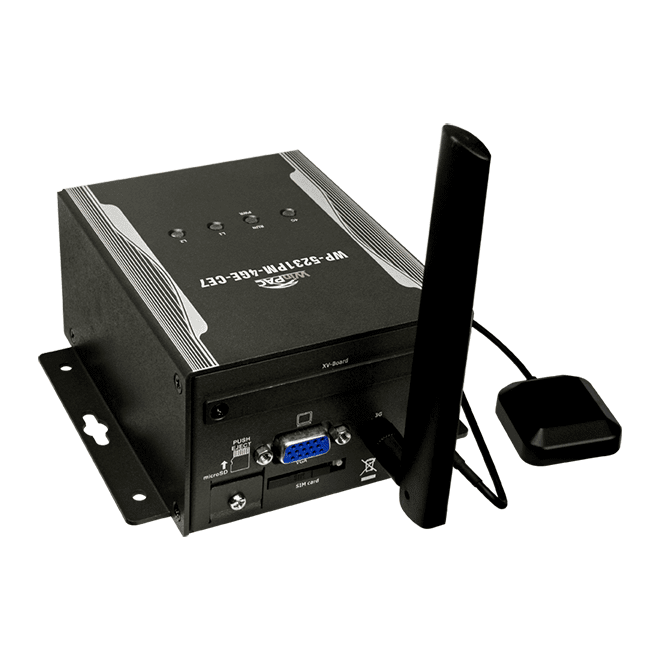

WP-5231PM-4GE-CE7 4G PAC with GPS, Cortex-A8 CPU and WinCE 7.0
Cortex-A8 1 GHz Windows CE 7.0 PAC with a 4G cellular modem, GNSS receiver and XV-board I/O expansion bus for remote data transfer and control.
- Cortex-A8 1.0 GHz CPU running Windows CE 7.0 Professional
- 4G LTE, WCDMA and GSM cellular modem with data rates up to 100 Mbps download on LTE
- 32-channel GPS/GNSS receiver with NMEA 0183 output
- I/O expansion bus with optional XV-board high-protection I/O
- 1 x 10/100/1000BASE-T Ethernet port, serial RS-232/RS-485 ports and 1 x USB 2.0 host
- 512 MB SDRAM, 256 MB Flash, 64 KB FRAM and optional microSD up to 32 GB
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-5231PM-4GE-CE7 4G PAC with GPS, Cortex-A8 CPU and WinCE 7.0"
WP-5231PM-4GE-CE7 CR is a 4G programmable automation controller built around a 1 GHz Cortex-A8 processor and Windows CE 7.0. It combines an integrated cellular modem and GPS/GNSS receiver with serial, Ethernet and USB connectivity, so it can move data from remote instruments, meters and control systems over public mobile networks.
Memory and storage cover application programs, image files and data logging, with 512 MB SDRAM, 256 MB Flash, 64 KB FRAM for data retention and optional microSD storage of up to 32 GB. A built-in real-time clock, dual watchdog timer and 64-bit hardware serial number support reliable unattended operation and software protection.
- Cellular modem covering WCDMA 850/900/2100 MHz, FDD LTE B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz
- Optional XV-board I/O expansion via the I/O expansion bus interface
- Metal casing with DIN-rail or wall mounting and an operating range of -25 ~ +75 °C
Applications
- Remote data collection from instruments, meters and control systems over cellular networks
- SMS and GPRS connection applications
- 3G and 4G network data transfer for live or packet data
- Remote monitoring and control with a Windows CE-based PAC
| Product type: | PAC |
|---|---|
| Interface: | 10/100/1000Base-T, RS-232/RS-485 |
| Protocol: | NMEA 0183 |
| Ports: | 1 x RJ-45 Ethernet, 1 x USB 2.0 |
| Isolation: | 2500 VDC (RS-485 port) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System/Power, 2 x Programmable, 1 x 4G Active |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps, Upload: Max 5.76 Mbps; TD-SCDMA Download: Max. 4.2 Mbps, Upload: Max 2.2 Mbps; CDMA2000 EVDO Download: Max. 14.7 Mbps, Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max: 100 Mbps, Upload: Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| GSM | |
| Data Transmission Rate | Downlink transfer: Max. 85.6 kbps, Uplink transfer: Max 42.8k bps |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10, GPRS station class B |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | 365 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
