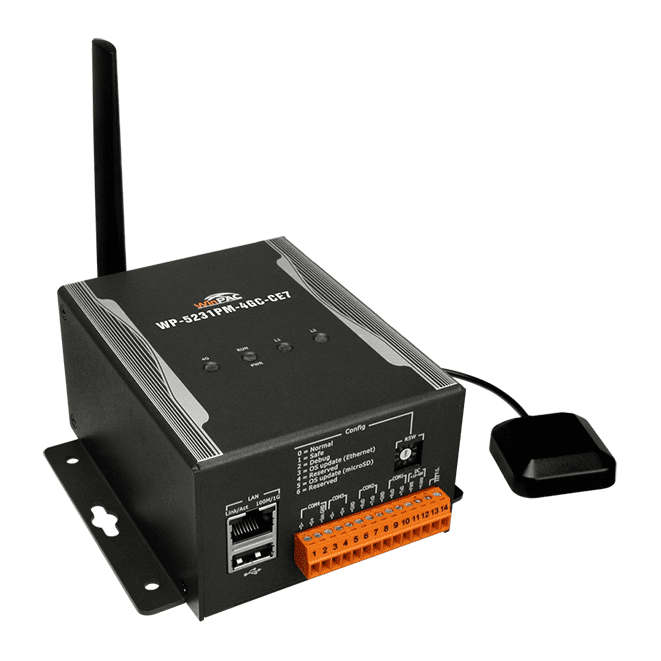

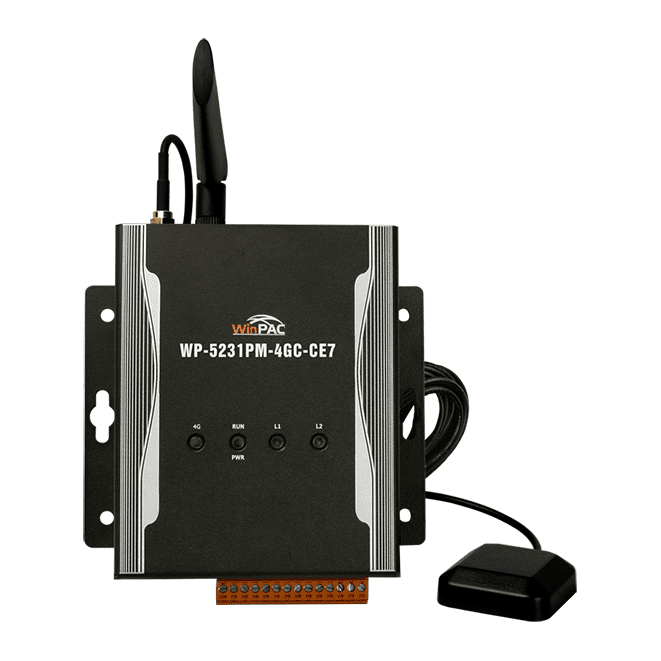

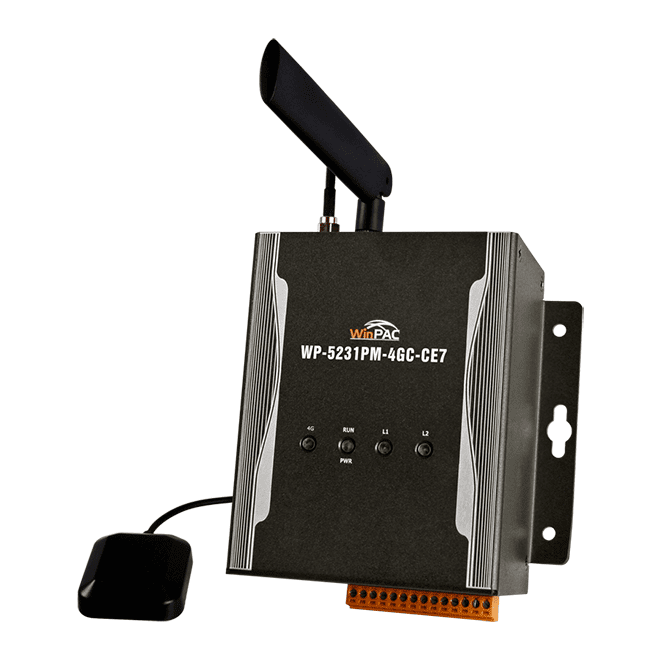

WP-5231PM-4GC-CE7 4G WinCE PAC with GPS, Cortex-A8 and 4G Modem
Cortex-A8 1 GHz WinCE 7.0 programmable automation controller with an integrated 4G modem and GPS/GNSS receiver, for remote data transfer from metal-cased, DIN-rail or wall-mounted installations.
- 1 GHz Cortex-A8 CPU running Windows CE 7.0 Professional
- Integrated 4G module with GPS/GNSS (32 channels, NMEA 0183) and GPRS connectivity
- Built-in TCP/IP stack for serial devices without special drivers
- 512 MB SDRAM, 256 MB Flash, 64 KB FRAM and optional microSD up to 32 GB
- 1 x 10/100/1000BASE-T Ethernet, 1 x USB 2.0 host and RS-232/RS-485 serial ports
- I/O expansion bus for the XV-board, with 2500 VDC isolated RS-485 port
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-5231PM-4GC-CE7 4G WinCE PAC with GPS, Cortex-A8 and 4G Modem"
WP-5231PM-4GC-CE7 CR is a 4G programmable automation controller built around a 1 GHz Cortex-A8 CPU and Windows CE 7.0 Professional. It combines control, cellular connectivity and GPS/GNSS positioning in a metal casing, with an expansion bus for the optional XV-board I/O module.
The integrated 4G module supports the frequency bands listed for the China (Asia only) variant, including FDD LTE B1/B3/B8, TDD LTE B38/B39/B40/B41, WCDMA 900/2100, TD-SCDMA 1900/2100, CDMA2000 (BC0) 800 MHz and GSM 850/900/1800/1900 MHz. A built-in TCP/IP stack allows simple controllers with serial ports to reach the modem without custom driver development.
Memory comprises 512 MB SDRAM, 256 MB Flash, 64 KB FRAM for data retention and optional microSD storage of up to 32 GB. The unit also provides dual watchdog timers, a real-time clock and a 64-bit hardware serial number for software protection.
Applications
- Remote data acquisition from instruments, meters, computers and control systems
- SMS and GPRS based remote monitoring and control
- 4G or 3G connected systems requiring live or packet data transfer
- Mobile or remote installations requiring GPS/GNSS positioning
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0, VGA |
| Protocol: | NMEA 0183 |
| Isolation: | 2500 VDC (RS-485 port) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System/Power, 2 x Programmable, 1 x 4G Active |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps, Upload: Max 5.76 Mbps; TD-SCDMA Download: Max. 4.2 Mbps, Upload: Max 2.2 Mbps; CDMA2000 EVDO Download: Max. 14.7 Mbps, Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 900/2100, TD-SCDMA 1900/2100, CDMA2000 (BC0) 800 MHz |
| 4G System | |
| Data Transmission Rate | Download Max: 100 Mbps, Upload: Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8, TDD LTE: B38/B39/B40/B41 MHz |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| GSM | |
| Data Transmission Rate | Downlink transfer: Max. 85.6 kbps, Uplink transfer: Max 42.8k bps |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10, GPRS station class B |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | 370 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
