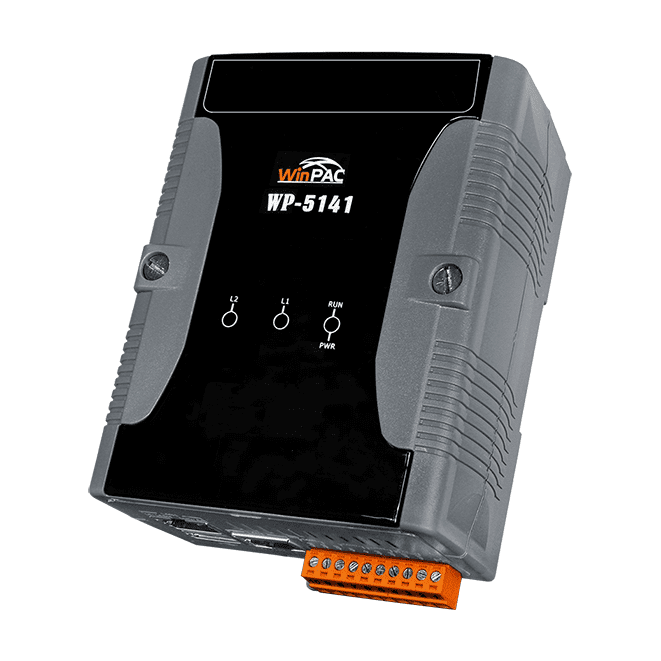

WP-5141-SC WinCE 5.0 PAC, PXA270 520 MHz, Simplified Chinese Version
Windows CE 5.0 programmable automation controller with a 520 MHz PXA270 CPU, dual Ethernet, serial ports and one I/O expansion bus slot. Simplified Chinese version.
- PXA270 CPU at 520 MHz running Windows CE 5.0
- Hard real-time capability for deterministic control
- 128 MB SDRAM, 64 MB Flash, 16 KB EEPROM and optional microSD up to 32 GB
- 2 x 10/100 Ethernet ports, four serial ports (RS-232/485) and USB
- One I/O expansion bus slot supporting a single XW-board
- Built-in VGA, real-time clock, 64-bit hardware serial number and dual watchdog timer
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-5141-SC WinCE 5.0 PAC, PXA270 520 MHz, Simplified Chinese Version"
The WP-5141-SC is a programmable automation controller built around a 520 MHz PXA270 processor running Windows CE 5.0. It suits engineers who want PC-style control software, such as Visual Basic .NET, Visual C# or SoftPLC, alongside PLC-style control on a single compact unit.
Key hardware includes 128 MB SDRAM, 64 MB Flash and 16 KB EEPROM for data retention, with optional microSD storage up to 32 GB. Connectivity covers two 10/100 Ethernet ports, four serial ports (RS-232/485) and USB, plus a built-in VGA port. One I/O expansion bus slot accepts a single XW-board for added digital, analogue, timer/counter or UART functions.
- Supports the Simplified Chinese version of the software environment
- Mounts on DIN-rail with a plastic casing and a +10 ~ 30 VDC input range
- Rated CE, FCC, RoHS and WEEE
The -SC suffix identifies the Simplified Chinese version. The English (-EN) and Traditional Chinese (-TC) variants are listed separately.
Applications
- PC-based control and SCADA systems
- Machine control combining PLC and Windows software
- Industrial automation with local I/O expansion
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB, VGA |
| Ports: | 2 x Ethernet |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
