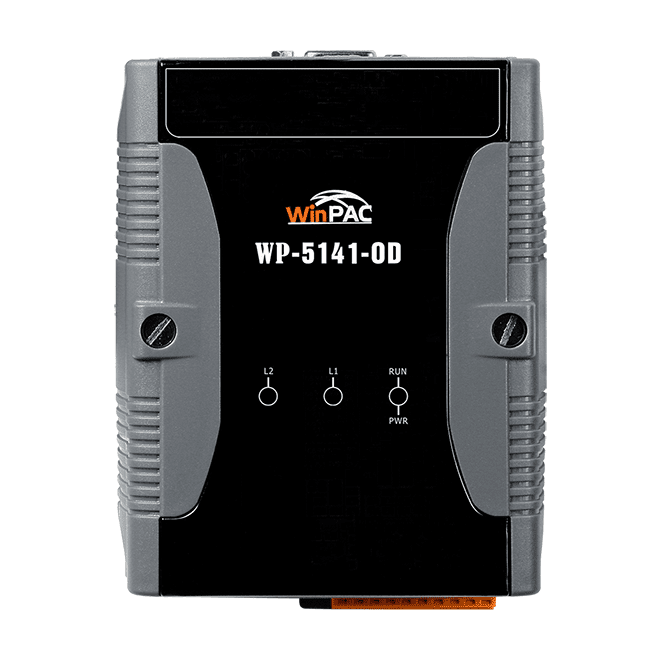

WP-5141-OD-TC WinCE PAC with PXA270 520 MHz CPU and XW-board I/O Expansion
Windows CE 5.0 programmable automation controller with a 520 MHz PXA270 CPU, two Ethernet ports, RS-232/485 serial ports and an I/O expansion bus for DIN-rail installations.
- PXA270 520 MHz CPU running Windows CE 5.0 with hard real-time capability
- 128 MB SDRAM, 64 MB Flash and 16 KB EEPROM, with optional microSD storage up to 32 GB
- 2 x 10/100 Ethernet ports with auto MDI/MDI-X
- RS-232 and RS-485 serial ports, with the RS-485 port 2500 VDC isolated
- I/O expansion bus supporting one XW-board
- Built-in VGA port, audio microphone-in and earphone-out, and real-time clock
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WP-5141-OD-TC WinCE PAC with PXA270 520 MHz CPU and XW-board I/O Expansion"
The WP-5141-OD-TC is a WinCE PAC built on a 520 MHz PXA270 processor running Windows CE 5.0. It suits engineers who want deterministic, hard real-time control alongside the flexibility of PC-based software, combining the strengths of a traditional PLC with a Windows-capable platform.
Connectivity includes two 10/100 Base-TX Ethernet ports, RS-232 and RS-485 serial ports (the RS-485 port is 2500 VDC isolated), a USB host and client port, and a built-in VGA output. An I/O expansion bus accepts one XW-board to add digital, analogue, timer/counter or UART functions. The ordering code specifies the Traditional Chinese version of the product.
The controller runs .NET Compact Framework 3.5 applications, and the SDK supports eVC and Visual Studio .NET development. Its dual watchdog timers, real-time clock and 16 KB EEPROM help with reliable operation and data retention.
Applications
- PC-based control with SCADA and SoftPLC software
- Machine and process control where a PLC-style controller needs Windows development tools
- Distributed control panels with DIN-rail installation
| Product type: | WinCE PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB, VGA |
| Ports: | 2 Ethernet |
| Isolation: | RS-485 2500 VDC; power 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
