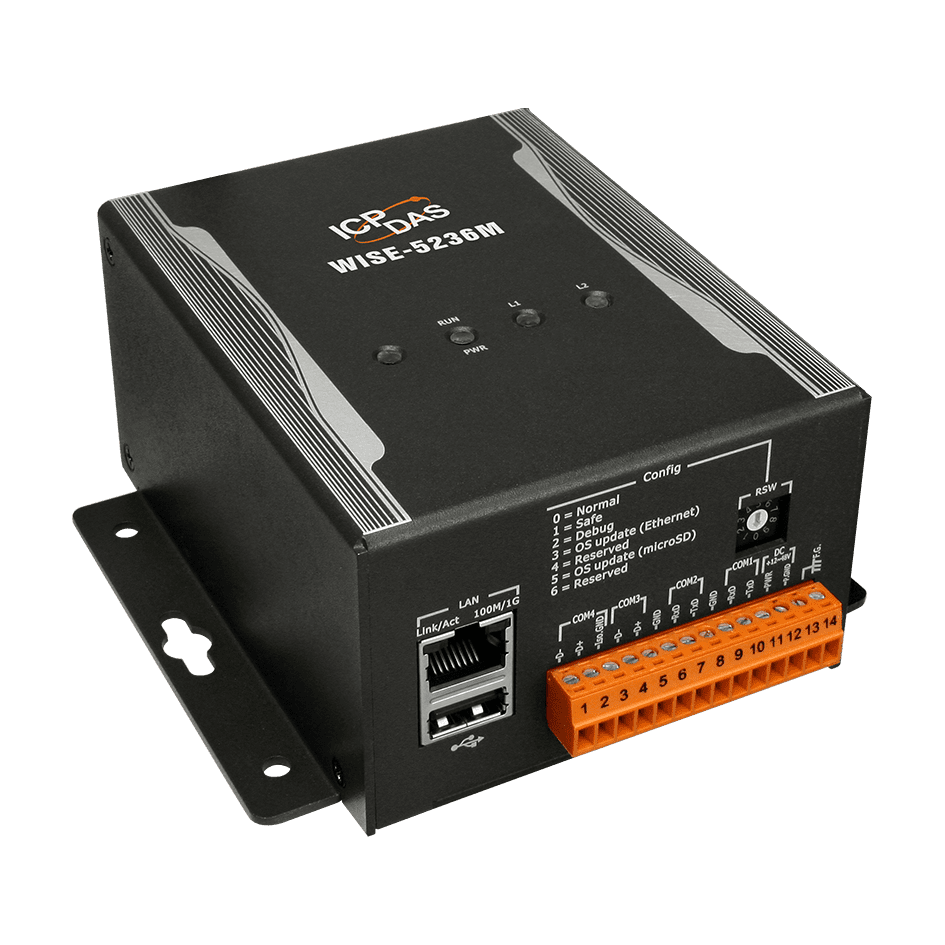

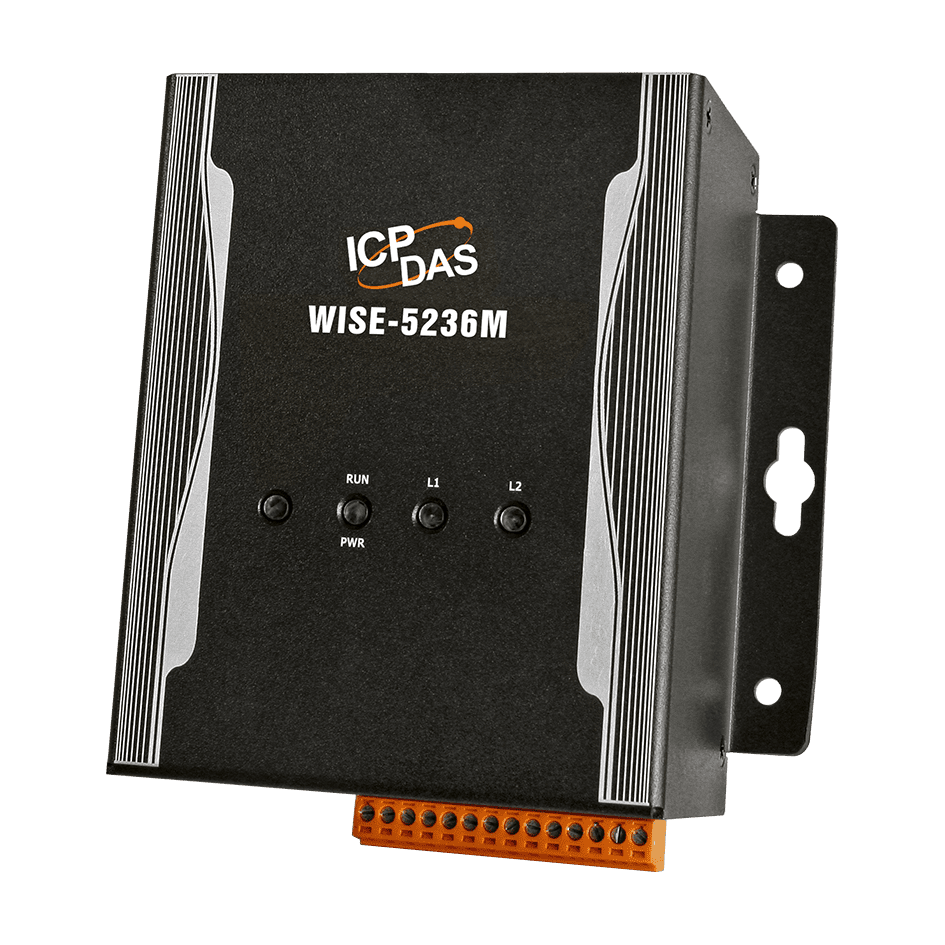

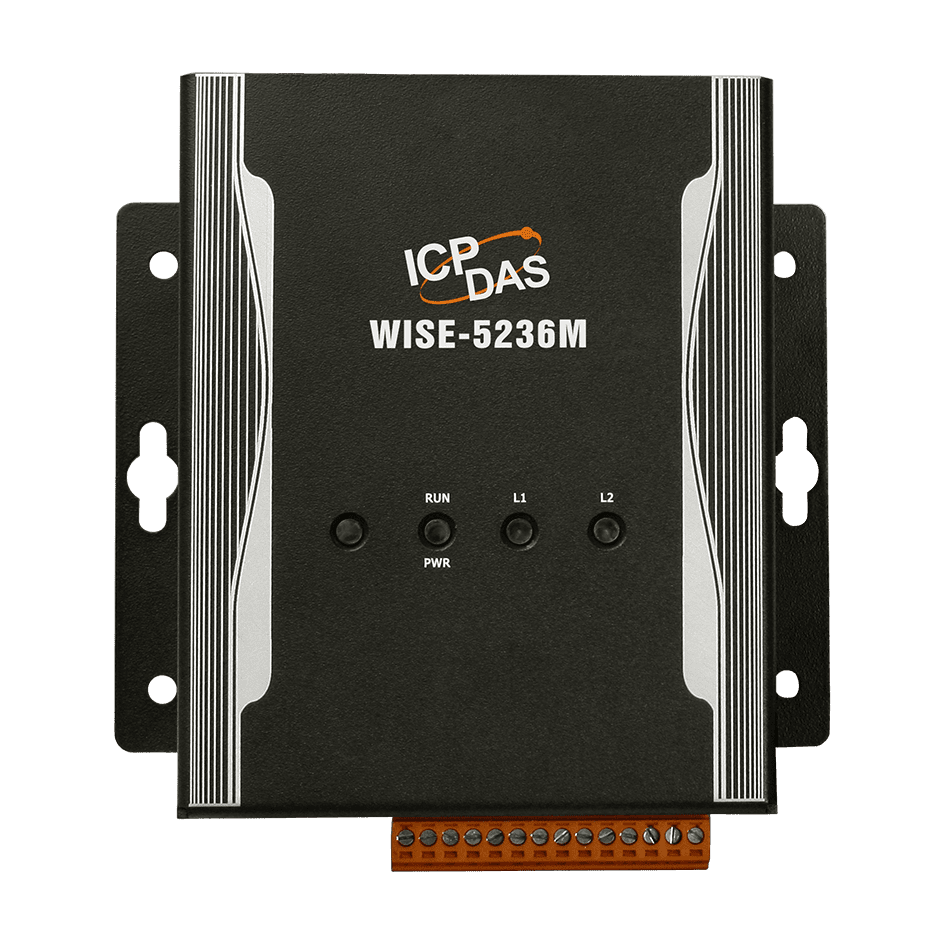

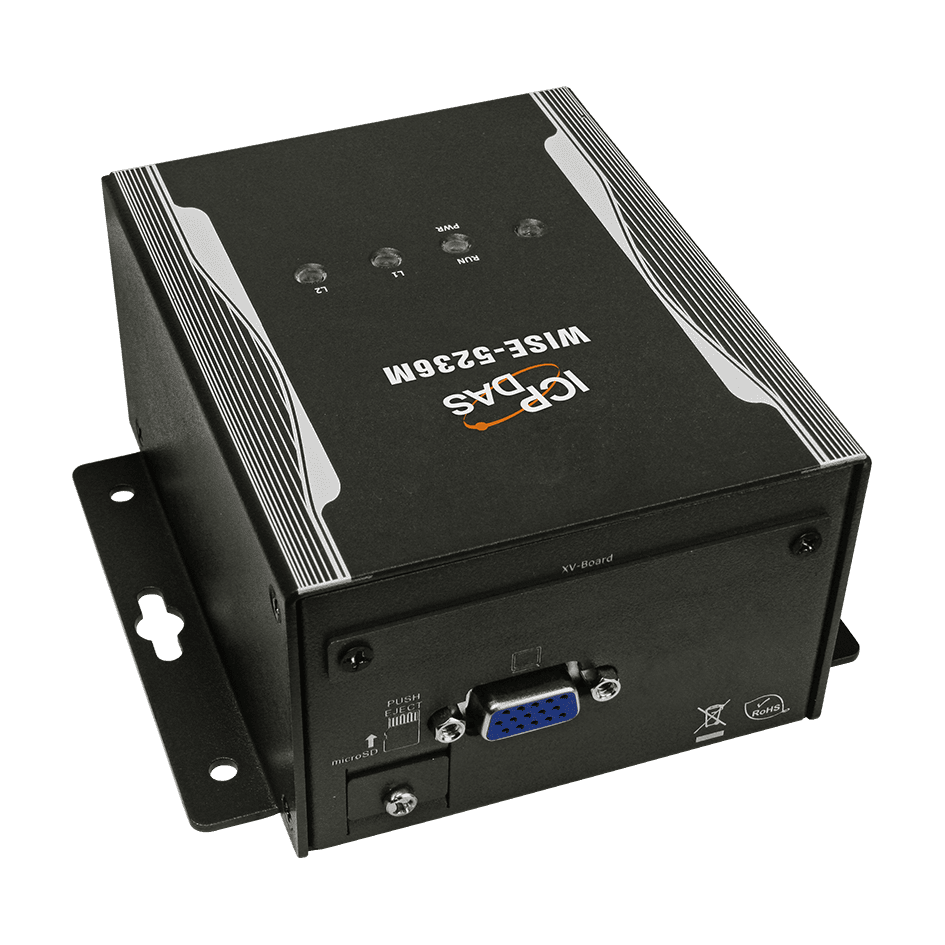

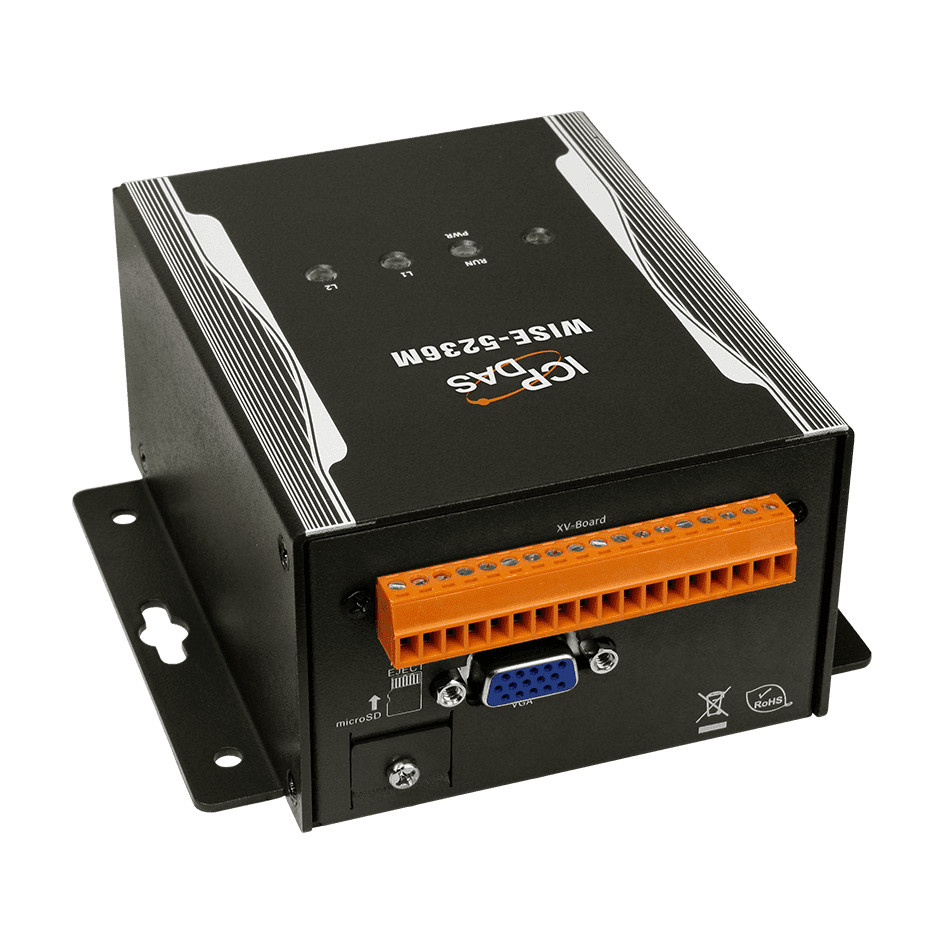

WISE-5236M IIoT Edge Controller, Metal Case, Browser-Based IF-THEN-ELSE Logic
Metal-case WISE IIoT edge controller with browser-configured IF-THEN-ELSE logic, DCON and Modbus slave I/O connection, and MQTT, SNMP and cloud integration.
- Browser-based configuration with no extra software tool and no conventional programming required
- IF-THEN-ELSE logic engine with unlimited rules, plus timer, schedule and data logger functions
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, SNMP, FTP and MQTT protocol support, with CGI command send and receive
- Active I/O sending for real-time data transfer
- Connection to Microsoft Azure and IBM Bluemix IoT cloud platforms and the ICP DAS IoTstar cloud management software
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WISE-5236M IIoT Edge Controller, Metal Case, Browser-Based IF-THEN-ELSE Logic"
The WISE-5236M CR is a metal-cased IIoT edge controller for logic control, monitoring and data collection at the field level. Control logic is built through its web pages in a browser, so no separate programming tool is needed. Its IF-THEN-ELSE engine, timers, schedules and data logger run locally on the unit.
On the I/O side, the controller connects to XV-board, DCON and Modbus RTU slave modules, and to Modbus TCP slave modules, letting you combine several device types on one unit. Communication options include Modbus TCP/RTU, SNMP, FTP and MQTT, with an MQTT client for Microsoft Azure and IBM Bluemix as well as MQTT brokers. Real-time message sending to LINE, WeChat and Email is also supported.
The manufacturer lists this ordering code for China only. Note that WeChat messaging requires an Enterprise WeChat account in China. The unit is CE, UKCA, FCC, RoHS and WEEE listed and has a 12 ~ 48 VDC power input with DIN-rail or wall mounting.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
- Unmanned Facility Room Monitoring
- Intelligent Factory
- Environment Monitoring
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | CGI, FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | RJ-45 x 1, COM 1-4 |
| Isolation: | COM 4: 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, WeChat) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 117 × 126 × 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
