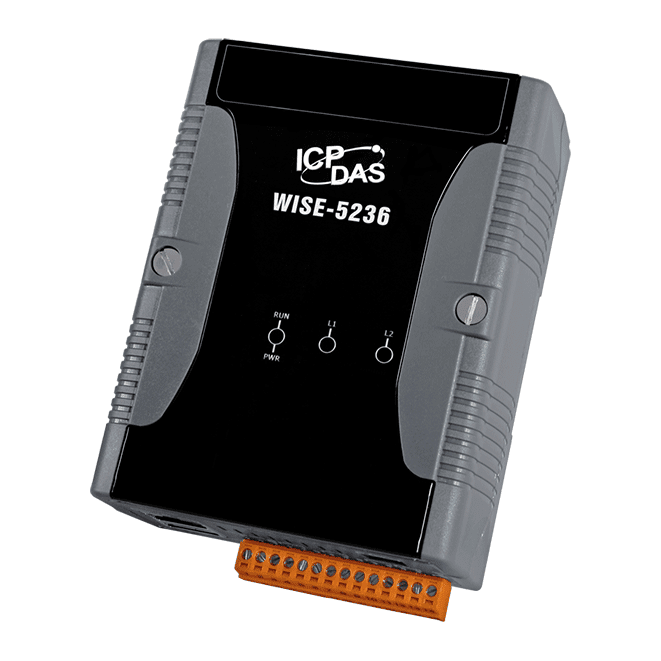

WISE-5236 IIoT Edge Controller, Web-Based IF-THEN-ELSE Logic
Browser-configured IIoT edge controller that runs IF-THEN-ELSE logic without programming, linking XV-board, DCON and Modbus I/O to MQTT, SNMP and cloud platforms.
- Browser-based configuration with IF-THEN-ELSE rules; no separate software tool or programming required
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32; COM3 and COM4 handle up to 16 modules each) and up to 16 Modbus TCP slave modules
- Supports Modbus TCP and RTU, SNMP, FTP and MQTT client communication
- Timer, schedule, data logger and recipe functions for local automation tasks
- Real-time message sending via LINE, WeChat and email; WeChat requires an enterprise account in China
- Connects to Microsoft Azure and IBM Bluemix IoT platforms and to ICP DAS IoTstar cloud management software
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "WISE-5236 IIoT Edge Controller, Web-Based IF-THEN-ELSE Logic"
The WISE-5236 CR is an IIoT edge controller for running local control logic and monitoring field I/O. Logic is built through a web interface in the browser, so no separate software tool or programming is needed. Rules are written as IF-THEN-ELSE statements, and the controller can also handle timers, schedules and data logging.
On the field side, the controller accepts XV-board, DCON and Modbus RTU slave modules, with up to 32 modules in total and up to 16 Modbus TCP slave modules. Upstream, it supports Modbus TCP and RTU, SNMP, FTP and MQTT, and it can send alerts by LINE, WeChat or email. This makes it useful as a concentrator and gateway between sensors, I/O and IT/SCADA systems.
This ordering code is the plastic-housing variant, which the source data lists as for China only. Its applications include building automation, factory and machine automation, and remote maintenance.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis and testing equipment
- Unmanned facility room monitoring
- Intelligent factory monitoring
- Environment monitoring
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | RJ-45, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 1 Ethernet, 3 serial (COM1 reserved) |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, WeChat) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 91 × 132 × 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
