WF-2060 Wi-Fi I/O Module, 6-ch Isolated DI and 6-ch Relay Output
Wi-Fi remote I/O module with six isolated digital inputs (dry or wet contact, 32-bit counters) and six power relay outputs, using Modbus/TCP and UDP over IEEE 802.11b/g.
- Six isolated digital inputs, selectable as dry or wet contact, with 32-bit counters and 10K Hz maximum frequency
- Six power relay outputs (SPST-NO), rated 5 A 250 VAC or 5 A 30 VDC
- Wi-Fi connectivity compatible with IEEE 802.11b/g, supporting infrastructure and ad-hoc modes
- Modbus/TCP and UDP protocols for SCADA and monitoring system integration
- WEP, WPA and WPA2 wireless encryption
- Digital output power-on value and safe value mechanism, plus pair connection mode
2 836,35 kr per st.
| 1–9 st. | 2 836,35 kr | |
|---|---|---|
| 10–30 st. | 2 747,72 kr | −3 % |
| 31+ st. | 2 692,32 kr | −5 % |
Produktinformation "WF-2060 Wi-Fi I/O Module, 6-ch Isolated DI and 6-ch Relay Output"

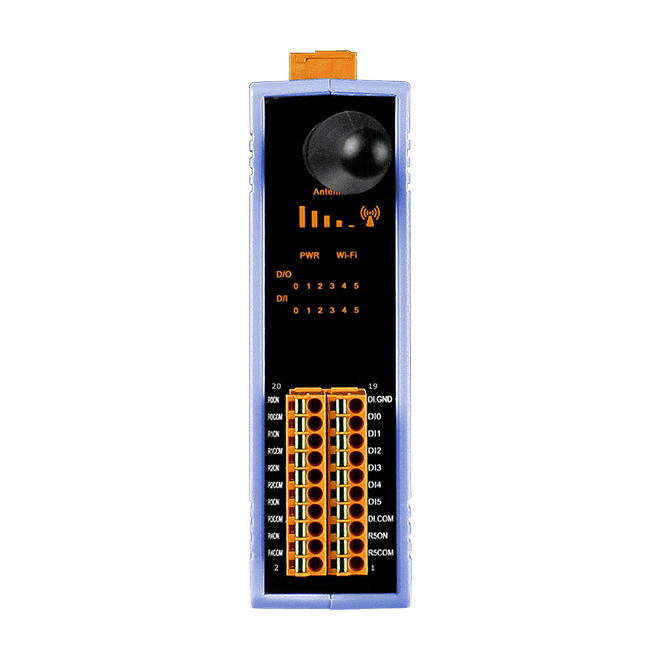

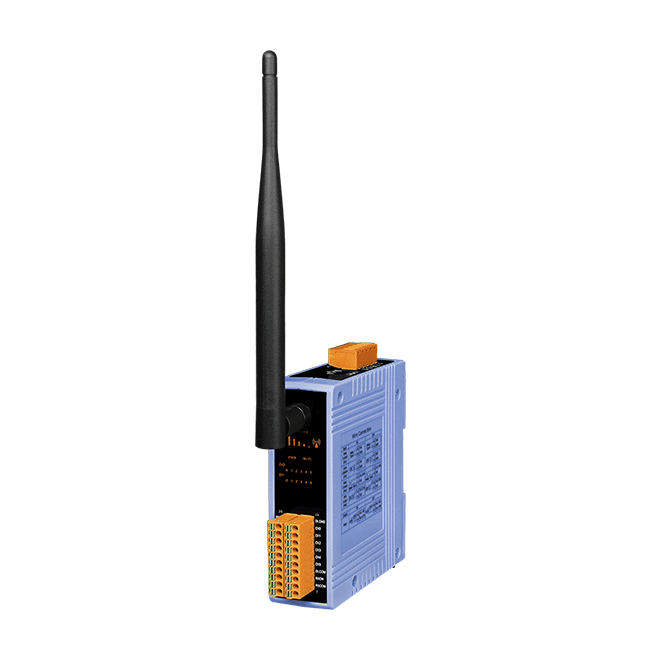

The WF-2060 CR adds wireless connectivity to a compact I/O point with six isolated digital inputs and six power relay outputs. Each input can act as a 32-bit counter, which suits pulse counting and status monitoring where cabling to a central controller is inconvenient.

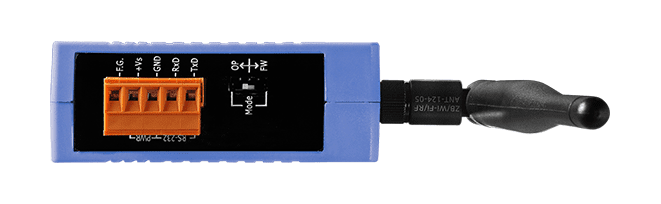

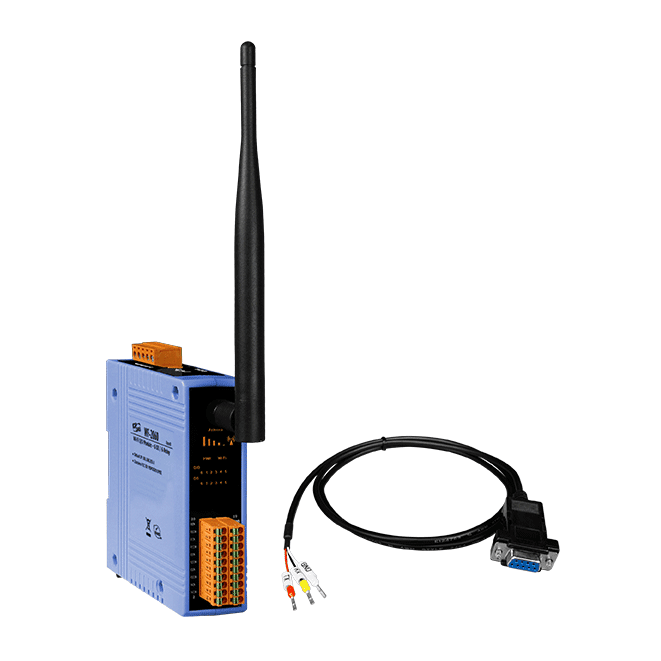

The module connects over WLAN and supports Modbus/TCP and UDP, so it can be integrated with SCADA software and other monitoring and control systems. WEP, WPA and WPA2 encryption can be configured to protect network access. The source lists this variant with an ANT-124-05 antenna and CA-0910 cable, and notes that the relay-equipped version is Asia only.
Power is supplied at +10 ~ +30 VDC, and the unit is designed for DIN-rail mounting within an operating temperature range of -25 ~ +75 °C.
Applications
- Remote monitoring and control of digital inputs and relay outputs over Wi-Fi
- Pulse and event counting with 32-bit counters
- SCADA and monitoring system integration via Modbus/TCP
| Product type: | Wi-Fi I/O Module |
|---|---|
| Interface: | Wi-Fi |
| Protocol: | Modbus TCP, UDP |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Isolation: | 3750 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | DI: 3750 VDC |
| Wi-Fi | |
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 b/g* IEEE 802.11 b/g/n** |
| RX Sensitivity | -83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps** |
| Output Power | 8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps** |
| Mode | Infrastructure & Ad-hoc* Infrastructure & Limit-AP** |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| Digital Input/Counter | |
| Channels | 6 Counters: 6 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 ~ 50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 10K Hz Max. |
| Relay Output | |
| Channels | 6 |
| Type | Power Relay (SPST-NO) |
| Contact Rating | Form A: 5 A 250 VAC (47 ~ 63 Hz) 5 A 30 VDC |
| Operate Time | Form A: 10 ms |
| Release Time | Form A: 5 ms |
| Electrical Endurance | 100,000 times min. |
| Mechanical Endurance | 20,000,000 times min. |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.6 W |
| Mechanical | |
| Dimensions (mm) | 33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
